Overview
LF DriverNERO series
SB Audience
SB Audience NERO-12MWN400D
SB Audience NERO-12MWN400D is a 12" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 66Hz, Qts 0.52, Vas 31.1L, Xmax 7.1mm, sensitivity 94.1dB, plus 387cm³ Vd and 120 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
400W
Sensitivity
94.1dB
EBP
120
Vented alignment
Vd
387cm³

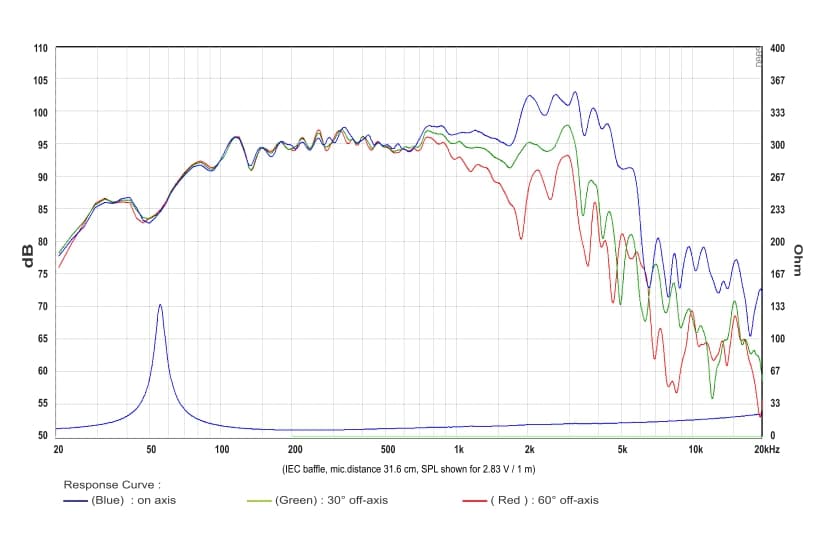

Frequency response
Manufacturer-provided response plots and related charts.

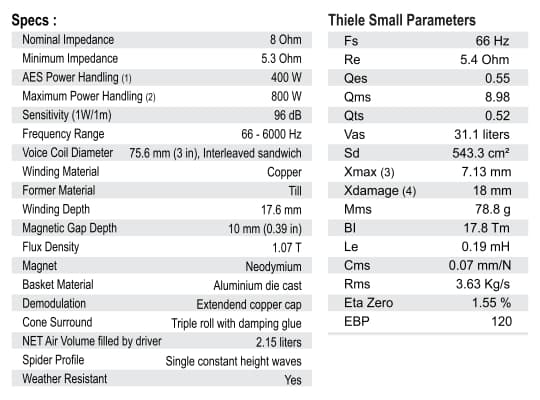

T/S Parameters
Valid
Fs66Hz
Qts0.52
Qes0.55
Qms9.0
Vas31.1L
Re5.4Ω
Le0.19mH
BL17.8Tm
Sd543cm²
Mms79g
Xmax7.1mm
SPL94dB
Power400W
Impedance8Ω
Min Impedance5.3Ω
F Low66Hz
F High6000Hz
Voice Coil76mm
Flux Density1.07T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

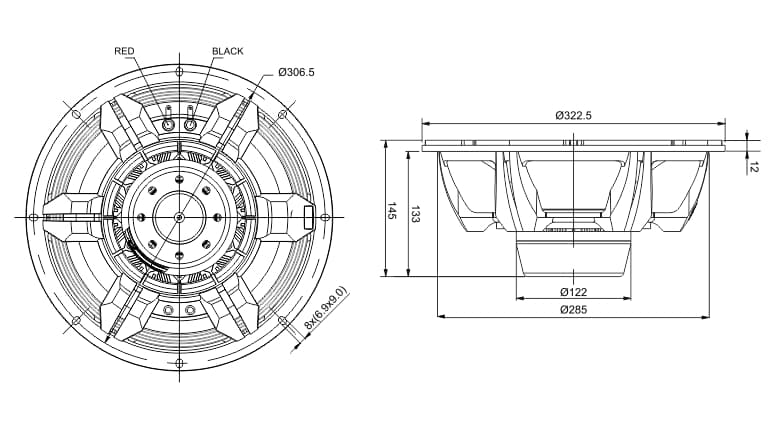

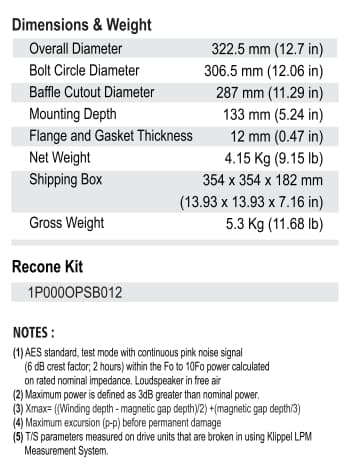

Dimensions & Physical
Weight4.2kg
Diameter322.5mm
Cutout Diameter287.0mm
Bolt Circle Diameter306.5mm
