Overview
LF DriverLEGEND BP series
Eminence

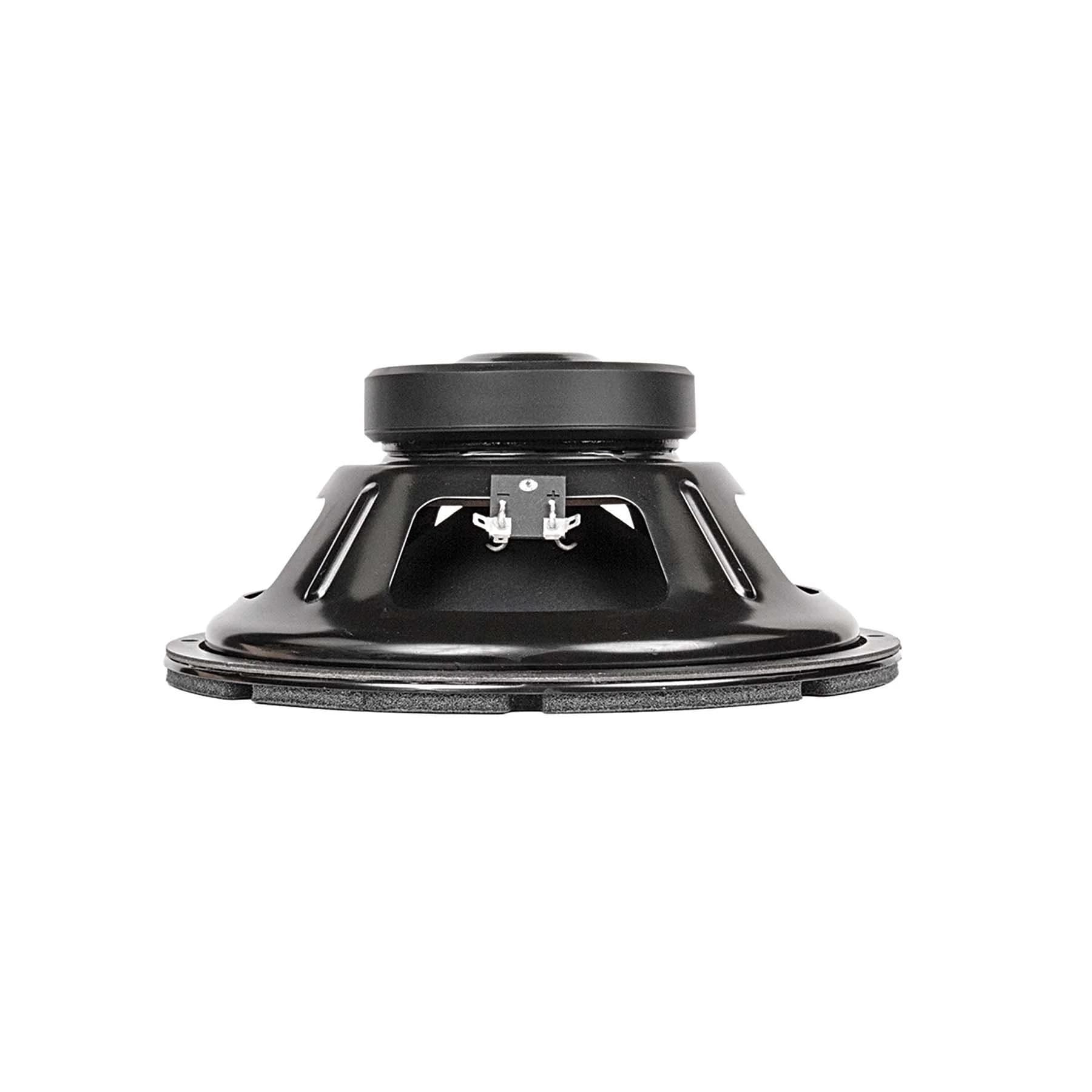

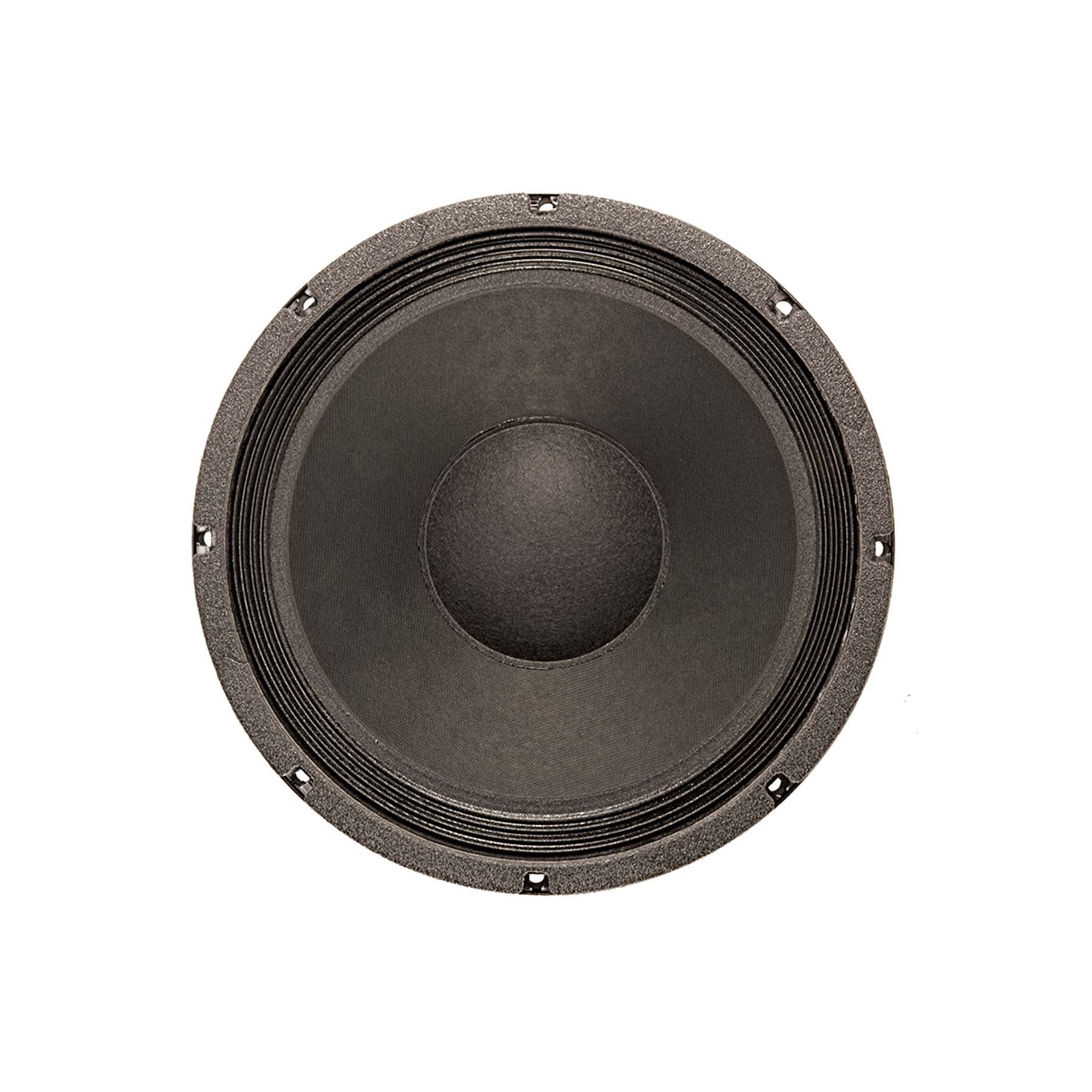

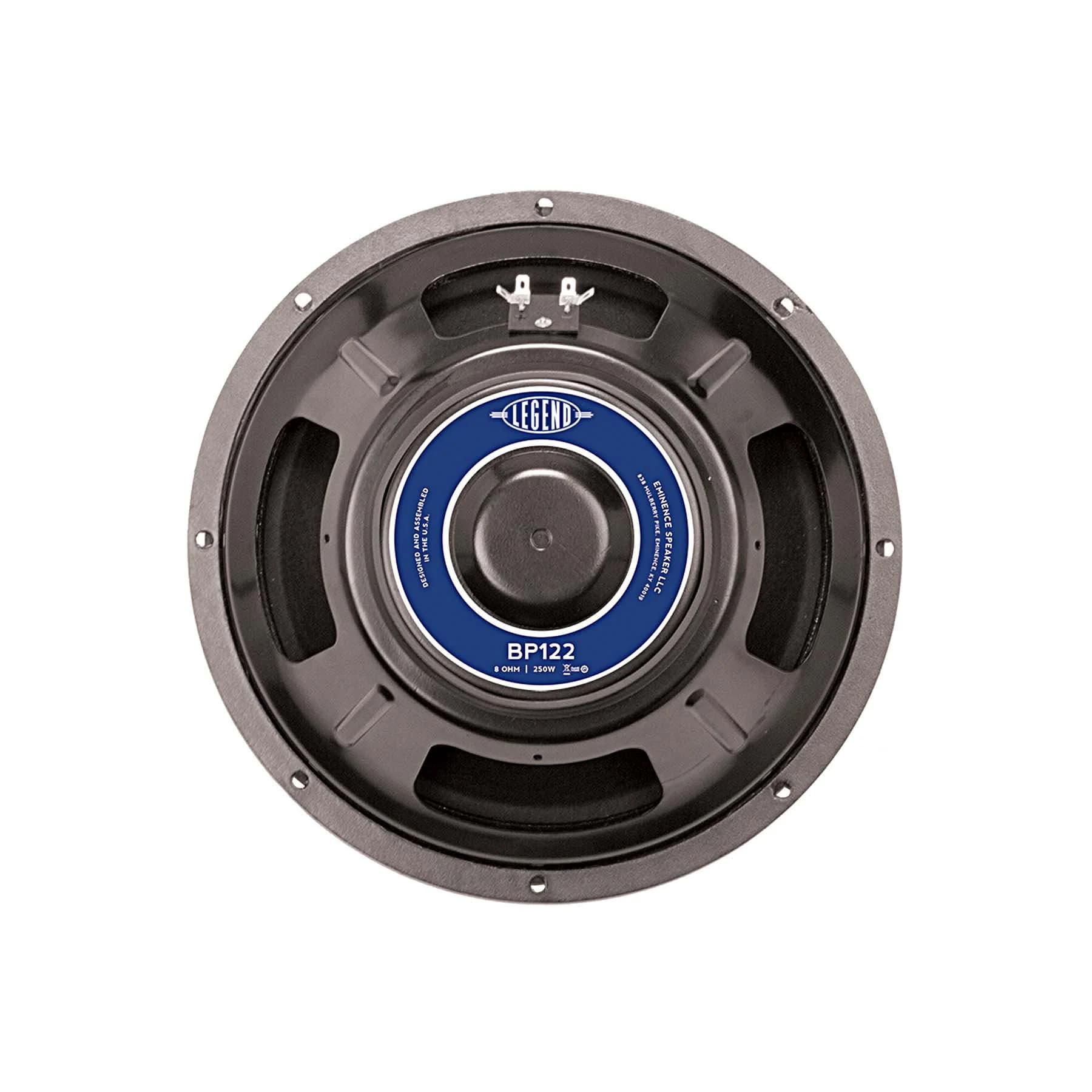

Eminence LEGEND BP 122
Eminence LEGEND BP 122 is a 12" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 35Hz, Qts 0.54, Vas 157.4L, Xmax 6.2mm, sensitivity 92.8dB, plus 330cm³ Vd and 61 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £120.00.
Size
12"
Impedance
8Ω
RMS Power
250W
Sensitivity
92.8dB
94.1dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
61
Either alignment
Vd
330cm³
T/S Parameters
Valid
Fs35Hz
Qts0.54
Qes0.57
Qms9.3
Vas157.4L
Re5.7Ω
Le0.84mH
BL10.6Tm
Sd532cm²
Mms50g
Xmax6.2mm
SPL93dB
Power250W
Impedance8Ω
F Low35Hz
F High2300Hz
Pricing & availability
Price definitionsPrice movement
Best current price
Updated 25 Sept 2026
leanaudio
£120.00
inc VAT·1 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.1kg
Diameter311.4mm
Overall Depth135.4mm
Cutout Diameter281.4mm
