Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespCIARE HW320 8Ω
LF DriverMedia
Overview
LF DriverHW series
CIARE

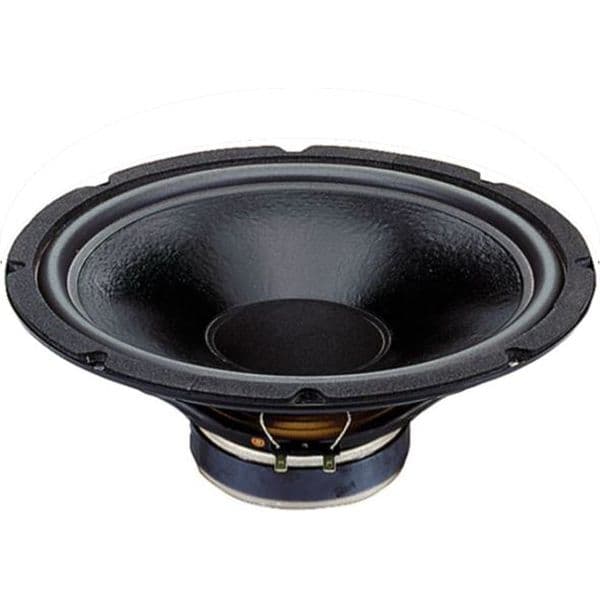

CIARE HW320
CIARE HW320 is a 12" 8 ohm LF driver rated at 240W RMS. The validated T/S data includes Fs 27Hz, Qts 0.44, Vas 293L, Xmax 6.3mm, sensitivity 92.6dB, plus 340cm³ Vd and 53 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £85.70.
Size
12"
Impedance
8Ω
RMS Power
240W
Sensitivity
92.6dB
EBP
53
Either alignment
Vd
340cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,566 selected pixels of 1,950
T/S Parameters
Valid
Fs27Hz
Qts0.44
Qes0.51
Qms3.5
Vas293.0L
Re6.5Ω
Le0.66mH
BL9.6Tm
Sd539cm²
Mms43g
Xmax6.3mm
SPL93dB
Power240W
Power Nominal120W
Impedance8Ω
F Low20Hz
F High20Hz
Voice Coil38mm
Pricing & availability
Price definitionsPrice movement
Best current price
Updated 11 Sept 2026
leanaudio
£85.70
inc VAT·2 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.9kg
Diameter312.0mm
Overall Depth141.0mm
Cutout Diameter285.0mm
Bolt Circle Diameter296.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
HW320
12"
Best current price
£85.70
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
3 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
45%
Similarity
17% more£99.85
Beyma
12BR70
12"
Higher price
Xmax8mm+27%
Qts0.5+14%
BL12.1Tm+26%
Vas142L-52%
Qes0.56+10%
61%
Similarity
Lavoce
LBASS12-15
12"
Xmax4.7mm-25%
Qts0.48+9%
BL10.1Tm+5%
Vas160.9L-45%
Qes0.56+10%
41%
Similarity
Dayton Audio
SD315A-88
12"
Xmax7mm+11%
Qts0.33-25%
BL11.9Tm+23%
Vas151.7L-48%
Qes0.37-27%
