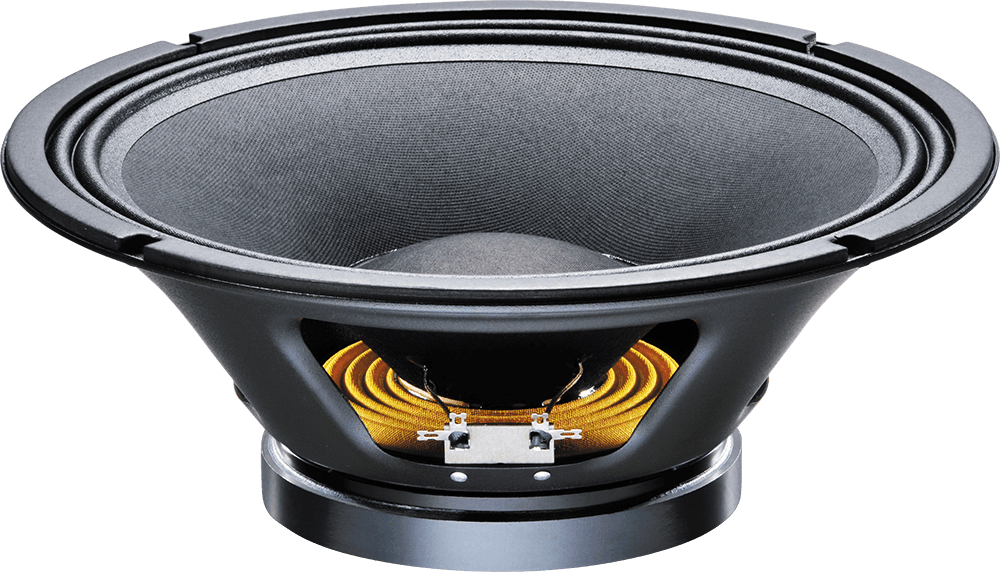

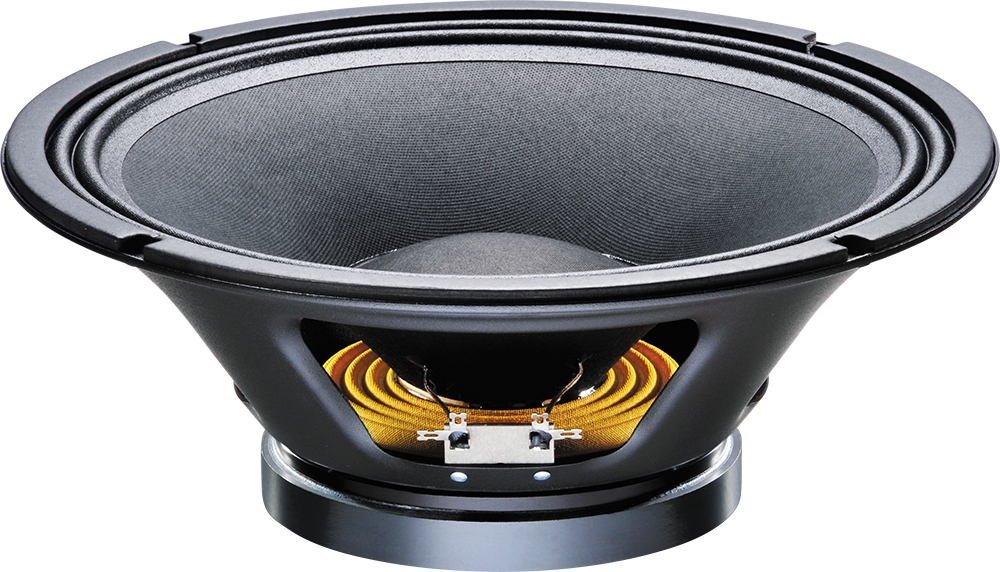

Celestion TF1230 8Ω
8 Ω · 45–3000 Hz
No price for delivery to the UK
- Fs
- 59Hz
- Xmax
- 5mm
- SPL
- 94dB
- Pe
- 350W
- BL
- 13.0T·m
- Vd
- 265cm³
- Qts
- 0.52
- Vas
- 51L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence201 selected pixels of 252

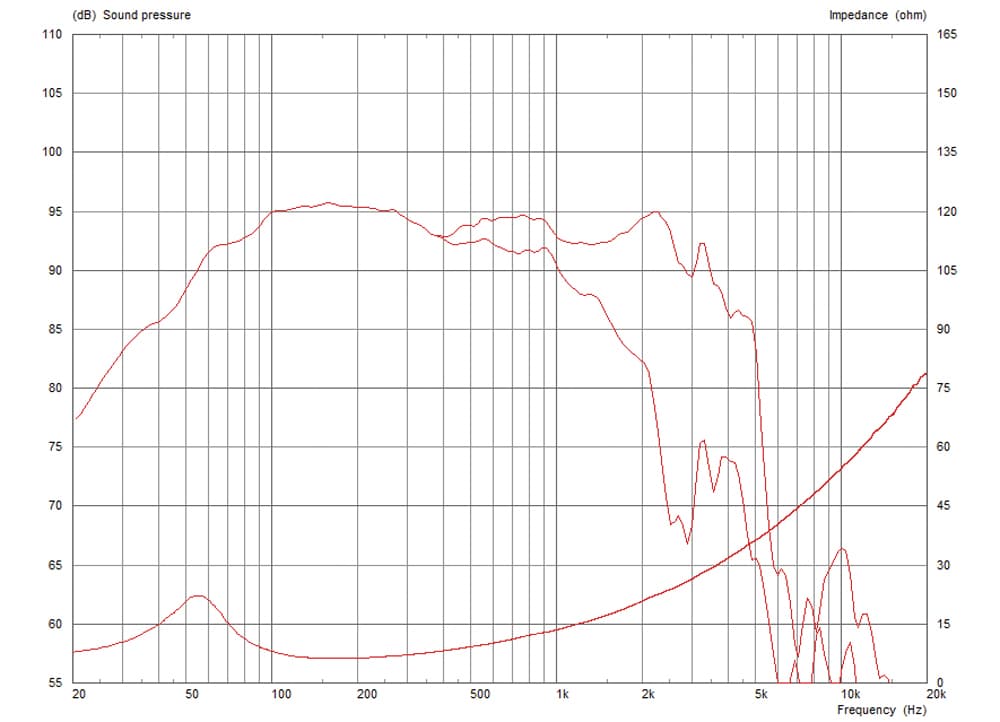

Published graphs
Celestion TF1230 is a 12-inch 8 ohm LF driver rated at 350 W RMS. The validated T/S data includes Fs 59 Hz, Qts 0.52, Vas 51.1 L, Xmax 5 mm, sensitivity 94.1 dB, plus 265 cm³ Vd and 90 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 59Hz
- Qts
- 0.52
- Qes
- 0.65
- Qms
- 2.4
- Vas
- 51.1L
- Re
- 5.2Ω
- Le
- 1.31mH
Motor and cone
- BL
- 13.0T·m
- Sd
- 531cm²
- Mms
- 57g
- Xmax
- 5mm
- Vd †
- 265cm³
- Voice coil
- 75mm
Power and response
- Sensitivity †
- 94.1dB
- Manufacturer sensitivity
- 94dB
- Power
- 350W
- Impedance
- 8Ω
- Range
- 45–3000Hz
- EBP †
- 90 · Sealed or vented
Size and mounting
- Diameter
- 309mm
- Cutout
- 283mm
- Bolt circle
- 297mm
- Depth
- 140mm
- Weight
- 4.3kg
Other published values
- Cms
- 0.13mm/N
- Rms
- 8.60kg/s
- Power Program
- 700
† Calculated by bits from the published values
What this validation status means
Everything else Celestion lists
LF · Primary · 12″
- BL
- 13.0T·m
- Fs
- 59Hz
- Le
- 1.31mH
- Re
- 5.2Ω
- Sd
- 531cm²
- Cms
- 0.13mm/N
- Mms
- 57g
- Qes
- 0.65
- Qms
- 2.4
- Qts
- 0.52
- Rms
- 8.60kg/s
- SPL
- 94.1dB
- Vas
- 51.1L
- Xmax
- 5mm
- Power
- 350W
- Impedance
- 8Ω
- Sensitivity
- 94dB
- Low limit
- 45Hz
- Power Program
- 700
- Calculated sensitivity †
- 94.1dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 94dB
- Voice coil
- 75mm
- Weight
- 4.3kg
- Diameter
- 309mm
- Depth
- 140mm
- Cutout
- 283mm
- Bolt circle
- 297mm
