Overview
LF DriverSWAMP THANG series
Eminence

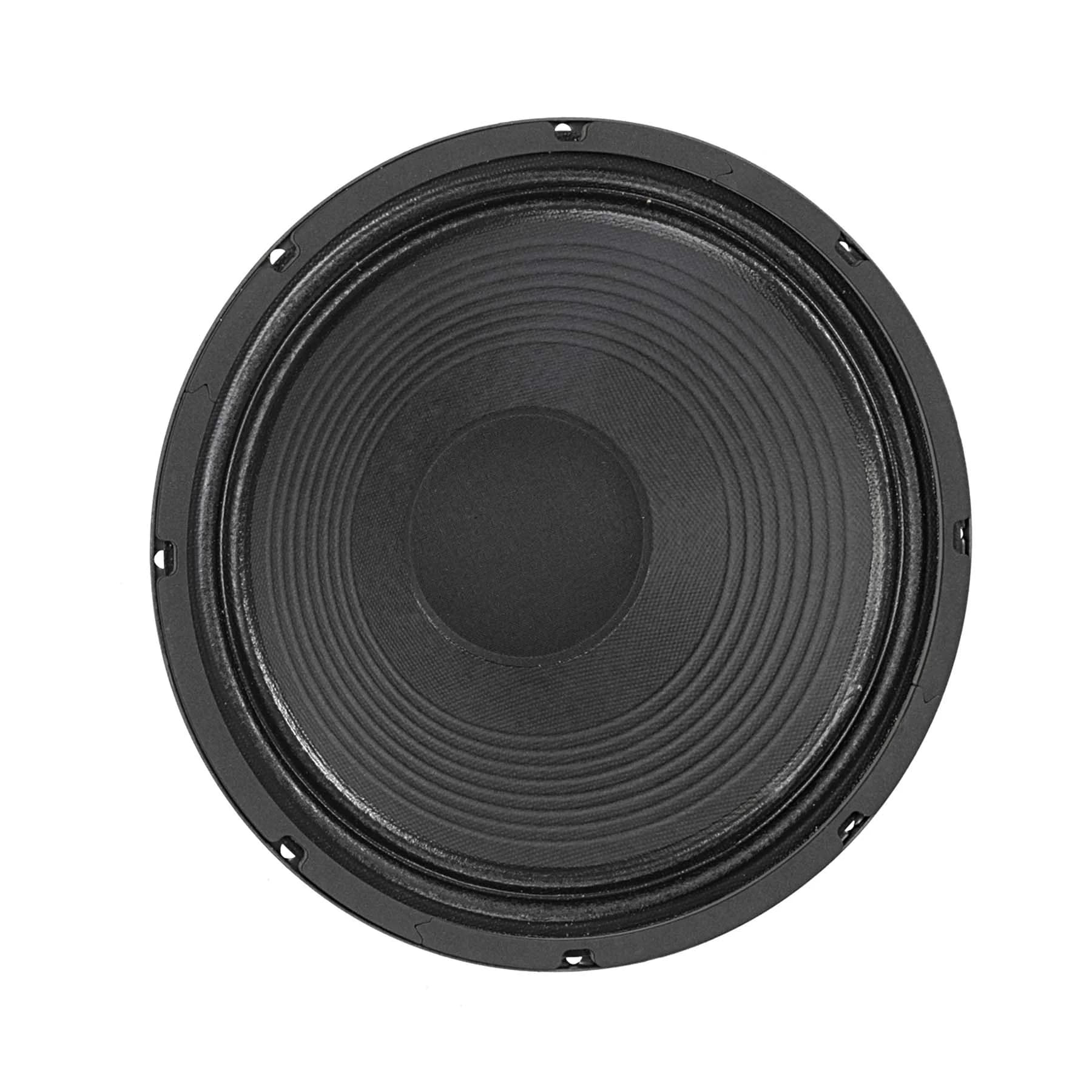

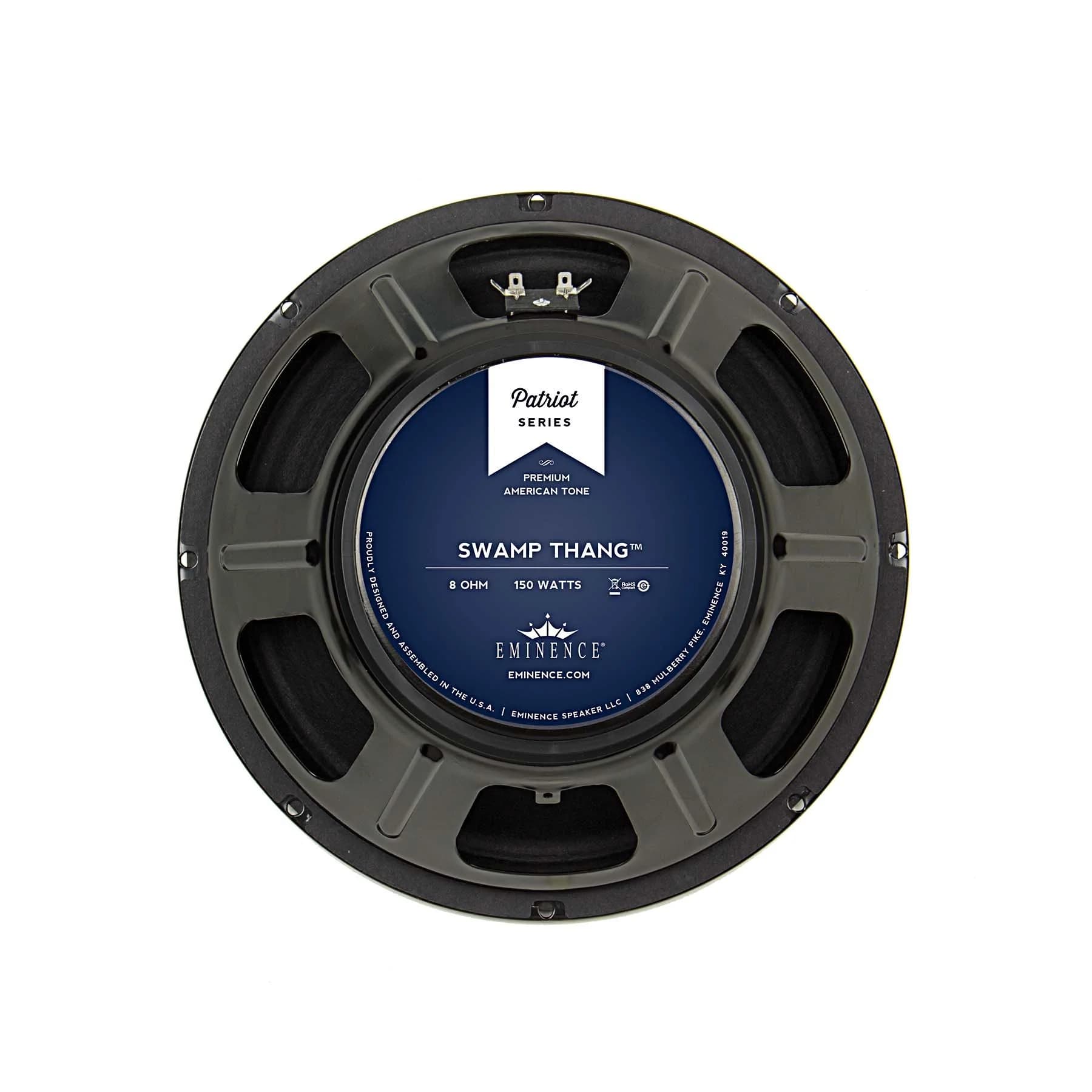

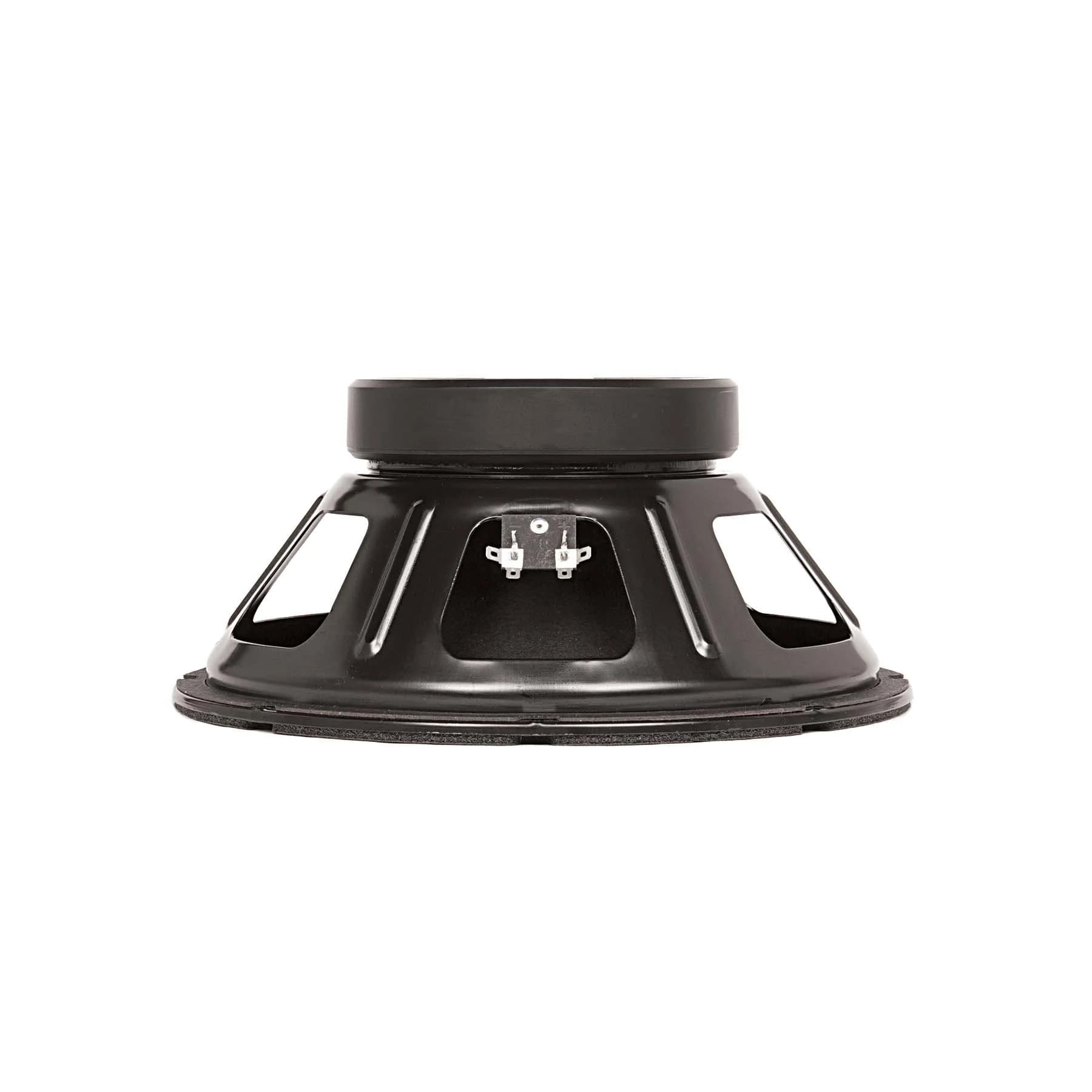

Eminence SWAMP THANG
Eminence SWAMP THANG is a 12" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 97Hz, Qts 0.53, Vas 41.3L, Xmax 0.8mm, sensitivity 100.4dB, plus 43cm³ Vd and 176 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
150W
Sensitivity
100.4dB
102.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
176
Vented alignment
Vd
43cm³
T/S Parameters
Valid
Fs97Hz
Qts0.53
Qes0.55
Qms14.4
Vas41.3L
Re6.9Ω
Le0.42mH
BL14.2Tm
Sd532cm²
Mms26g
Xmax0.8mm
SPL100dB
Power150W
Impedance8Ω
F Low70Hz
F High4000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.0kg
Diameter305.6mm
Overall Depth132.1mm
Cutout Diameter281.2mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eminence
SWAMP THANG
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
9 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
78%
Similarity
£87.00
Eminence
GUIT-FIDDLE
12"
Xmax0.8mm-1%
Qts0.56+6%
BL13.1Tm-8%
Vas57.8L+40%
Qes0.58+5%
72%
Similarity
£102.56
Eminence
THE TONKER
12"
Xmax0.8mm0%
Qts0.47-11%
BL17.4Tm+23%
Vas34.1L-17%
Qes0.49-11%
67%
Similarity
Jensen
C12K-2-8
12"
Xmax1mm+25%
Qts0.47-11%
BL14.7Tm+4%
Vas43.1L+4%
Qes0.62+13%
66%
Similarity
£105.00
Eminence
LEGEND GB128
12"
Xmax0.8mm0%
Qts0.65+23%
BL12Tm-15%
Vas43.9L+6%
Qes0.67+22%
64%
Similarity
£93.36
Eminence
TEXAS HEAT
12"
Xmax0.8mm0%
Qts0.65+23%
BL12.8Tm-10%
Vas50.9L+23%
Qes0.68+24%
57%
Similarity
Jensen
MOD12-130-8
12"
Xmax1mm+25%
Qts0.49-8%
BL15.2Tm+7%
Vas38.4L-7%
Qes0.76+38%
54%
Similarity
Jensen
JN12-100TRS-8
12"
Xmax1mm+25%
Qts0.52-2%
BL12.9Tm-9%
Vas55.9L+35%
Qes0.74+35%
52%
Similarity
Jensen
JN12-80TRS-8
12"
Xmax1mm+25%
Qts0.55+4%
BL12.2Tm-14%
Vas56.5L+37%
Qes0.71+29%
45%
Similarity
Jensen
C12-75NH-8
12"
Xmax1mm+25%
Qts0.64+21%
BL11.8Tm-17%
Vas42.4L+3%
Qes0.76+38%
