Overview
LF DriverGA series
Eminence

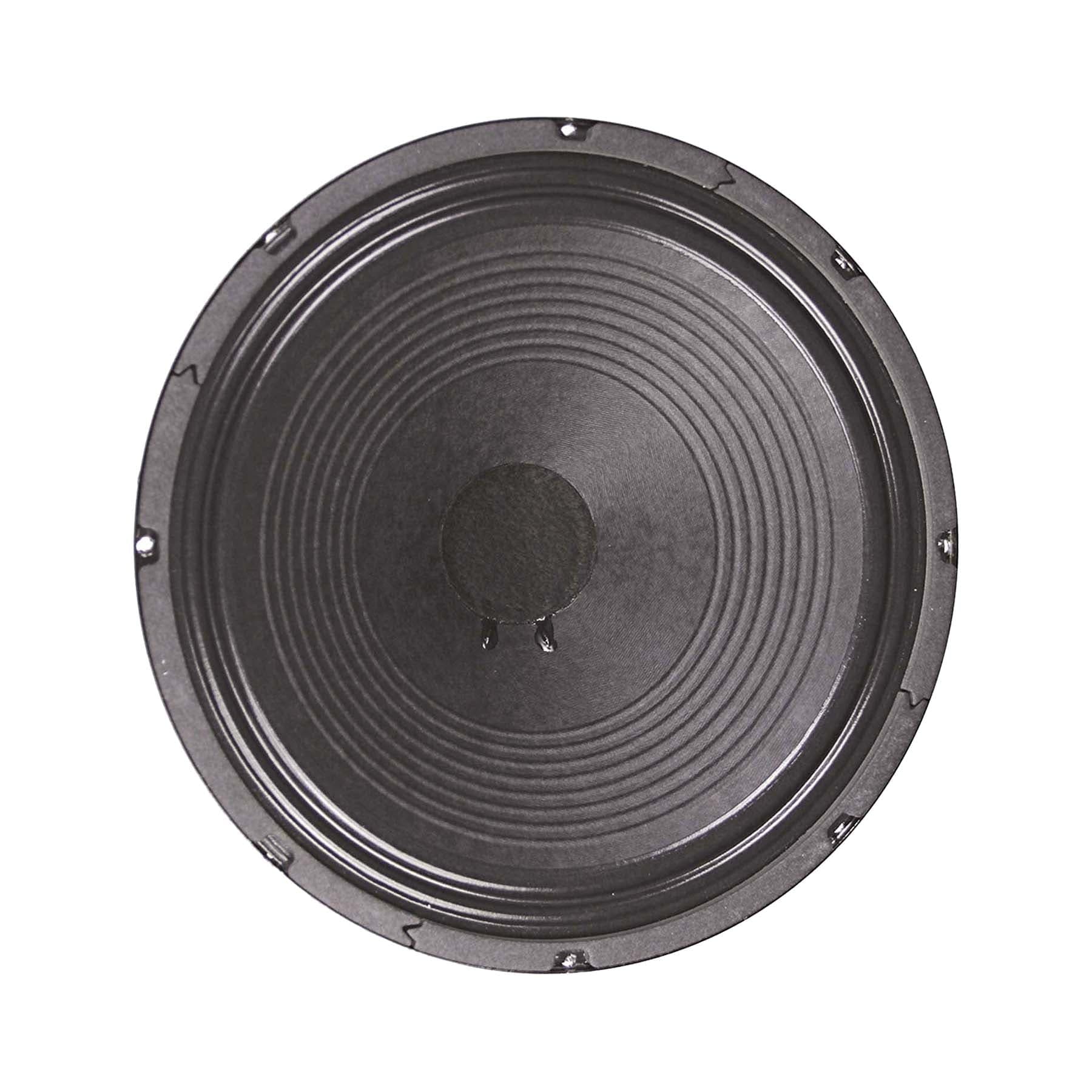

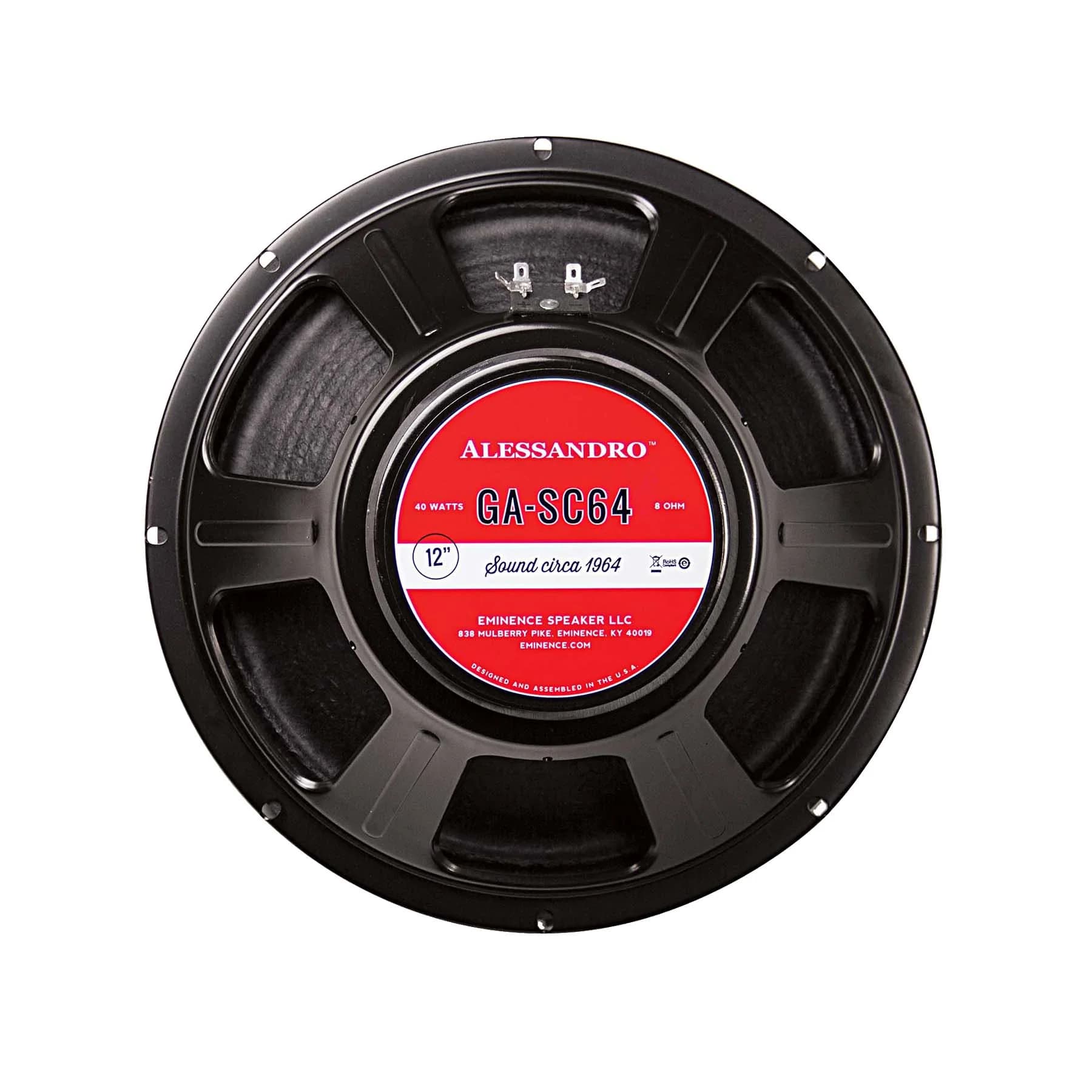

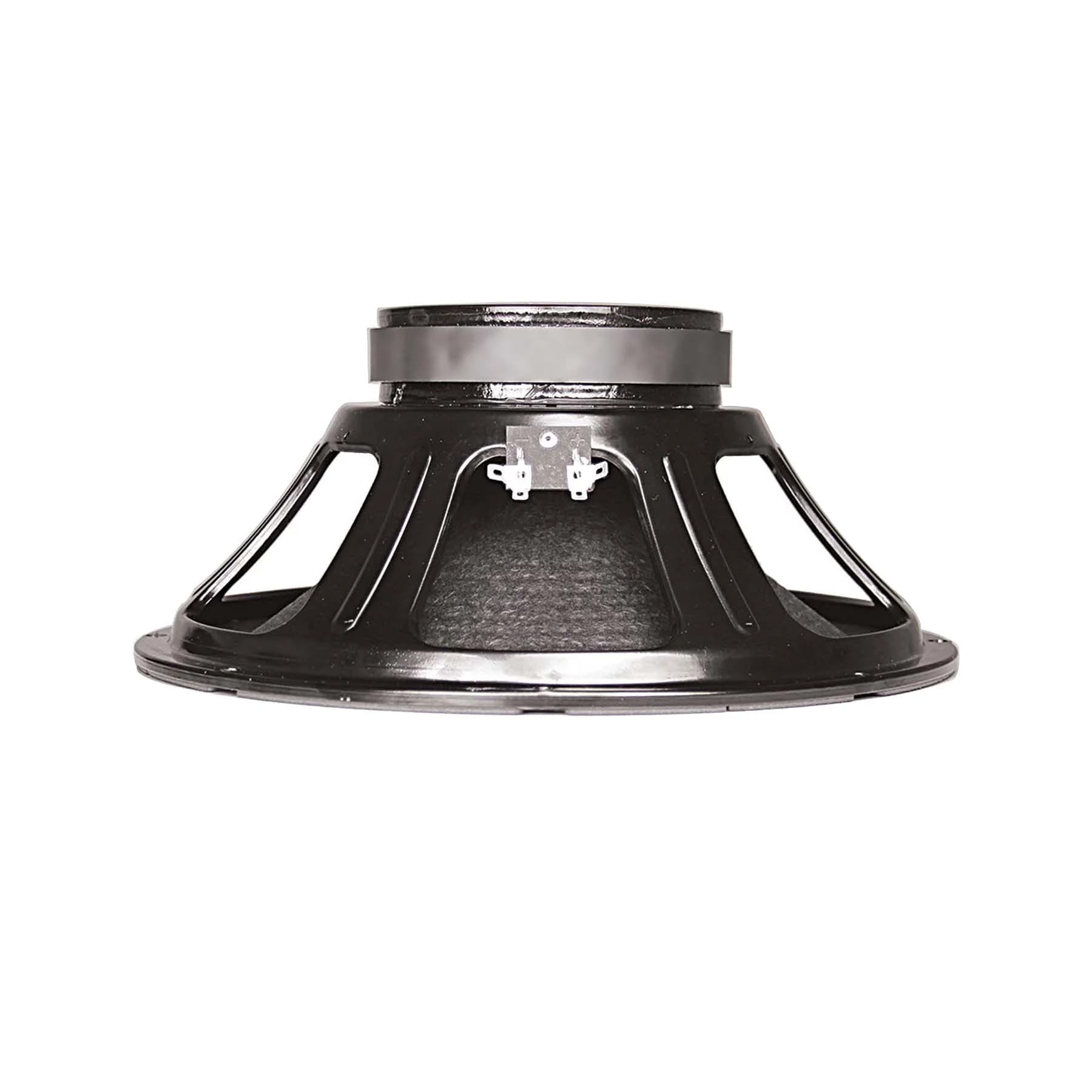

Eminence GA-SC64
Eminence GA-SC64 is a 12" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 88Hz, Qts 0.58, Vas 45.0L, Xmax 1.2mm, sensitivity 99.1dB, plus 64cm³ Vd and 147 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
40W
Sensitivity
99.1dB
100.5dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
147
Vented alignment
Vd
64cm³
T/S Parameters
Valid
Fs88Hz
Qts0.58
Qes0.60
Qms16.8
Vas45.0L
Re7.6Ω
Le0.67mH
BL13.8Tm
Sd520cm²
Mms27g
Xmax1.2mm
SPL99dB
Power40W
Impedance8Ω
F Low80Hz
F High5300Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.4kg
Diameter309.1mm
Overall Depth130.3mm
Cutout Diameter282.7mm
