Wavecor SW312WA06 8Ω
LF DriverMedia
Wavecor
SW312WA06
Image unavailable
Overview
LF DriverSW312WA series
Wavecor

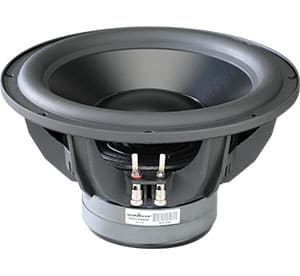

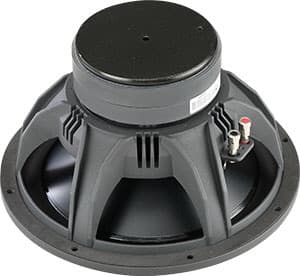

Wavecor SW312WA06
Wavecor SW312WA06 is a 12" 8 ohm LF driver. The validated T/S data includes Fs 29Hz, Qts 0.57, Vas 61L, Xmax 11.5mm, sensitivity 86dB, plus 561cm³ Vd and 48 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
Sensitivity
86.0dB
EBP
48
Sealed alignment
Vd
561cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
FR040WA02 on-axis240 ptsp2medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
FR040WA02 on-axis
Frequency response
240 plotted pointsMedium confidence950 selected pixels of 950 - Trace datasheet-response-trace-poc/v1
FR040WA01 impedance
Impedance response
240 plotted pointsMedium confidence738 selected pixels of 738 - Trace datasheet-response-trace-poc/v1
FR040WA02 impedance
Impedance response
240 plotted pointsMedium confidence714 selected pixels of 714
T/S Parameters
Valid
Fs29Hz
Qts0.57
Qes0.60
Qms11.0
Vas61.0L
Re6.6Ω
BL18.4Tm
Sd488cm²
Mms172g
Xmax11.5mm
SPL86dB
Impedance8Ω
Voice Coil51mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le, RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le, RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le, RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter311.1mm
