LF Driver12CXN series
B&C

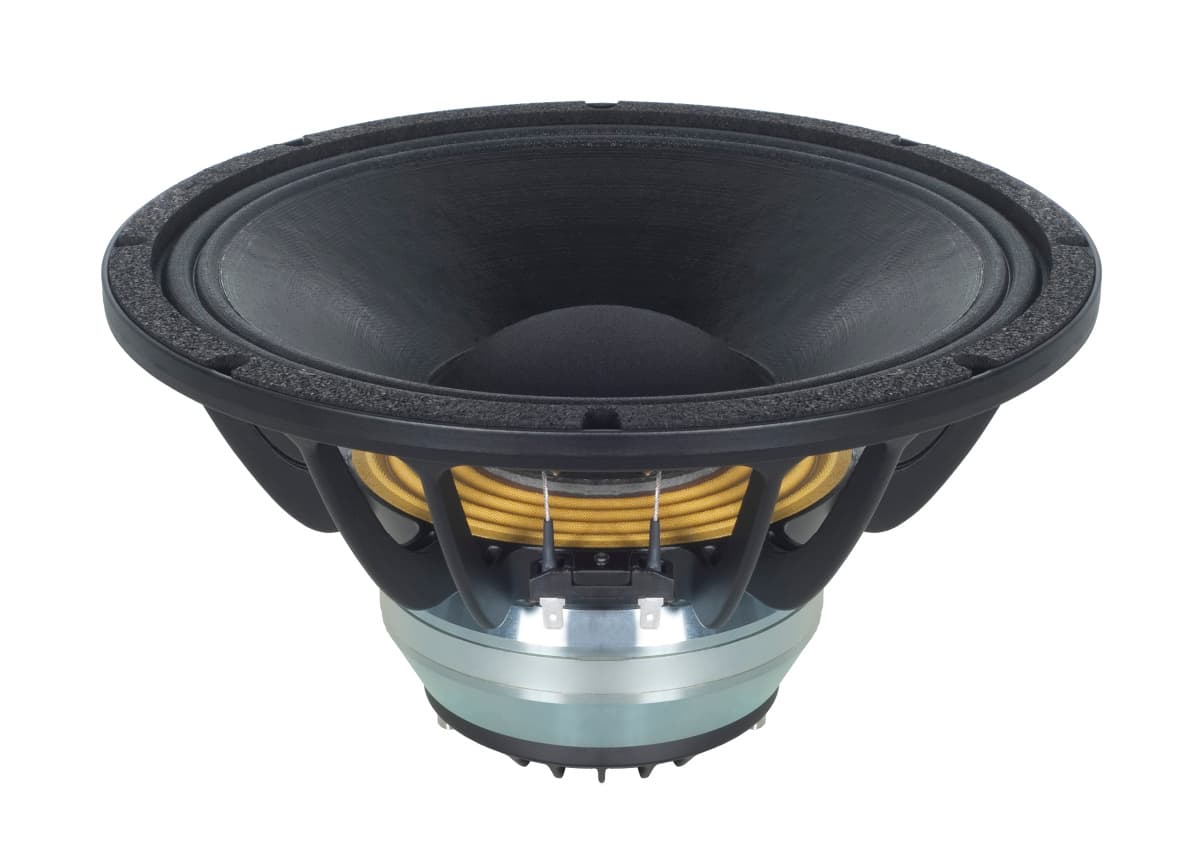

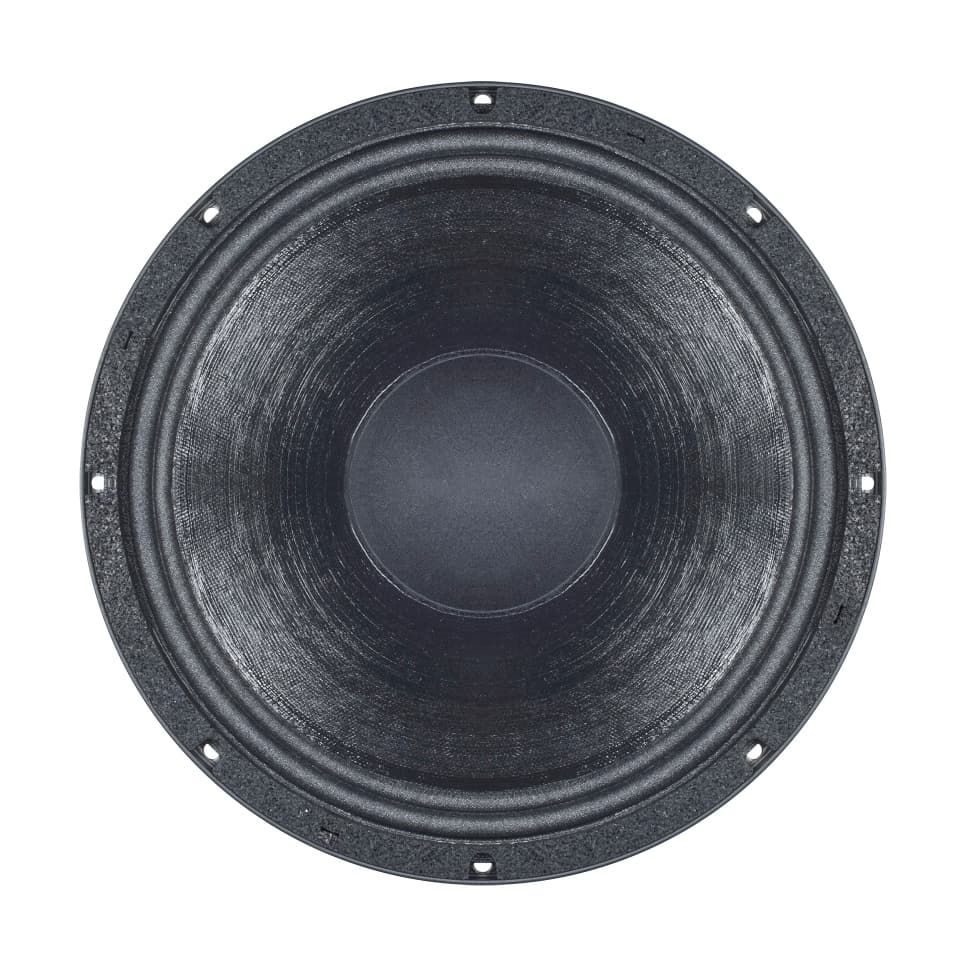

B&C 12CXN88
B&C 12CXN88 is a 12" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 50Hz, Qts 0.22, Vas 59L, Xmax 10.5mm, sensitivity 97.1dB, plus 548cm³ Vd and 217 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £465.46.
Size
12"
Impedance
8Ω
RMS Power
500W
Sensitivity
97.1dB
100.0dBmanufacturer; using T/S-derived value (2.9dB delta).
EBP
217
Vented alignment
Vd
548cm³

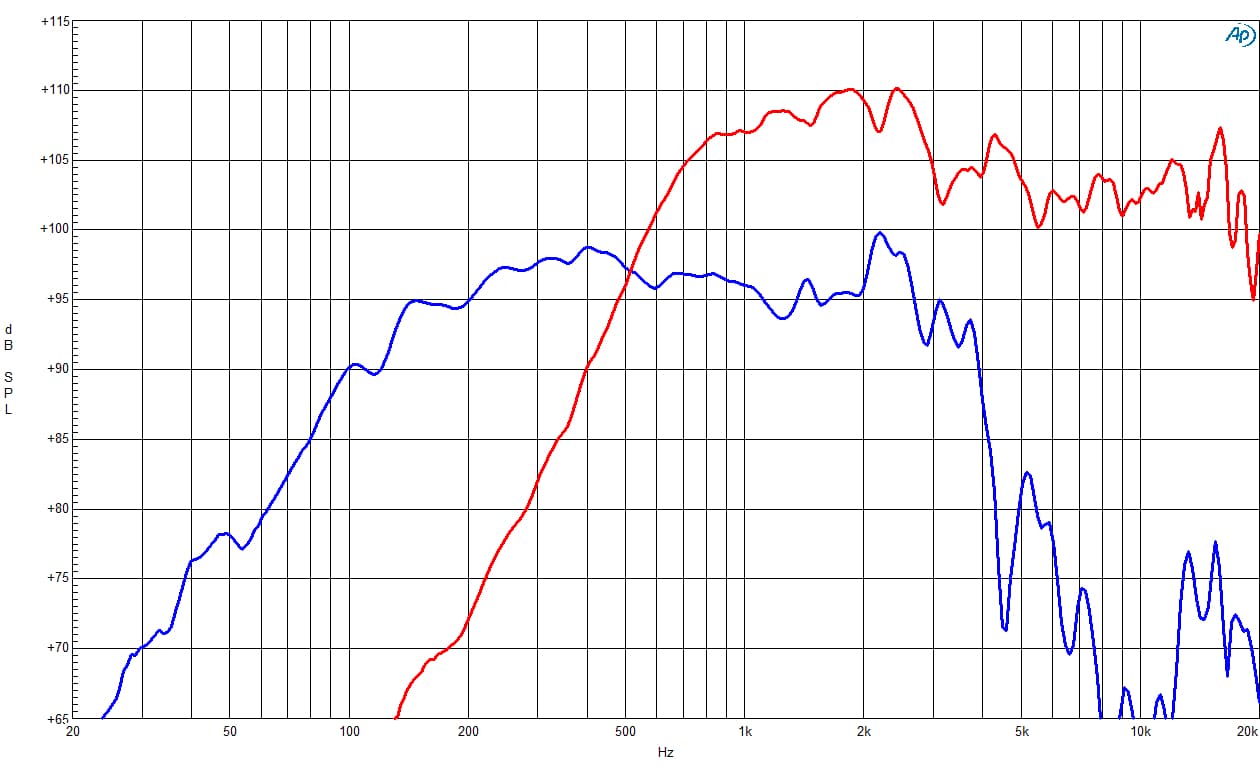

Frequency response

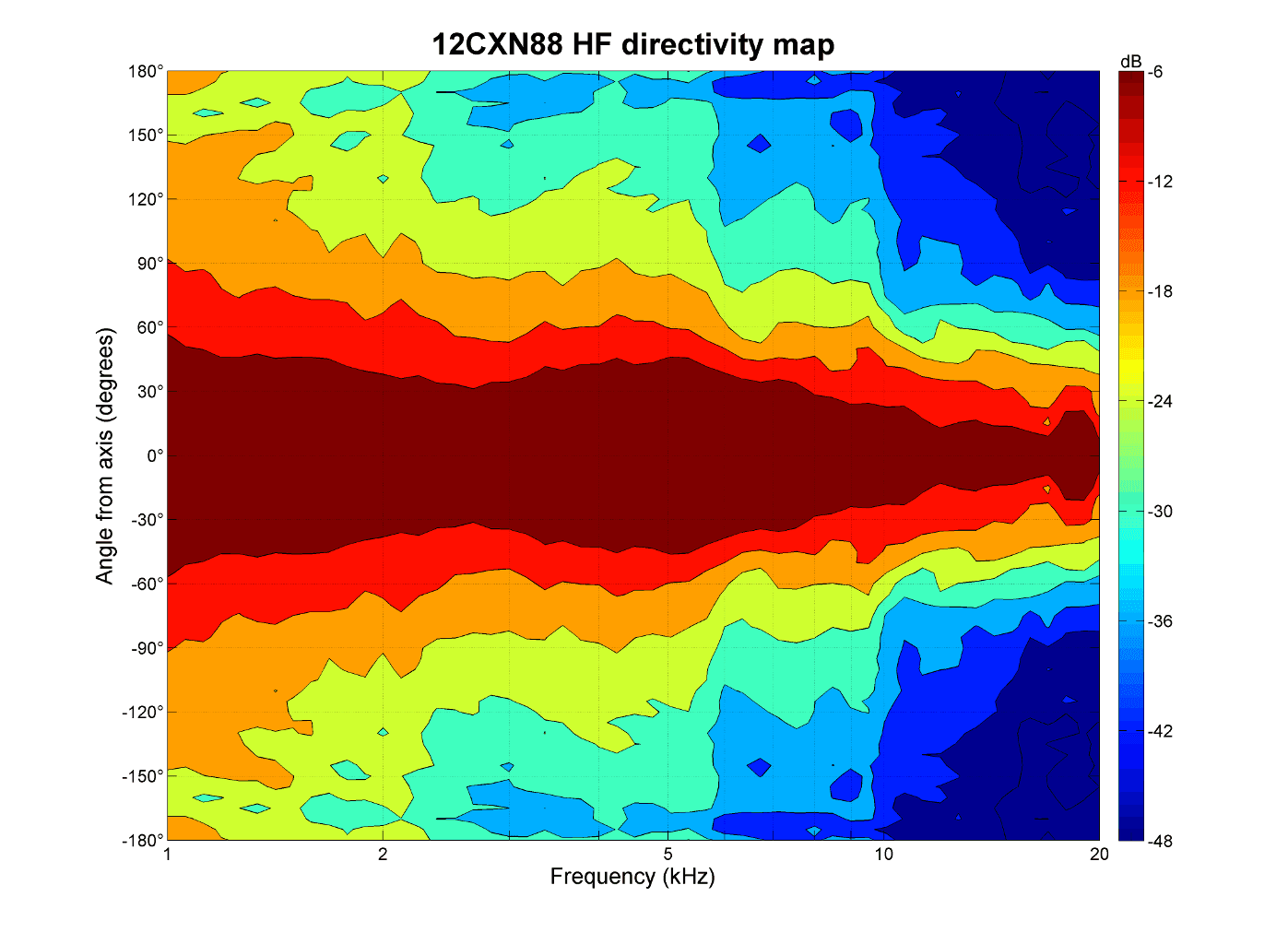

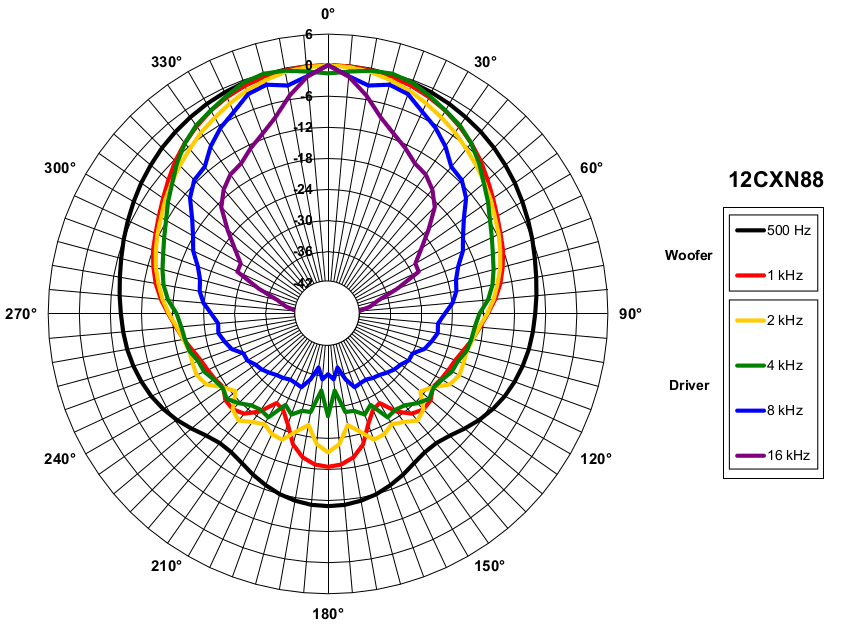

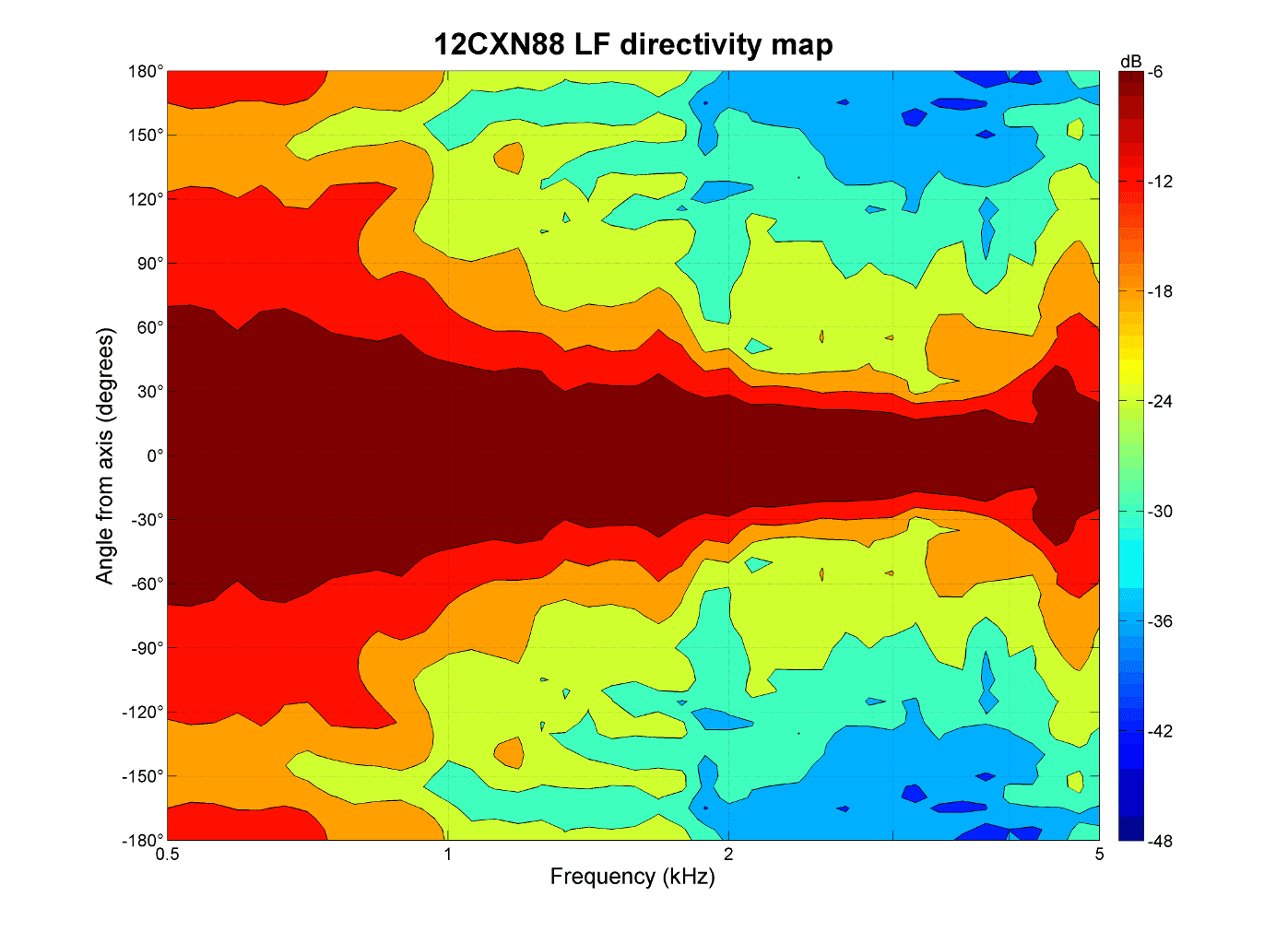

Manufacturer-provided response plots and related charts.
Overall Parameters
Valid
Fs50Hz
Qts0.22
Qes0.23
Qms8.3
Vas59.0L
Re5.0Ω
Le1.05mH
BL20.9Tm
Sd522cm²
Mms60g
Xmax10.5mm
SPL97dB
Power500W
Power Nominal500W
Impedance8Ω
Min Impedance6.6Ω
Voice Coil88mm
Flux Density1.05T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsPrice movement
Best current price
£465.46
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFSpecifications LF unit
Fs50 Hz
Qts0.22
Qes0.23
Qms8.3
Vas59.0 L
Re5.0 Ω
Le1.05 mH
BL20.9 Tm
Sd522 cm²
Mms60 g
Xmax10.5 mm
SPL97 dB
Power500 W
Power Nominal500 W
Impedance8 Ω
Min Impedance6.6 Ω
Voice Coil88 mm
Flux Density1.05 T
HFSpecifications HF unit
Le0.14 mH
SPL106 dB
Power80 W
Power Nominal80 W
Impedance8 Ω
Min Impedance8.5 Ω
Xover1200 Hz
Voice Coil75 mm
Flux Density1.75 T
Additional Manufacturer Specs
Bl20.9 Tm
Fs50 Hz
Le1.05 mH
Re5 Ω
Sd522 cm² (80.91 in²)
Ebp217 Hz
Mms60 g
Qes0.23
Qms8.3
Qts0.22
Vas59 dm³ (2.08 ft³)
η03.6 %
Xvar10.5 mm
Winding Depth21.5 mm (0.85 in)
Former MaterialGlass Fibre
Nominal Diameter320 mm (12 in)
Winding MaterialAluminium
Magnetic Gap Depth11 mm (0.43 in)
Woofer Cone TreatmentWP Waterproof Front Side
