LF DriverPD series
Precision Devices

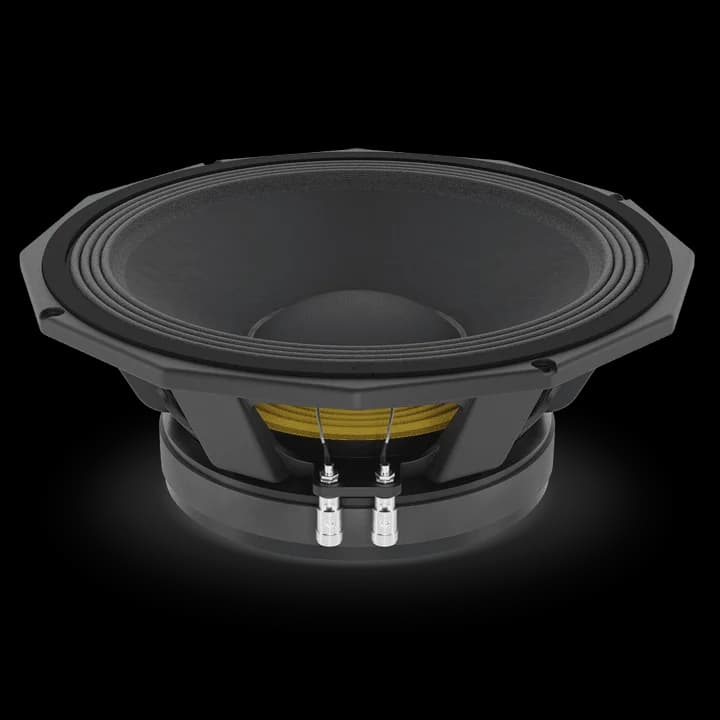

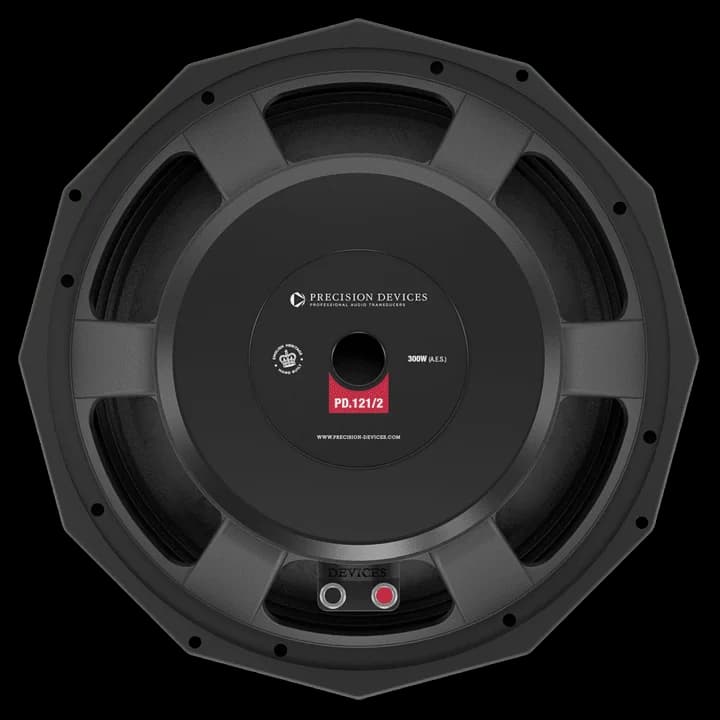

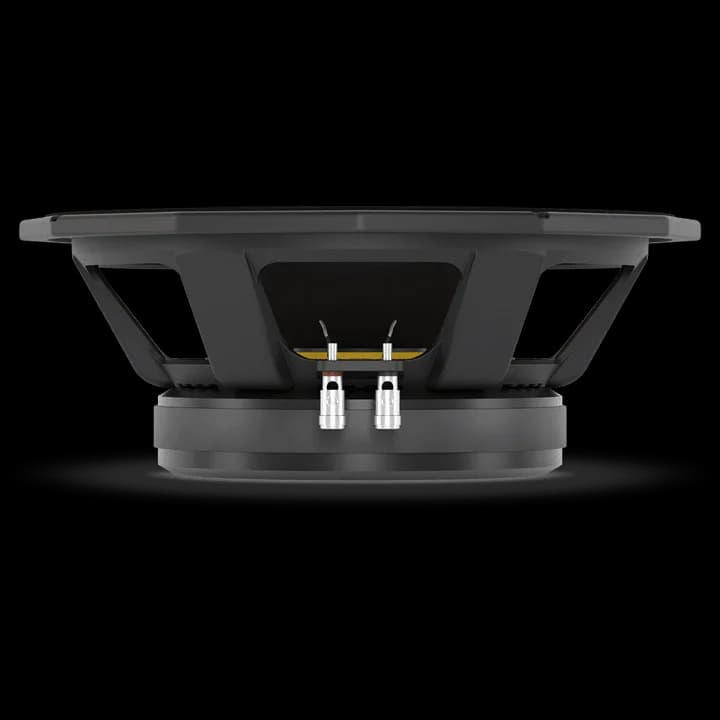

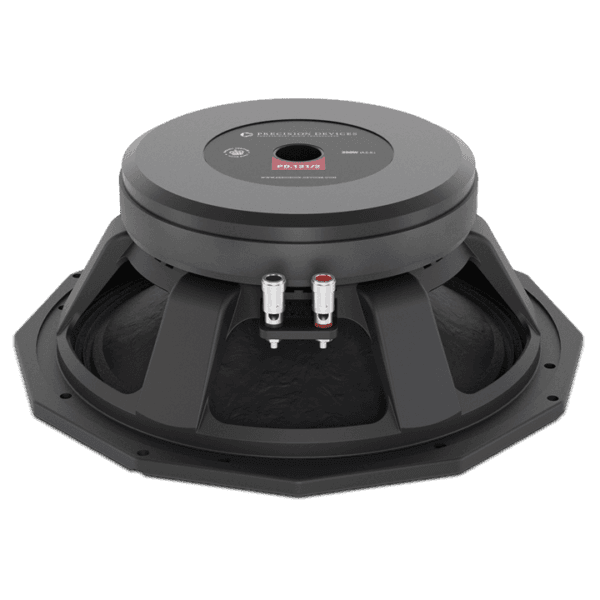

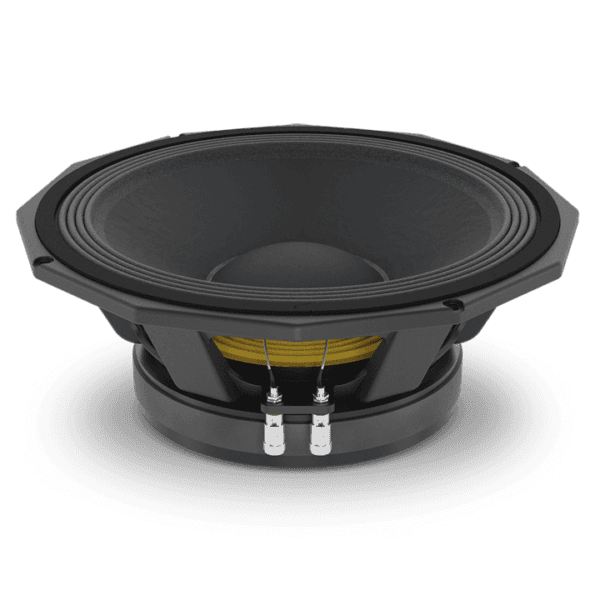

Precision Devices PD.121/2
Precision Devices PD.121/2 is a 12" 8 ohm LF driver rated at 300W RMS. The validated T/S data includes Fs 53Hz, Qts 0.23, Vas 66.6L, Xmax 2.7mm, sensitivity 98.4dB, plus 143cm³ Vd and 232 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
300W
Sensitivity
98.4dB
EBP
232
Vented alignment
Vd
143cm³
T/S Parameters
Valid
Fs53Hz
Qts0.23
Qes0.23
Qms14.7
Vas66.6L
Re5.9Ω
BL21.5Tm
Sd531cm²
Mms65g
Xmax2.7mm
SPL98dB
Power300W
Impedance8Ω
F Low100Hz
F High6000Hz
Voice Coil63mm
Flux Density1.50T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing Le
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing Le
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing Le
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight9.2kg
Diameter331.0mm
Overall Depth112.2mm
Cutout Diameter282.0mm
Bolt Circle Diameter318.0mm
