12-inch LF driver · 12PLB series · 76 mm voice coil · 350 W
B&C 12PLB76 8Ω
8 Ω · 50–2000 Hz
£151.02
SteadyJP Leisure · In stock · All 10 offers
- Fs
- 50Hz
- Xmax
- 5mm
- SPL
- 98dB
- Pe
- 350W
- BL
- 18.6T·m
- Vd
- 261cm³
- Qts
- 0.23
- Vas
- 75L

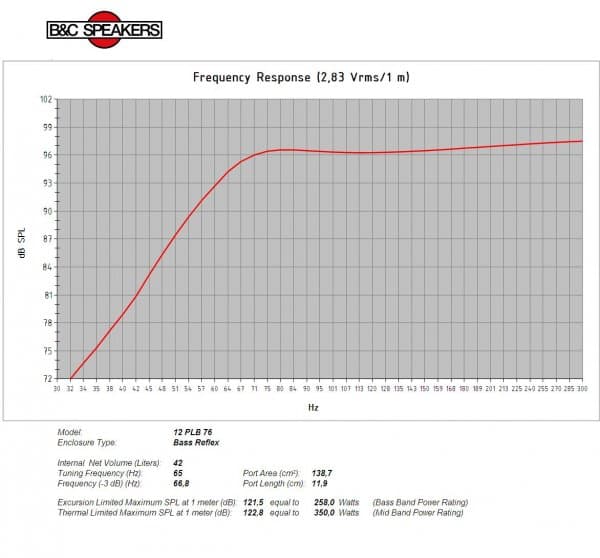

Published graphs
B&C 12PLB76 is a 12-inch 8 ohm LF driver rated at 350 W RMS. The validated T/S data includes Fs 50 Hz, Qts 0.23, Vas 75 L, Xmax 5 mm, sensitivity 97.9 dB, plus 261 cm³ Vd and 208 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £150.76.
The published T/S values agree with each other
Thiele/Small
- Fs
- 50Hz
- Qts
- 0.23
- Qes
- 0.24
- Qms
- 5.3
- Vas
- 75L
- Re
- 5Ω
- Le
- 1.20mH
Motor and cone
- BL
- 18.6T·m
- Sd
- 522cm²
- Mms
- 51g
- Xmax
- 5mm
- Vd †
- 261cm³
- Voice coil
- 76mm
- Flux density
- 1.05T
Power and response
- Sensitivity †
- 97.9dB
- Manufacturer sensitivity
- 99dB
- Power
- 350W
- Nominal power
- 350W
- Impedance
- 8Ω
- Min. impedance
- 6.4Ω
- Range
- 50–2000Hz
- EBP †
- 208 · Leans vented
Size and mounting
- Diameter
- 316mm
- Cutout
- 282mm
- Bolt circle
- 296mm
- Depth
- 136mm
- Weight
- 6.5kg
Sensitivity shows 97.9 dB, calculated from the T/S values. B&C publishes 99.0 dB, 1.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 18.6T·m
- Fs
- 50Hz
- Le
- 1.20mH
- Re
- 5Ω
- Sd
- 522cm²
- Mms
- 51g
- Qes
- 0.24
- Qms
- 5.3
- Qts
- 0.23
- SPL
- 97.9dB
- Vas
- 75L
- Xmax
- 5mm
- Power
- 350W
- Impedance
- 8Ω
- Flux density
- 1.05T
- Sensitivity
- 99dB
- Low limit
- 50Hz
- Nominal power
- 350W
- Calculated sensitivity †
- 97.9dB
- High limit
- 2000Hz
- Manufacturer sensitivity
- 99dB
- Min. impedance
- 6.4Ω
- Voice coil
- 76mm
- Weight
- 6.5kg
- Diameter
- 316mm
- Depth
- 136mm
- Cutout
- 282mm
- Bolt circle
- 296mm
- Bl
- 18.6 Tm
- Fs
- 50 Hz
- Le
- 1.2 mH
- Re
- 5 Ω
- Sd
- 522 cm² (80.9 in²)
- Ebp
- 208 Hz
- Mms
- 51 g
- Qes
- 0.24
- Qms
- 5.3
- Qts
- 0.23
- Vas
- 75 dm³ (2.6 ft³)
- Η0
- 3.8 %
- Cone
- RCK12PLB768
- Xmax
- 5 mm
- Xvar
- 7 mm
- Depth
- 136 mm (5.35 in)
- Spider
- Single
- Cone shape
- Exponential
- Net weight
- 6.55 kg (14.44 lb)
- Pole design
- T-Pole
- Sensitivity
- 99 dB
- Flux density
- 1.05 T
- Shipping box
- 360x360x200 mm (14.17x14.17x7.87 in)
- Winding depth
- 16 mm (0.62 in)
- Shipping units
- 1 pcs
- Surround shape
- Double Roll
- Former material
- Glass Fibre
- Frequency range
- 50 Hz - 2000 Hz
- Magnet material
- Ferrite
- Shipping weight
- 8.45 kg (18.63 lb)
- Nominal diameter
- 320 mm (12 in)
- Overall diameter
- 316 mm (12.4 in)
- Winding material
- Aluminium
- Minimum impedance
- 6.4 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 11 mm (0.4 in)
- Recommended tuning
- 65 Hz
- Voice coil diameter
- 76 mm (3 in)
- Bolt circle diameter
- 296 mm (11.6 in)
- Recommended enclosure
- 42 dm³ (1.48 ft³)
- Woofer cone treatment
- None
- Baffle cutout diameter
- 282 mm (11.1 in)
- Nominal power handling
- 350 W
- Continuous power handling
- 700 W
- Flange and gasket thickness
- 16 mm (0.62 in)
- Air volume occupied by driver
- 3.3 dm³ (0.12 ft³)
02
Designs
Cabinets for the 12PLB76: two designs and a suggested box from B&C.
All 12PLB76 designsHow we find designsB&C’s designs
From the maker, with plans to download
B&C design · archived
F122A
12"/1.4" 700W Full Range Enclosure - 12" Woofer + 1.4" HF Driver on 80°x60° CD Horn
- Drivers
- 12PLB76, 8 Ω
- Power
- 700 W
B&C’s suggested box
From B&C’s 12PLB76 page
- Net volume
- 42L
- Tuning
- 65Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.
