BMS 12N803 8Ω
8 Ω · 40–1700 Hz
£285.67
SteadyLean Audio · 2 in stock · All 1 offer
- Fs
- 41Hz
- Xmax
- 6mm
- SPL
- 95dB
- Pe
- 1000W
- BL
- 21.4T·m
- Vd
- 319cm³
- Qts
- 0.24
- Vas
- 77L
BMS 12N803 is a 12-inch 8 ohm LF driver rated at 1000 W RMS. The validated T/S data includes Fs 41 Hz, Qts 0.24, Vas 77 L, Xmax 6 mm, sensitivity 95.3 dB, plus 319 cm³ Vd and 164 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £285.67.
The published T/S values agree with each other
Thiele/Small
- Fs
- 41Hz
- Qts
- 0.24
- Qes
- 0.25
- Qms
- 5.2
- Vas
- 77L
- Re
- 5.7Ω
- Le
- 0.61mH
Motor and cone
- BL
- 21.4T·m
- Sd
- 531cm²
- Mms
- 78g
- Xmax
- 6mm
- Vd †
- 319cm³
- Voice coil
- 102mm
Power and response
- Sensitivity †
- 95.3dB
- Manufacturer sensitivity
- 97dB
- Power
- 1000W
- Impedance
- 8Ω
- Range
- 40–1700Hz
- EBP †
- 164 · Leans vented

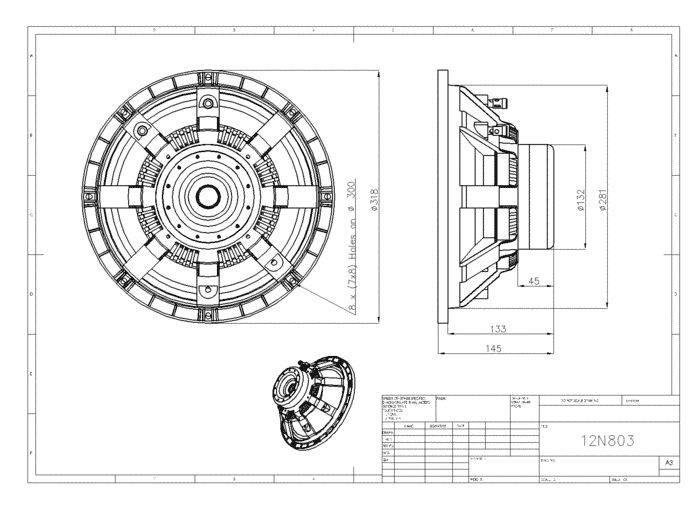

Size and mounting
- Diameter
- 318mm
- Cutout
- 283mm
- Bolt circle
- 300mm
- Depth
- 147mm
- Weight
- 4.7kg
Other published values
- Cms
- 0.19mm/N
Sensitivity shows 95.3 dB, calculated from the T/S values. BMS publishes 97.0 dB, 1.7 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else BMS lists
LF
- BL
- 21.4T·m
- Fs
- 41Hz
- Le
- 0.61mH
- Re
- 5.7Ω
- Sd
- 531cm²
- Cms
- 0.19mm/N
- Mms
- 78g
- Qes
- 0.25
- Qms
- 5.2
- Qts
- 0.24
- SPL
- 95.3dB
- Vas
- 77L
- Xmax
- 6mm
- Power
- 1000W
- Impedance
- 8Ω
- Sensitivity
- 97dB
- Low limit
- 40Hz
- Calculated sensitivity †
- 95.3dB
- High limit
- 1700Hz
- Manufacturer sensitivity
- 97dB
- Voice coil
- 102mm
- 10. basket
- Cast Aluminum
- 20. bl factor
- BL 21.35 Tesla m
- 1. application
- Low-Middle
- 18. moving mass
- Mms 0.078 kg
- 13. dc resistance
- Re 5.70 Ohm
- 9. magnet gap depth
- 10 mm
- 17. equivalent volume
- Vas 77 L
- 2. nominal impendance
- 8 Ohm
- 5. frequency response
- 40 – 1700 Hz
- 6. voice coil diameter
- 101.6 (4″) mm
- 7. voice coil material
- Cu
- 12. resonance frequency
- Fs 41 Hz
- 14. mechanical q factor
- Qms 5.2
- 15. electrical q factor
- Qes 0.25
- 16. total quality factor
- Qts 0.24
- 19. mechanical complience
- Cms 0.193 mm / N
- 21. effective piston area
- Sd 0.0531 m²
- 22. max. linear excursion
- Xmax +/- 6 mm
- 23. voice coil inductance
- Le1k 0.61 mH
- 4. sensitivity (1 w / 1 m)
- 97 dB
- 3. power handling aes noise
- 1000 W
- 8. voice coil winding depth
- 22 mm
- 11. effect. diaphragm diameter d
- 260 mm
