LF Driver12B series
Oberton
Oberton 12B401
Oberton 12B401 is a 12" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 47Hz, Qts 0.24, Vas 69.6L, Xmax 6.8mm, sensitivity 96.5dB, plus 347cm³ Vd and 187 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
400W
Sensitivity
96.5dB
200.0dBmanufacturer; using T/S-derived value (103.5dB delta).
EBP
187
Vented alignment
Vd
347cm³
T/S Parameters
Valid
Fs47Hz
Qts0.24
Qes0.25
Qms13.9
Vas69.6L
Re5.5Ω
Le1.04mH
BL19.9Tm
Sd515cm²
Mms62g
Xmax6.8mm
SPL97dB
Power400W
Impedance8Ω
Min Impedance6.8Ω
F Low50Hz
F High2500Hz
Voice Coil77mm
Flux Density1.30T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

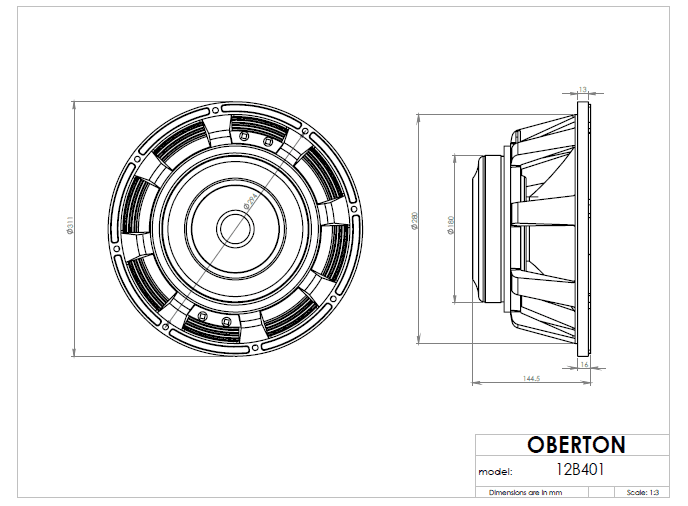

Dimensions & Physical
Weight7.3kg
Diameter311.0mm
Overall Depth144.5mm
Cutout Diameter280.0mm
Bolt Circle Diameter294.0mm
