12-inch LF driver · 12NDL series · 76 mm voice coil · 400 W
B&C 12NDL76 8Ω
50–2000 Hz
- Fs
- 50Hz
- Xmax
- 7mm
- SPL
- 98dB
- Pe
- 400W
- BL
- 20.1T·m
- Vd
- 365cm³
- Qts
- 0.20
- Vas
- 73L

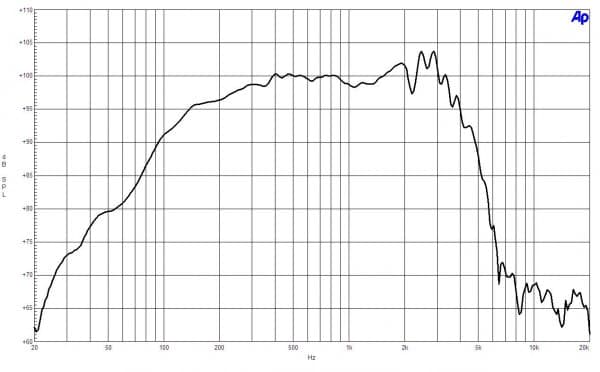

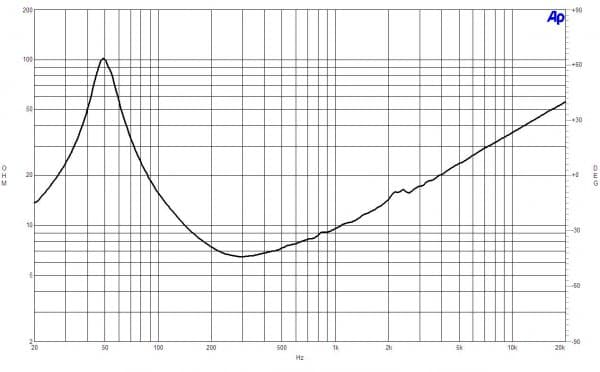

Published graphs
B&C 12NDL76 is a 12-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 50 Hz, Qts 0.20, Vas 73 L, Xmax 7 mm, sensitivity 98.4 dB, plus 365 cm³ Vd and 238 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £167.22.
The published T/S values agree with each other
Thiele/Small
- Fs
- 50Hz
- Qts
- 0.20
- Qes
- 0.21
- Qms
- 4.2
- Vas
- 73L
- Re
- 5.3Ω
- Le
- 1mH
Motor and cone
- BL
- 20.1T·m
- Sd
- 522cm²
- Mms
- 53g
- Xmax
- 7mm
- Vd †
- 365cm³
- Voice coil
- 76mm
- Flux density
- 1.25T
Power and response
- Sensitivity †
- 98.4dB
- Manufacturer sensitivity
- 100dB
- Power
- 400W
- Nominal power
- 400W
- Impedance
- 8Ω
- Min. impedance
- 6.2Ω
- Range
- 50–2000Hz
- EBP †
- 238 · Leans vented
Size and mounting
- Diameter
- 315mm
- Cutout
- 283mm
- Bolt circle
- 298mm
- Depth
- 141mm
- Weight
- 3.9kg
Sensitivity shows 98.4 dB, calculated from the T/S values. B&C publishes 100.0 dB, 1.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 20.1T·m
- Fs
- 50Hz
- Le
- 1mH
- Re
- 5.3Ω
- Sd
- 522cm²
- Mms
- 53g
- Qes
- 0.21
- Qms
- 4.2
- Qts
- 0.20
- SPL
- 98.4dB
- Vas
- 73L
- Xmax
- 7mm
- Power
- 400W
- Impedance
- 8Ω
- Flux density
- 1.25T
- Sensitivity
- 100dB
- Low limit
- 50Hz
- Nominal power
- 400W
- Calculated sensitivity †
- 98.4dB
- High limit
- 2000Hz
- Manufacturer sensitivity
- 100dB
- Min. impedance
- 6.2Ω
- Voice coil
- 76mm
- Weight
- 3.9kg
- Diameter
- 315mm
- Depth
- 141mm
- Cutout
- 283mm
- Bolt circle
- 298mm
- Bl
- 20.1 Tm
- Fs
- 50 Hz
- Le
- 1 mH
- Re
- 5.3 Ω
- Sd
- 522 cm² (80.9 in²)
- Ebp
- 238 Hz
- Mms
- 53 g
- Qes
- 0.21
- Qms
- 4.2
- Qts
- 0.2
- Vas
- 73 dm³ (2.5 ft³)
- Η0
- 4.3 %
- Cone
- RCK12NDL768
- Xmax
- 7 mm
- Xvar
- 6.5 mm
- Depth
- 141 mm (5.5 in)
- Spider
- Single
- Cone shape
- Exponential
- Net weight
- 3.9 kg (8.6 lb)
- Pole design
- Straight Pole
- Sensitivity
- 100 dB
- Flux density
- 1.25 T
- Shipping box
- 360x360x200 mm (14.17x14.17x7.87 in)
- Winding depth
- 19 mm (0.75 in)
- Shipping units
- 1 pcs
- Surround shape
- Double Roll
- Former material
- Glass Fibre
- Frequency range
- 50 Hz - 2000 Hz
- Magnet material
- Neodymium Inside Slug
- Shipping weight
- 4.8 kg (10.58 lb)
- Nominal diameter
- 320 mm (12 in)
- Overall diameter
- 315 mm (12.4 in)
- Winding material
- Aluminium
- Minimum impedance
- 6.2 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 10 mm (0.4 in)
- Recommended tuning
- 65 Hz
- Voice coil diameter
- 76 mm (3 in)
- Bolt circle diameter
- 298 mm (11.7 in)
- Recommended enclosure
- 42 dm³ (1.48 ft³)
- Woofer cone treatment
- None
- Baffle cutout diameter
- 283 mm (11.1 in)
- Nominal power handling
- 400 W
- Continuous power handling
- 800 W
- Flange and gasket thickness
- 14 mm (0.55 in)
- Air volume occupied by driver
- 2.5 dm³ (0.08 ft³)
02
Designs
Cabinets for the 12NDL76: a design and a suggested box from B&C.
All 12NDL76 designsHow we find designsB&C’s design
From the maker, with plans to download

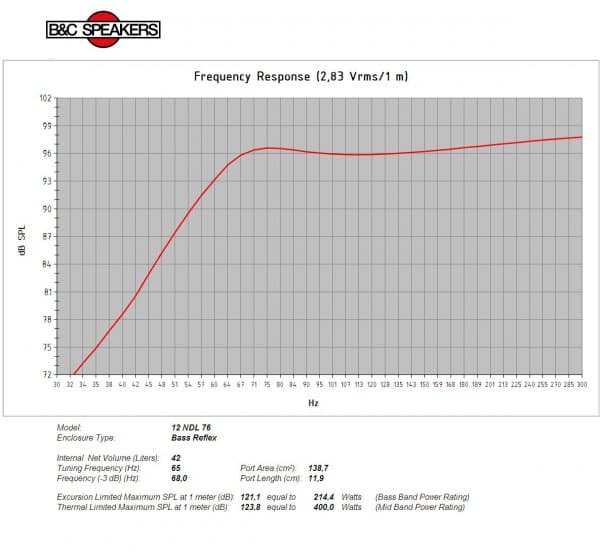

B&C’s suggested box
From B&C’s 12NDL76 page
- Net volume
- 42L
- Tuning
- 65Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.
