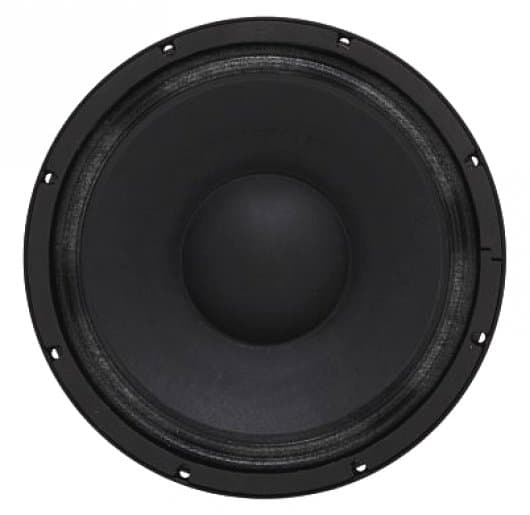

12-inch LF driver · 12NDL series · 76 mm voice coil · 400 W
B&C 12NDL76 4Ω
50–2000 Hz
£169.00
SteadyBlue Aran · 2 in stock · All 8 offers
- Fs
- 50Hz
- Xmax
- 6mm
- SPL
- 98dB
- Pe
- 400W
- BL
- 16.5T·m
- Vd
- 313cm³
- Qts
- 0.19
- Vas
- 70L

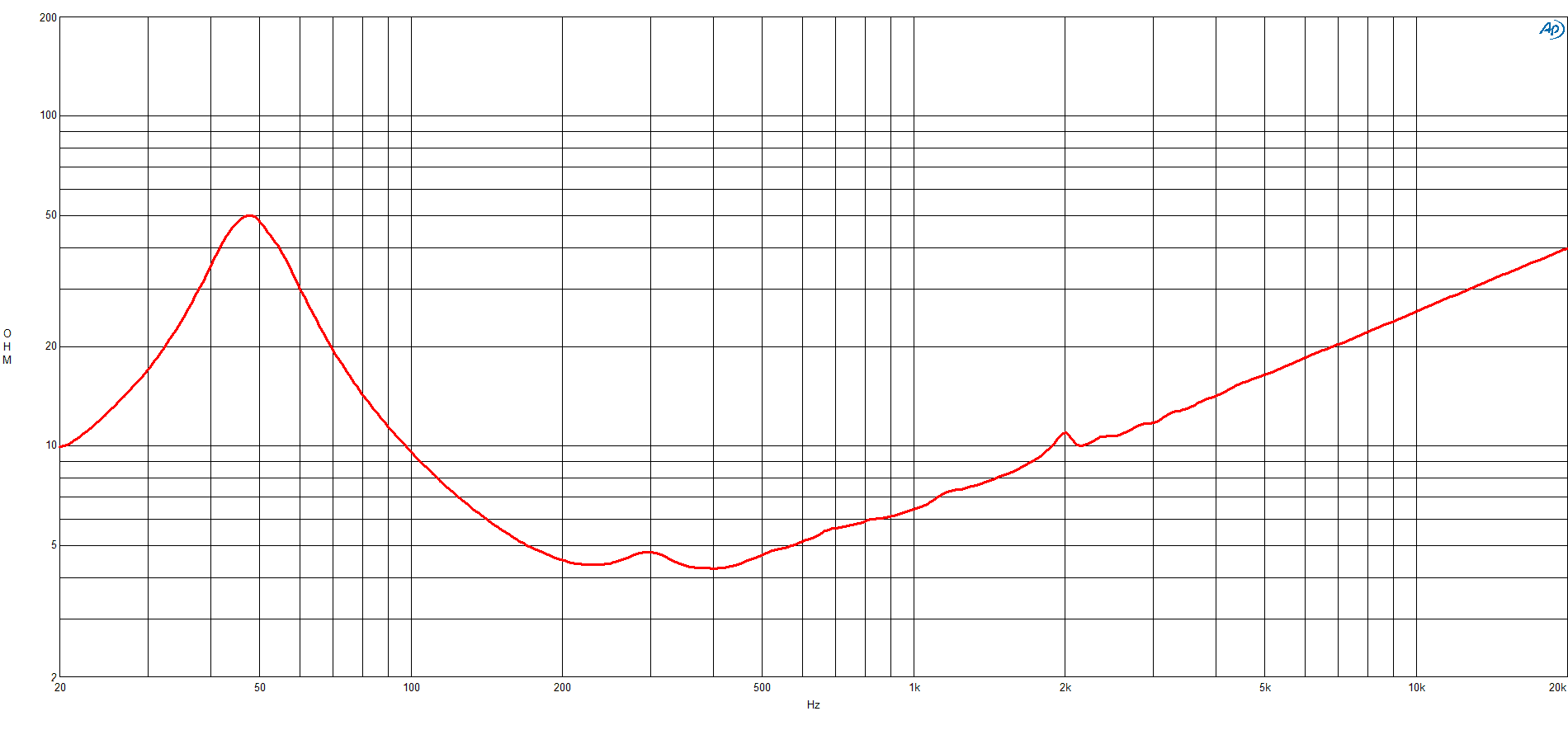

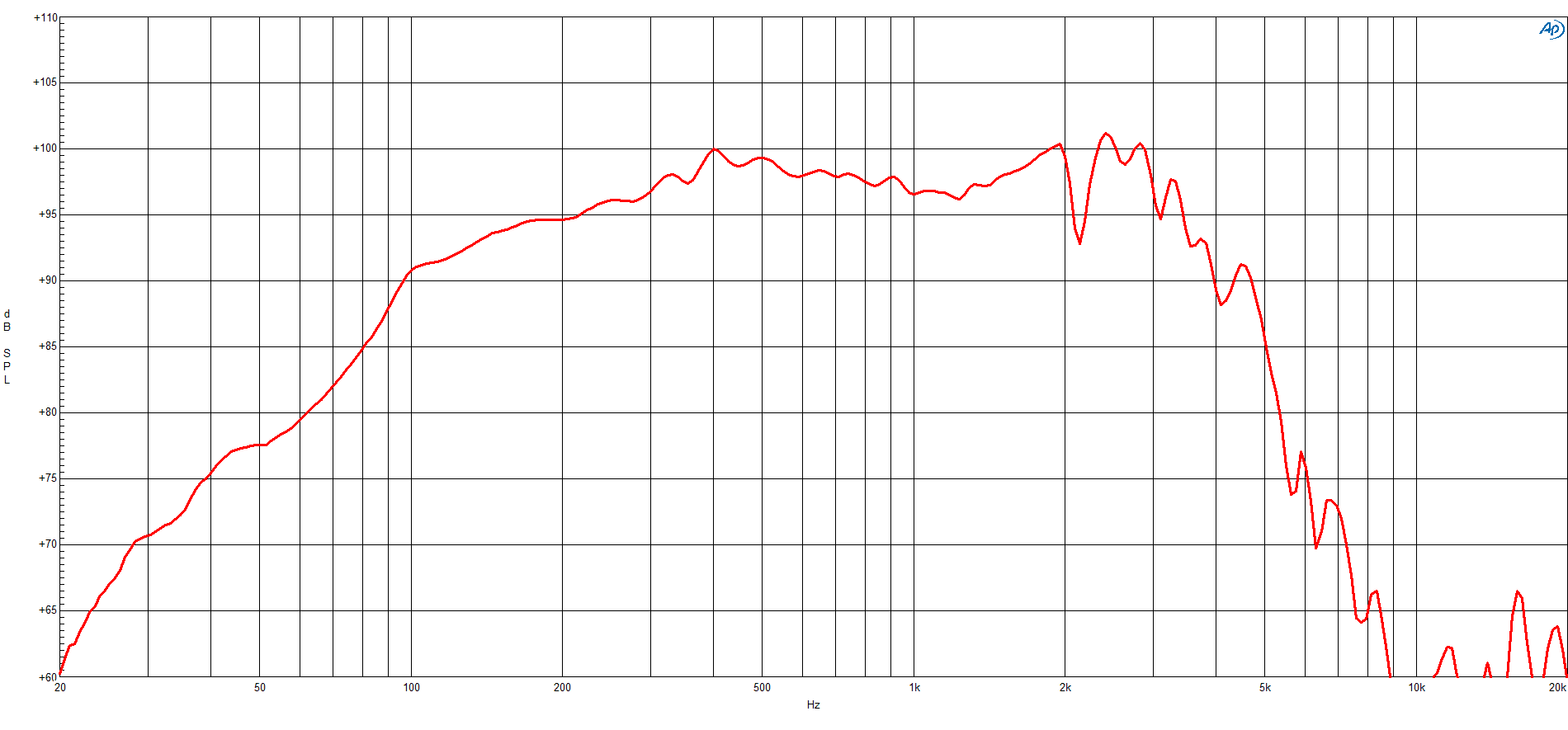

Published graphs
B&C 12NDL76 is a 12-inch 4 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 50 Hz, Qts 0.19, Vas 70 L, Xmax 6 mm, sensitivity 98.4 dB, plus 313 cm³ Vd and 250 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £167.22.
The published T/S values agree with each other
Thiele/Small
- Fs
- 50Hz
- Qts
- 0.19
- Qes
- 0.20
- Qms
- 3.3
- Vas
- 70L
- Re
- 3.1Ω
- Le
- 0.72mH
Motor and cone
- BL
- 16.5T·m
- Sd
- 522cm²
- Mms
- 54g
- Xmax
- 6mm
- Vd †
- 313cm³
- Voice coil
- 76mm
- Flux density
- 1.25T
Power and response
- Sensitivity †
- 98.4dB
- Manufacturer sensitivity
- 100dB
- Power
- 400W
- Nominal power
- 400W
- Impedance
- 4Ω
- Min. impedance
- 4.3Ω
- Range
- 50–2000Hz
- EBP †
- 250 · Leans vented
Size and mounting
- Diameter
- 315mm
- Cutout
- 283mm
- Bolt circle
- 298mm
- Depth
- 141mm
- Weight
- 3.9kg
Sensitivity shows 98.4 dB, calculated from the T/S values. B&C publishes 100.0 dB, 1.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 16.5T·m
- Fs
- 50Hz
- Le
- 0.72mH
- Re
- 3.1Ω
- Sd
- 522cm²
- Mms
- 54g
- Qes
- 0.20
- Qms
- 3.3
- Qts
- 0.19
- SPL
- 98.4dB
- Vas
- 70L
- Xmax
- 6mm
- Power
- 400W
- Impedance
- 4Ω
- Flux density
- 1.25T
- Sensitivity
- 100dB
- Low limit
- 50Hz
- Nominal power
- 400W
- Calculated sensitivity †
- 98.4dB
- High limit
- 2000Hz
- Manufacturer sensitivity
- 100dB
- Min. impedance
- 4.3Ω
- Voice coil
- 76mm
- Weight
- 3.9kg
- Diameter
- 315mm
- Depth
- 141mm
- Cutout
- 283mm
- Bolt circle
- 298mm
- Bl
- 16.5 Tm
- Fs
- 50 Hz
- Le
- 0.72 mH
- Re
- 3.1 Ω
- Sd
- 522 cm² (80.91 in²)
- Ebp
- 250 Hz
- Mms
- 54 g
- Qes
- 0.2
- Qms
- 3.25
- Qts
- 0.19
- Vas
- 70 dm³ (2.47 ft³)
- Η0
- 4.57 %
- Cone
- RCK12NDL764
- Xmax
- 6 mm
- Xvar
- 7 mm
- Depth
- 141 mm (5.55 in)
- Spider
- Single
- Cone shape
- Exponential
- Net weight
- 3.9 kg (8.6 lb)
- Pole design
- Straight Pole
- Sensitivity
- 100 dB
- Flux density
- 1.25 T
- Shipping box
- 360x360x200 mm (14.17x14.17x7.87 in)
- Winding depth
- 18.5 mm (0.73 in)
- Shipping units
- 1 pcs
- Surround shape
- Double Roll
- Former material
- Glass Fibre
- Frequency range
- 50 Hz - 2000 Hz
- Magnet material
- Neodymium Inside Slug
- Shipping weight
- 4.5 kg (9.92 lb)
- Nominal diameter
- 320 mm (12 in)
- Overall diameter
- 315 mm (12.4 in)
- Winding material
- Aluminium
- Minimum impedance
- 4.3 Ω
- Nominal impedance
- 4 Ω
- Magnetic gap depth
- 10 mm (0.39 in)
- Voice coil diameter
- 76 mm (3 in)
- Bolt circle diameter
- 298 mm (11.73 in)
- Woofer cone treatment
- None
- Baffle cutout diameter
- 283 mm (11.14 in)
- Nominal power handling
- 400 W
- Continuous power handling
- 800 W
- Flange and gasket thickness
- 14 mm (0.55 in)
- Air volume occupied by driver
- 2.5 dm³ (0.09 ft³)
