LF Driver12CXN series
B&C

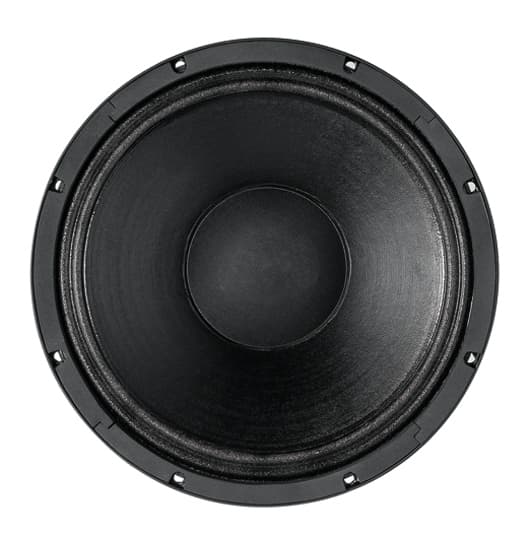

B&C 12CXN76
B&C 12CXN76 is a 12" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 42Hz, Qts 0.19, Vas 120L, Xmax 6mm, sensitivity 98.5dB, plus 313cm³ Vd and 210 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £269.00.
Size
12"
Impedance
8Ω
RMS Power
350W
Sensitivity
98.5dB
EBP
210
Vented alignment
Vd
313cm³

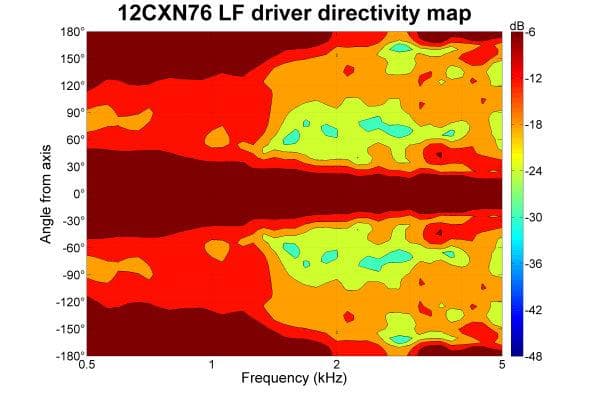

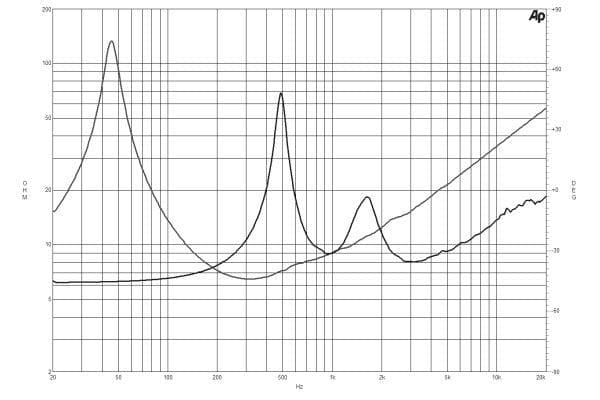

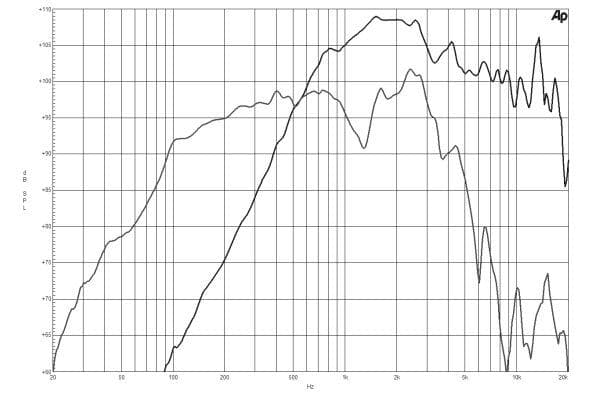

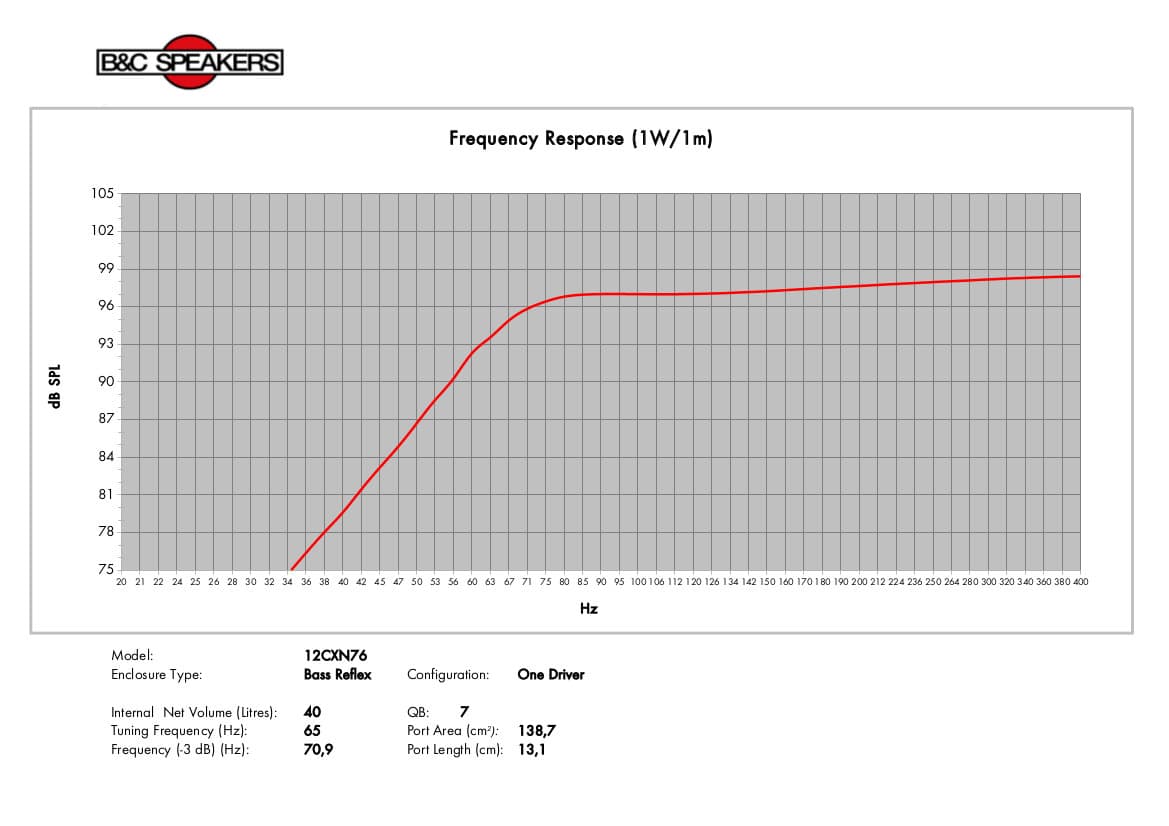

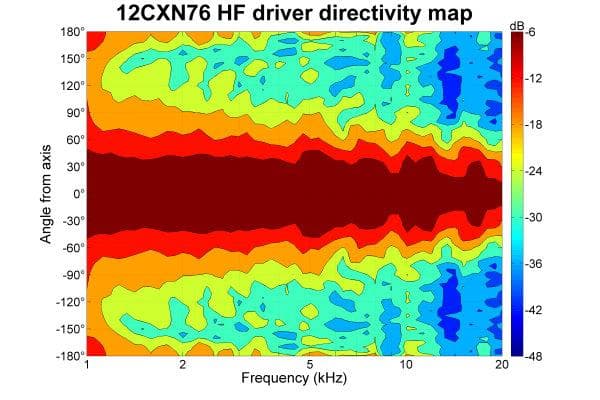

Frequency response
Manufacturer-provided response plots and related charts.
Overall Parameters
Valid
Fs42Hz
Qts0.19
Qes0.20
Qms8.0
Vas120.0L
Re5.0Ω
Le0.80mH
BL17.6Tm
Sd522cm²
Mms47g
Xmax6.0mm
SPL99dB
Power350W
Power Nominal350W
Impedance8Ω
Min Impedance6.5Ω
Voice Coil76mm
Flux Density1.15T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsPrice movement
Best current price
£269.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFSpecifications LF unit
Fs42 Hz
Qts0.19
Qes0.20
Qms8.0
Vas120.0 L
Re5.0 Ω
Le0.80 mH
BL17.6 Tm
Sd522 cm²
Mms47 g
Xmax6.0 mm
SPL99 dB
Power350 W
Power Nominal350 W
Impedance8 Ω
Min Impedance6.5 Ω
Voice Coil76 mm
Flux Density1.15 T
HFSpecifications HF unit
Le0.14 mH
SPL105 dB
Power80 W
Power Nominal80 W
Impedance8 Ω
Min Impedance8.0 Ω
Xover1200 Hz
Voice Coil75 mm
Flux Density1.90 T
Additional Manufacturer Specs
Bl17.6 Tm
Fs42 Hz
Le0.8 mH
Re5 Ω
Sd522 cm² (80.9 in²)
Ebp210 Hz
Mms47 g
Qes0.2
Qms8
Qts0.19
Vas120 dm³ (4.2 ft³)
η04.1 %
Xvar6 mm
Winding Depth16.2 mm (0.64 in)
Former MaterialGlass Fibre
Nominal Diameter320 mm (12 in)
Winding MaterialCopper
Magnetic Gap Depth8 mm (0.31 in)
Woofer Cone TreatmentWP Waterproof Front Side
