Name: B&C 12PE32 8 Ohm
Brand: B&C
SKU: 12PE32
Availability: InStock

Media

B&C 12PE32 12 inch 8 ohm loudspeaker driver view 1

B&C 12PE32 12 inch 8 ohm loudspeaker driver view 2

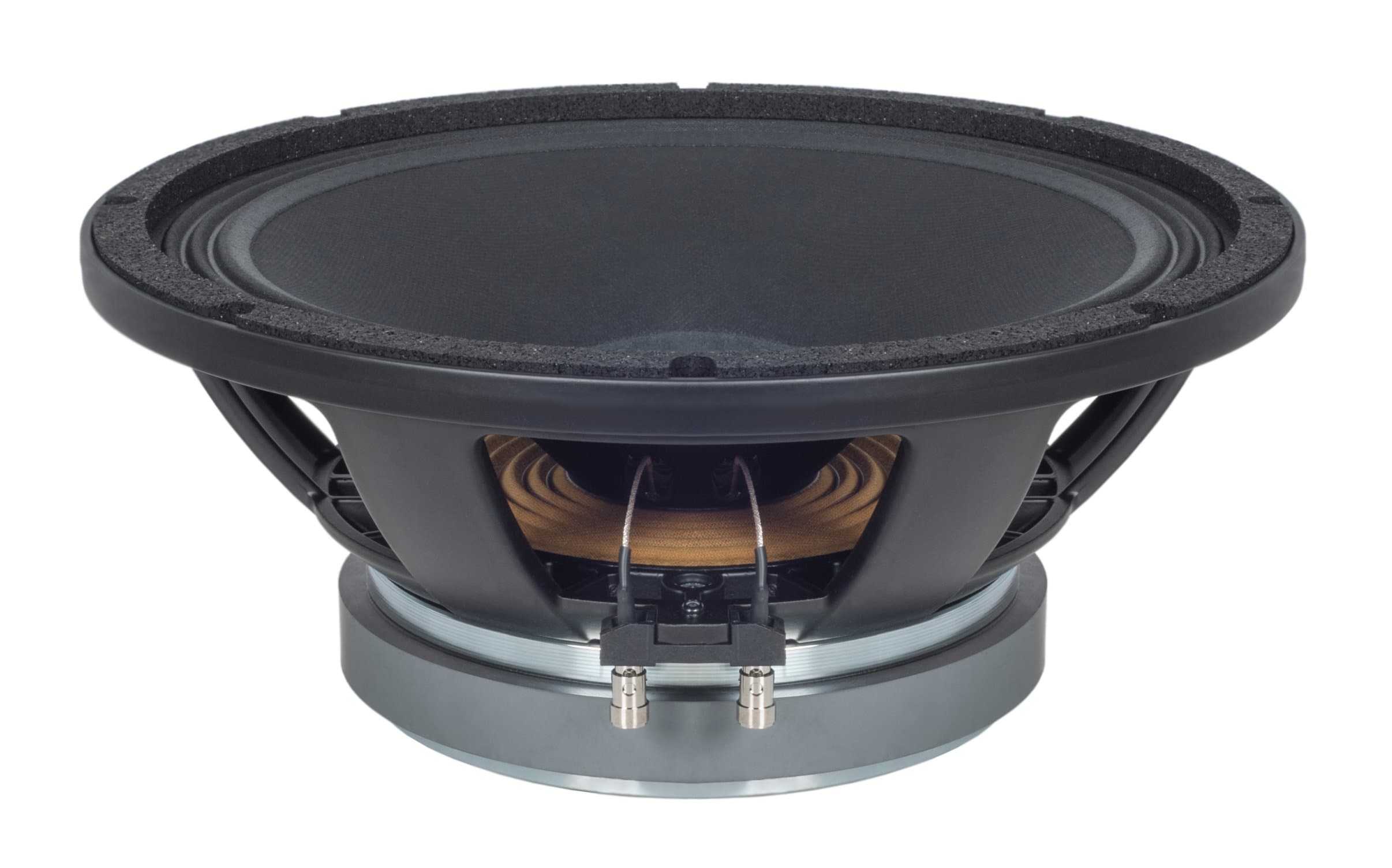

B&C 12PE32 12 inch 8 ohm loudspeaker driver view 3

Auto-advancing

Overview

LF Driver12PE series

B&C

B&C 12PE32

B&C 12PE32 is a 12" 8 ohm LF driver rated at 250W RMS. The validated T/S data includes Fs 51Hz, Qts 0.18, Vas 101L, Xmax 2.8mm, sensitivity 100.5dB, plus 146cm³ Vd and 268 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £137.69.

Size

12"

Impedance

8Ω

RMS Power

250W

Sensitivity

100.5dB

EBP

268

Vented alignment

V_d

146cm³

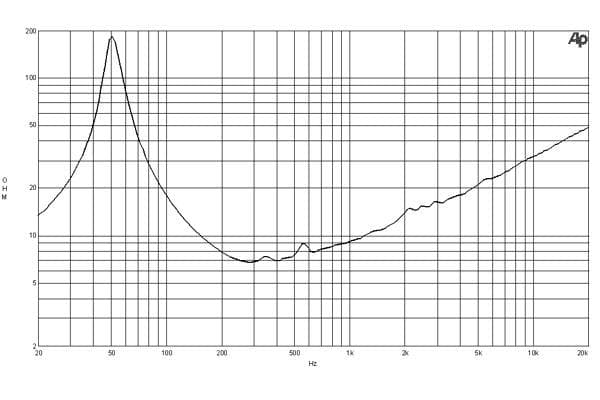

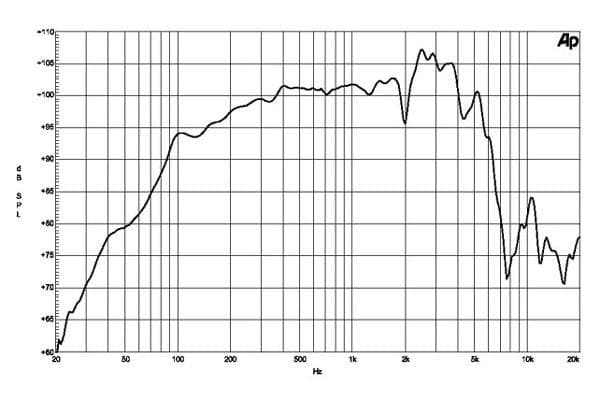

Frequency response

Manufacturer-provided response plots and related charts.

2 images

T/S Parameters

Valid

Canonical

Fs51Hz

Qts0.18

Qes0.19

Qms7.6

Vas101.0L

Re5.8Ω

Le1.20mH

BL19.1Tm

Sd522cm²

Mms37g

Xmax2.8mm

SPL101dB

Power250W

Power Nominal250W

Impedance8Ω

Min Impedance6.7Ω

F Low50Hz

F High4000Hz

Voice Coil65mm

Flux Density1.40T

What this validation status means

Pricing & availability

Price definitions

Price movement

Best current price

£137.69

inc VAT·Vendor hidden

View vendor

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight7.6kg

Diameter315.0mm

Overall Depth135.0mm

Cutout Diameter282.0mm

Bolt Circle Diameter296.0mm

Additional Manufacturer Specs

Bl19.1 Tm

Fs51 Hz

Le1.2 mH

Re5.8 Ω

Sd522 cm² (80.9 in²)

Ebp268 Hz

Mms37 g

Qes0.19

Qms7.6

Qts0.18

Vas101 dm³ (3.56 ft³)

η06.8 %

ConeRCK012PE328

Xmax2.8 mm

Xvar5 mm

SpiderSingle

Cone ShapeExponential

Pole DesignStraight Pole

Winding Depth12 mm (0.5 in)

Surround ShapeTriple Roll

Former MaterialGlass Fibre

Magnet MaterialFerrite

Nominal Diameter320 mm (12 in)

Winding MaterialAluminium

Magnetic Gap Depth7 mm (0.28 in)

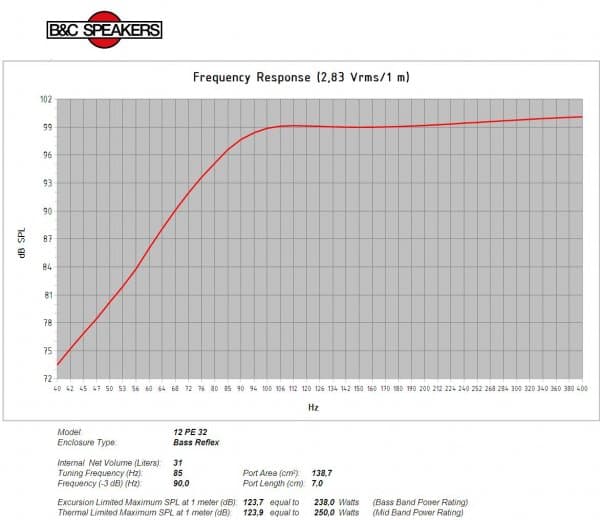

Recommended Tuning85 Hz

Bolt Circle Diameter296 mm (11.6 in)

Recommended Enclosure31 dm³ (1.1 ft³)

Woofer Cone TreatmentNone

Baffle Cutout Diameter282 mm (11.1 in)

Flange And Gasket Thickness15 mm (0.59 in)

Air Volume Occupied By Driver3.1 dm³ (0.11 ft³)
