Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Auto-advancing
Overview
LF Driver
Eighteen Sound
Eighteen Sound 12NMB1000

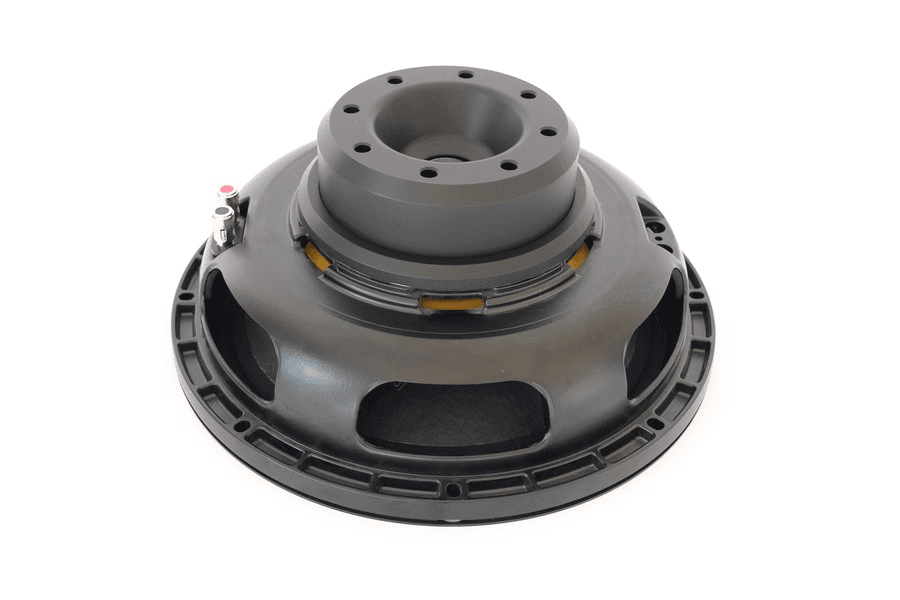

Eighteen Sound 12NMB1000 is a 12" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 54Hz, Qts 0.19, Vas 58L, Xmax 3.5mm, sensitivity 98.8dB, plus 186cm³ Vd and 284 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £252.00.
Size
12"
Impedance
8Ω
RMS Power
600W
Sensitivity
98.8dB
102.0dBmanufacturer; using T/S-derived value (3.2dB delta).
EBP
284
Vented alignment
Vd
186cm³

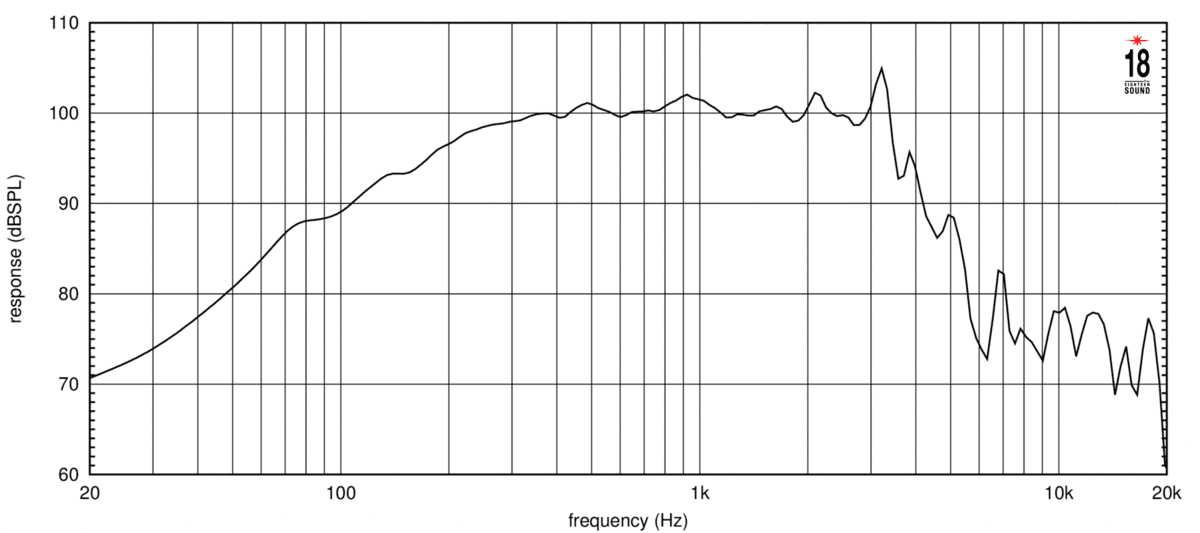

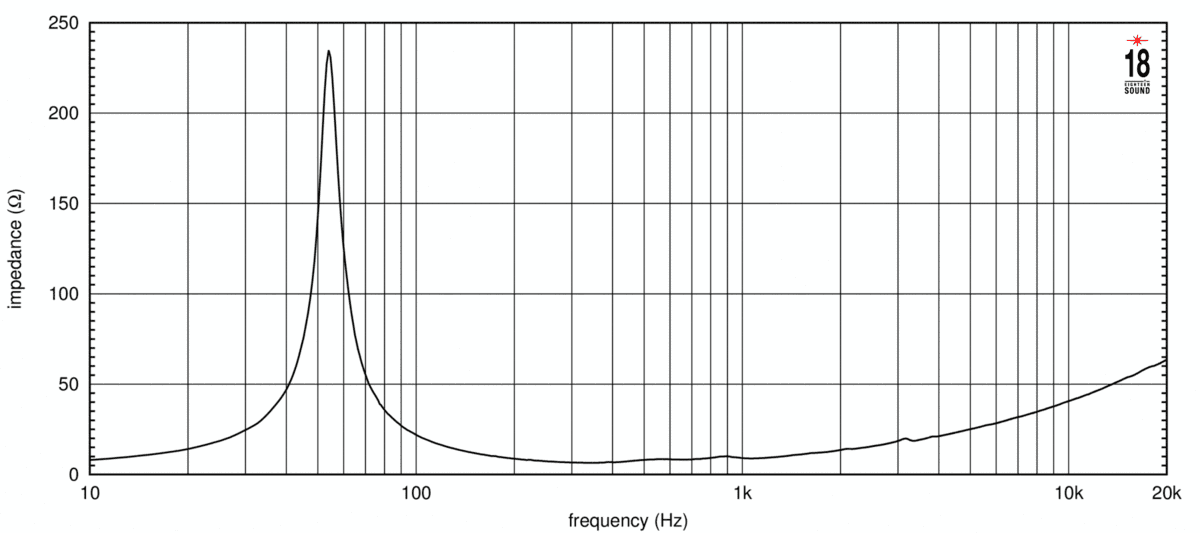

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,732 selected pixels of 2,020
T/S Parameters
Valid
Fs54Hz
Qts0.19
Qes0.19
Qms8.4
Vas58.0L
Re5.5Ω
Le0.69mH
BL24.4Tm
Sd531cm²
Mms61g
Xmax3.5mm
SPL99dB
Power600W
Power Nominal600W
Impedance8Ω
F Low60Hz
F High3000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£252.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.6kg
Diameter315.0mm
Overall Depth116.0mm
Cutout Diameter282.0mm
Bolt Circle Diameter298.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eighteen Sound
12NMB1000
12"
Best current price
£252.00
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
7 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
61%
Similarity
41% cheaper£149.72
PRV Audio
12MR1200X
12"
Lower price
Xmax4.5mm+29%
Qts0.21+11%
BL22Tm-10%
Vas71.8L+24%
Qes0.21+11%
68%
Similarity
19% cheaper£204.98
BMS
12S320
12"
Lower price
Xmax4.5mm+29%
Qts0.2+5%
BL23.3Tm-5%
Vas69.5L+20%
Qes0.21+11%
77%
Similarity
18% cheaper£206.15
Eighteen Sound
12MB1000
12"
Lower price
Xmax2.5mm-29%
Qts0.18-5%
BL23.5Tm-4%
Vas60L+3%
Qes0.2+5%
55%
Similarity
25% more£315.78
BMS
12N810
12"
Higher price
Xmax2.5mm-29%
Qts0.16-16%
BL24.5Tm0%
Vas89.6L+54%
Qes0.17-11%
75%
Similarity
BMS
12S310
12"
Xmax2.5mm-29%
Qts0.2+5%
BL24.2Tm-1%
Vas66.9L+15%
Qes0.2+5%
66%
Similarity
Beyma
112MI108
12"
Xmax3mm-14%
Qts0.22+16%
BL21.6Tm-11%
Vas64L+10%
Qes0.23+21%
56%
Similarity
Precision Devices
PD.121/2
12"
Xmax2.7mm-23%
Qts0.23+21%
BL21.5Tm-12%
Vas66.6L+15%
Qes0.23+21%
