Overview
LF Driver12NB series
Oberton
Oberton 12NB450
Oberton 12NB450 is a 12" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 46Hz, Qts 0.20, Vas 72.6L, Xmax 7.8mm, sensitivity 97.5dB, plus 399cm³ Vd and 223 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
500W
Sensitivity
97.5dB
200.0dBmanufacturer; using T/S-derived value (102.5dB delta).
EBP
223
Vented alignment
Vd
399cm³
T/S Parameters
Valid
Fs46Hz
Qts0.20
Qes0.21
Qms10.5
Vas72.6L
Re5.0Ω
Le0.83mH
BL20.3Tm
Sd515cm²
Mms60g
Xmax7.8mm
SPL98dB
Power500W
Impedance8Ω
Min Impedance6.5Ω
F Low50Hz
F High2000Hz
Voice Coil77mm
Flux Density1.30T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

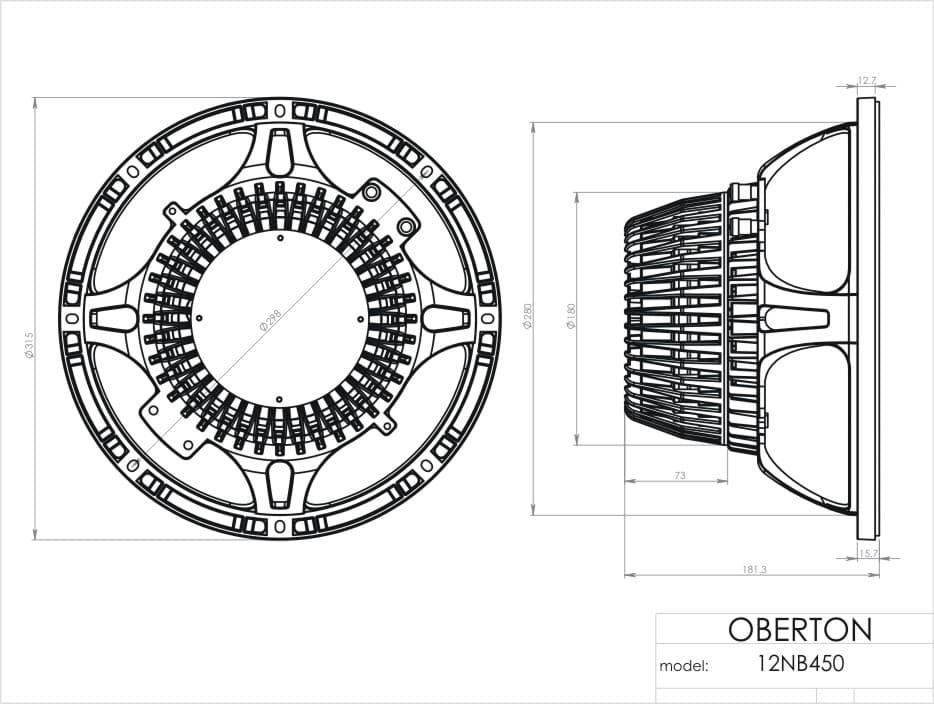

Dimensions & Physical
Diameter315.0mm
Overall Depth181.3mm
Cutout Diameter280.0mm
Bolt Circle Diameter298.0mm
