12-inch LF driver · 77 mm voice coil · 500 W
PHL Audio 4330NDU 8Ω
8 Ω · 30–1500 Hz
No current price
- Fs
- 36Hz
- Xmax
- 8mm
- SPL
- 94dB
- Pe
- 500W
- BL
- 22T·m
- Vd
- 422cm³
- Qts
- 0.22
- Vas
- 83L
PHL Audio 4330NDU is a 12-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 36 Hz, Qts 0.22, Vas 82.6 L, Xmax 8 mm, sensitivity 94.3 dB, plus 422 cm³ Vd and 157 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 36Hz
- Qts
- 0.22
- Qes
- 0.23
- Qms
- 3.8
- Vas
- 82.6L
- Re
- 5.4Ω
- Le
- 1.60mH
Motor and cone
- BL
- 22T·m
- Sd
- 527cm²
- Mms
- 93g
- Xmax
- 8mm
- Vd †
- 422cm³
- Voice coil
- 77mm
Power and response
- Sensitivity †
- 94.3dB
- Manufacturer sensitivity
- 94dB
- Power
- 500W
- Nominal power
- 500W
- Impedance
- 8Ω
- Range
- 30–1500Hz
- EBP †
- 157 · Leans vented
Size and mounting
- Diameter
- 326.5mm
- Cutout
- 282mm
- Depth
- 141.5mm
- Weight
- 5.9kg
Other published values
- Cms
- 0.21mm/N
- Xmech
- 17
Other dimensions
- Mounting Depth
- 141.5
† Calculated by bits from the published values
What this validation status means
Everything else PHL Audio lists
LF · Primary · 12″
- BL
- 22T·m
- Fs
- 36Hz
- Le
- 1.60mH
- Re
- 5.4Ω
- Sd
- 527cm²
- Cms
- 0.21mm/N
- Mms
- 93g
- Qes
- 0.23
- Qms
- 3.8
- Qts
- 0.22
- SPL
- 94.3dB
- Vas
- 82.6L
- Xmax
- 8mm
- Xmech
- 17
- Power
- 500W
- Impedance
- 8Ω
- Sensitivity
- 94dB
- Low limit
- 30Hz
- Nominal power
- 500W
- Calculated sensitivity †
- 94.3dB
- High limit
- 1500Hz
- Manufacturer sensitivity
- 94dB
- Voice coil
- 77mm
- Weight
- 5.9kg
- Diameter
- 326.5mm
- Depth
- 141.5mm
- Mounting Depth
- 141.5
- Cutout
- 282mm
02
Compare
Same-size drivers, compared with the 4330NDU. Clear differences are green when better and red when worse.
No photo
This driver4330NDU
Best price
–
Fs
36 Hz
Qts
0.22
Vas
82.6 L
BL
22 T·m
Xmax
8 mm
Sensitivity
94.3 dB
Power
500 W
B&C12CL76
£135.00Fs48 Hz +33%, worse
Qts0.21 −5%
Vas59 L −29%, better
BL22.4 T·m –
Xmax6 mm −25%, worse
Sensitivity96.8 dB +2.5, better
PRV Audio12MR1200X
£148.98Fs53 Hz +46%, worse
Qts0.21 −5%
Vas71.8 L −13%, better
BL22 T·m –
Xmax4.5 mm −44%, worse
Sensitivity99 dB +4.7, better
Beyma12MI100
£153.16Fs58 Hz +61%, worse
Qts0.22 –
Vas64 L −23%, better
BL21.6 T·m –
Xmax3 mm −63%, worse
Sensitivity99.4 dB +5.1, better
FaitalPRO12FH510
£163.54Fs45 Hz +25%, worse
Qts0.24 +9%
Vas81.3 L –
BL18.9 T·m −14%, worse
Xmax7.5 mm −6%
Sensitivity96.7 dB +2.4, better
B&C12NDL76
£165.48Fs50 Hz +39%, worse
Qts0.20 −9%
Vas73 L −12%, better
BL20.1 T·m −9%
Xmax7 mm −13%, worse
Sensitivity98.4 dB +4.1, better
Precision DevicesPD.121/2
£166.00Fs53 Hz +48%, worse
Qts0.23 +5%
Vas66.6 L −19%, better
BL21.5 T·m –
Xmax2.7 mm −66%, worse
Sensitivity98.4 dB +4.1, better
Beyma12P80FE
£175.00Fs48 Hz +33%, worse
Qts0.21 −5%
Vas61 L −26%, better
BL23 T·m +5%
Xmax7.5 mm −6%
Sensitivity96.9 dB +2.6, better
FaitalPRO12FH500
£180.28Fs45 Hz +25%, worse
Qts0.25 +14%, worse
Vas87.3 L +6%
BL17.5 T·m −20%, worse
Xmax7.5 mm −6%
Sensitivity96.9 dB +2.6, better

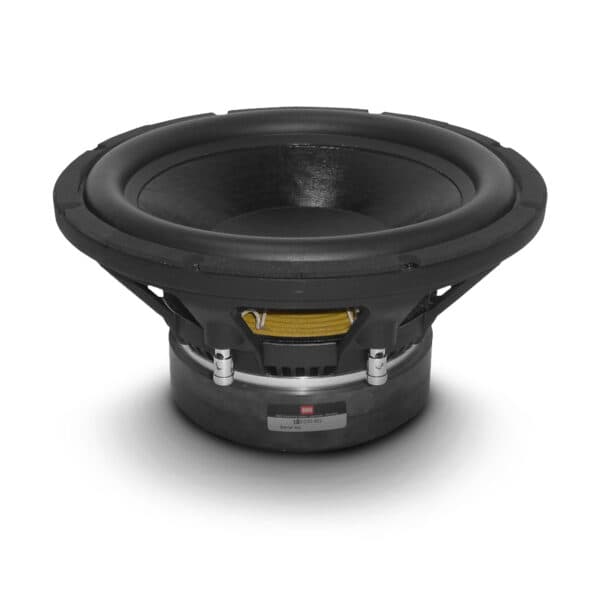

BMS12S330
£204.98Fs29 Hz −21%, better
Qts0.24 +9%
Vas85.5 L +4%
BL23 T·m +5%
Xmax8 mm –
Sensitivity91.1 dB −3.2, worse
Beyma12MC700ND
£208.90Fs51 Hz +42%, worse
Qts0.24 +9%
Vas58 L −30%, better
BL21.6 T·m –
Xmax7 mm −13%, worse
Sensitivity96.7 dB +2.4, better
Eighteen Sound12ND730
£230.40Fs45 Hz +25%, worse
Qts0.23 +5%
Vas90 L +9%
BL19.2 T·m −13%, worse
Xmax6.5 mm −19%, worse
Sensitivity97.4 dB +3.1, better
Eighteen Sound12ND930
£248.59Fs50 Hz +39%, worse
Qts0.21 −5%
Vas70 L −15%, better
BL21.2 T·m −4%
Xmax6.5 mm −19%, worse
Sensitivity98 dB +3.7, better
BMS12N803
£285.67Fs41 Hz +14%, worse
Qts0.24 +9%
Vas77 L −7%
BL21.4 T·m –
Xmax6 mm −25%, worse
Sensitivity95.3 dB +1
Sica12 S 4 PL
£333.47Fs40 Hz +12%, worse
Qts0.25 +14%, worse
Vas57 L −31%, better
BL23.5 T·m +7%
Xmax7.5 mm −6%
Sensitivity93.6 dB −0.7
Beyma12P80ND
£374.18Fs47 Hz +31%, worse
Qts0.19 −14%, better
Vas65 L −21%, better
BL23.7 T·m +8%
Xmax7.5 mm −6%
Sensitivity97.3 dB +3, better
LavoceCAN123.00T
£400.33Fs46 Hz +28%, worse
Qts0.22 –
Vas91 L +10%, worse
BL18.5 T·m −16%, worse
Xmax6 mm −25%, worse
Sensitivity97.9 dB +3.6, better
B&C12CXN88
£465.46Fs50 Hz +39%, worse
Qts0.22 –
Vas59 L −29%, better
BL20.9 T·m −5%
Xmax10.5 mm +31%, better
Sensitivity97.1 dB +2.8, better
Precision DevicesPD.124NR1-LR
No current priceFs45 Hz +25%, worse
Qts0.23 –
Vas78 L −6%
BL22 T·m –
Xmax8.5 mm +6%
Sensitivity96.9 dB +2.6, better
Oberton12NB450
No current priceFs46 Hz +29%, worse
Qts0.20 −7%
Vas72.6 L −12%, better
BL20.3 T·m −8%
Xmax7.8 mm −3%
Sensitivity97.5 dB +3.2, better
Oberton12B450
No current priceFs46 Hz +29%, worse
Qts0.23 +7%
Vas71.8 L −13%, better
BL19.3 T·m −12%, worse
Xmax7.8 mm −3%
Sensitivity96.7 dB +2.4, better
RCFLF12P903
No current priceFs47 Hz +31%, worse
Qts0.23 +5%
Vas65 L −21%, better
BL22.1 T·m –
Xmax7 mm −13%, worse
Sensitivity96.5 dB +2.2, better
RCFLF12G801
No current priceFs43 Hz +19%, worse
Qts0.22 –
Vas97 L +17%, worse
BL19 T·m −14%, worse
Xmax7 mm −13%, worse
Sensitivity97.3 dB +3, better
RCFLF12P901
No current priceFs43 Hz +19%, worse
Qts0.22 –
Vas97 L +17%, worse
BL19 T·m −14%, worse
Xmax7 mm −13%, worse
Sensitivity97.3 dB +3, better
Eighteen Sound12ND940
No current priceFs49 Hz +36%, worse
Qts0.20 −9%
Vas64.8 L −22%, better
BL22.2 T·m –
Xmax7.6 mm −5%
Sensitivity97.8 dB +3.5, better
LavoceCAN123.00TH
No current priceFs46 Hz +28%, worse
Qts0.22 –
Vas91 L +10%, worse
BL18.5 T·m −16%, worse
Xmax6 mm −25%, worse
Sensitivity97.9 dB +3.6, better
Oberton12B401
No current priceFs47 Hz +30%, worse
Qts0.24 +11%, worse
Vas69.6 L −16%, better
BL19.9 T·m −9%
Xmax6.8 mm −16%, worse
Sensitivity96.5 dB +2.2, better
No photo
PHL Audio4051
No current priceFs49 Hz +36%, worse
Qts0.20 −9%
Vas85.2 L +3%
BL20.9 T·m −5%
Xmax5 mm −38%, worse
Sensitivity98.8 dB +4.5, better
RCFMB12N405
No current priceFs52 Hz +44%, worse
Qts0.20 −9%
Vas53 L −36%, better
BL23.5 T·m +7%
Xmax7 mm −13%, worse
Sensitivity97.5 dB +3.2, better
Oberton12NXL400
No current priceFs49 Hz +35%, worse
Qts0.20 −8%
Vas79.2 L −4%
BL20.6 T·m −6%
Xmax5.3 mm −34%, worse
Sensitivity98.5 dB +4.2, better
