12-inch LF driver · 12B series · 77 mm voice coil · 450 W

Oberton 12B450 8Ω

Name: Oberton 12B450 8 Ohm
Brand: Oberton
SKU: 12B450

8 Ω · 50–3000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 46Hz
Xmax: 7.8mm
SPL: 97dB
Pe: 450W
BL: 19.3T·m
Vd: 399cm³
Qts: 0.23
Vas: 72L

See all 28 specs

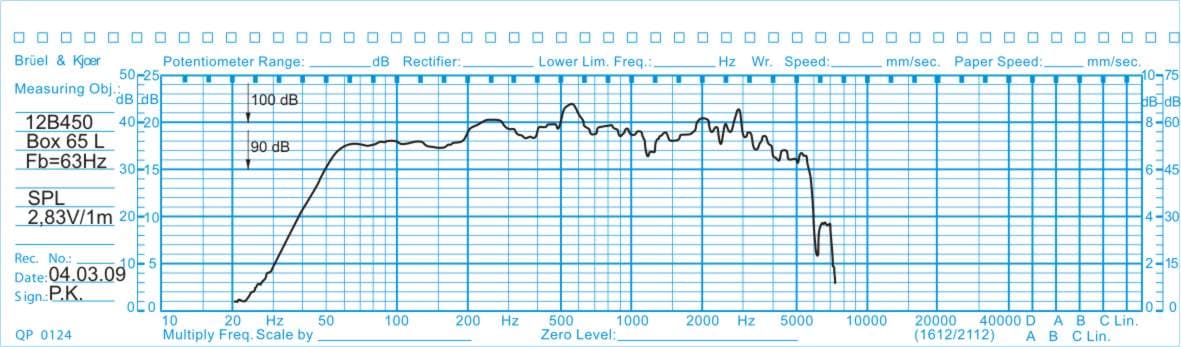

Published graphs

Specifications

Published by Oberton

Manufacturer page

Datasheet PDF

Oberton 12B450 is a 12-inch 8 ohm LF driver rated at 450 W RMS. The validated T/S data includes Fs 46 Hz, Qts 0.23, Vas 71.8 L, Xmax 7.8 mm, sensitivity 96.7 dB, plus 399 cm³ Vd and 192 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 46Hz
Qts: 0.23
Qes: 0.24
Qms: 9.6
Vas: 71.8L
Re: 5.1Ω
Le: 1.10mH

Motor and cone

BL: 19.3T·m
Sd: 515cm²
Mms: 61g
Xmax: 7.8mm
Vd †: 399cm³
Voice coil: 77mm
Flux density: 1.20T

Power and response

Sensitivity †: 96.7dB
Manufacturer sensitivity: 200dB
Power: 450W
Impedance: 8Ω
Min. impedance: 6.2Ω
Range: 50–3000Hz
EBP †: 192 · Leans vented

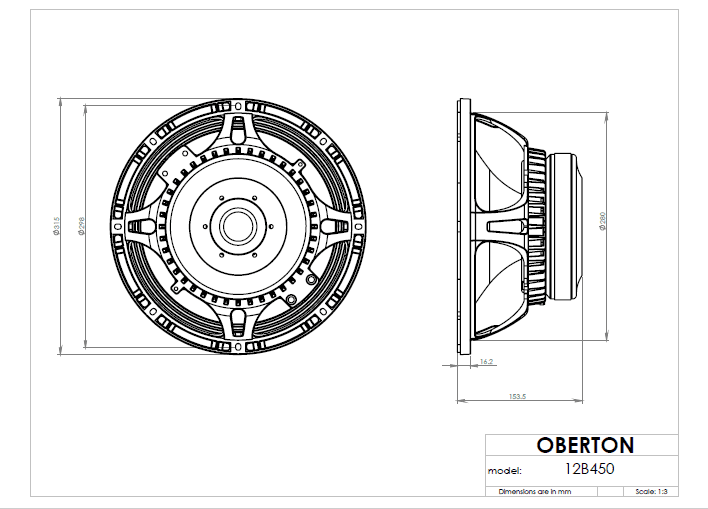

Size and mounting

Diameter: 315mm
Cutout: 280mm
Bolt circle: 298mm
Depth: 153mm
Weight: 7.5kg

Other published values

Cms: 0.19mm/N
Power Program: 900

Sensitivity shows 96.7 dB, calculated from the T/S values. Oberton publishes 200.0 dB, 103.3 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Oberton lists

LF · Primary · 12″

BL: 19.3T·m
Fs: 46Hz
Le: 1.10mH
Re: 5.1Ω
Sd: 515cm²
Cms: 0.19mm/N
Mms: 61g
Qes: 0.24
Qms: 9.6
Qts: 0.23
SPL: 96.7dB
Vas: 71.8L
Xmax: 7.8mm
Power: 450W
Impedance: 8Ω
Flux density: 1.20T
Sensitivity: 200dB
Low limit: 50Hz
Power Program: 900
Calculated sensitivity †: 96.7dB
High limit: 3000Hz
Manufacturer sensitivity: 200dB
Min. impedance: 6.2Ω
Voice coil: 77mm
Weight: 7.5kg
Diameter: 315mm
Depth: 153mm
Cutout: 280mm
Bolt circle: 298mm

Compare

Same-size drivers, compared with the 12B450. Clear differences are green when better and red when worse.

This driver12B450

Best price

–

46 Hz

Qts

0.23

Vas

71.8 L

19.3 T·m

Xmax

7.8 mm

Sensitivity

96.7 dB

Power

450 W

RCFLF12G301

£109.81

Fs43 Hz −7%

Qts0.22 −6%

Vas97 L +35%

BL19 T·m –

Xmax7 mm −10%

Sensitivity97.3 dB +0.6

B&C12PLB76

£149.88

Fs50 Hz +8%

Qts0.23 –

Vas75 L +5%

BL18.6 T·m −4%

Xmax5 mm −35%

Sensitivity97.9 dB +1.2

FaitalPRO12FH510

£163.54

Fs45 Hz –

Qts0.24 –

Vas81.3 L +13%

BL18.9 T·m –

Xmax7.5 mm −3%

Sensitivity96.7 dB –

B&C12NDL76

£165.79

Fs50 Hz +8%

Qts0.20 −15%

Vas73 L –

BL20.1 T·m +4%

Xmax7 mm −10%

Sensitivity98.4 dB +1.7

FaitalPRO12FH530

£175.00

Fs45 Hz –

Qts0.26 +11%

Vas74.1 L +3%

BL18.9 T·m –

Xmax7.5 mm −3%

Sensitivity96 dB −0.7

FaitalPRO12FH500

£180.28

Fs45 Hz –

Qts0.25 +6%

Vas87.3 L +22%

BL17.5 T·m −9%

Xmax7.5 mm −3%

Sensitivity96.9 dB –

RCFMB12N301

£183.23

Fs54 Hz +17%

Qts0.24 –

Vas71 L –

BL19 T·m –

Xmax6 mm −23%

Sensitivity98.4 dB +1.7

B&C12NDL88

£204.88

Fs48 Hz +4%

Qts0.24 –

Vas57 L −21%

BL16.6 T·m −14%

Xmax8 mm +3%

Sensitivity96 dB −0.7

BMS12S330

£204.98

Fs29 Hz −38%

Qts0.24 –

Vas85.5 L +19%

BL23 T·m +19%

Xmax8 mm +3%

Sensitivity91.1 dB −5.6

Beyma12MC700ND

£209.29

Fs51 Hz +10%

Qts0.24 –

Vas58 L −19%

BL21.6 T·m +12%

Xmax7 mm −10%

Sensitivity96.7 dB –

BMS12C262

£228.36

Fs47 Hz –

Qts0.24 –

Vas60.6 L −16%

BL20.6 T·m +7%

Xmax2.5 mm −68%

Sensitivity96.1 dB −0.6

Eighteen Sound12ND730

£230.40

Fs45 Hz –

Qts0.23 –

Vas90 L +25%

BL19.2 T·m –

Xmax6.5 mm −16%

Sensitivity97.4 dB +0.7

BMS12N620

£247.26

Fs45 Hz −3%

Qts0.25 +6%

Vas72.7 L –

BL20.6 T·m +7%

Xmax5.5 mm −29%

Sensitivity96 dB −0.7

Beyma12P80FE

£247.64

Fs48 Hz +4%

Qts0.21 −11%

Vas61 L −15%

BL23 T·m +19%

Xmax7.5 mm −3%

Sensitivity96.9 dB –

Eighteen Sound12ND930

£248.59

Fs50 Hz +8%

Qts0.21 −11%

Vas70 L –

BL21.2 T·m +10%

Xmax6.5 mm −16%

Sensitivity98 dB +1.3

BMS12N803

£285.67

Fs41 Hz −11%

Qts0.24 –

Vas77 L +7%

BL21.4 T·m +11%

Xmax6 mm −23%

Sensitivity95.3 dB −1.4

Sica12 S 4 PL

£334.09

Fs40 Hz −13%

Qts0.25 +6%

Vas57 L −21%

BL23.5 T·m +22%

Xmax7.5 mm −3%

Sensitivity93.6 dB −3.1

Oberton12B401

No current price

Fs47 Hz –

Qts0.24 +4%

Vas69.6 L –

BL19.9 T·m +3%

Xmax6.8 mm −13%

Sensitivity96.5 dB –

RCFLF12P903

No current price

Fs47 Hz –

Qts0.23 –

Vas65 L −9%

BL22.1 T·m +15%

Xmax7 mm −10%

Sensitivity96.5 dB –

Oberton12NB450

No current price

Fs46 Hz –

Qts0.20 −13%

Vas72.6 L –

BL20.3 T·m +5%

Xmax7.8 mm –

Sensitivity97.5 dB +0.8

Precision DevicesPD.124NR1-LR

No current price

Fs45 Hz –

Qts0.23 −4%

Vas78 L +9%

BL22 T·m +14%

Xmax8.5 mm +10%

Sensitivity96.9 dB –

No photo

PHL Audio4330NDU

No current price

Fs36 Hz −22%

Qts0.22 −6%

Vas82.6 L +15%

BL22 T·m +14%

Xmax8 mm +3%

Sensitivity94.3 dB −2.4

RCFLF12G801

No current price

Fs43 Hz −7%

Qts0.22 −6%

Vas97 L +35%

BL19 T·m –

Xmax7 mm −10%

Sensitivity97.3 dB +0.6

RCFLF12P901

No current price

Fs43 Hz −7%

Qts0.22 −6%

Vas97 L +35%

BL19 T·m –

Xmax7 mm −10%

Sensitivity97.3 dB +0.6

LavoceNBASS12-30

No current price

Fs46 Hz –

Qts0.26 +11%

Vas68.6 L −4%

BL19.5 T·m –

Xmax6.6 mm −15%

Sensitivity96 dB −0.7

No photo

PHL Audio4071-1

No current price

Fs47 Hz –

Qts0.24 –

Vas57.8 L −19%

BL20.6 T·m +7%

Xmax6.5 mm −16%

Sensitivity95.7 dB −1

No photo

PHL Audio4031

No current price

Fs44 Hz −5%

Qts0.27 +15%

Vas70 L –

BL20.5 T·m +6%

Xmax7.5 mm −3%

Sensitivity95.2 dB −1.5

No photo

PHL Audio4031NDU

No current price

Fs44 Hz −5%

Qts0.27 +15%

Vas70 L –

BL20.5 T·m +6%

Xmax7.5 mm −3%

Sensitivity95.2 dB −1.5

Eighteen Sound12MB650

No current price

Fs48 Hz +4%

Qts0.23 –

Vas90 L +25%

BL19 T·m –

Xmax5.5 mm −29%

Sensitivity98.2 dB +1.5

Oberton12B400

No current price

Fs50 Hz +9%

Qts0.25 +6%

Vas74.7 L +4%

BL18.4 T·m −5%

Xmax5.3 mm −32%

Sensitivity97.8 dB +1.1
