12-inch LF driver · 12B series · 77 mm voice coil · 400 W
Oberton 12B400 8Ω
8 Ω · 50–2500 Hz
No price for delivery to the UK
- Fs
- 50Hz
- Xmax
- 5.3mm
- SPL
- 98dB
- Pe
- 400W
- BL
- 18.4T·m
- Vd
- 270cm³
- Qts
- 0.25
- Vas
- 75L

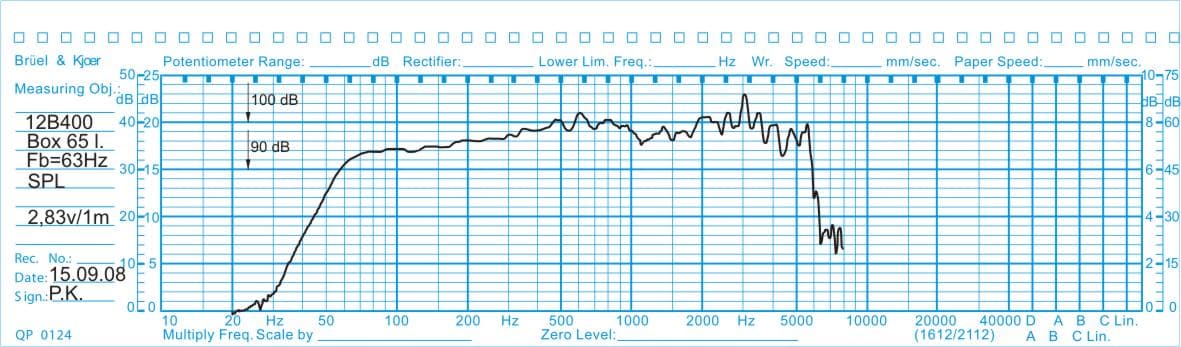

Published graphs
Oberton 12B400 is a 12-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 50 Hz, Qts 0.25, Vas 74.7 L, Xmax 5.3 mm, sensitivity 97.8 dB, plus 270 cm³ Vd and 197 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 50Hz
- Qts
- 0.25
- Qes
- 0.26
- Qms
- 9.7
- Vas
- 74.7L
- Re
- 5.5Ω
- Le
- 0.81mH
Motor and cone
- BL
- 18.4T·m
- Sd
- 515cm²
- Mms
- 49g
- Xmax
- 5.3mm
- Vd †
- 270cm³
- Voice coil
- 77mm
- Flux density
- 1.33T
Power and response
- Sensitivity †
- 97.8dB
- Manufacturer sensitivity
- 200dB
- Power
- 400W
- Impedance
- 8Ω
- Min. impedance
- 6.3Ω
- Range
- 50–2500Hz
- EBP †
- 197 · Leans vented

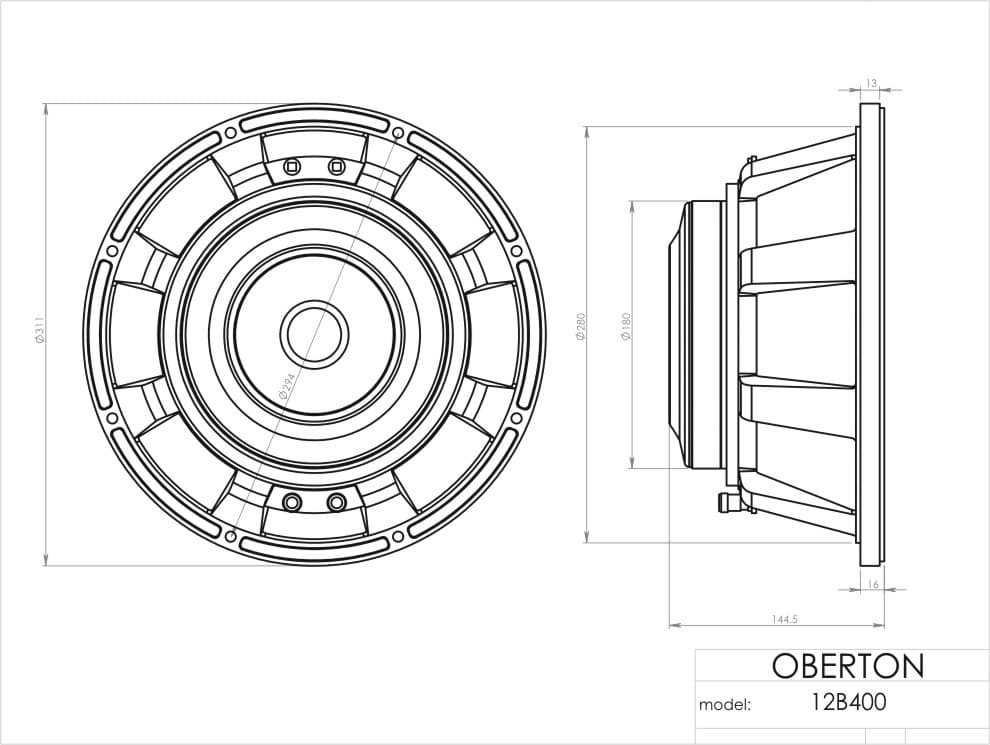

Size and mounting
- Diameter
- 311mm
- Cutout
- 280mm
- Bolt circle
- 294mm
- Depth
- 144.5mm
- Weight
- 7.3kg
Other published values
- Cms
- 0.20mm/N
- Power Program
- 800
Sensitivity shows 97.8 dB, calculated from the T/S values. Oberton publishes 200.0 dB, 102.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 12″
- BL
- 18.4T·m
- Fs
- 50Hz
- Le
- 0.81mH
- Re
- 5.5Ω
- Sd
- 515cm²
- Cms
- 0.20mm/N
- Mms
- 49g
- Qes
- 0.26
- Qms
- 9.7
- Qts
- 0.25
- SPL
- 97.8dB
- Vas
- 74.7L
- Xmax
- 5.3mm
- Power
- 400W
- Impedance
- 8Ω
- Flux density
- 1.33T
- Sensitivity
- 200dB
- Low limit
- 50Hz
- Power Program
- 800
- Calculated sensitivity †
- 97.8dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 200dB
- Min. impedance
- 6.3Ω
- Voice coil
- 77mm
- Weight
- 7.3kg
- Diameter
- 311mm
- Depth
- 144.5mm
- Cutout
- 280mm
- Bolt circle
- 294mm
