BMS 12S302 8Ω
8 Ω · 45–2500 Hz
No price for delivery to the UK
- Fs
- 45Hz
- Xmax
- 4.5mm
- SPL
- 96dB
- Pe
- 500W
- BL
- 15.7T·m
- Vd
- 239cm³
- Qts
- 0.25
- Vas
- 65L

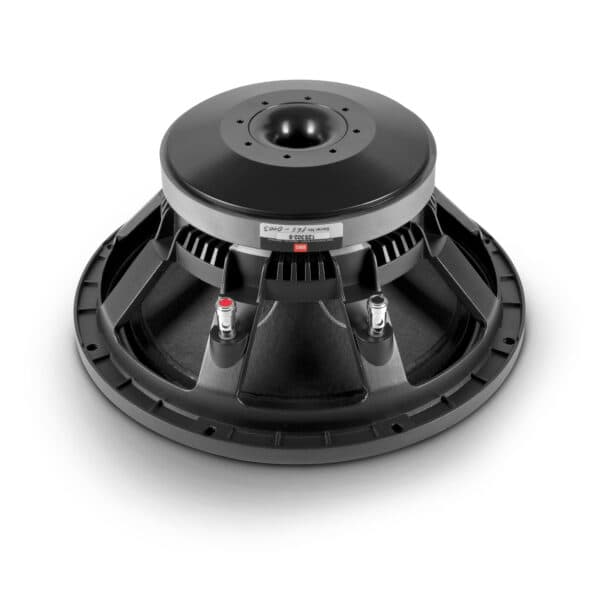

BMS 12S302 is a 12-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 45 Hz, Qts 0.25, Vas 65 L, Xmax 4.5 mm, sensitivity 95.5 dB, plus 239 cm³ Vd and 169 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 45Hz
- Qts
- 0.25
- Qes
- 0.27
- Qms
- 5
- Vas
- 65L
- Re
- 3Ω
- Le
- 0.50mH
Motor and cone
- BL
- 15.7T·m
- Sd
- 531cm²
- Mms
- 77g
- Xmax
- 4.5mm
- Vd †
- 239cm³
- Voice coil
- 77mm
Power and response
- Sensitivity †
- 95.5dB
- Manufacturer sensitivity
- 96dB
- Power
- 500W
- Impedance
- 8Ω
- Range
- 45–2500Hz
- EBP †
- 169 · Leans vented

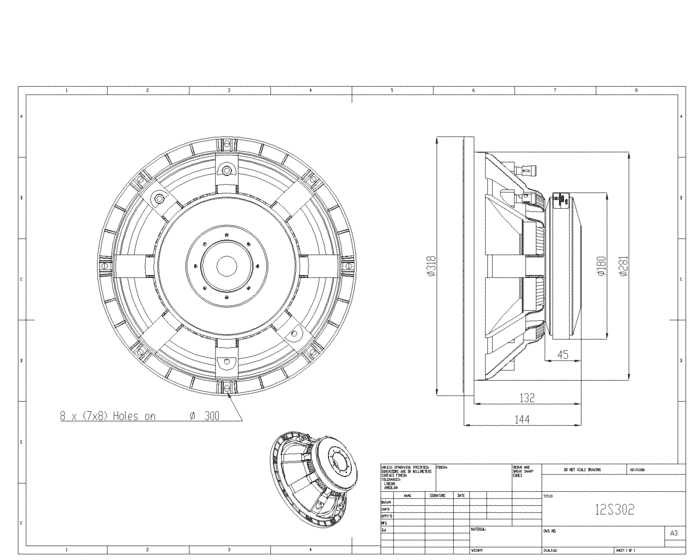

Size and mounting
- Diameter
- 318mm
- Cutout
- 284mm
- Bolt circle
- 300mm
- Depth
- 144mm
- Weight
- 6.7kg
Other published values
- Cms
- 0.16mm/N
† Calculated by bits from the published values
What this validation status means
Everything else BMS lists
LF
- BL
- 15.7T·m
- Fs
- 45Hz
- Le
- 0.50mH
- Re
- 3Ω
- Sd
- 531cm²
- Cms
- 0.16mm/N
- Mms
- 77g
- Qes
- 0.27
- Qms
- 5
- Qts
- 0.25
- SPL
- 95.5dB
- Vas
- 65L
- Xmax
- 4.5mm
- Power
- 500W
- Impedance
- 8Ω
- Sensitivity
- 96dB
- Low limit
- 45Hz
- Calculated sensitivity †
- 95.5dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 96dB
- Voice coil
- 77mm
- 10. basket
- Cast Aluminum
- 20. bl factor
- BL 15.65 Tesla m
- 1. application
- Compact 2- or 3-way
- 18. moving mass
- Mms 0.077 kg
- 13. dc resistance
- Re 3 Ohm
- 9. magnet gap depth
- 10 mm
- 17. equivalent volume
- Vas 65 L
- 2. nominal impendance
- 8 Ohm
- 5. frequency response
- 45 – 2500 Hz
- 6. voice coil diameter
- 77 (3″) mm
- 7. voice coil material
- Cu
- 12. resonance frequency
- Fs 45 Hz
- 14. mechanical q factor
- Qms 5
- 15. electrical q factor
- Qes 0.267
- 16. total quality factor
- Qts 0.253
- 19. mechanical complience
- Cms 0.16 mm / N
- 21. effective piston area
- Sd 0.0531 m²
- 22. max. linear excursion
- Xmax +/- 4.5 mm
- 23. voice coil inductance
- Le1k 0.5 mH
- 4. sensitivity (1 w / 1 m)
- 96 dB
- 3. power handling aes noise
- 500 W
- 8. voice coil winding depth
- 19 mm
- 11. effect. diaphragm diameter d
- 260 mm
