Overview
LF Driver
Eighteen Sound
Eighteen Sound 12ND930
Eighteen Sound 12ND930 is a 12" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 50Hz, Qts 0.21, Vas 70L, Xmax 6.5mm, sensitivity 98dB, plus 345cm³ Vd and 227 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £226.95.
Size
12"
Impedance
8Ω
RMS Power
500W
Sensitivity
98.0dB
EBP
227
Vented alignment
Vd
345cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response

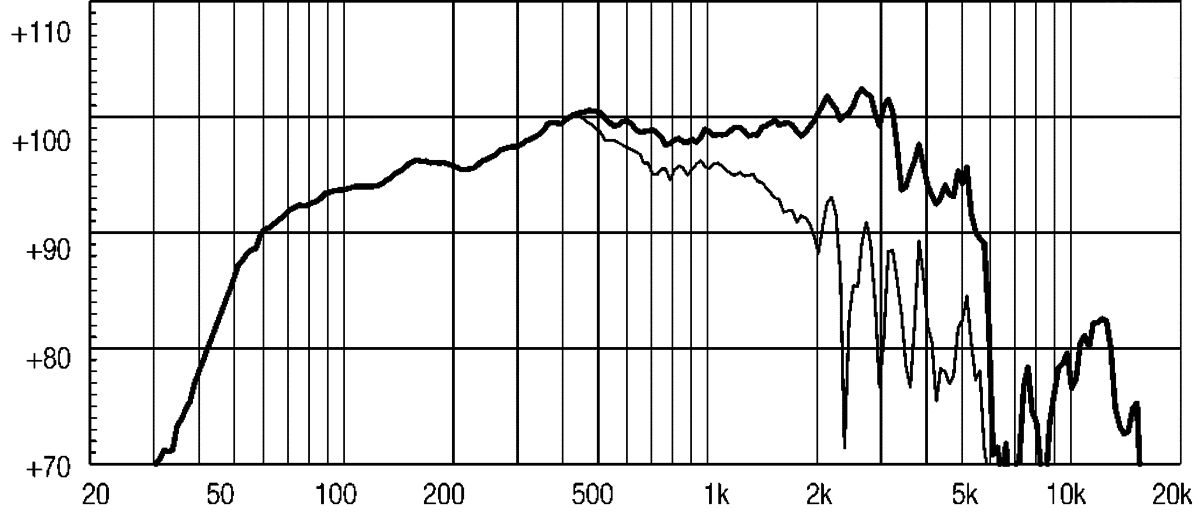

Frequency response
240 plotted pointsMedium confidence2,674 selected pixels of 2,674 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence965 selected pixels of 965
T/S Parameters
Valid
Fs50Hz
Qts0.21
Qes0.22
Qms5.6
Vas70.0L
Re5.5Ω
Le1.65mH
BL21.2Tm
Sd531cm²
Mms57g
Xmax6.5mm
SPL98dB
Power500W
Power Nominal500W
Impedance8Ω
F Low46Hz
F High4500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£226.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.4kg
Diameter315.0mm
Overall Depth140.0mm
Cutout Diameter282.0mm
Bolt Circle Diameter296.0mm
