Overview
LF Driver
Eighteen Sound
Eighteen Sound 12ND710
Eighteen Sound 12ND710 is a 12" 8 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 52Hz, Qts 0.20, Vas 92L, Xmax 5mm, sensitivity 100.1dB, plus 265cm³ Vd and 260 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £248.59.
Size
12"
Impedance
8Ω
RMS Power
450W
Sensitivity
100.1dB
EBP
260
Vented alignment
Vd
265cm³
Datasheet traces

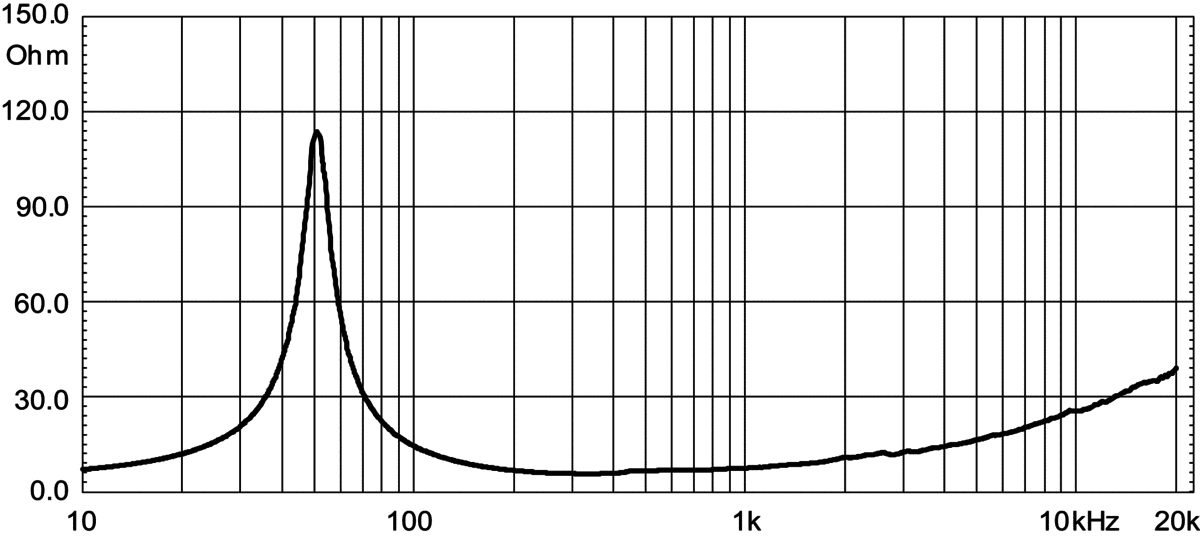

Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

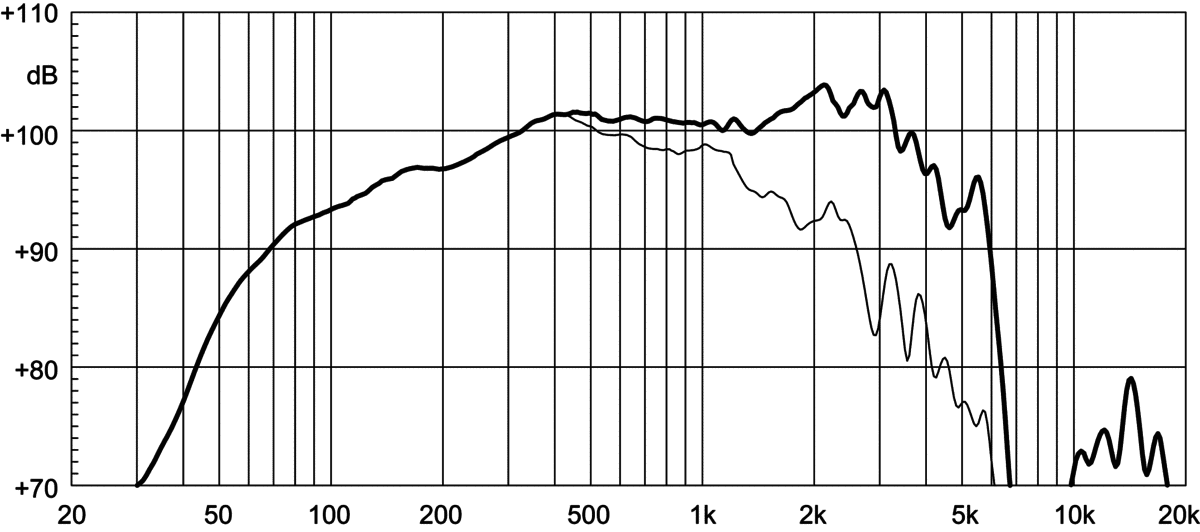

frequency response
Frequency response
240 plotted pointsMedium confidence1,611 selected pixels of 1,611
T/S Parameters
Valid
Fs52Hz
Qts0.20
Qes0.20
Qms6.0
Vas92.0L
Re5.0Ω
Le1.00mH
BL18.0Tm
Sd530cm²
Mms40g
Xmax5.0mm
SPL100dB
Power450W
Power Nominal450W
Impedance8Ω
F Low60Hz
F High6000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£248.59
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.4kg
Diameter315.0mm
Overall Depth141.0mm
Cutout Diameter282.0mm
Bolt Circle Diameter296.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eighteen Sound
12ND710
12"
Best current price
£248.59
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
51%
Similarity
60% cheaper£99.00
B&C
12CLA76
12"
Lower price
Xmax5.3mm+6%
Qts0.25+25%
BL20.2Tm+12%
Vas56L-39%
Qes0.26+30%
66%
Similarity
58% cheaper£104.34
RCF
MB12N351
12"
Lower price
Xmax6mm+20%
Qts0.20%
BL22.5Tm+25%
Vas61L-34%
Qes0.21+5%
60%
Similarity
44% cheaper£138.00
B&C
12CL76
12"
Lower price
Xmax6mm+20%
Qts0.21+5%
BL22.4Tm+24%
Vas59L-36%
Qes0.22+10%
63%
Similarity
43% cheaper£140.76
Oberton
12B400
12"
Lower price
Xmax5.3mm+5%
Qts0.25+24%
BL18.4Tm+2%
Vas74.7L-19%
Qes0.26+28%
79%
Similarity
40% cheaper£149.00
Eighteen Sound
12MB600
12"
Lower price
Xmax4.5mm-10%
Qts0.18-10%
BL18Tm0%
Vas115L+25%
Qes0.19-5%
72%
Similarity
40% cheaper£149.72
PRV Audio
12MR1200X
12"
Lower price
Xmax4.5mm-10%
Qts0.21+5%
BL22Tm+22%
Vas71.8L-22%
Qes0.21+5%
75%
Similarity
39% cheaper£151.02
B&C
12PLB76
12"
Lower price
Xmax5mm0%
Qts0.23+15%
BL18.6Tm+3%
Vas75L-18%
Qes0.24+20%
73%
Similarity
38% cheaper£153.26
Eighteen Sound
12MB650
12"
Lower price
Xmax5.5mm+10%
Qts0.23+15%
BL19Tm+6%
Vas90L-2%
Qes0.24+20%
77%
Similarity
33% cheaper£166.61
B&C
12MH32
12"
Lower price
Xmax5mm0%
Qts0.19-5%
BL22.3Tm+24%
Vas63L-32%
Qes0.20%
75%
Similarity
32% cheaper£169.00
B&C
12NDL76
12"
Lower price
Xmax6mm+20%
Qts0.19-5%
BL16.5Tm-8%
Vas70L-24%
Qes0.20%
54%
Similarity
31% cheaper£170.65
RCF
MB12N301
12"
Lower price
Xmax6mm+20%
Qts0.24+20%
BL19Tm+6%
Vas71L-23%
Qes0.26+30%
88%
Similarity
27% cheaper£181.89
Eighteen Sound
12MB700
12"
Lower price
Xmax4.5mm-10%
Qts0.19-5%
BL17.8Tm-1%
Vas101L+10%
Qes0.20%
