LF Driver12MH series
B&C

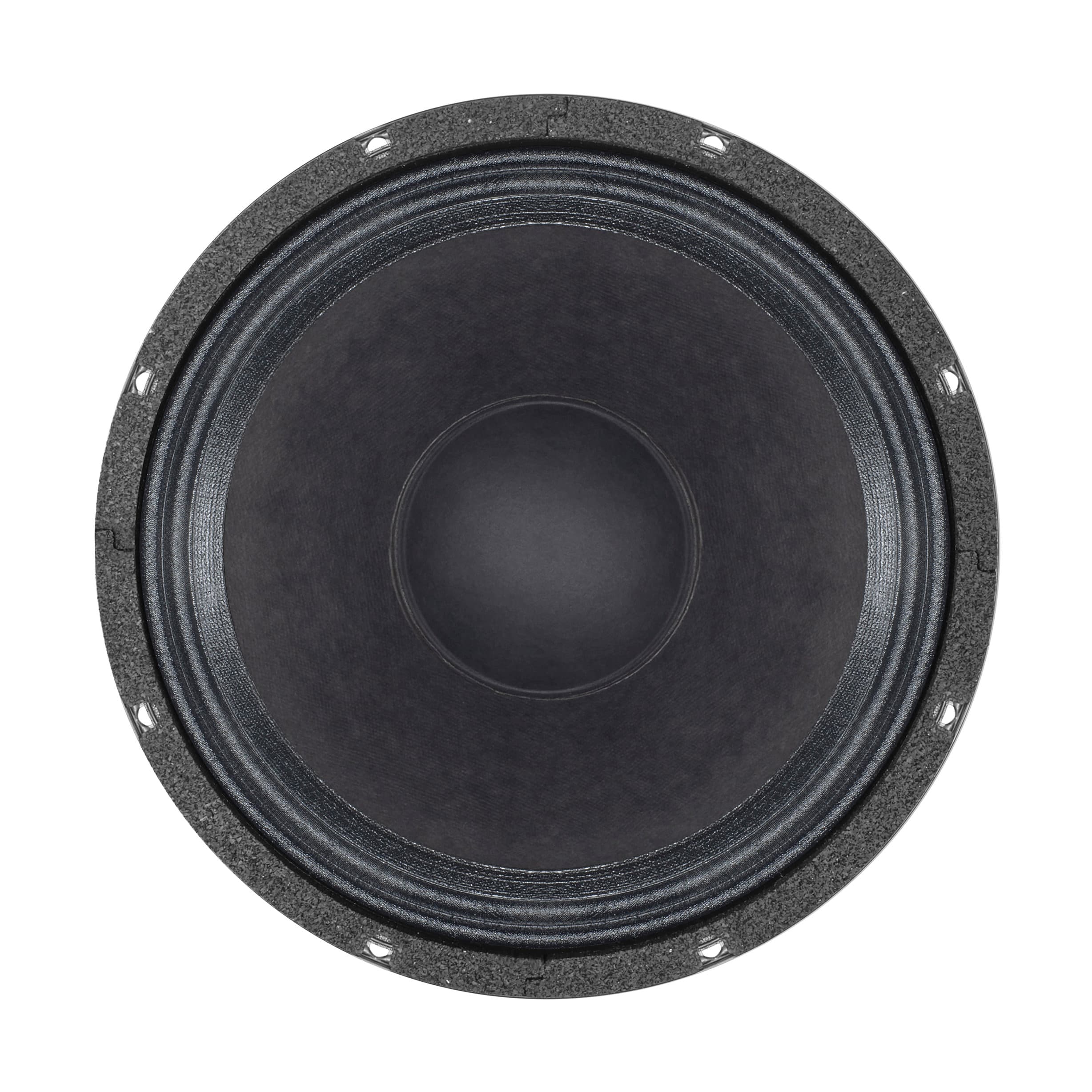

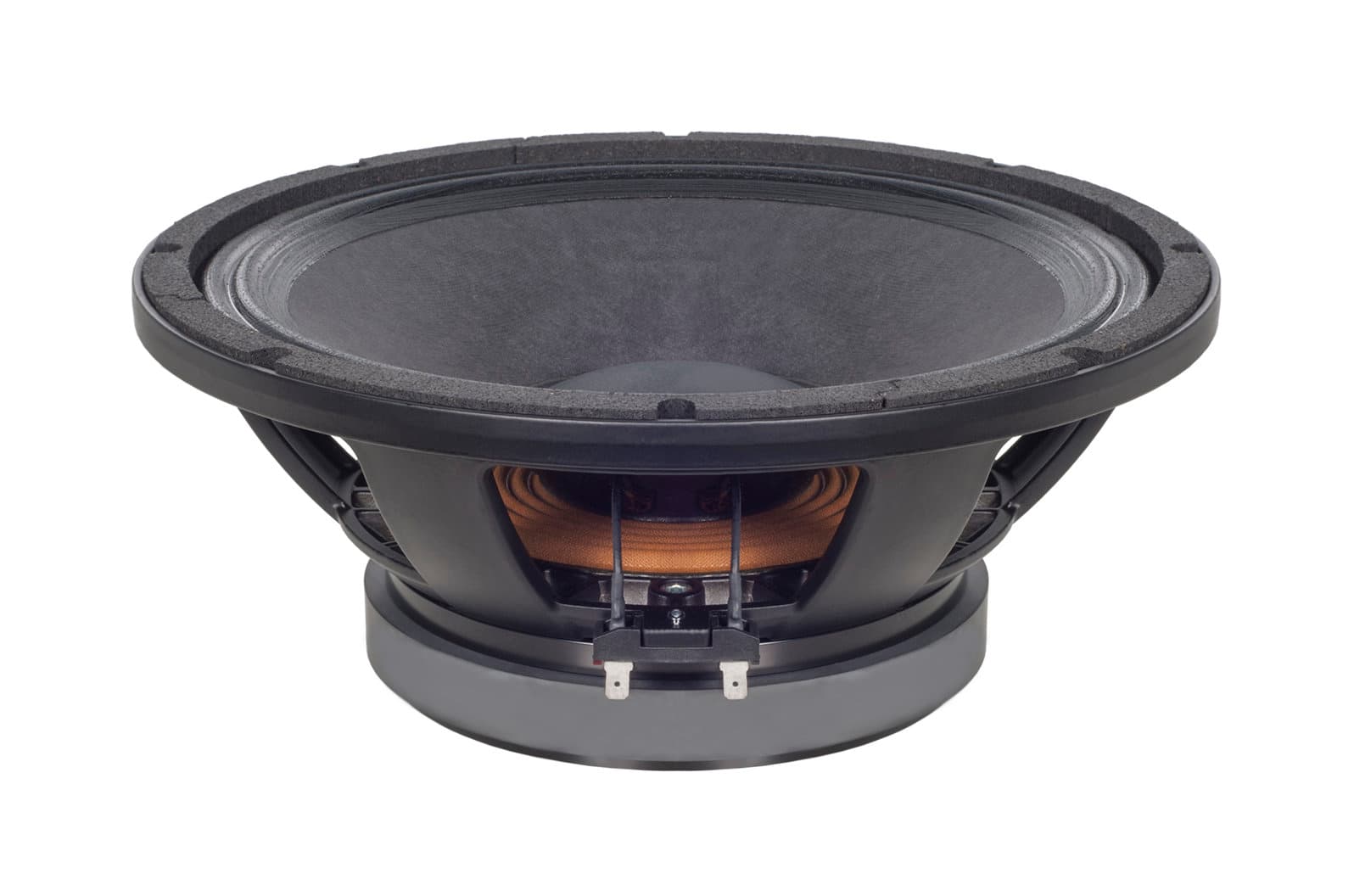

B&C 12MH32
B&C 12MH32 is a 12" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 53Hz, Qts 0.19, Vas 63L, Xmax 5mm, sensitivity 98.7dB, plus 261cm³ Vd and 265 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £166.61.
Size
12"
Impedance
8Ω
RMS Power
400W
Sensitivity
98.7dB
101.0dBmanufacturer; using T/S-derived value (2.3dB delta).
EBP
265
Vented alignment
Vd
261cm³

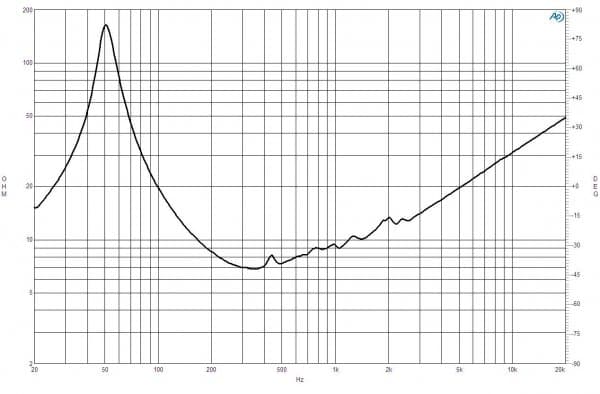

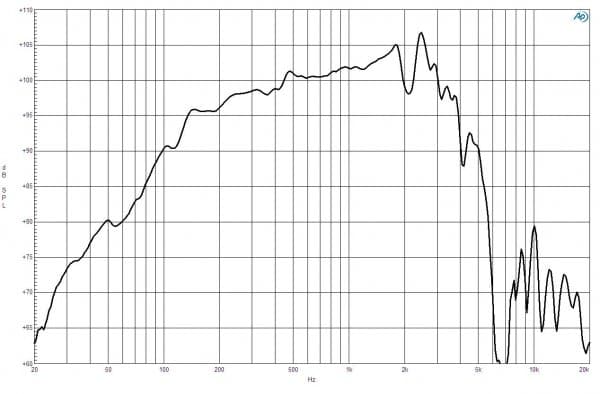

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs53Hz
Qts0.19
Qes0.20
Qms7.2
Vas63.0L
Re5.2Ω
Le0.83mH
BL22.3Tm
Sd522cm²
Mms54g
Xmax5.0mm
SPL99dB
Power400W
Power Nominal400W
Impedance8Ω
Min Impedance6.5Ω
F Low50Hz
F High3000Hz
Voice Coil76mm
Flux Density1.40T
Pricing & availability
Price definitionsPrice movement
Best current price
£166.61
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.5kg
Diameter316.0mm
Overall Depth133.0mm
Cutout Diameter282.0mm
Bolt Circle Diameter296.0mm
Additional Manufacturer Specs
Bl22.3 Tm
Fs53 Hz
Le0.83 mH
Re5.2 Ω
Sd522 cm² (80.9 in²)
Ebp265 Hz
Mms54 g
Qes0.2
Qms7.2
Qts0.19
Vas63 dm³ (2.2 ft³)
η04.8 %
ConeRCK012MH328
Xmax5 mm
Xvar7 mm
SpiderSingle
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth14 mm (0.55 in)
Surround ShapeDouble Roll
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter320 mm (12 in)
Winding MaterialCopper
Magnetic Gap Depth8 mm (0.31 in)
Bolt Circle Diameter296 mm (11.6 in)
Woofer Cone TreatmentNone
Baffle Cutout Diameter282 mm (11.1 in)
Flange And Gasket Thickness12 mm (0.47 in)
Air Volume Occupied By Driver3.3 dm³ (0.12 ft³)
