Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSica 12 F 4 CP 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Sica

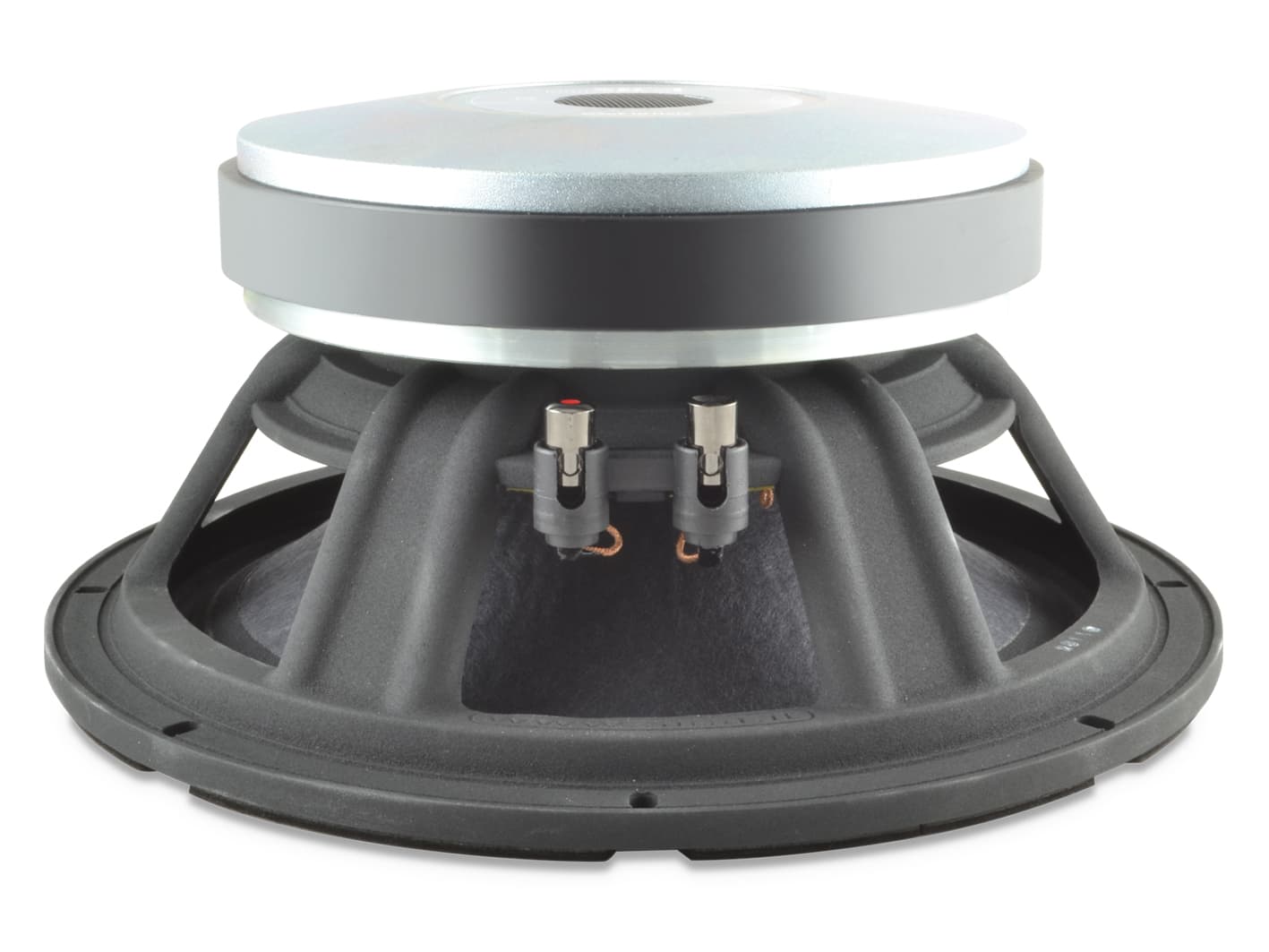

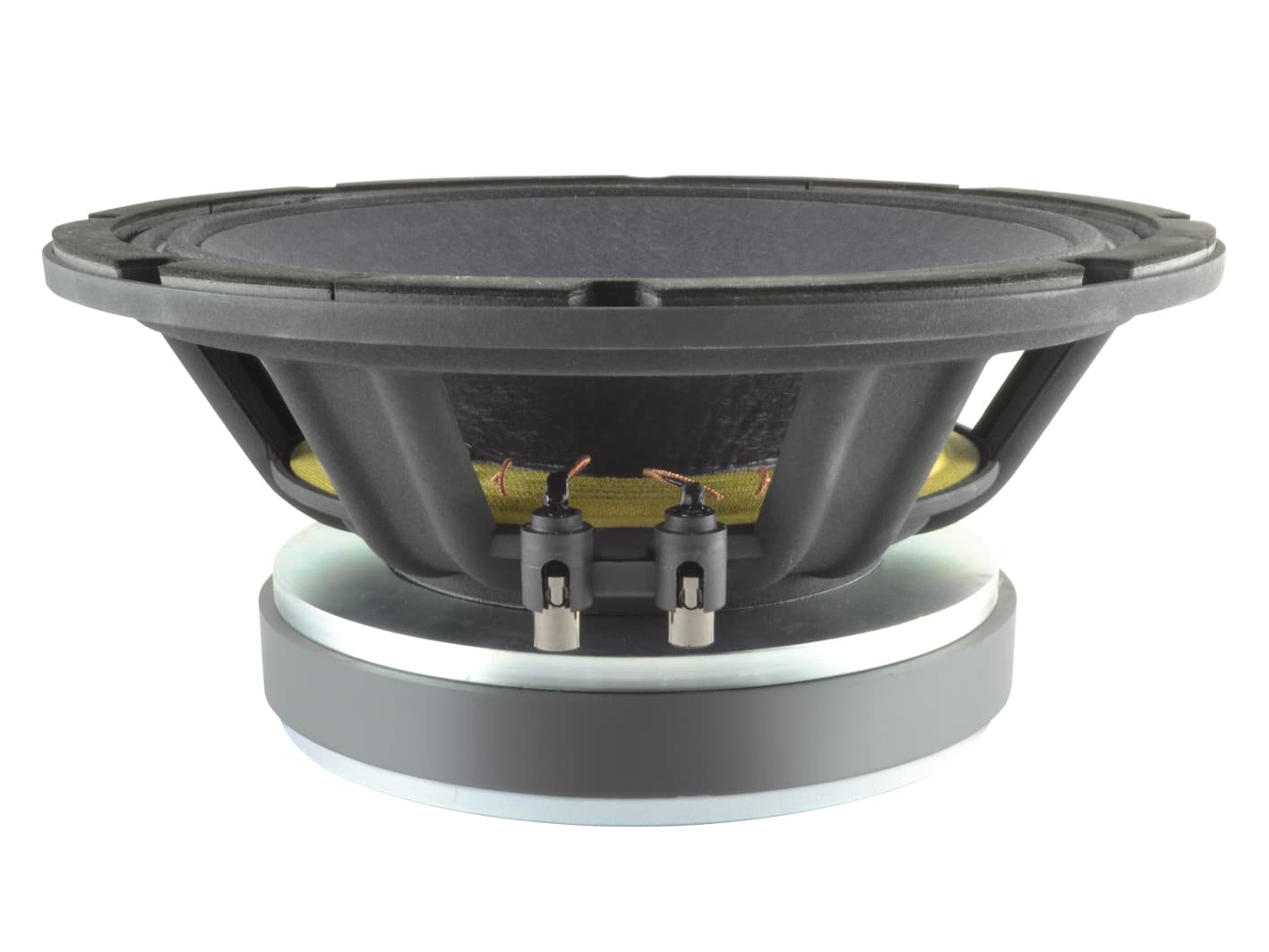

Sica 12 F 4 CP
Sica 12 F 4 CP is a 12" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 46Hz, Qts 0.20, Vas 52L, Xmax 6mm, sensitivity 95.8dB, plus 319cm³ Vd and 219 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
700W
Sensitivity
95.8dB
97.8dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
219
Vented alignment
Vd
319cm³
T/S Parameters
Valid
Fs46Hz
Qts0.20
Qes0.21
Qms6.2
Vas52.0L
Re5.2Ω
Le1.33mH
BL26.0Tm
Sd531cm²
Mms92g
Xmax6.0mm
SPL96dB
Power700W
Impedance8Ω
Voice Coil100mm
Flux Density1.31T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.7kg
Diameter320.0mm
Overall Depth147.3mm
Cutout Diameter284.0mm
Bolt Circle Diameter301.0mm
