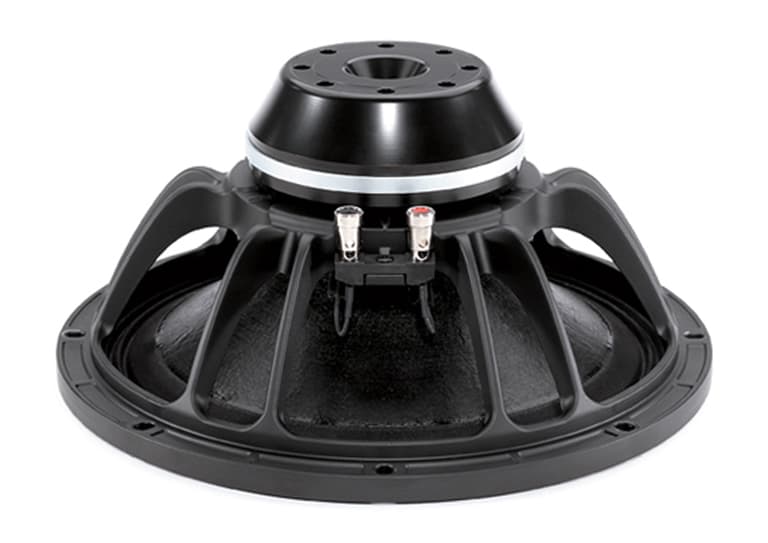

12-inch LF driver · 12NW series · 76 mm voice coil · 500 W
B&C 12NW76 8Ω
40–2000 Hz
£205.00
0.5%Thomann · In stock · All 11 offers
- Fs
- 40Hz
- Xmax
- 8mm
- SPL
- 97dB
- Pe
- 500W
- BL
- 25.5T·m
- Vd
- 418cm³
- Qts
- 0.16
- Vas
- 76L
Published graphs
B&C 12NW76 is a 12-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 40 Hz, Qts 0.16, Vas 76 L, Xmax 8 mm, sensitivity 96.6 dB, plus 418 cm³ Vd and 235 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £201.58.
The published T/S values agree with each other
Thiele/Small
- Fs
- 40Hz
- Qts
- 0.16
- Qes
- 0.17
- Qms
- 3.7
- Vas
- 76L
- Re
- 5.3Ω
- Le
- 1.25mH
Motor and cone
- BL
- 25.5T·m
- Sd
- 522cm²
- Mms
- 77g
- Xmax
- 8mm
- Vd †
- 418cm³
- Voice coil
- 76mm
- Flux density
- 1.30T
Power and response
- Sensitivity †
- 96.6dB
- Manufacturer sensitivity
- 98.5dB
- Power
- 500W
- Nominal power
- 500W
- Impedance
- 8Ω
- Min. impedance
- 6.9Ω
- Range
- 40–2000Hz
- EBP †
- 235 · Leans vented
Size and mounting
- Diameter
- 315mm
- Cutout
- 283mm
- Bolt circle
- 298mm
- Depth
- 147mm
- Weight
- 4.9kg
Sensitivity shows 96.6 dB, calculated from the T/S values. B&C publishes 98.5 dB, 1.9 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 25.5T·m
- Fs
- 40Hz
- Le
- 1.25mH
- Re
- 5.3Ω
- Sd
- 522cm²
- Mms
- 77g
- Qes
- 0.17
- Qms
- 3.7
- Qts
- 0.16
- SPL
- 96.6dB
- Vas
- 76L
- Xmax
- 8mm
- Power
- 500W
- Impedance
- 8Ω
- Flux density
- 1.30T
- Sensitivity
- 98.5dB
- Low limit
- 40Hz
- Nominal power
- 500W
- Calculated sensitivity †
- 96.6dB
- High limit
- 2000Hz
- Manufacturer sensitivity
- 98.5dB
- Min. impedance
- 6.9Ω
- Voice coil
- 76mm
- Weight
- 4.9kg
- Diameter
- 315mm
- Depth
- 147mm
- Cutout
- 283mm
- Bolt circle
- 298mm
- Bl
- 25.5 Tm
- Fs
- 40 Hz
- Le
- 1.25 mH
- Re
- 5.3 Ω
- Sd
- 522 cm² (80.9 in²)
- Ebp
- 235 Hz
- Mms
- 77 g
- Qes
- 0.17
- Qms
- 3.7
- Qts
- 0.16
- Vas
- 76 dm³ (2.7 ft³)
- Η0
- 2.8 %
- Cone
- RCK12NW768
- Xmax
- 8 mm
- Xvar
- 10 mm
- Depth
- 147 mm (5.8 in)
- Spider
- Single
- Cone shape
- Exponential
- Net weight
- 4.9 kg (10.8 lb)
- Pole design
- T-Pole
- Sensitivity
- 98.5 dB
- Flux density
- 1.3 T
- Shipping box
- 360x360x200 mm (14.17x14.17x7.87 in)
- Winding depth
- 19 mm (0.75 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 40 Hz - 2000 Hz
- Magnet material
- Neodymium Ring
- Shipping weight
- 5.8 kg (12.79 lb)
- Nominal diameter
- 320 mm (12 in)
- Overall diameter
- 315 mm (12.4 in)
- Winding material
- Copper
- Minimum impedance
- 6.9 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 11 mm (0.43 in)
- Recommended tuning
- 60 Hz
- Voice coil diameter
- 76 mm (3 in)
- Bolt circle diameter
- 298 mm (11.7 in)
- Recommended enclosure
- 50 dm³ (1.77 ft³)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Baffle cutout diameter
- 283 mm (11.1 in)
- Nominal power handling
- 500 W
- Continuous power handling
- 1000 W
- Flange and gasket thickness
- 14 mm (0.55 in)
- Air volume occupied by driver
- 2.5 dm³ (0.08 ft³)
02
Designs
Cabinets for the 12NW76: a design and a suggested box from B&C.
All 12NW76 designsHow we find designsB&C’s design
From the maker, with plans to download

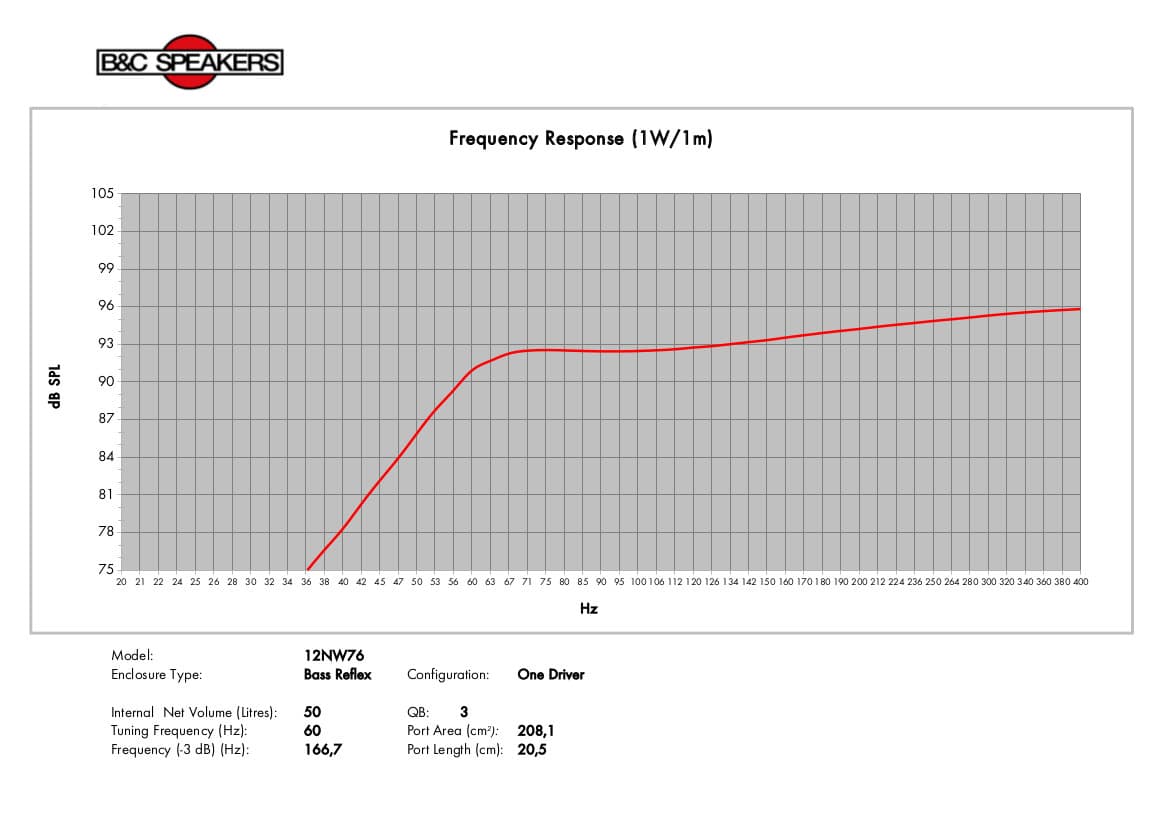

B&C’s suggested box
From B&C’s 12NW76 page
- Net volume
- 50L
- Tuning
- 60Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.
