Overview
LF Driver12NMB series
Oberton
Oberton 12NMB600
Oberton 12NMB600 is a 12" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 41Hz, Qts 0.13, Vas 70.8L, Xmax 5.3mm, sensitivity 97.6dB, plus 270cm³ Vd and 299 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
600W
Sensitivity
97.6dB
200.0dBmanufacturer; using T/S-derived value (102.4dB delta).
EBP
299
Vented alignment
Vd
270cm³
T/S Parameters
Valid
Fs41Hz
Qts0.13
Qes0.14
Qms4.8
Vas70.8L
Re5.2Ω
Le1.00mH
BL27.8Tm
Sd515cm²
Mms79g
Xmax5.3mm
SPL98dB
Power600W
Impedance8Ω
Min Impedance6.8Ω
F Low50Hz
F High3000Hz
Voice Coil100mm
Flux Density1.25T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

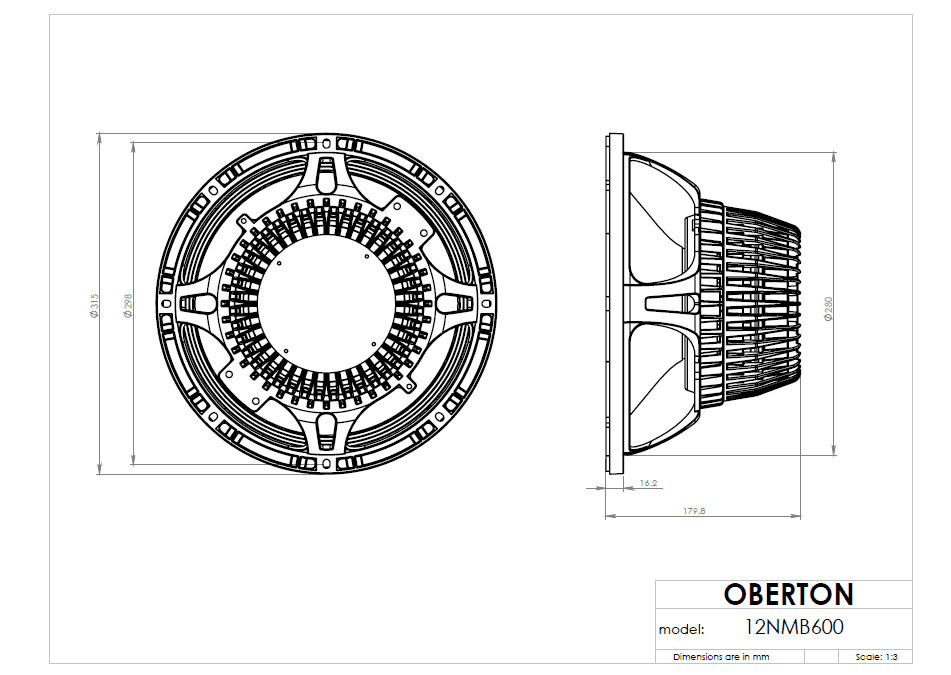

Dimensions & Physical
Weight7.5kg
Diameter315.0mm
Overall Depth179.8mm
Cutout Diameter280.0mm
Bolt Circle Diameter298.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Oberton
12NMB600
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
1 match
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
56%
Similarity
BMS
12N820
12"
Xmax4.5mm-14%
Qts0.16+19%
BL24.2Tm-13%
Vas98.7L+39%
Qes0.16+17%
