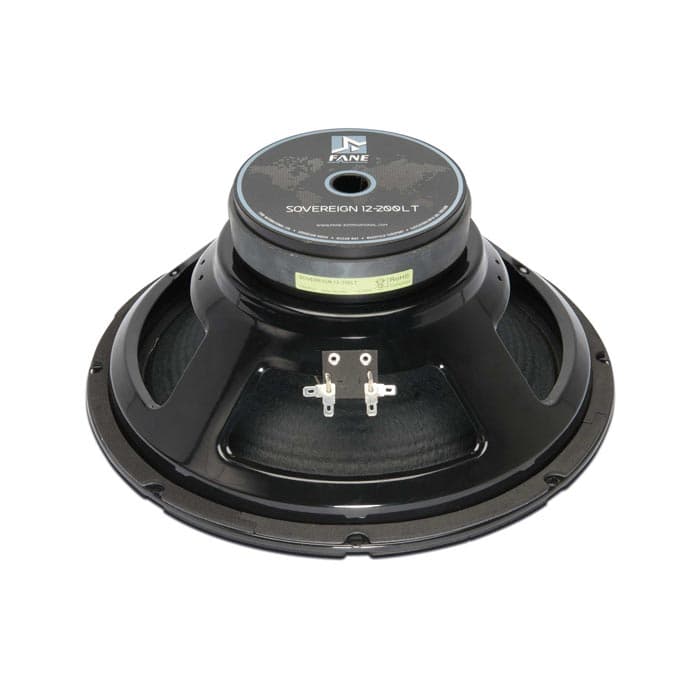

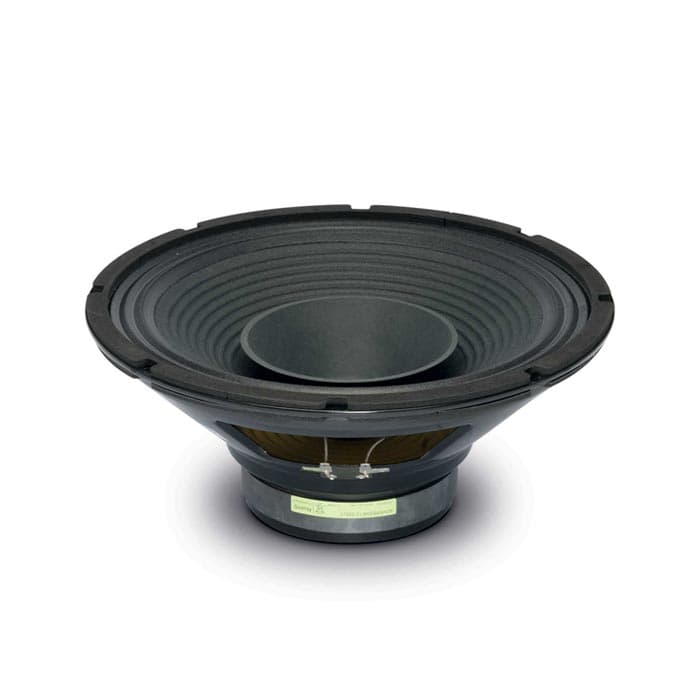

Fane SOVEREIGN 12-200LT 8Ω
8 Ω · 45–10000 Hz
No current price
- Fs
- 50Hz
- Xmax
- 5.3mm
- SPL
- 93dB
- Pe
- 200W
- BL
- 13T·m
- Vd
- 279cm³
- Qts
- 0.64
- Vas
- 78L
Fane SOVEREIGN 12-200LT is a 12-inch 8 ohm LF driver rated at 200 W RMS. The validated T/S data includes Fs 50 Hz, Qts 0.64, Vas 78.1 L, Xmax 5.3 mm, sensitivity 93.3 dB, plus 279 cm³ Vd and 69 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 50Hz
- Qts
- 0.64
- Qes
- 0.72
- Qms
- 7.6
- Vas
- 78.1L
- Re
- 7.2Ω
- Le
- 1.56mH
Motor and cone
- BL
- 13T·m
- Sd
- 531cm²
- Mms
- 52g
- Xmax
- 5.3mm
- Vd †
- 279cm³
Power and response
- Sensitivity †
- 93.3dB
- Manufacturer sensitivity
- 98dB
- Power
- 200W
- Impedance
- 8Ω
- Range
- 45–10000Hz
- EBP †
- 69 · Sealed or vented
Size and mounting
- Diameter
- 304.8mm
- Depth
- 137.9mm
- Weight
- 4.3kg
Other published values
- Cms
- 0.20mm/N
- Power Peak
- 800
- Power Program
- 400
Sensitivity shows 93.3 dB, calculated from the T/S values. Fane publishes 98.0 dB, 4.7 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Fane lists
LF · Primary · 12″
- BL
- 13T·m
- Fs
- 50Hz
- Le
- 1.56mH
- Re
- 7.2Ω
- Sd
- 531cm²
- Cms
- 0.20mm/N
- Mms
- 52g
- Qes
- 0.72
- Qms
- 7.6
- Qts
- 0.64
- SPL
- 93.3dB
- Vas
- 78.1L
- Xmax
- 5.3mm
- Power
- 200W
- Impedance
- 8Ω
- Power Peak
- 800
- Sensitivity
- 98dB
- Low limit
- 45Hz
- Power Program
- 400
- Calculated sensitivity †
- 93.3dB
- High limit
- 10000Hz
- Manufacturer sensitivity
- 98dB
- Weight
- 4.3kg
- Diameter
- 304.8mm
- Depth
- 137.9mm
02
Compare
Same-size drivers, compared with the SOVEREIGN 12-200LT. Clear differences are green when better and red when worse.
This driverSOVEREIGN 12-200LT
Best price
–
Fs
50 Hz
Qts
0.64
Vas
78.1 L
BL
13 T·m
Xmax
5.3 mm
Sensitivity
93.3 dB
Power
200 W
SB AudienceBIANCO-12OB150-01
£55.90Fs44 Hz −12%, better
Qts0.63 –
Vas103.8 L +33%, worse
BL12.2 T·m −6%
Xmax6.8 mm +29%, better
Sensitivity93.1 dB –
FaitalPRO12FE400
£58.99Fs55 Hz +10%, worse
Qts0.57 −11%, better
Vas73.6 L −6%
BL11.5 T·m −12%, worse
Xmax5.4 mm +3%
Sensitivity94.9 dB +1.6
PeerlessFSL-1220R02-08
£59.63Fs62 Hz +24%, worse
Qts0.55 −14%, better
Vas61.1 L −22%, better
BL13.3 T·m –
Xmax5.1 mm −3%
Sensitivity96 dB +2.7, better
FaitalPRO12FE300
£64.00Fs47 Hz −6%
Qts0.51 −20%, better
Vas83.7 L +7%
BL12.5 T·m −4%
Xmax5.1 mm −3%
Sensitivity94.2 dB +0.9
Beyma12CMV3
£75.00Fs52 Hz +4%
Qts0.55 −14%, better
Vas85 L +9%
BL12.3 T·m −5%
Xmax7 mm +33%, better
Sensitivity95.2 dB +1.9
PeerlessSLS-P830669
£75.94Fs34 Hz −32%, better
Qts0.64 –
Vas107 L +37%, worse
BL11.8 T·m −9%
Xmax10.9 mm +108%, better
Sensitivity90 dB −3.3, worse
£77.00
Fs50 Hz –
Qts0.64 –
Vas78.1 L –
BL13 T·m –
Xmax3.5 mm −33%, worse
Sensitivity93.3 dB –
CelestionTRUVOX 1225
£89.70Fs60 Hz +21%, worse
Qts0.62 –
Vas54.1 L −31%, better
BL13.5 T·m +4%
Xmax4.8 mm −10%
Sensitivity94.4 dB +1.1
CIAREFXI12
£97.05Fs55 Hz +10%, worse
Qts0.44 −31%, better
Vas70 L −10%, better
BL13.9 T·m +7%
Xmax5 mm −5%
Sensitivity95.8 dB +2.5, better
EminenceLEGEND GB128
£105.00Fs86 Hz +72%, worse
Qts0.65 –
Vas43.9 L −44%, better
BL12 T·m −8%
Xmax0.8 mm −85%, worse
Sensitivity98.2 dB +4.9, better
EminenceMAN O WAR
£105.00Fs91 Hz +82%, worse
Qts0.68 +6%
Vas38 L −51%, better
BL12.3 T·m −5%
Xmax0.8 mm −85%, worse
Sensitivity98 dB +4.7, better
PeerlessFSL-1230PR01-08
£108.54Fs46 Hz −8%
Qts0.73 +14%, worse
Vas57.3 L −27%, better
BL13.6 T·m +5%
Xmax12.1 mm +130%, better
Sensitivity90.5 dB −2.8, worse
EminenceTEXAS HEAT
£110.55Fs79 Hz +58%, worse
Qts0.65 –
Vas50.9 L −35%, better
BL12.8 T·m –
Xmax0.8 mm −85%, worse
Sensitivity97.7 dB +4.4, better
EminenceBASSLITE S2012
£145.00Fs48 Hz −4%
Qts0.48 −25%, better
Vas90.6 L +16%, worse
BL11.7 T·m −10%, worse
Xmax5.2 mm –
Sensitivity94.8 dB +1.5
EminenceGA-SC59
£232.91Fs89 Hz +78%, worse
Qts0.61 −5%
Vas41.2 L −47%, better
BL13.6 T·m +4%
Xmax1.6 mm −69%, worse
Sensitivity98.7 dB +5.4, better
B&C12CLX64
£236.92Fs54 Hz +8%
Qts0.57 −11%, better
Vas74 L −5%
BL11.9 T·m −9%
Xmax5.5 mm +5%
Sensitivity94.8 dB +1.5
FaitalPRO12PR310
No current priceFs55 Hz +10%, worse
Qts0.67 +5%
Vas65.1 L −17%, better
BL17.3 T·m +33%, better
Xmax4.9 mm −6%
Sensitivity93.9 dB +0.6
CelestionTF1230
No current priceFs59 Hz +18%, worse
Qts0.52 −20%, better
Vas51.1 L −35%, better
BL13.0 T·m –
Xmax5 mm −5%
Sensitivity94.1 dB +0.8
EminenceDELTALITE 2512
No current priceFs53 Hz +6%
Qts0.52 −19%, better
Vas67.4 L −14%, better
BL11.6 T·m −11%, worse
Xmax4.9 mm −7%
Sensitivity94 dB +0.7
P.AudioE12-200S-V2
No current priceFs65 Hz +30%, worse
Qts0.69 +8%
Vas42.2 L −46%, better
BL12.3 T·m −5%
Xmax4.1 mm −22%, worse
Sensitivity93.9 dB +0.6
REDCATT121FIND
No current priceFs63 Hz +26%, worse
Qts0.60 −6%
Vas49.8 L −36%, better
BL12.9 T·m –
Xmax3.8 mm −29%, worse
Sensitivity94.9 dB +1.6
EminenceGA-SC-X
No current priceFs91 Hz +81%, worse
Qts0.66 +3%
Vas45.0 L −42%, better
BL12.2 T·m −6%
Xmax1.3 mm −76%, worse
Sensitivity98.8 dB +5.5, better
JensenC12-75NH-8
No current priceFs83 Hz +66%, worse
Qts0.64 –
Vas42.4 L −46%, better
BL11.8 T·m −9%
Xmax1 mm −81%, worse
Sensitivity97.1 dB +3.8, better
Acoustic EleganceIB12HT-8
No current priceFs17 Hz −66%, better
Qts0.64 –
Vas179.5 L +130%, worse
BL12.5 T·m −4%
Xmax18.5 mm +252%, better
Sensitivity82.6 dB −10.7, worse
JensenJN12-80TRS-8
No current priceFs72 Hz +43%, worse
Qts0.55 −14%, better
Vas56.5 L −28%, better
BL12.2 T·m −6%
Xmax1 mm −81%, worse
Sensitivity96.7 dB +3.4, better
EminenceJS-1250
No current priceFs92 Hz +84%, worse
Qts0.61 −5%
Vas41.2 L −47%, better
BL12.9 T·m –
Xmax0.8 mm −85%, worse
Sensitivity99.1 dB +5.8, better
JensenJN12-100TRS-8
No current priceFs72 Hz +44%, worse
Qts0.52 −19%, better
Vas55.9 L −28%, better
BL12.9 T·m –
Xmax1 mm −81%, worse
Sensitivity96.5 dB +3.2, better
EminenceGUIT-FIDDLE
No current priceFs82 Hz +64%, worse
Qts0.56 −12%, better
Vas57.8 L −26%, better
BL13.1 T·m –
Xmax0.8 mm −85%, worse
Sensitivity99.4 dB +6.1, better
LavoceFBASS12-20
No current priceFs53 Hz +6%
Qts0.46 −28%, better
Vas75.4 L −3%
BL13.3 T·m –
Xmax4.3 mm −18%, worse
Sensitivity95.5 dB +2.2, better
