LF DriverPD series
Precision Devices

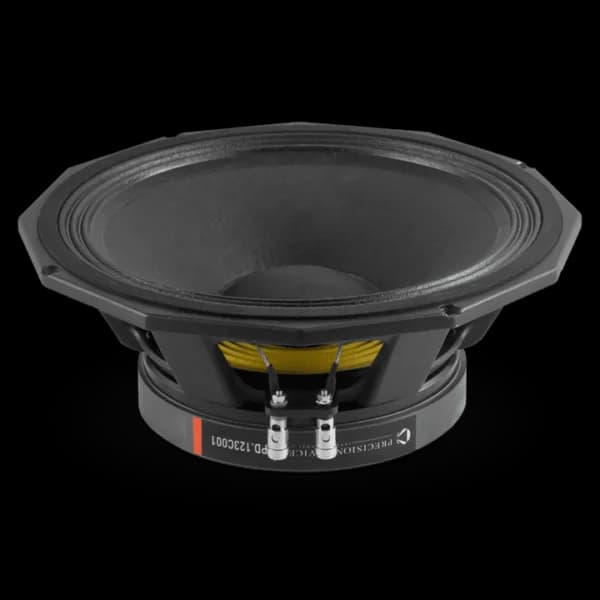

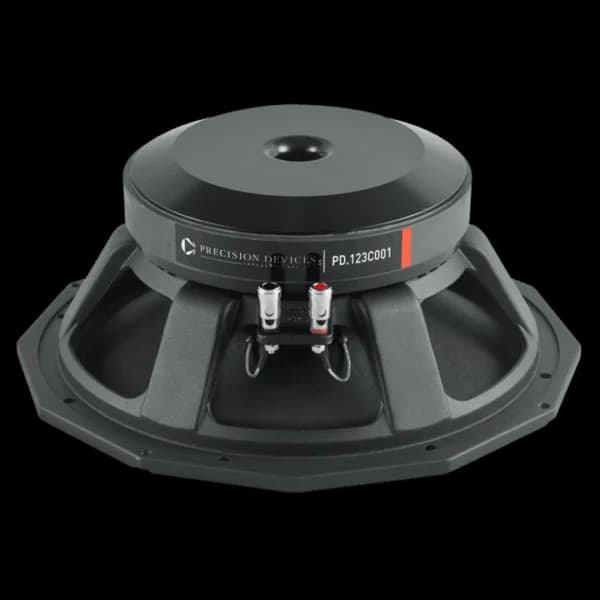

Precision Devices PD.123C001
Precision Devices PD.123C001 is a 12" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 35Hz, Qts 0.14, Vas 122L, Xmax 7.5mm, sensitivity 97.5dB, plus 410cm³ Vd and 238 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
600W
Sensitivity
97.5dB
99.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
238
Vented alignment
Vd
410cm³
T/S Parameters
Valid
Fs35Hz
Qts0.14
Qes0.15
Qms7.5
Vas122.0L
Re5.5Ω
Le2.17mH
BL24.5Tm
Sd547cm²
Mms70g
Xmax7.5mm
SPL98dB
Power600W
Impedance8Ω
F Low45Hz
F High4000Hz
Voice Coil76mm
Flux Density1.20T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight10.0kg
Diameter331.0mm
Overall Depth121.0mm
Cutout Diameter282.0mm
Bolt Circle Diameter318.0mm
