BMS 12N820 8Ω
8 Ω · 45–1700 Hz
No price for delivery to the UK
- Fs
- 38Hz
- Xmax
- 4.5mm
- SPL
- 97dB
- Pe
- 800W
- BL
- 24.2T·m
- Vd
- 239cm³
- Qts
- 0.16
- Vas
- 99L
BMS 12N820 is a 12-inch 8 ohm LF driver rated at 800 W RMS. The validated T/S data includes Fs 38 Hz, Qts 0.16, Vas 98.7 L, Xmax 4.5 mm, sensitivity 97.3 dB, plus 239 cm³ Vd and 236 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 38Hz
- Qts
- 0.16
- Qes
- 0.16
- Qms
- 5.3
- Vas
- 98.7L
- Re
- 5.7Ω
- Le
- 0.62mH
Motor and cone
- BL
- 24.2T·m
- Sd
- 531cm²
- Mms
- 72g
- Xmax
- 4.5mm
- Vd †
- 239cm³
- Voice coil
- 102mm
Power and response
- Sensitivity †
- 97.3dB
- Manufacturer sensitivity
- 98dB
- Power
- 800W
- Impedance
- 8Ω
- Range
- 45–1700Hz
- EBP †
- 236 · Leans vented

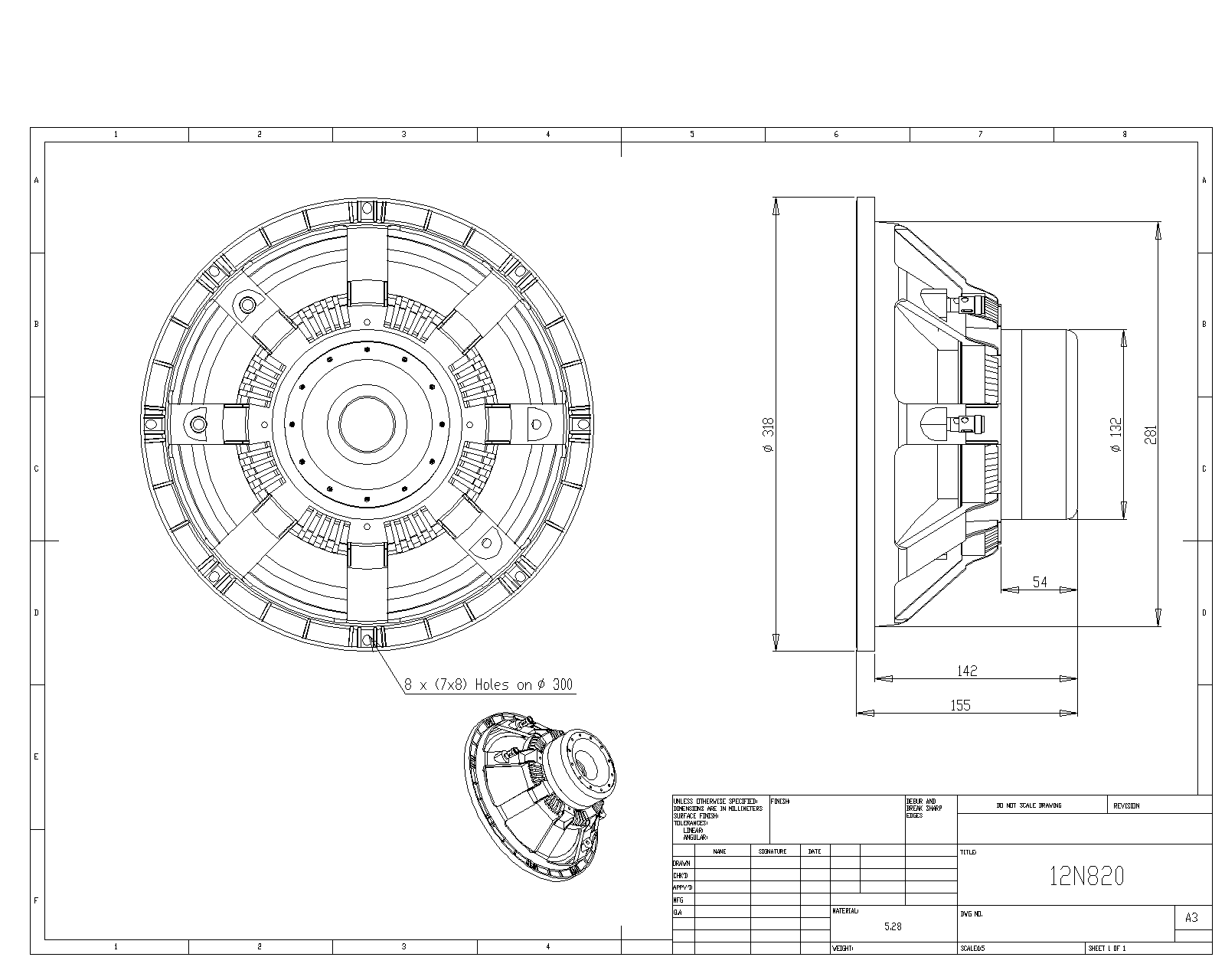

Size and mounting
- Diameter
- 318mm
- Cutout
- 284mm
- Bolt circle
- 300mm
- Depth
- 155mm
- Weight
- 5.5kg
Other published values
- Cms
- 0.25mm/N
† Calculated by bits from the published values
What this validation status means
Everything else BMS lists
LF
- BL
- 24.2T·m
- Fs
- 38Hz
- Le
- 0.62mH
- Re
- 5.7Ω
- Sd
- 531cm²
- Cms
- 0.25mm/N
- Mms
- 72g
- Qes
- 0.16
- Qms
- 5.3
- Qts
- 0.16
- SPL
- 97.3dB
- Vas
- 98.7L
- Xmax
- 4.5mm
- Power
- 800W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 45Hz
- Calculated sensitivity †
- 97.3dB
- High limit
- 1700Hz
- Manufacturer sensitivity
- 98dB
- Voice coil
- 102mm
- 10. basket
- Cast Aluminum
- 20. bl factor
- BL 24.2 Tesla m
- 1. application
- Low-Middle
- 18. moving mass
- Mms 0.072 kg
- 13. dc resistance
- Re 5.7 Ohm
- 9. magnet gap depth
- 10 mm
- 17. equivalent volume
- Vas 98.7 L
- 2. nominal impendance
- 8 Ohm
- 5. frequency response
- 45 – 1700 Hz
- 6. voice coil diameter
- 101.6 (4″) mm
- 7. voice coil material
- Cu
- 12. resonance frequency
- Fs 37.8 Hz
- 14. mechanical q factor
- Qms 5.3
- 15. electrical q factor
- Qes 0.16
- 16. total quality factor
- Qts 0.16
- 19. mechanical complience
- Cms 0.25 mm / N
- 21. effective piston area
- Sd 0.0531 m²
- 22. max. linear excursion
- Xmax +/- 4.5 mm
- 23. voice coil inductance
- Le1k 0.62 mH
- 4. sensitivity (1 w / 1 m)
- 98 dB
- 3. power handling aes noise
- 800 W
- 8. voice coil winding depth
- 19 mm
- 11. effect. diaphragm diameter d
- 260 mm
02
Compare
Same-size drivers, compared with the 12N820. Clear differences are green when better and red when worse.
This driver12N820
Best price
–
Fs
38 Hz
Qts
0.16
Vas
98.7 L
BL
24.2 T·m
Xmax
4.5 mm
Sensitivity
97.3 dB
Power
800 W
B&C12PE32
£112.33Fs51 Hz +35%, worse
Qts0.18 +12%, worse
Vas101 L –
BL19.1 T·m −21%, worse
Xmax2.8 mm −38%, worse
Sensitivity100.5 dB +3.2, better
B&C12MH32
£137.65Fs53 Hz +40%, worse
Qts0.19 +19%, worse
Vas63 L −36%, better
BL22.3 T·m −8%
Xmax5 mm +11%, better
Sensitivity98.7 dB +1.4
Eighteen Sound12MB600
£149.00Fs44 Hz +16%, worse
Qts0.18 +12%, worse
Vas115 L +17%, worse
BL18 T·m −26%, worse
Xmax4.5 mm –
Sensitivity99.2 dB +1.9
PRV Audio12MR1200X
£149.54Fs53 Hz +39%, worse
Qts0.21 +31%, worse
Vas71.8 L −27%, better
BL22 T·m −9%
Xmax4.5 mm –
Sensitivity99 dB +1.7
B&C12FW76
£149.88Fs54 Hz +43%, worse
Qts0.18 +12%, worse
Vas45 L −54%, better
BL26.4 T·m +9%
Xmax7 mm +56%, better
Sensitivity98 dB +0.7
Precision DevicesPD.123C001
£156.00Fs35 Hz −7%
Qts0.14 −10%, better
Vas122 L +24%, worse
BL24.5 T·m –
Xmax7.5 mm +67%, better
Sensitivity97.5 dB –
Eighteen Sound12MB700
£171.65Fs49 Hz +30%, worse
Qts0.19 +19%, worse
Vas101 L –
BL17.8 T·m −26%, worse
Xmax4.5 mm –
Sensitivity99.8 dB +2.5, better
B&C12NW76
£200.12Fs40 Hz +6%
Qts0.16 –
Vas76 L −23%, better
BL25.5 T·m +5%
Xmax8 mm +78%, better
Sensitivity96.6 dB −0.7
Eighteen Sound12MB1000
£204.35Fs54 Hz +43%, worse
Qts0.18 +12%, worse
Vas60 L −39%, better
BL23.5 T·m –
Xmax2.5 mm −44%, worse
Sensitivity98.8 dB +1.5
BMS12S320
£204.98Fs45 Hz +20%, worse
Qts0.20 +25%, worse
Vas69.5 L −30%, better
BL23.3 T·m −4%
Xmax4.5 mm –
Sensitivity96.9 dB –
REDCATT121NPM
£209.29Fs50 Hz +32%, worse
Qts0.16 –
Vas59.2 L −40%, better
BL27.8 T·m +15%, better
Xmax1.5 mm −67%, worse
Sensitivity98.7 dB +1.4
Eighteen Sound12ND710
£240.31Fs52 Hz +38%, worse
Qts0.20 +25%, worse
Vas92 L −7%
BL18 T·m −26%, worse
Xmax5 mm +11%, better
Sensitivity100.1 dB +2.8, better
REDCATT122NPW
£249.10Fs35 Hz −7%
Qts0.17 +6%
Vas81.9 L −17%, better
BL27 T·m +12%, better
Xmax5.8 mm +28%, better
Sensitivity95.2 dB −2.1, worse
Eighteen Sound12NMB1000
£252.00Fs54 Hz +43%, worse
Qts0.19 +19%, worse
Vas58 L −41%, better
BL24.4 T·m –
Xmax3.5 mm −22%, worse
Sensitivity98.8 dB +1.5
Eighteen Sound12ND610
£266.75Fs46 Hz +22%, worse
Qts0.14 −12%, better
Vas94.4 L −4%
BL24 T·m –
Xmax3.5 mm −22%, worse
Sensitivity99.9 dB +2.6, better
BMS12N802
£271.01Fs43 Hz +14%, worse
Qts0.24 +50%, worse
Vas65 L −34%, better
BL22.3 T·m −8%
Xmax4.5 mm –
Sensitivity95.2 dB −2.1, worse
BMS12C362
£287.08Fs46 Hz +21%, worse
Qts0.20 +25%, worse
Vas60.6 L −39%, better
BL23.2 T·m −4%
Xmax4.5 mm –
Sensitivity96.7 dB −0.6
BMS12N810
£315.78Fs41 Hz +8%
Qts0.16 –
Vas89.6 L −9%
BL24.5 T·m –
Xmax2.5 mm −44%, worse
Sensitivity97.5 dB –
Beyma12P80ND
£375.61Fs47 Hz +24%, worse
Qts0.19 +19%, worse
Vas65 L −34%, better
BL23.7 T·m –
Xmax7.5 mm +67%, better
Sensitivity97.3 dB –
Eighteen Sound12MB777
No current priceFs49 Hz +30%, worse
Qts0.19 +19%, worse
Vas101 L –
BL17.8 T·m −26%, worse
Xmax4.5 mm –
Sensitivity99.8 dB +2.5, better
Oberton12NB400
No current priceFs44 Hz +15%, worse
Qts0.18 +12%, worse
Vas70.5 L −29%, better
BL20.3 T·m −16%, worse
Xmax5.3 mm +17%, better
Sensitivity97.1 dB –

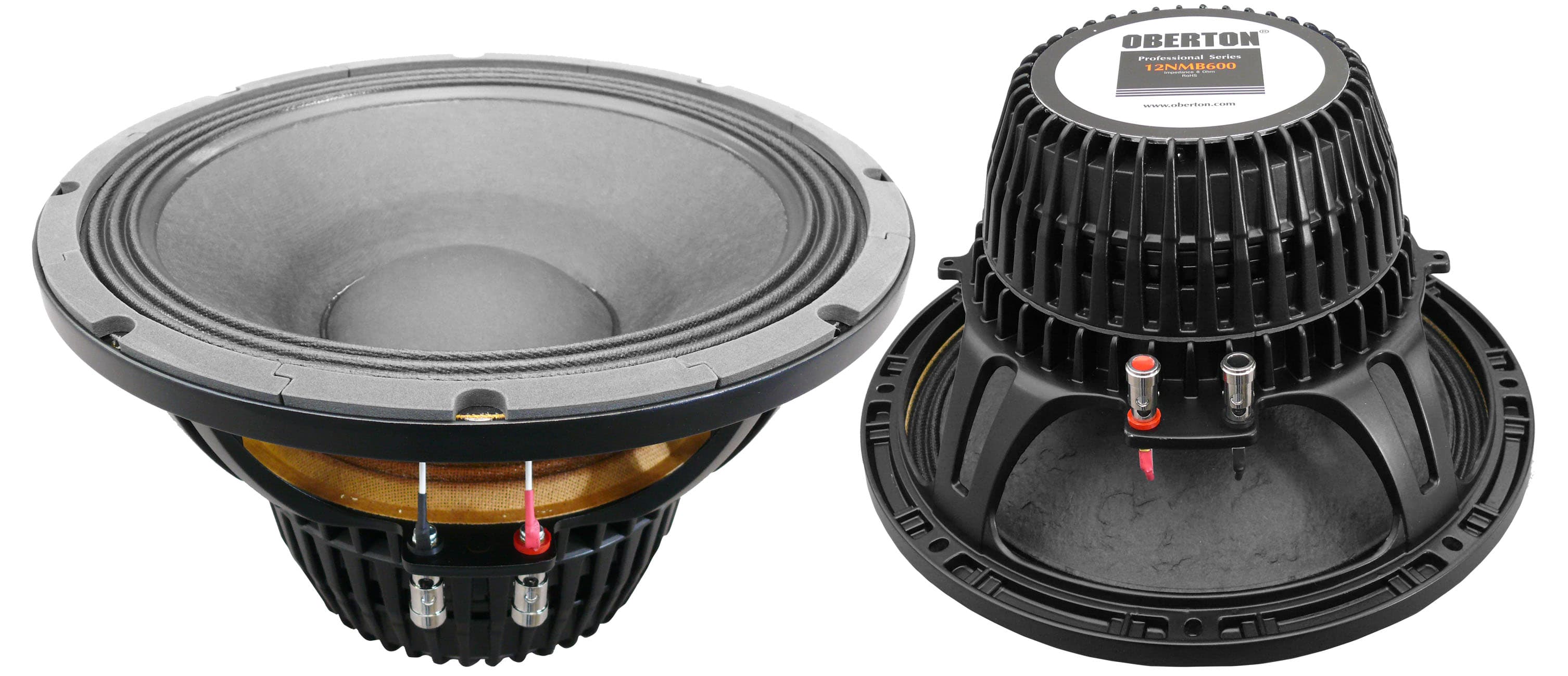

Oberton12NMB600
