Overview
LF Driver
PHL Audio
PHL Audio 4310NDU
PHL Audio 4310NDU is a 12" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 43Hz, Qts 0.27, Vas 56.7L, Xmax 10mm, sensitivity 94.1dB, plus 527cm³ Vd and 154 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
500W
Sensitivity
94.1dB
EBP
154
Vented alignment
Vd
527cm³
T/S Parameters
Valid
Fs43Hz
Qts0.27
Qes0.28
Qms4.6
Vas56.7L
Re5.4Ω
Le1.60mH
BL22.0Tm
Sd527cm²
Mms93g
Xmax10.0mm
SPL94dB
Power500W
Power Nominal500W
Impedance8Ω
F Low30Hz
F High1500Hz
Voice Coil77mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.9kg
Diameter326.5mm
Overall Depth141.5mm
Cutout Diameter282.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Image unavailable
Reference
PHL Audio
4310NDU
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
89%
Similarity
Eighteen Sound
12NLW9410
12"
Xmax11mm+10%
Qts0.26-4%
BL21.7Tm-1%
Vas55L-3%
Qes0.27-4%
82%
Similarity
£194.77
B&C
12PS100
12"
Xmax8mm-20%
Qts0.270%
BL22.5Tm+2%
Vas47L-17%
Qes0.29+4%
81%
Similarity
£240.05
FaitalPRO
12HP1020
12"
Xmax9mm-10%
Qts0.270%
BL24.3Tm+10%
Vas38.6L-32%
Qes0.280%
81%
Similarity
£218.40
B&C
12NDL88
12"
Xmax8mm-20%
Qts0.270%
BL19.9Tm-10%
Vas52L-8%
Qes0.29+4%
78%
Similarity
£305.27
Beyma
12P1000ND
12"
Xmax8mm-20%
Qts0.26-4%
BL23.5Tm+7%
Vas49L-14%
Qes0.27-4%
77%
Similarity
£174.16
Beyma
12MCB700
12"
Xmax7mm-30%
Qts0.270%
BL20.4Tm-7%
Vas59.5L+5%
Qes0.29+4%
77%
Similarity
£213.05

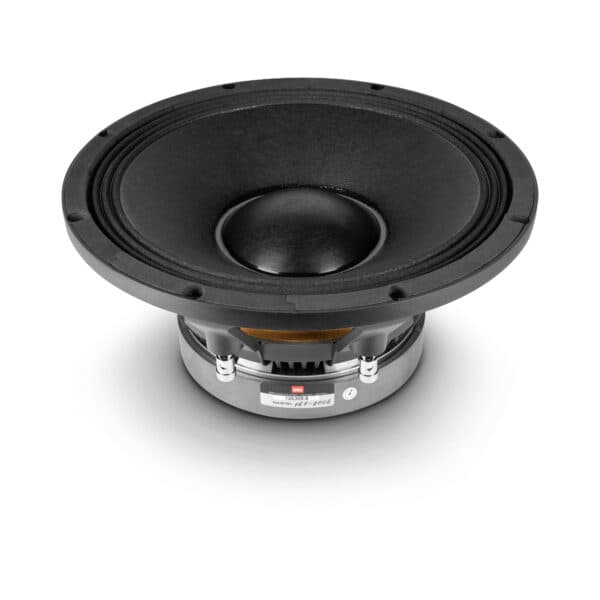

BMS
