- Net volume
- 50L
- Tuning
- 55Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
12-inch LF driver · 500 W
Eighteen Sound 12LW800 8Ω
8 Ω · 46–4200 Hz
£189.95
SteadyLean Audio · 1 in stock · All 2 offers
- Fs
- 52Hz
- Xmax
- 6.5mm
- SPL
- 96dB
- Pe
- 500W
- BL
- 21.3T·m
- Vd
- 345cm³
- Qts
- 0.29
- Vas
- 48L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

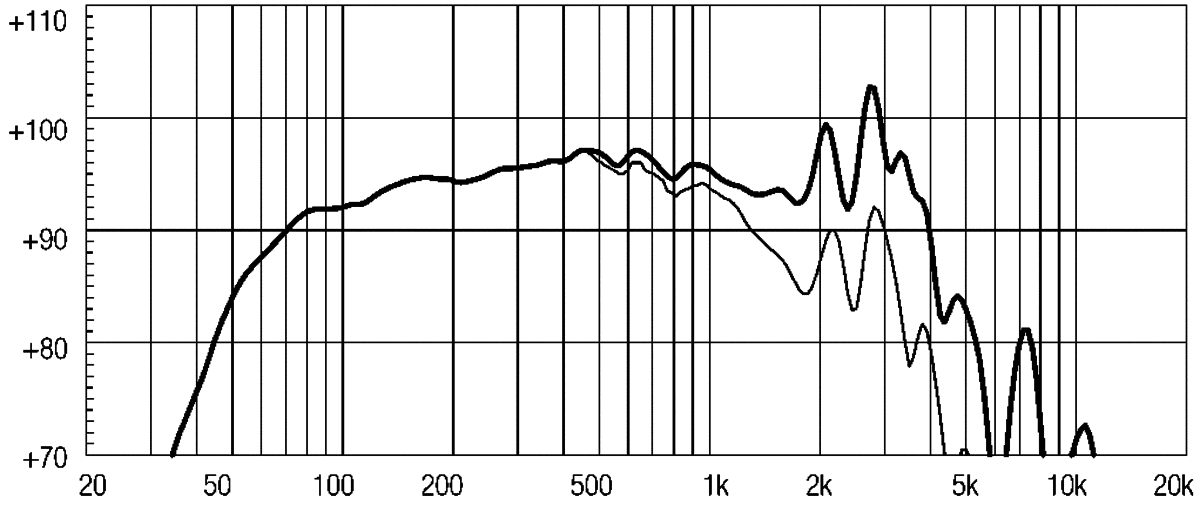

frequency response
Frequency response
240 plotted pointsMedium confidence11,098 selected pixels of 11,098

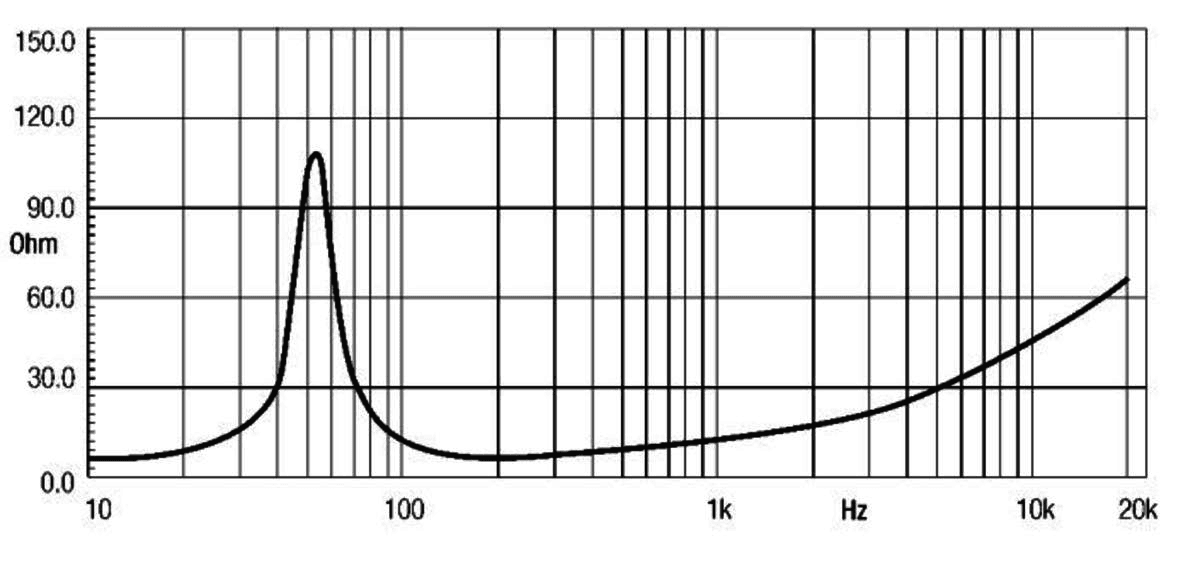

Published graphs
Eighteen Sound 12LW800 is a 12-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 52 Hz, Qts 0.29, Vas 48 L, Xmax 6.5 mm, sensitivity 95.6 dB, plus 345 cm³ Vd and 173 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £189.95.
The published T/S values agree with each other
Thiele/Small
- Fs
- 52Hz
- Qts
- 0.29
- Qes
- 0.30
- Qms
- 7.6
- Vas
- 48L
- Re
- 5.6Ω
- Le
- 1.72mH
Motor and cone
- BL
- 21.3T·m
- Sd
- 531cm²
- Mms
- 77g
- Xmax
- 6.5mm
- Vd †
- 345cm³
Power and response
- Sensitivity †
- 95.6dB
- Manufacturer sensitivity
- 96dB
- Power
- 500W
- Nominal power
- 500W
- Impedance
- 8Ω
- Range
- 46–4200Hz
- EBP †
- 173 · Leans vented
Size and mounting
- Diameter
- 315mm
- Cutout
- 282mm
- Bolt circle
- 296mm
- Depth
- 151mm
- Weight
- 8.1kg
Other published values
- Power Program
- 800
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 12″
- BL
- 21.3T·m
- Fs
- 52Hz
- Le
- 1.72mH
- Re
- 5.6Ω
- Sd
- 531cm²
- Mms
- 77g
- Qes
- 0.30
- Qms
- 7.6
- Qts
- 0.29
- SPL
- 95.6dB
- Vas
- 48L
- Xmax
- 6.5mm
- Power
- 500W
- Impedance
- 8Ω
- Sensitivity
- 96dB
- Low limit
- 46Hz
- Nominal power
- 500W
- Power Program
- 800
- Calculated sensitivity †
- 95.6dB
- High limit
- 4200Hz
- Manufacturer sensitivity
- 96dB
- Weight
- 8.1kg
- Diameter
- 315mm
- Depth
- 151mm
- Cutout
- 282mm
- Bolt circle
- 296mm
02
Designs
What Eighteen Sound suggests for the 12LW800. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 12LW800 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 12LW800. Clear differences are green when better and red when worse.
This driver12LW800
Best price
£189.95
Fs
52 Hz
Qts
0.29
Vas
48 L
BL
21.3 T·m
Xmax
6.5 mm
Sensitivity
95.6 dB
Power
500 W
CIAREPWA12.75
£121.41 · 36% less, betterFs53 Hz –
Qts0.30 +3%
Vas52 L +8%
BL19.6 T·m −8%
Xmax5.8 mm −11%, worse
Sensitivity95.9 dB –
PRV Audio12MR2000
£142.06 · 25% less, betterFs57 Hz +10%, worse
Qts0.33 +14%, worse
Vas52.5 L +9%
BL21.3 T·m –
Xmax6.6 mm –
Sensitivity96.6 dB +1
Beyma12MCB700
£174.16 · 8% less, betterFs51 Hz –
Qts0.27 −7%
Vas59.5 L +24%, worse
BL20.4 T·m −4%
Xmax7 mm +8%
Sensitivity96.4 dB +0.8
PRV Audio12MR2000X
£186.95 · 2% lessFs65 Hz +24%, worse
Qts0.28 −3%
Vas39.6 L −17%, better
BL23.2 T·m +9%
Xmax6.6 mm –
Sensitivity97.9 dB +2.3, better
RCFMB12X351
£187.93 · 1% lessFs55 Hz +6%
Qts0.26 −10%, better
Vas46 L −4%
BL22.5 T·m +6%
Xmax7 mm +8%
Sensitivity96.6 dB +1
B&C12PS100
£193.00 · 2% moreFs44 Hz −15%, better
Qts0.27 −7%
Vas47 L –
BL22.5 T·m +6%
Xmax8 mm +23%, better
Sensitivity93.4 dB −2.2, worse
B&C12NDL88
£208.49 · 10% more, worseFs51 Hz –
Qts0.27 −7%
Vas52 L +8%
BL19.9 T·m −7%
Xmax8 mm +23%, better
Sensitivity95.8 dB –
Beyma12MC700ND
£209.29 · 10% more, worseFs51 Hz –
Qts0.24 −17%, better
Vas58 L +21%, worse
BL21.6 T·m –
Xmax7 mm +8%
Sensitivity96.7 dB +1.1
PRV Audio12MR2000X-NDY
£209.39 · 10% more, worseFs67 Hz +29%, worse
Qts0.31 +7%
Vas35.9 L −25%, better
BL22.7 T·m +7%
Xmax6.1 mm −6%
Sensitivity97.3 dB +1.7
PRV Audio12MR2000-NDY
£209.39 · 10% more, worseFs54 Hz +5%
Qts0.34 +17%, worse
Vas48.2 L –
BL22.8 T·m +7%
Xmax6.2 mm −5%
Sensitivity95.5 dB –
Eighteen Sound12ND830
£240.31 · 27% more, worseFs55 Hz +6%
Qts0.28 −3%
Vas72 L +50%, worse
BL17.6 T·m −17%, worse
Xmax6.5 mm –
Sensitivity98 dB +2.4, better
Eighteen Sound12LW1400
£260.72 · 37% more, worseFs45 Hz −13%, better
Qts0.30 +3%
Vas55 L +15%, worse
BL20 T·m −6%
Xmax8.3 mm +27%, better
Sensitivity94 dB −1.6
Sica12 PNS 4
£359.21 · 89% more, worseFs42 Hz −20%, better
Qts0.31 +7%
Vas50.2 L +5%
BL22.3 T·m +5%
Xmax9.5 mm +46%, better
Sensitivity92.6 dB −3, worse
BMS12CN680
£365.51 · 92% more, worseFs46 Hz −12%, better
Qts0.26 −10%, better
Vas58 L +21%, worse
BL20.6 T·m −3%
Xmax5.5 mm −15%, worse
Sensitivity95.2 dB –
Eighteen Sound12NCX750
£426.63 · 125% more, worseFs58 Hz +12%, worse
Qts0.29 –
Vas63 L +31%, worse
BL17.5 T·m −18%, worse
Xmax5.5 mm −15%, worse
Sensitivity98 dB +2.4, better
Eighteen Sound12NCX910
£436.54 · 130% more, worseFs57 Hz +10%
Qts0.30 +3%
Vas58 L +21%, worse
BL18.1 T·m −15%, worse
Xmax6.9 mm +6%
Sensitivity97.4 dB +1.8
Eighteen Sound12NCX750H
£444.75 · 134% more, worseFs58 Hz +12%, worse
Qts0.29 –
Vas63 L +31%, worse
BL17.5 T·m −18%, worse
Xmax5.5 mm −15%, worse
Sensitivity98 dB +2.4, better
Eighteen Sound12NCX910N
£478.98 · 152% more, worseFs57 Hz +10%
Qts0.30 +3%
Vas58 L +21%, worse
BL18.1 T·m −15%, worse
Xmax6.9 mm +6%
Sensitivity97.4 dB +1.8
CelestionTSQ1230
No current priceFs55 Hz +6%
Qts0.30 +4%
Vas45.2 L −6%
BL20.5 T·m −4%
Xmax6.8 mm +4%
Sensitivity95.8 dB –
Oberton12MB35
No current priceFs51 Hz –
Qts0.27 −8%
Vas50.1 L +4%
BL20.5 T·m −4%
Xmax6.8 mm +4%
Sensitivity96 dB –
Eighteen Sound12NCX910BE
No current priceFs57 Hz +10%
Qts0.30 +3%
Vas58 L +21%, worse
BL18.1 T·m −15%, worse
Xmax6.9 mm +6%
Sensitivity97.4 dB +1.8
B&C12FL76
No current priceFs50 Hz −4%
Qts0.30 +3%
Vas57 L +19%, worse
BL18.7 T·m −12%, worse
Xmax6 mm −8%
Sensitivity95.5 dB –
Sica12 K 4 PL
No current priceFs49 Hz −7%
Qts0.25 −14%, better
Vas47.4 L –
BL22.9 T·m +7%
Xmax7 mm +8%
Sensitivity95 dB −0.6
P.Audio12NX-76MB
No current priceFs55 Hz +6%
Qts0.31 +7%
Vas50.3 L +5%
BL21.4 T·m –
Xmax4.8 mm −27%, worse
Sensitivity96.3 dB +0.7
No photo
PHL Audio4071-1
No current priceFs47 Hz −10%
Qts0.24 −17%, better
Vas57.8 L +20%, worse
BL20.6 T·m −3%
Xmax6.5 mm –
Sensitivity95.7 dB –
FaneCOLOSSUS 12MB
No current priceFs55 Hz +6%
Qts0.29 –
Vas56 L +17%, worse
BL18.3 T·m −14%, worse
Xmax5.5 mm −15%, worse
Sensitivity96.5 dB +0.9
CelestionNTR12-3018D
No current priceFs59 Hz +13%, worse
Qts0.30 –
Vas50.4 L +5%
BL19.9 T·m −7%
Xmax4 mm −38%, worse
Sensitivity97 dB +1.4
P.Audio12NT-88MB
No current priceFs55 Hz +6%
Qts0.32 +10%, worse
Vas49.1 L –
BL20.9 T·m –
Xmax5 mm −23%, worse
Sensitivity95.8 dB –
LavoceNBASS12-30
No current priceFs46 Hz −12%, better
Qts0.26 −10%, better
Vas68.6 L +43%, worse
BL19.5 T·m −8%
Xmax6.6 mm –
Sensitivity96 dB –
CelestionCF1230F
No current priceFs57 Hz +9%
Qts0.32 +9%
Vas49.6 L +3%
BL18.3 T·m −14%, worse
Xmax7.5 mm +15%, better
Sensitivity96.2 dB +0.6
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Audio | £189.95, the lowest price | 1 in stock | Visit shop at Lean Audio |
Best price over time
Tracked since 1 Apr
