B&C 12PS100 8 Ohm woofer specs & UK prices | bits

B&C 12PS100 8Ω

LF Driver

Watch price Simulate

Media

B&C 12PS100 12 inch 8 ohm loudspeaker driver view 1

B&C 12PS100 12 inch 8 ohm loudspeaker driver view 2

Auto-advancing

Overview

LF Driver12PS series

B&C 12PS100

B&C 12PS100 is a 12" 8 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 44Hz, Qts 0.27, Vas 47L, Xmax 8mm, sensitivity 93.4dB, plus 425cm³ Vd and 152 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £194.77.

Size

12"

Impedance

8Ω

RMS Power

700W

Sensitivity

93.4dB

EBP

152

Vented alignment

V_d

425cm³

Frequency response

Manufacturer-provided response plots and related charts.

3 images

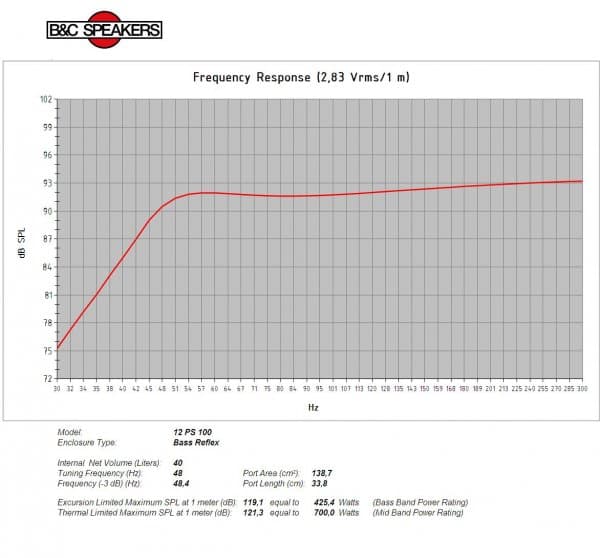

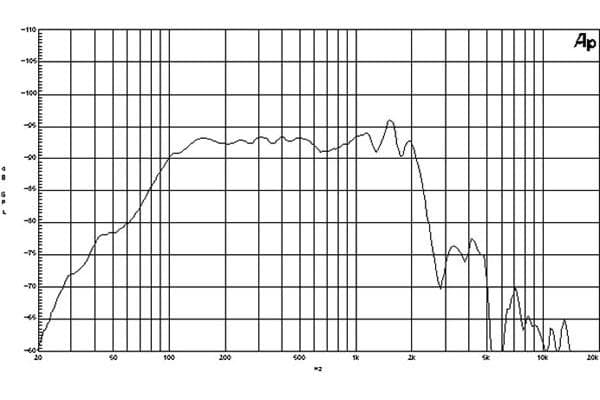

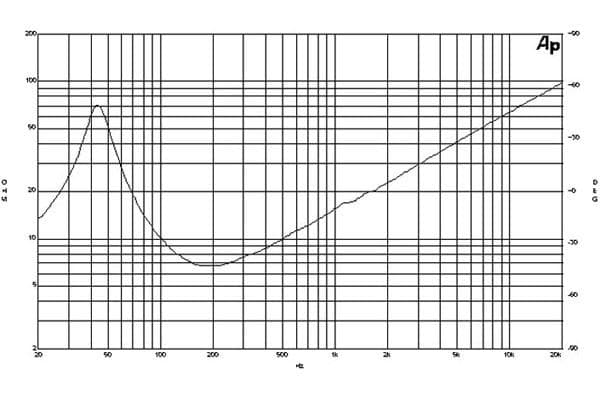

B&C 12PS100 response graph 1

B&C 12PS100 response graph 2

B&C 12PS100 response graph 3

T/S Parameters

Valid

Canonical

Fs44Hz

Qts0.27

Qes0.29

Qms3.9

Vas47.0L

Re5.3Ω

Le2.00mH

BL22.5Tm

Sd531cm²

Mms106g

Xmax8.0mm

SPL93dB

Power700W

Power Nominal700W

Impedance8Ω

Min Impedance6.7Ω

F Low45Hz

F High1000Hz

Voice Coil100mm

Flux Density1.05T

What this validation status means

Pricing & availability

Price definitions

Price movement

Best current price

£194.77

inc VAT·Vendor hidden

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight8.8kg

Diameter319.0mm

Overall Depth118.0mm

Cutout Diameter281.0mm

Bolt Circle Diameter299.0mm

Additional Manufacturer Specs

Bl22.5 Tm

Fs44 Hz

Le2 mH

Re5.3 Ω

Sd531 cm² (82.3 in²)

Ebp152 Hz

Mms106 g

Qes0.29

Qms3.9

Qts0.27

Vas47 dm³ (1.6 ft³)

η01.3 %

ConeRCK12PS1008

Xmax8 mm

Xvar8 mm

SpiderDouble Silicone

Cone ShapeRadial

Pole DesignT-Pole

Winding Depth21 mm (0.83 in)

Surround ShapeTriple Roll

Former MaterialGlass Fibre

Magnet MaterialFerrite

Nominal Diameter320 mm (12 in)

Winding MaterialCopper

Magnetic Gap Depth11 mm (0.4 in)

Recommended Tuning48 Hz

Bolt Circle Diameter299 mm (11.8 in)

Recommended Enclosure40 dm³ (1.41 ft³)

Woofer Cone TreatmentTWP Waterproof Both Sides

Baffle Cutout Diameter281 mm (11.1 in)

Flange And Gasket Thickness13 mm (0.5 in)

Air Volume Occupied By Driver3.5 dm³ (0.12 ft³)
