FaitalPRO 12HP1020 8Ω
8 Ω · 55–3150 Hz
£240.05
SteadyLean Business · All 8 offers
- Fs
- 55Hz
- Xmax
- 9mm
- SPL
- 96dB
- Pe
- 700W
- BL
- 24.3T·m
- Vd
- 480cm³
- Qts
- 0.27
- Vas
- 39L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
218 plotted pointsMedium confidence786 selected pixels of 1,191 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,518 selected pixels of 1,898

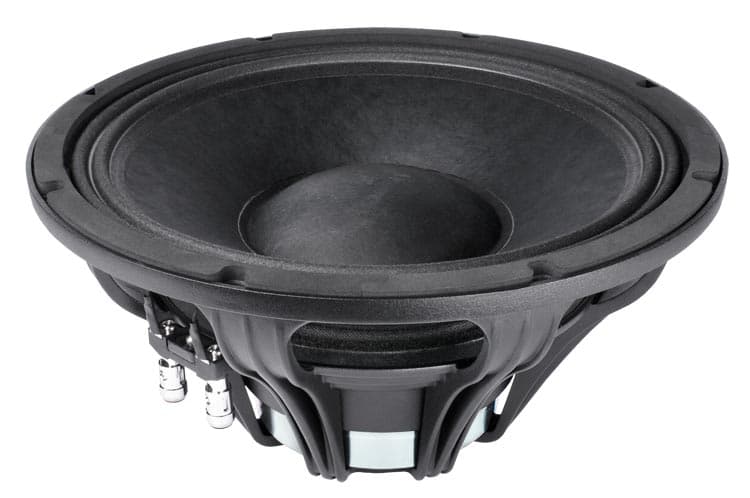

FaitalPRO 12HP1020 is a 12-inch 8 ohm LF driver rated at 700 W RMS. The validated T/S data includes Fs 55 Hz, Qts 0.27, Vas 38.6 L, Xmax 9 mm, sensitivity 95.6 dB, plus 480 cm³ Vd and 196 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £232.89.
The published T/S values agree with each other
Thiele/Small
- Fs
- 55Hz
- Qts
- 0.27
- Qes
- 0.28
- Qms
- 9.4
- Vas
- 38.6L
- Re
- 5.5Ω
- Le
- 1.10mH
Motor and cone
- BL
- 24.3T·m
- Sd
- 533cm²
- Mms
- 86g
- Xmax
- 9mm
- Vd †
- 480cm³
Power and response
- Sensitivity †
- 95.6dB
- Manufacturer sensitivity
- 97dB
- Power
- 700W
- Impedance
- 8Ω
- Range
- 55–3150Hz
- EBP †
- 196 · Leans vented
Size and mounting
- Diameter
- 316mm
- Cutout
- 284mm
- Bolt circle
- 298.5mm
- Depth
- 155.8mm
- Weight
- 5.8kg
Other published values
- Cms
- 0.10mm/N
- Rms
- 3.20kg/s
- Power Program
- 1400
Sensitivity shows 95.6 dB, calculated from the T/S values. FaitalPRO publishes 97.0 dB, 1.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else FaitalPRO lists
LF · Primary · 12″
- BL
- 24.3T·m
- Fs
- 55Hz
- Le
- 1.10mH
- Re
- 5.5Ω
- Sd
- 533cm²
- Cms
- 0.10mm/N
- Mms
- 86g
- Qes
- 0.28
- Qms
- 9.4
- Qts
- 0.27
- Rms
- 3.20kg/s
- SPL
- 95.6dB
- Vas
- 38.6L
- Xmax
- 9mm
- Power
- 700W
- Impedance
- 8Ω
- Sensitivity
- 97dB
- Low limit
- 55Hz
- Power Program
- 1400
- Calculated sensitivity †
- 95.6dB
- High limit
- 3150Hz
- Manufacturer sensitivity
- 97dB
- Weight
- 5.8kg
- Diameter
- 316mm
- Depth
- 155.8mm
- Cutout
- 284mm
- Bolt circle
- 298.5mm
02
Compare
Same-size drivers, compared with the 12HP1020. Clear differences are green when better and red when worse.
This driver12HP1020
Best price
£232.89
Fs
55 Hz
Qts
0.27
Vas
38.6 L
BL
24.3 T·m
Xmax
9 mm
Sensitivity
95.6 dB
Power
700 W
PRV Audio12MR2000X
£186.83 · 20% less, betterFs65 Hz +18%, worse
Qts0.28 +4%
Vas39.6 L –
BL23.2 T·m −5%
Xmax6.6 mm −27%, worse
Sensitivity97.9 dB +2.3, better
B&C12PS100
£187.66 · 19% less, betterFs44 Hz −20%, better
Qts0.27 –
Vas47 L +22%, worse
BL22.5 T·m −7%
Xmax8 mm −11%, worse
Sensitivity93.4 dB −2.2, worse
RCFMB12X351
£187.93 · 19% less, betterFs55 Hz –
Qts0.26 −4%
Vas46 L +19%, worse
BL22.5 T·m −7%
Xmax7 mm −22%, worse
Sensitivity96.6 dB +1
Eighteen Sound12LW800
£189.95 · 18% less, betterFs52 Hz −5%
Qts0.29 +7%
Vas48 L +24%, worse
BL21.3 T·m −12%, worse
Xmax6.5 mm −28%, worse
Sensitivity95.6 dB –
B&C12TBX100
£199.38 · 14% less, betterFs42 Hz −24%, better
Qts0.26 −4%
Vas37.5 L –
BL25.5 T·m +5%
Xmax9 mm –
Sensitivity92.2 dB −3.4, worse
Beyma12LEX1000FE
£200.97 · 14% less, betterFs49 Hz −11%, better
Qts0.30 +11%, worse
Vas38.4 L –
BL24.6 T·m –
Xmax11 mm +22%, better
Sensitivity93.5 dB −2.1, worse
BMS12S330
£204.98 · 12% less, betterFs29 Hz −48%, better
Qts0.24 −11%, better
Vas85.5 L +122%, worse
BL23 T·m −5%
Xmax8 mm −11%, worse
Sensitivity91.1 dB −4.5, worse
B&C12NDL88
£208.60 · 10% less, betterFs51 Hz −7%
Qts0.27 –
Vas52 L +35%, worse
BL19.9 T·m −18%, worse
Xmax8 mm −11%, worse
Sensitivity95.8 dB –
PRV Audio12MR2000X-NDY
£209.26 · 10% less, betterFs67 Hz +22%, worse
Qts0.31 +15%, worse
Vas35.9 L −7%
BL22.7 T·m −7%
Xmax6.1 mm −32%, worse
Sensitivity97.3 dB +1.7
B&C12NBX100
£242.10 · 4% moreFs41 Hz −25%, better
Qts0.22 −19%, better
Vas51 L +32%, worse
BL25.6 T·m +5%
Xmax10 mm +11%, better
Sensitivity93.7 dB −1.9
FaitalPRO12HP1030
£247.13 · 6% more, worseFs45 Hz −18%, better
Qts0.30 +11%, worse
Vas35.9 L −7%
BL24.3 T·m –
Xmax12.4 mm +38%, better
Sensitivity92.3 dB −3.3, worse
FaitalPRO12FX600
£247.20 · 6% more, worseFs48 Hz −13%, better
Qts0.24 −11%, better
Vas44.4 L +15%, worse
BL25.3 T·m +4%
Xmax9.9 mm +10%, better
Sensitivity95 dB −0.6
B&C12NW100
£249.64 · 7% more, worseFs42 Hz −24%, better
Qts0.20 −26%, better
Vas44 L +14%, worse
BL28 T·m +15%, better
Xmax9 mm –
Sensitivity93.9 dB −1.7
FaitalPRO12HP1060
£258.86 · 11% more, worseFs45 Hz −18%, better
Qts0.28 +4%
Vas36.9 L −4%
BL24.8 T·m –
Xmax12.4 mm +38%, better
Sensitivity92.7 dB −2.9, worse
Eighteen Sound12LW1400
£260.72 · 12% more, worseFs45 Hz −18%, better
Qts0.30 +11%, worse
Vas55 L +42%, worse
BL20 T·m −18%, worse
Xmax8.3 mm −8%
Sensitivity94 dB −1.6
Beyma12P1000ND
£318.45 · 37% more, worseFs47 Hz −15%, better
Qts0.26 −4%
Vas49 L +27%, worse
BL23.5 T·m −3%
Xmax8 mm −11%, worse
Sensitivity94.8 dB −0.8
Eighteen Sound12NLW9410
£331.74 · 42% more, worseFs42 Hz −24%, better
Qts0.26 −4%
Vas55 L +42%, worse
BL21.7 T·m −11%, worse
Xmax11 mm +22%, better
Sensitivity93.8 dB −1.8
Sica12 S 4 PL
£334.25 · 44% more, worseFs40 Hz −27%, better
Qts0.25 −7%
Vas57 L +48%, worse
BL23.5 T·m −3%
Xmax7.5 mm −17%, worse
Sensitivity93.6 dB −2, worse
Sica12 PNS 4
£359.39 · 54% more, worseFs42 Hz −24%, better
Qts0.31 +15%, worse
Vas50.2 L +30%, worse
BL22.3 T·m −8%
Xmax9.5 mm +6%
Sensitivity92.6 dB −3, worse
Beyma12LEX1300ND
£375.99 · 61% more, worseFs45 Hz −18%, better
Qts0.24 −11%, better
Vas43 L +11%, worse
BL26.4 T·m +9%
Xmax11 mm +22%, better
Sensitivity94 dB −1.6
Sica12 SR 4 CP
No current priceFs38 Hz −31%, better
Qts0.30 +11%, worse
Vas41.7 L +8%
BL24 T·m –
Xmax9 mm –
Sensitivity90.7 dB −4.9, worse
Sica12 PFS 4
No current priceFs39 Hz −29%, better
Qts0.26 −4%
Vas55.6 L +44%, worse
BL23.9 T·m –
Xmax9 mm –
Sensitivity92.9 dB −2.7, worse
Oberton12NB601
No current priceFs50 Hz −8%
Qts0.30 +13%, worse
Vas38.7 L –
BL22.9 T·m −6%
Xmax8.8 mm –
Sensitivity94 dB −1.6
No photo
PHL Audio4310NDU
No current priceFs43 Hz −22%, better
Qts0.27 –
Vas56.7 L +47%, worse
BL22 T·m −9%
Xmax10 mm +11%, better
Sensitivity94.1 dB −1.5
Sica12 K 4 PL
No current priceFs49 Hz −12%, better
Qts0.25 −7%
Vas47.4 L +23%, worse
BL22.9 T·m −6%
Xmax7 mm −22%, worse
Sensitivity95 dB −0.6
Oberton12MB35
No current priceFs51 Hz −6%
Qts0.27 –
Vas50.1 L +30%, worse
BL20.5 T·m −16%, worse
Xmax6.8 mm −25%, worse
Sensitivity96 dB –
No photo
PHL Audio4031
No current priceFs44 Hz −20%, better
Qts0.27 –
Vas70 L +81%, worse
BL20.5 T·m −16%, worse
Xmax7.5 mm −17%, worse
Sensitivity95.2 dB –
No photo
PHL Audio4031NDU
No current priceFs44 Hz −20%, better
Qts0.27 –
Vas70 L +81%, worse
BL20.5 T·m −16%, worse
Xmax7.5 mm −17%, worse
Sensitivity95.2 dB –
CelestionFTR12-4075F
No current priceFs37 Hz −33%, better
Qts0.27 –
Vas89.2 L +131%, worse
BL12.6 T·m −48%, worse
Xmax9 mm –
Sensitivity94 dB −1.6
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Business | £240.05, the lowest price | Stock not listed | Visit shop at Lean Business | |
Blue Aran 9-11 weeks | £240.05 | Usually available in 9-11 weeks | Visit shop at Blue Aran | |
Lean Audio | £240.05 | Back order | Visit shop at Lean Audio | |
Blue Aran 9-11 weeks | £252.24 | 5.1% above the lowest price | Usually available in 9-11 weeks | Visit shop at Blue Aran |
Audio Video Parts Import VAT and duty may apply | £262.99 | 9.6% above the lowest price | Special order | Visit shop at Audio Video Parts |
Best price over time
Tracked since 1 Apr
