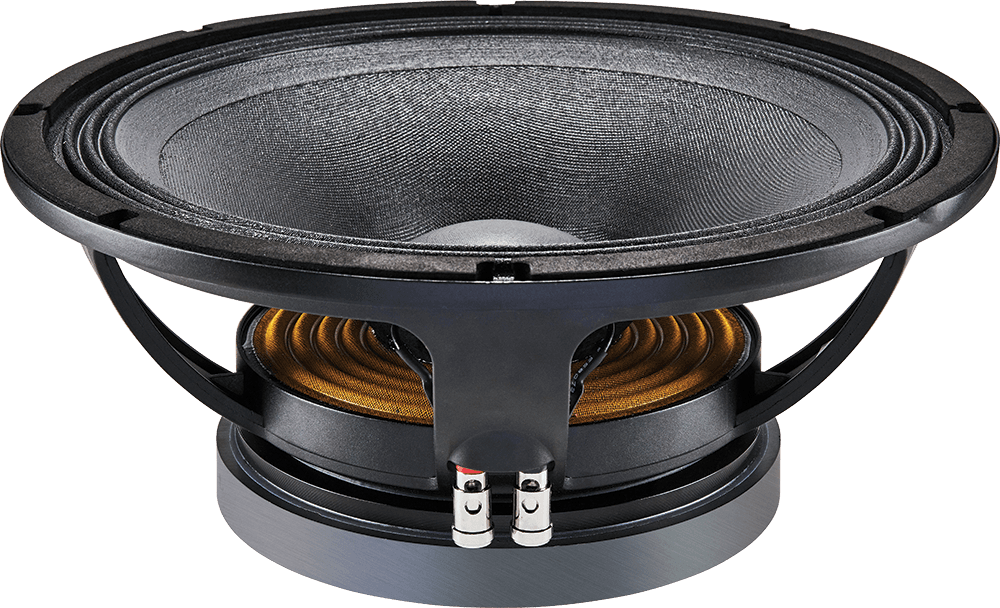

12-inch LF driver · CF1230 series · 75 mm voice coil · 500 W

Celestion CF1230F 8Ω

Name: Celestion CF1230F 8 Ohm
Brand: Celestion
SKU: CF1230F

8 Ω · 50–3000 Hz

No price for delivery to the UK

All 1 offer

Open in 00 Simulator

Fs: 57Hz
Xmax: 7.5mm
SPL: 96dB
Pe: 500W
BL: 18.3T·m
Vd: 398cm³
Qts: 0.32
Vas: 50L

See all 27 specs

Curve provenanceInspect 1 trace

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

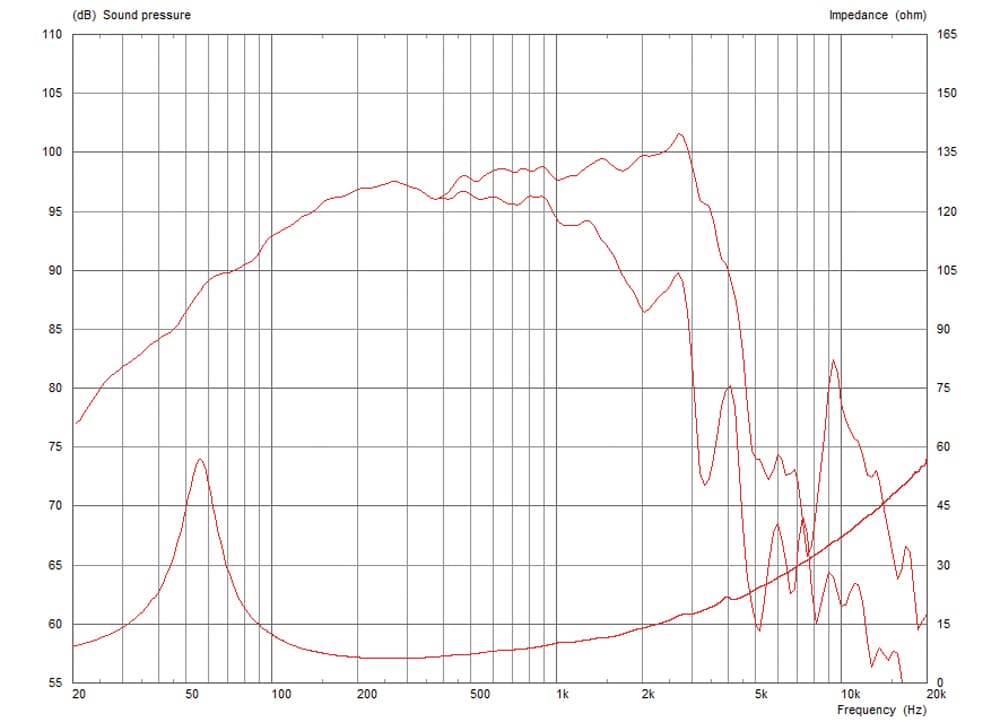

LF frequency response
Frequency response
Trace datasheet-response-trace-poc/v1
137 plotted pointsMedium confidence208 selected pixels of 377
Manufacturer datasheet, page 1

Published graphs

Specifications

Published by Celestion

Manufacturer page

Datasheet PDF

Celestion CF1230F is a 12-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 57 Hz, Qts 0.32, Vas 49.6 L, Xmax 7.5 mm, sensitivity 96.2 dB, plus 398 cm³ Vd and 165 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 57Hz
Qts: 0.32
Qes: 0.34
Qms: 4.3
Vas: 49.6L
Re: 5.1Ω
Le: 0.74mH

Motor and cone

BL: 18.3T·m
Sd: 531cm²
Mms: 64g
Xmax: 7.5mm
Vd †: 398cm³
Voice coil: 75mm

Power and response

Sensitivity †: 96.2dB
Manufacturer sensitivity: 98dB
Power: 500W
Impedance: 8Ω
Range: 50–3000Hz
EBP †: 165 · Leans vented

Size and mounting

Diameter: 315mm
Cutout: 285.6mm
Bolt circle: 300mm
Depth: 153mm
Weight: 6.8kg

Other published values

Cms: 0.12mm/N
Rms: 5.23kg/s
Power Program: 1000

Sensitivity shows 96.2 dB, calculated from the T/S values. Celestion publishes 98.0 dB, 1.8 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Celestion lists

LF · Primary · 12″

BL: 18.3T·m
Fs: 57Hz
Le: 0.74mH
Re: 5.1Ω
Sd: 531cm²
Cms: 0.12mm/N
Mms: 64g
Qes: 0.34
Qms: 4.3
Qts: 0.32
Rms: 5.23kg/s
SPL: 96.2dB
Vas: 49.6L
Xmax: 7.5mm
Power: 500W
Impedance: 8Ω
Sensitivity: 98dB
Low limit: 50Hz
Power Program: 1000
Calculated sensitivity †: 96.2dB
High limit: 3000Hz
Manufacturer sensitivity: 98dB
Voice coil: 75mm
Weight: 6.8kg
Diameter: 315mm
Depth: 153mm
Cutout: 285.6mm
Bolt circle: 300mm

Compare

Same-size drivers, compared with the CF1230F. Clear differences are green when better and red when worse.

This driverCF1230F

Best price

–

57 Hz

Qts

0.32

Vas

49.6 L

18.3 T·m

Xmax

7.5 mm

Sensitivity

96.2 dB

Power

500 W

CIAREPWA12.75

£121.41

Fs53 Hz −6%

Qts0.30 −5%

Vas52 L +5%

BL19.6 T·m +7%

Xmax5.8 mm −23%

Sensitivity95.9 dB –

CelestionFTR12-3070C

£133.13

Fs65 Hz +15%

Qts0.32 –

Vas43.7 L −12%

BL18.6 T·m –

Xmax5.5 mm −27%

Sensitivity97.3 dB +1.1

Beyma12MCS500

£134.74

Fs57 Hz –

Qts0.36 +14%

Vas57 L +15%

BL17.6 T·m −4%

Xmax8 mm +7%

Sensitivity96.5 dB –

PRV Audio12MR2000

£142.06

Fs57 Hz –

Qts0.33 +4%

Vas52.5 L +6%

BL21.3 T·m +16%

Xmax6.6 mm −12%

Sensitivity96.6 dB –

Beyma12MC500

£150.88

Fs57 Hz –

Qts0.34 +7%

Vas57 L +15%

BL18.3 T·m –

Xmax8 mm +7%

Sensitivity96.8 dB +0.6

B&C12FW88

£163.69

Fs53 Hz −6%

Qts0.33 +4%

Vas45.7 L −8%

BL19.5 T·m +6%

Xmax8 mm +7%

Sensitivity94.9 dB −1.3

Eighteen Sound12W700

£179.00

Fs58 Hz –

Qts0.36 +14%

Vas55 L +11%

BL17.7 T·m −3%

Xmax6.5 mm −13%

Sensitivity96.7 dB +0.5

SB AudienceNERO-12MWN700D

£179.95

Fs53 Hz −7%

Qts0.38 +20%

Vas52.5 L +6%

BL17.9 T·m –

Xmax7.3 mm –

Sensitivity94.9 dB −1.3

B&C12NDL88

£208.49

Fs51 Hz −10%

Qts0.27 −15%

Vas52 L +5%

BL19.9 T·m +9%

Xmax8 mm +7%

Sensitivity95.8 dB –

Precision DevicesPD.124NR1

£219.00

Fs58 Hz –

Qts0.35 +10%

Vas49 L –

BL19.2 T·m +5%

Xmax8.5 mm +13%

Sensitivity96.2 dB –

Eighteen Sound12LW1400

£260.72

Fs45 Hz −20%

Qts0.30 −5%

Vas55 L +11%

BL20 T·m +9%

Xmax8.3 mm +10%

Sensitivity94 dB −2.2

Eighteen Sound12NTLW3500

£285.52

Fs53 Hz −6%

Qts0.33 +4%

Vas45 L −9%

BL19.5 T·m +6%

Xmax8.3 mm +11%

Sensitivity94.8 dB −1.4

Eighteen Sound12NCX910

£436.54

Fs57 Hz –

Qts0.30 −5%

Vas58 L +17%

BL18.1 T·m –

Xmax6.9 mm −8%

Sensitivity97.4 dB +1.2

Eighteen Sound12NCX910N

£478.98

Fs57 Hz –

Qts0.30 −5%

Vas58 L +17%

BL18.1 T·m –

Xmax6.9 mm −8%

Sensitivity97.4 dB +1.2

Eighteen Sound12NW350

No current price

Fs54 Hz −4%

Qts0.34 +7%

Vas46 L −7%

BL19.2 T·m +5%

Xmax8.3 mm +11%

Sensitivity95.2 dB −1

Eighteen Sound12LW801

No current price

Fs54 Hz −4%

Qts0.33 +4%

Vas41 L −17%

BL20.3 T·m +11%

Xmax8 mm +7%

Sensitivity94.8 dB −1.4

Eighteen Sound12NCX910BE

No current price

Fs57 Hz –

Qts0.30 −5%

Vas58 L +17%

BL18.1 T·m –

Xmax6.9 mm −8%

Sensitivity97.4 dB +1.2

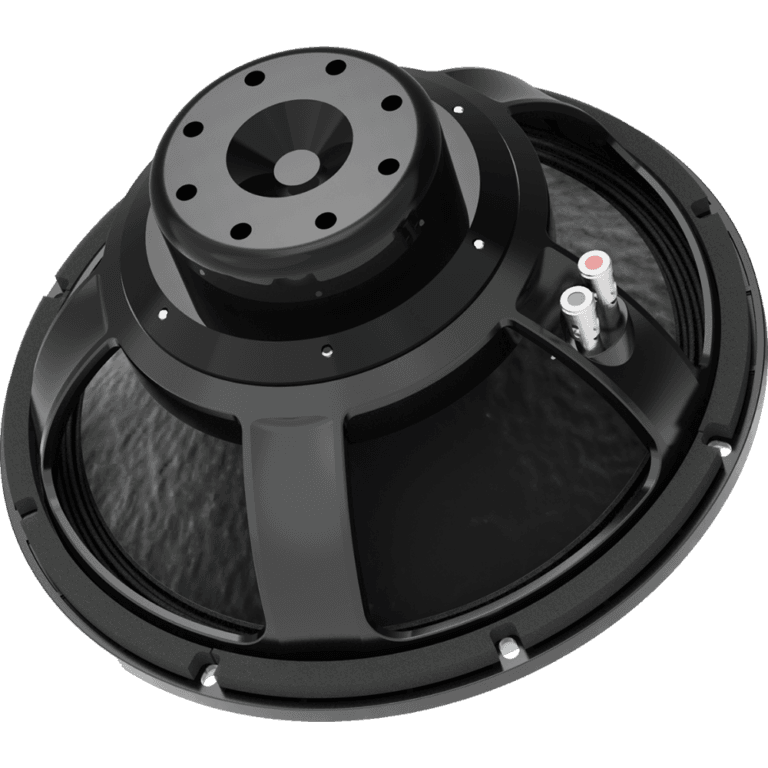

CelestionTSQ1230
