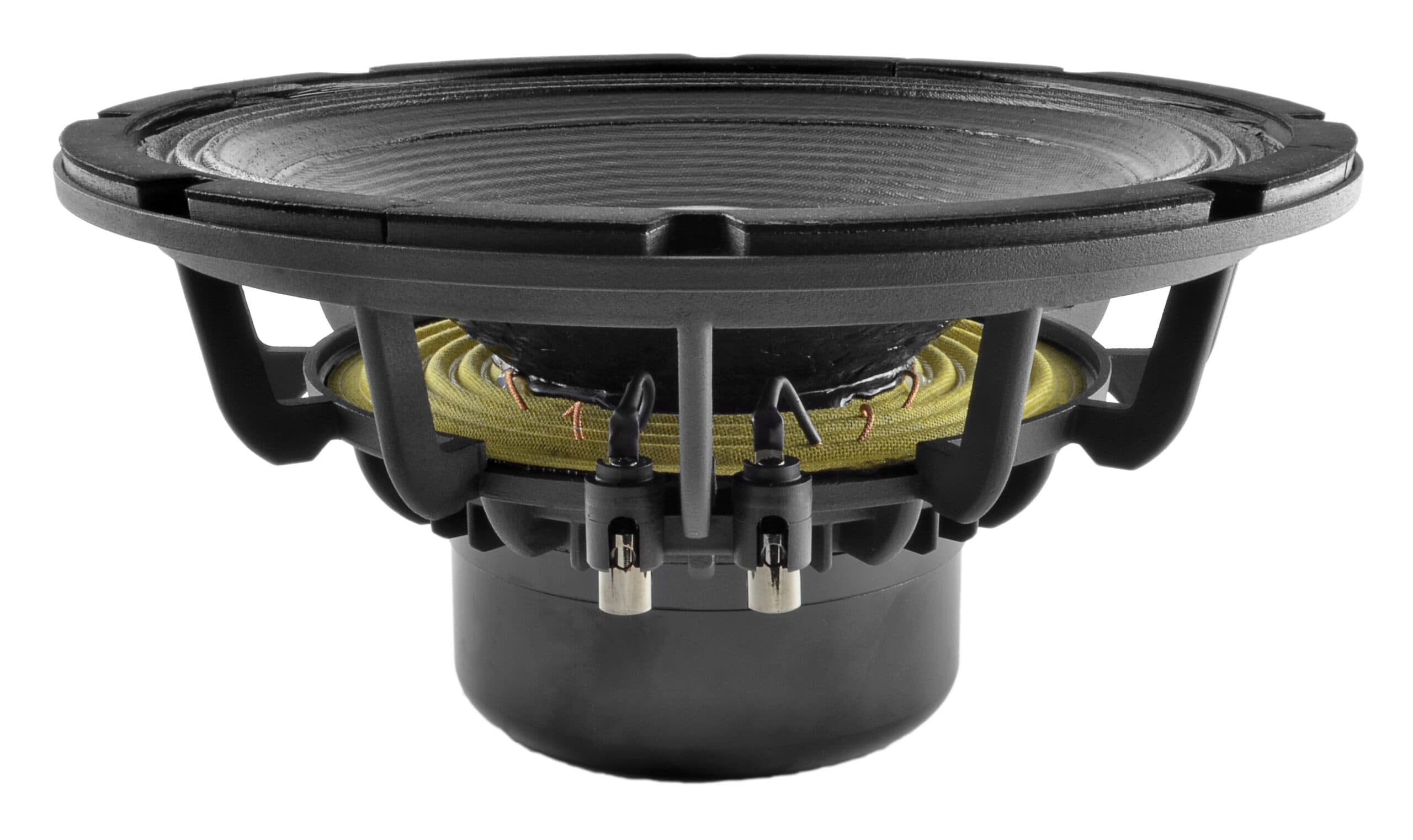

REDCATT 125FPM 8Ω
8 Ω
No current price
- Fs
- 63Hz
- Xmax
- 2.5mm
- SPL
- 98dB
- Pe
- 300W
- BL
- 17.2T·m
- Vd
- 135cm³
- Qts
- 0.31
- Vas
- 48L
REDCATT 125FPM is a 12-inch 8 ohm LF driver rated at 300 W RMS. The validated T/S data includes Fs 63 Hz, Qts 0.31, Vas 48.1 L, Xmax 2.5 mm, sensitivity 97.6 dB, plus 135 cm³ Vd and 191 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 63Hz
- Qts
- 0.31
- Qes
- 0.33
- Qms
- 7.1
- Vas
- 48.1L
- Re
- 4.5Ω
- Le
- 0.64mH
Motor and cone
- BL
- 17.2T·m
- Sd
- 531cm²
- Mms
- 53g
- Xmax
- 2.5mm
- Vd †
- 135cm³
- Voice coil
- 76mm
Power and response
- Sensitivity †
- 97.6dB
- Manufacturer sensitivity
- 100dB
- Power
- 300W
- Impedance
- 8Ω
- EBP †
- 191 · Leans vented
Size and mounting
- Diameter
- 311mm
- Cutout
- 282mm
- Bolt circle
- 295mm
- Weight
- 7kg
Other published values
- Xmech
- 12.55
- Power Peak
- 1200
Other dimensions
- Mounting Depth
- 127.3
Sensitivity shows 97.6 dB, calculated from the T/S values. REDCATT publishes 100.0 dB, 2.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else REDCATT lists
LF · Primary · 12″
- BL
- 17.2T·m
- Fs
- 63Hz
- Le
- 0.64mH
- Re
- 4.5Ω
- Sd
- 531cm²
- Mms
- 53g
- Qes
- 0.33
- Qms
- 7.1
- Qts
- 0.31
- SPL
- 97.6dB
- Vas
- 48.1L
- Xmax
- 2.5mm
- Xmech
- 12.55
- Power
- 300W
- Impedance
- 8Ω
- Power Peak
- 1200
- Sensitivity
- 100dB
- Calculated sensitivity †
- 97.6dB
- Manufacturer sensitivity
- 100dB
- Voice coil
- 76mm
- Weight
- 7kg
- Diameter
- 311mm
- Mounting Depth
- 127.3
- Cutout
- 282mm
- Bolt circle
- 295mm
