Overview
LF Driver
Eighteen Sound
Eighteen Sound 12NW350
Eighteen Sound 12NW350 is a 12" 8 ohm LF driver rated at 800W RMS. The validated T/S data includes Fs 54Hz, Qts 0.34, Vas 46L, Xmax 8.3mm, sensitivity 95.2dB, plus 441cm³ Vd and 154 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
800W
Sensitivity
95.2dB
98.0dBmanufacturer; using T/S-derived value (2.8dB delta).
EBP
154
Vented alignment
Vd
441cm³

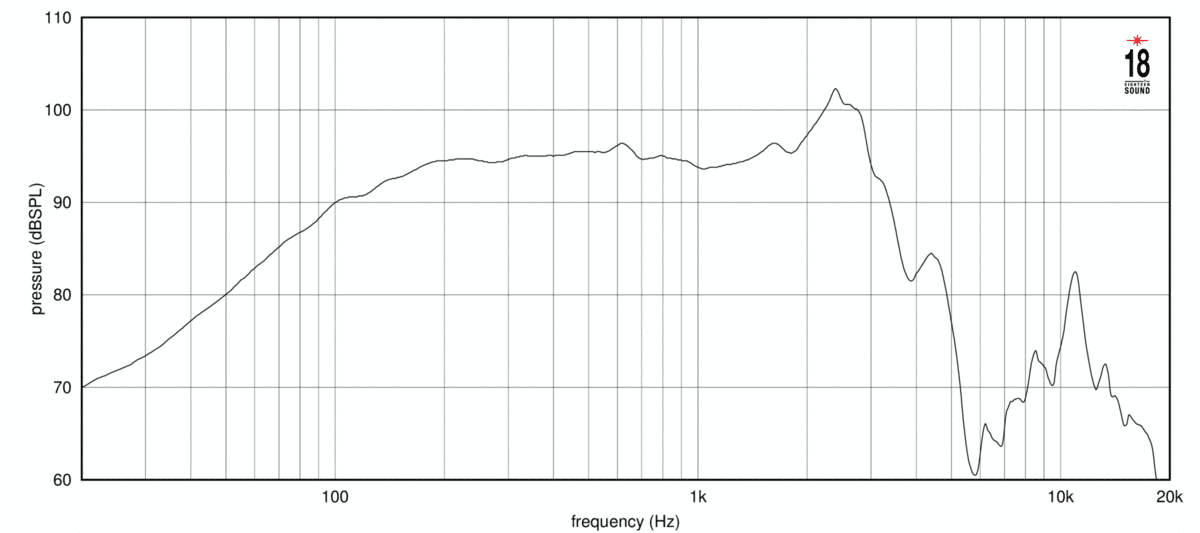

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence490 selected pixels of 858
T/S Parameters
Valid
Fs54Hz
Qts0.34
Qes0.35
Qms12.0
Vas46.0L
Re5.0Ω
Le0.85mH
BL19.2Tm
Sd531cm²
Mms75g
Xmax8.3mm
SPL95dB
Power800W
Power Nominal800W
Impedance8Ω
F Low50Hz
F High3500Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.1kg
Diameter310.0mm
Overall Depth150.0mm
Cutout Diameter283.0mm
Bolt Circle Diameter295.0mm
