CIAREPWA12.64
£114.71 · 40% less, betterFs55 Hz +22%, worse
Qts0.35 –
Vas58 L –
BL17.6 T·m −11%, worse
Xmax4.5 mm −51%, worse
Sensitivity96.3 dB +2.6, better
12-inch LF driver · HP series · 700 W

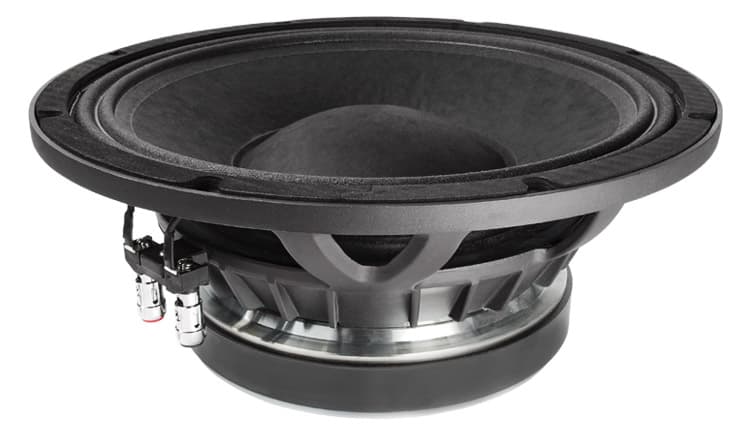

FaitalPRO 12HP1010 8Ω
8 Ω · 45–3150 Hz
£191.59
SteadyLean Audio · 2 in stock · All 6 offers
- Fs
- 45Hz
- Xmax
- 9.3mm
- SPL
- 94dB
- Pe
- 700W
- BL
- 19.8T·m
- Vd
- 491cm³
- Qts
- 0.34
- Vas
- 57L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 3 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
240 plotted pointsMedium confidence1,023 selected pixels of 1,272 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,316 selected pixels of 1,316 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,352 selected pixels of 1,352
FaitalPRO 12HP1010 is a 12-inch 8 ohm LF driver rated at 700 W RMS. The validated T/S data includes Fs 45 Hz, Qts 0.34, Vas 56.5 L, Xmax 9.3 mm, sensitivity 93.7 dB, plus 491 cm³ Vd and 129 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £191.59.
The published T/S values agree with each other
Thiele/Small
- Fs
- 45Hz
- Qts
- 0.34
- Qes
- 0.35
- Qms
- 9.4
- Vas
- 56.5L
- Re
- 5.5Ω
- Le
- 1.33mH
Motor and cone
- BL
- 19.8T·m
- Sd
- 531cm²
- Mms
- 87g
- Xmax
- 9.3mm
- Vd †
- 491cm³
Power and response
- Sensitivity †
- 93.7dB
- Manufacturer sensitivity
- 96dB
- Power
- 700W
- Impedance
- 8Ω
- Range
- 45–3150Hz
- EBP †
- 129 · Leans vented
Size and mounting
- Diameter
- 316mm
- Cutout
- 282mm
- Bolt circle
- 298.5mm
- Depth
- 142mm
- Weight
- 9.2kg
Other published values
- Cms
- 0.14mm/N
- Rms
- 2.60kg/s
- Power Program
- 1400
Sensitivity shows 93.7 dB, calculated from the T/S values. FaitalPRO publishes 96.0 dB, 2.3 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else FaitalPRO lists
LF · Primary · 12″
- BL
- 19.8T·m
- Fs
- 45Hz
- Le
- 1.33mH
- Re
- 5.5Ω
- Sd
- 531cm²
- Cms
- 0.14mm/N
- Mms
- 87g
- Qes
- 0.35
- Qms
- 9.4
- Qts
- 0.34
- Rms
- 2.60kg/s
- SPL
- 93.7dB
- Vas
- 56.5L
- Xmax
- 9.3mm
- Power
- 700W
- Impedance
- 8Ω
- Sensitivity
- 96dB
- Low limit
- 45Hz
- Power Program
- 1400
- Calculated sensitivity †
- 93.7dB
- High limit
- 3150Hz
- Manufacturer sensitivity
- 96dB
- Weight
- 9.2kg
- Diameter
- 316mm
- Depth
- 142mm
- Cutout
- 282mm
- Bolt circle
- 298.5mm
02
Compare
Same-size drivers, compared with the 12HP1010. Clear differences are green when better and red when worse.
This driver12HP1010
Best price
£191.59
Fs
45 Hz
Qts
0.34
Vas
56.5 L
BL
19.8 T·m
Xmax
9.3 mm
Sensitivity
93.7 dB
Power
700 W
Beyma12MCS500
£134.74 · 30% less, betterFs57 Hz +27%, worse
Qts0.36 +6%
Vas57 L –
BL17.6 T·m −11%, worse
Xmax8 mm −14%, worse
Sensitivity96.5 dB +2.8, better
PRV Audio12MR2000
£142.06 · 26% less, betterFs57 Hz +27%, worse
Qts0.33 –
Vas52.5 L −7%
BL21.3 T·m +7%
Xmax6.6 mm −28%, worse
Sensitivity96.6 dB +2.9, better
Beyma12MC500
£150.88 · 21% less, betterFs57 Hz +27%, worse
Qts0.34 –
Vas57 L –
BL18.3 T·m −8%
Xmax8 mm −14%, worse
Sensitivity96.8 dB +3.1, better
FaitalPRO12RS550
£158.25 · 17% less, betterFs42 Hz −7%
Qts0.37 +9%
Vas45.4 L −20%, better
BL20.5 T·m +4%
Xmax9.3 mm –
Sensitivity91.4 dB −2.3, worse
B&C12FW88
£163.69 · 15% less, betterFs53 Hz +18%, worse
Qts0.33 –
Vas45.7 L −19%, better
BL19.5 T·m –
Xmax8 mm −14%, worse
Sensitivity94.9 dB +1.2
Beyma12LX60V2
£184.93 · 3% lessFs49 Hz +9%
Qts0.38 +12%, worse
Vas43 L −24%, better
BL20 T·m –
Xmax9 mm –
Sensitivity93 dB −0.7
B&C12PLB100
£212.36 · 11% more, worseFs50 Hz +11%, worse
Qts0.37 +9%
Vas47 L −17%, better
BL18.4 T·m −7%
Xmax9 mm –
Sensitivity93.9 dB –
Precision DevicesPD.124NR1
£219.00 · 14% more, worseFs58 Hz +29%, worse
Qts0.35 –
Vas49 L −13%, better
BL19.2 T·m −3%
Xmax8.5 mm −8%
Sensitivity96.2 dB +2.5, better
B&C12FG100
£227.46 · 19% more, worseFs34 Hz −24%, better
Qts0.36 +6%
Vas49 L −13%, better
BL21.4 T·m +8%
Xmax10.3 mm +11%, better
Sensitivity89 dB −4.7, worse
Eighteen Sound12NW530
£228.40 · 19% more, worseFs55 Hz +22%, worse
Qts0.37 +9%
Vas36 L −36%, better
BL19.7 T·m –
Xmax8 mm −14%, worse
Sensitivity94 dB –
B&C12BG100
£243.10 · 27% more, worseFs39 Hz −13%, better
Qts0.33 –
Vas41 L −27%, better
BL23 T·m +16%, better
Xmax10.5 mm +14%, better
Sensitivity90.4 dB −3.3, worse
Eighteen Sound12LW1400
£260.72 · 36% more, worseFs45 Hz –
Qts0.30 −12%, better
Vas55 L –
BL20 T·m –
Xmax8.3 mm −11%, worse
Sensitivity94 dB –
Dayton AudioRSS315HO-4
£274.72 · 43% more, worseFs26 Hz −42%, better
Qts0.31 −9%
Vas53.7 L −5%
BL20 T·m –
Xmax12.3 mm +33%, better
Sensitivity86.7 dB −7, worse
BMS12N630
£283.85 · 48% more, worseFs29 Hz −36%, better
Qts0.33 –
Vas85.5 L +51%, worse
BL19.8 T·m –
Xmax8 mm −14%, worse
Sensitivity89.6 dB −4.1, worse
Eighteen Sound12NTLW3500
£285.52 · 49% more, worseFs53 Hz +18%, worse
Qts0.33 –
Vas45 L −20%, better
BL19.5 T·m –
Xmax8.3 mm −10%, worse
Sensitivity94.8 dB +1.1
Sica12 PNS 4
£359.21 · 87% more, worseFs42 Hz −7%
Qts0.31 −9%
Vas50.2 L −11%, better
BL22.3 T·m +13%, better
Xmax9.5 mm –
Sensitivity92.6 dB −1.1
FaitalPRO12HX500
£386.84 · 102% more, worseFs55 Hz +22%, worse
Qts0.37 +9%
Vas57.8 L –
BL17.4 T·m −12%, worse
Xmax9.3 mm –
Sensitivity95.9 dB +2.2, better
Eighteen Sound12NW350
No current priceFs54 Hz +20%, worse
Qts0.34 –
Vas46 L −19%, better
BL19.2 T·m −3%
Xmax8.3 mm −10%, worse
Sensitivity95.2 dB +1.5
Eighteen Sound12LW801
No current priceFs54 Hz +20%, worse
Qts0.33 –
Vas41 L −27%, better
BL20.3 T·m –
Xmax8 mm −14%, worse
Sensitivity94.8 dB +1.1
Oberton12B45V
No current priceFs48 Hz +6%
Qts0.35 +4%
Vas58.5 L +4%
BL16.6 T·m −16%, worse
Xmax10.5 mm +14%, better
Sensitivity94.4 dB +0.7
No photo
PHL Audio4021
No current priceFs35 Hz −22%, better
Qts0.35 –
Vas70 L +24%, worse
BL20.5 T·m +4%
Xmax7.5 mm −19%, worse
Sensitivity91.2 dB −2.5, worse
CelestionCF1230F
No current priceFs57 Hz +26%, worse
Qts0.32 −7%
Vas49.6 L −12%, better
BL18.3 T·m −7%
Xmax7.5 mm −19%, worse
Sensitivity96.2 dB +2.5, better
Oberton12HCX
No current priceFs53 Hz +17%, worse
Qts0.33 –
Vas55.5 L –
BL17.8 T·m −10%, worse
Xmax5.3 mm −43%, worse
Sensitivity95.6 dB +1.9
B&C12FL64
No current priceFs51 Hz +13%, worse
Qts0.32 −6%
Vas50 L −12%, better
BL20.2 T·m –
Xmax5 mm −46%, worse
Sensitivity94.9 dB +1.2
Oberton12CX
No current priceFs51 Hz +14%, worse
Qts0.35 –
Vas58.5 L +4%
BL17.4 T·m −12%, worse
Xmax5.3 mm −43%, worse
Sensitivity95.4 dB +1.7
CIARE12.75W1
No current priceFs49 Hz +9%
Qts0.33 –
Vas67 L +19%, worse
BL18.9 T·m −5%
Xmax6 mm −35%, worse
Sensitivity95.7 dB +2, better
P.Audio12BM-300B-V3
No current priceFs55 Hz +22%, worse
Qts0.34 –
Vas62.4 L +10%, worse
BL17.1 T·m −14%, worse
Xmax3.9 mm −58%, worse
Sensitivity96.6 dB +2.9, better
P.Audio12BM-400B
No current priceFs55 Hz +22%, worse
Qts0.34 –
Vas62.4 L +10%, worse
BL17.1 T·m −14%, worse
Xmax3.9 mm −58%, worse
Sensitivity96.6 dB +2.9, better
Oberton12NSW600
No current priceFs42 Hz −7%
Qts0.32 −7%
Vas62.3 L +10%, worse
BL20.2 T·m –
Xmax14.3 mm +54%, better
Sensitivity93.5 dB –
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Audio | £191.59, the lowest price | 2 in stock | Visit shop at Lean Audio | |
Blue Aran 9-11 weeks | £191.59 | Usually available in 9-11 weeks | Visit shop at Blue Aran | |
Lean Business | £191.59 | Stock not listed | Visit shop at Lean Business | |
Audio Video Parts Import VAT and duty may apply | £207.95 | 8.5% above the lowest price | Special order | Visit shop at Audio Video Parts |
Best price over time
Tracked since 1 Apr
