LF Driver
Fane

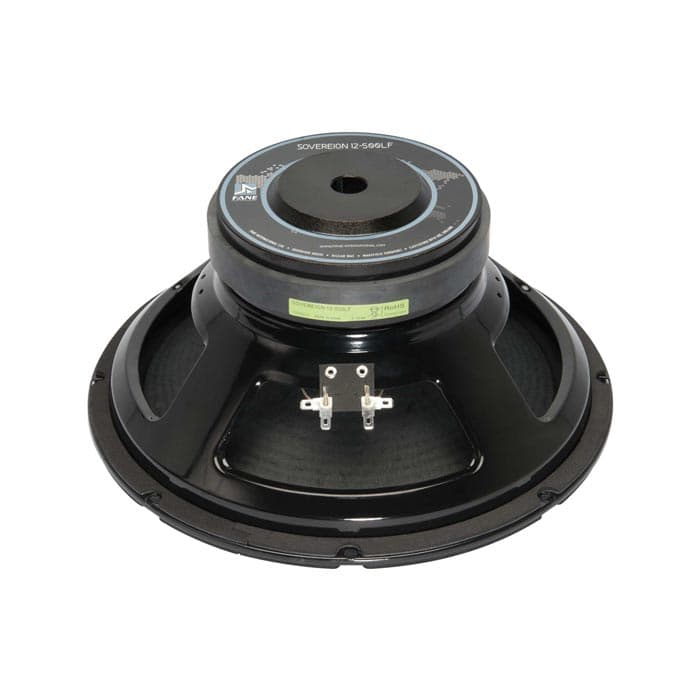

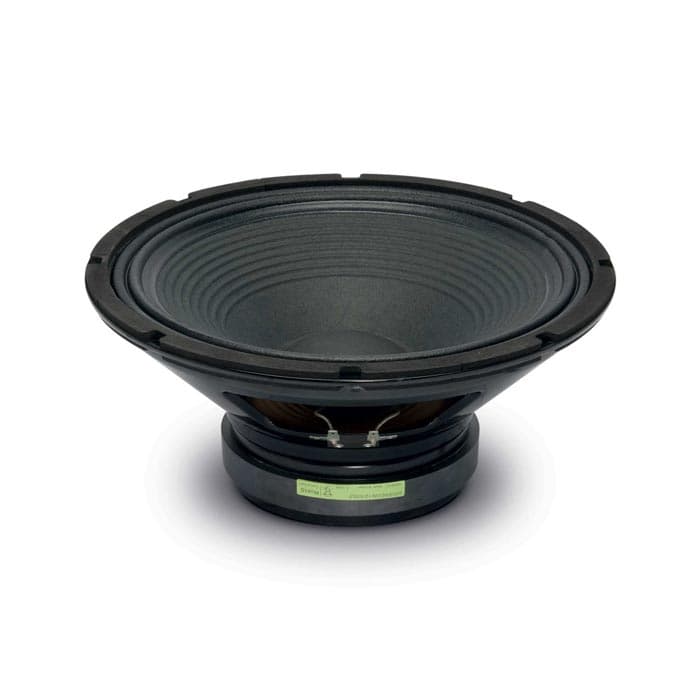

Fane SOVEREIGN 12-500LF
Fane SOVEREIGN 12-500LF is a 12" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 50Hz, Qts 0.51, Vas 66L, Xmax 5.5mm, sensitivity 94dB, plus 317cm³ Vd and 94 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
8Ω
RMS Power
500W
Sensitivity
94.0dB
95.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
94
Either alignment
Vd
317cm³
T/S Parameters
Valid
Fs50Hz
Qts0.51
Qes0.53
Qms7.5
Vas66.0L
Re5.9Ω
Le2.36mH
BL16.4Tm
Sd576cm²
Mms75g
Xmax5.5mm
SPL94dB
Power500W
Impedance8Ω
F Low38Hz
F High5000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.0kg
Diameter304.8mm
Overall Depth144.5mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Fane
SOVEREIGN 12-500LF
12"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
79%
Similarity
£104.85
Eminence
DELTA-12LFA
12"
Xmax4.8mm-13%
Qts0.47-8%
BL14.1Tm-14%
Vas67.9L+3%
Qes0.51-4%
77%
Similarity
£64.00
FaitalPRO
12FE300
12"
Xmax5.1mm-8%
Qts0.510%
BL12.5Tm-24%
Vas83.7L+27%
Qes0.530%
76%
Similarity

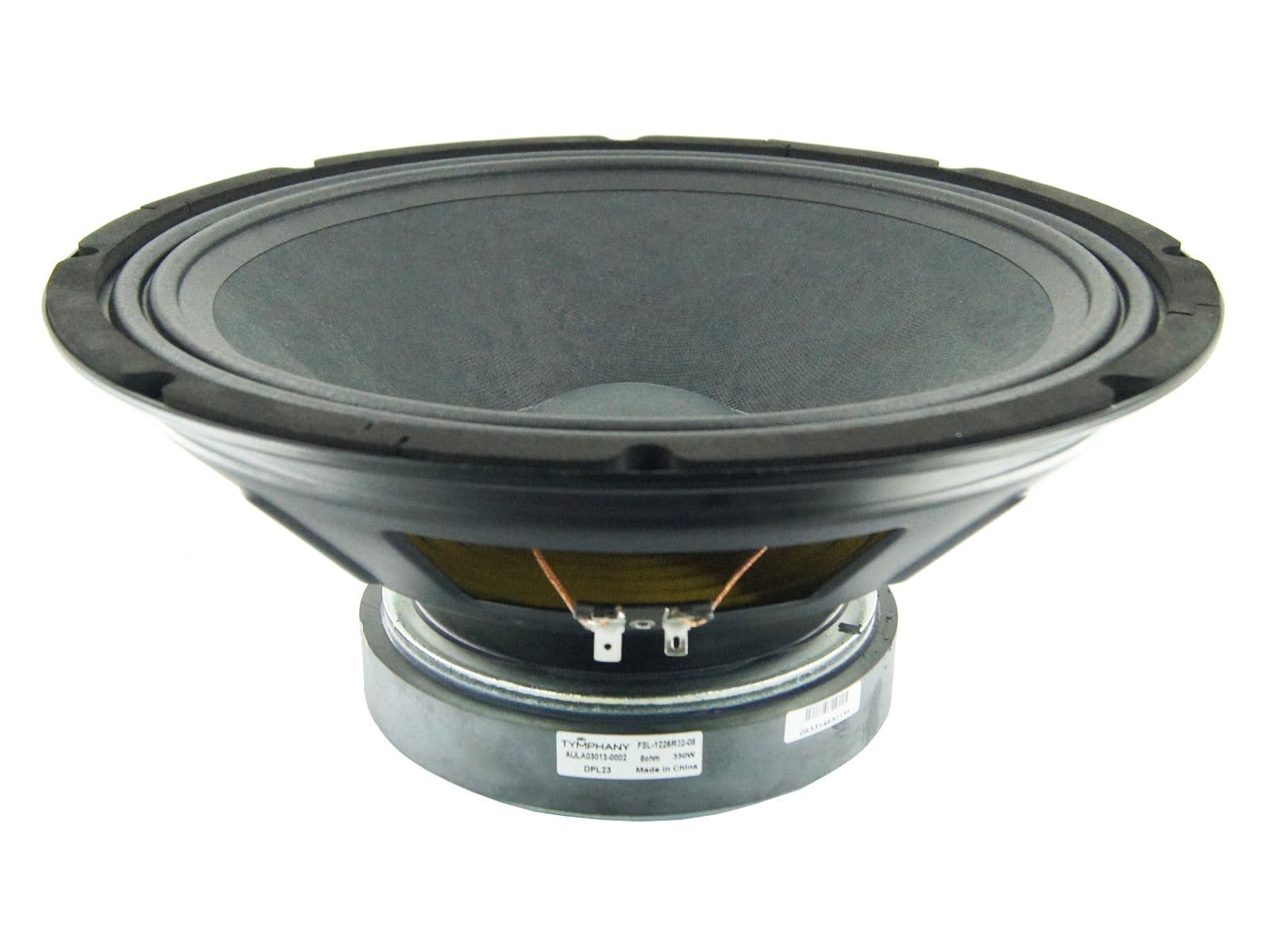

Peerless
