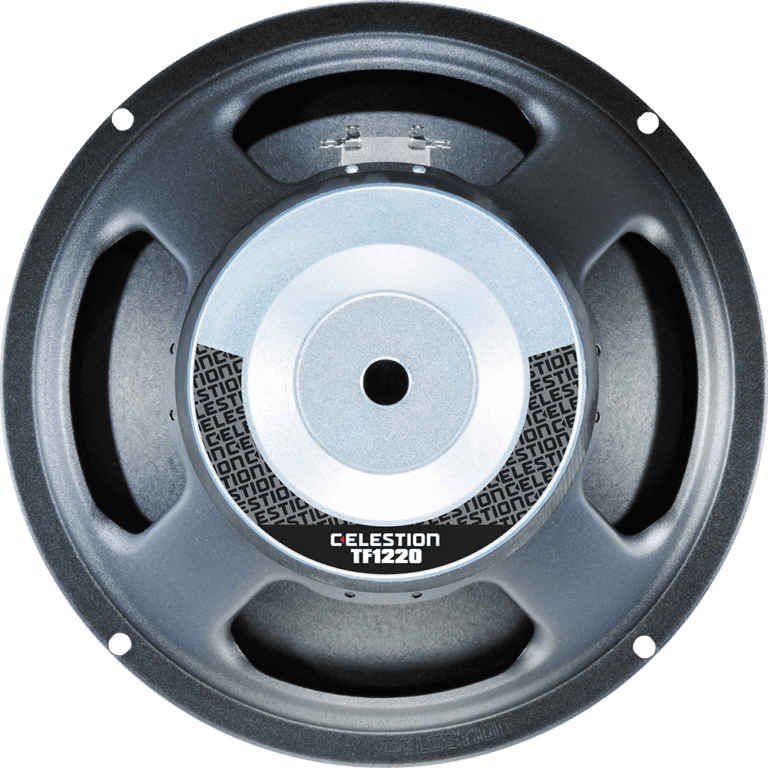

CelestionTF1220
£63.48Fs56 Hz −7%
Qts0.39 −7%
Vas72.8 L +48%, worse
BL13.9 T·m −10%
Xmax4 mm –
Sensitivity96.6 dB +1.3
12-inch LF driver · FTR12 series · 64 mm voice coil · 250 W

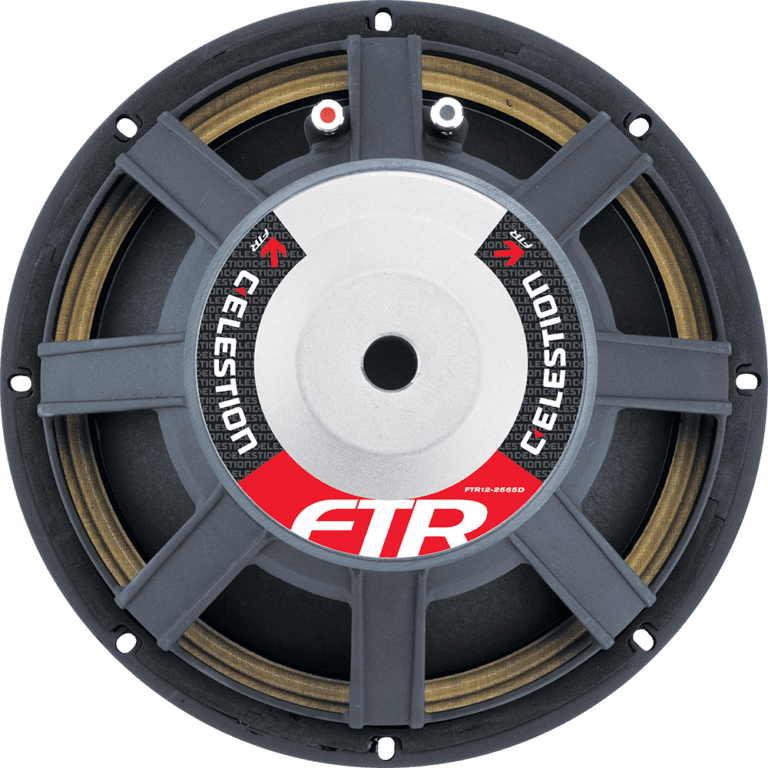

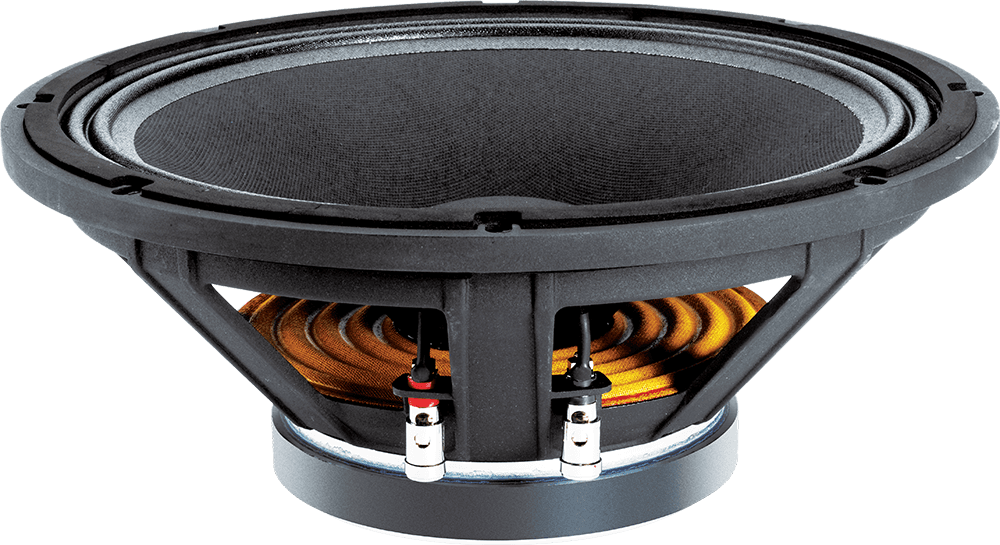

Celestion FTR12-2565D 8Ω
8 Ω · 55–4000 Hz
No current price
- Fs
- 60Hz
- Xmax
- 4mm
- SPL
- 95dB
- Pe
- 250W
- BL
- 15.4T·m
- Vd
- 212cm³
- Qts
- 0.42
- Vas
- 49L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence191 selected pixels of 356

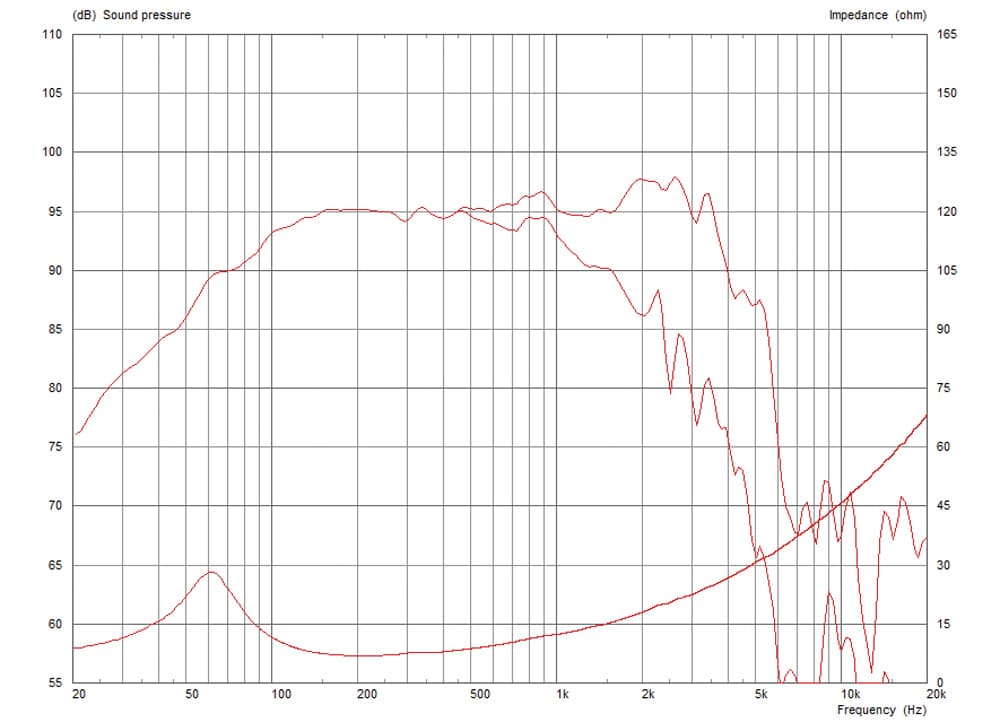

Published graphs
Celestion FTR12-2565D is a 12-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 60 Hz, Qts 0.42, Vas 49.1 L, Xmax 4 mm, sensitivity 95.3 dB, plus 212 cm³ Vd and 119 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 60Hz
- Qts
- 0.42
- Qes
- 0.51
- Qms
- 2.4
- Vas
- 49.1L
- Re
- 5.6Ω
- Le
- 1.02mH
Motor and cone
- BL
- 15.4T·m
- Sd
- 531cm²
- Mms
- 57g
- Xmax
- 4mm
- Vd †
- 212cm³
- Voice coil
- 64mm
Power and response
- Sensitivity †
- 95.3dB
- Manufacturer sensitivity
- 95dB
- Power
- 250W
- Impedance
- 8Ω
- Range
- 55–4000Hz
- EBP †
- 119 · Leans vented
Size and mounting
- Diameter
- 318mm
- Cutout
- 286mm
- Bolt circle
- 304mm
- Depth
- 134mm
- Weight
- 4.5kg
Other published values
- Cms
- 0.12mm/N
- Rms
- 8.91kg/s
- Power Program
- 500
† Calculated by bits from the published values
What this validation status means
Everything else Celestion lists
LF · Primary · 12″
- BL
- 15.4T·m
- Fs
- 60Hz
- Le
- 1.02mH
- Re
- 5.6Ω
- Sd
- 531cm²
- Cms
- 0.12mm/N
- Mms
- 57g
- Qes
- 0.51
- Qms
- 2.4
- Qts
- 0.42
- Rms
- 8.91kg/s
- SPL
- 95.3dB
- Vas
- 49.1L
- Xmax
- 4mm
- Power
- 250W
- Impedance
- 8Ω
- Sensitivity
- 95dB
- Low limit
- 55Hz
- Power Program
- 500
- Calculated sensitivity †
- 95.3dB
- High limit
- 4000Hz
- Manufacturer sensitivity
- 95dB
- Voice coil
- 64mm
- Weight
- 4.5kg
- Diameter
- 318mm
- Depth
- 134mm
- Cutout
- 286mm
- Bolt circle
- 304mm
02
Compare
Same-size drivers, compared with the FTR12-2565D. Clear differences are green when better and red when worse.
This driverFTR12-2565D
Best price
–
Fs
60 Hz
Qts
0.42
Vas
49.1 L
BL
15.4 T·m
Xmax
4 mm
Sensitivity
95.3 dB
Power
250 W
PRV Audio12W750A
£63.52Fs60 Hz –
Qts0.43 –
Vas81 L +65%, worse
BL14.3 T·m −8%
Xmax3.6 mm −9%
Sensitivity98 dB +2.7, better
PeerlessFSL-1225R02-08
£71.81Fs63 Hz +4%
Qts0.44 +5%
Vas54.8 L +12%, worse
BL14.9 T·m −4%
Xmax5.3 mm +32%, better
Sensitivity96.5 dB +1.2
CelestionTF1225
£83.50Fs56 Hz −8%
Qts0.37 −11%, better
Vas67.3 L +37%, worse
BL14.3 T·m −7%
Xmax4.5 mm +13%, better
Sensitivity96.4 dB +1.1
CelestionTF1230S
£85.00Fs60 Hz –
Qts0.37 −11%, better
Vas54.4 L +11%, worse
BL16.6 T·m +7%
Xmax4.5 mm +13%, better
Sensitivity96.5 dB +1.2
CIAREFXI12
£96.29Fs55 Hz −9%
Qts0.44 +5%
Vas70 L +42%, worse
BL13.9 T·m −10%, worse
Xmax5 mm +25%, better
Sensitivity95.8 dB +0.5
EminenceDELTA-12LFA
£104.72Fs51 Hz −15%, better
Qts0.47 +12%, worse
Vas67.9 L +38%, worse
BL14.1 T·m −9%
Xmax4.8 mm +20%, better
Sensitivity94.5 dB −0.8
Sica12 SR 3 CP
£154.90Fs37 Hz −39%, better
Qts0.40 −4%
Vas60.9 L +24%, worse
BL16.6 T·m +7%
Xmax8 mm +100%, better
Sensitivity90.3 dB −5, worse
Sica12 SR 3 PL
£208.49Fs36 Hz −40%, better
Qts0.42 –
Vas60.4 L +23%, worse
BL17.0 T·m +10%, better
Xmax7 mm +75%, better
Sensitivity90 dB −5.3, worse
VisatonPAW 30 ND
£221.00Fs52 Hz −14%, better
Qts0.46 +10%, worse
Vas55.4 L +13%, worse
BL15.4 T·m –
Xmax4 mm –
Sensitivity93.9 dB −1.4
FaitalPRO12HX230
£250.31Fs55 Hz −9%
Qts0.43 –
Vas67.7 L +38%, worse
BL14.1 T·m −9%
Xmax7.4 mm +84%, better
Sensitivity95.9 dB +0.6
Eighteen Sound12NLW9300
£274.84Fs47 Hz −22%, better
Qts0.42 –
Vas56 L +14%, worse
BL17 T·m +10%, better
Xmax8 mm +100%, better
Sensitivity93.1 dB −2.2, worse
P.AudioEX12-500S
No current priceFs56 Hz −7%
Qts0.40 −4%
Vas54.5 L +11%, worse
BL16.3 T·m +6%
Xmax3.9 mm –
Sensitivity95.5 dB –
P.Audio12BMA-300B
No current priceFs61 Hz –
Qts0.49 +17%, worse
Vas54.4 L +11%, worse
BL13.7 T·m −11%, worse
Xmax4 mm –
Sensitivity95.7 dB –
P.AudioGST-12500-V3
No current priceFs56 Hz −7%
Qts0.48 +15%, worse
Vas52.9 L +8%
BL15.7 T·m –
Xmax3.3 mm −19%, worse
Sensitivity94.6 dB −0.7
P.AudioE12-300S-V2
No current priceFs57 Hz −5%
Qts0.40 −4%
Vas50.4 L –
BL17.1 T·m +11%, better
Xmax3.4 mm −15%, worse
Sensitivity95.5 dB –
P.Audio12FT-100MB
No current priceFs55 Hz −9%
Qts0.40 −4%
Vas46.4 L −6%
BL18.6 T·m +20%, better
Xmax3.7 mm −7%
Sensitivity94.6 dB −0.7
CelestionTF1230SL
No current priceFs57 Hz −6%
Qts0.39 −7%
Vas53.8 L +9%
BL15.7 T·m –
Xmax6 mm +50%, better
Sensitivity95.6 dB –
Sica12 PFS 3
No current priceFs43 Hz −29%, better
Qts0.47 +12%, worse
Vas58.5 L +19%, worse
BL15.9 T·m –
Xmax7 mm +75%, better
Sensitivity91.6 dB −3.7, worse

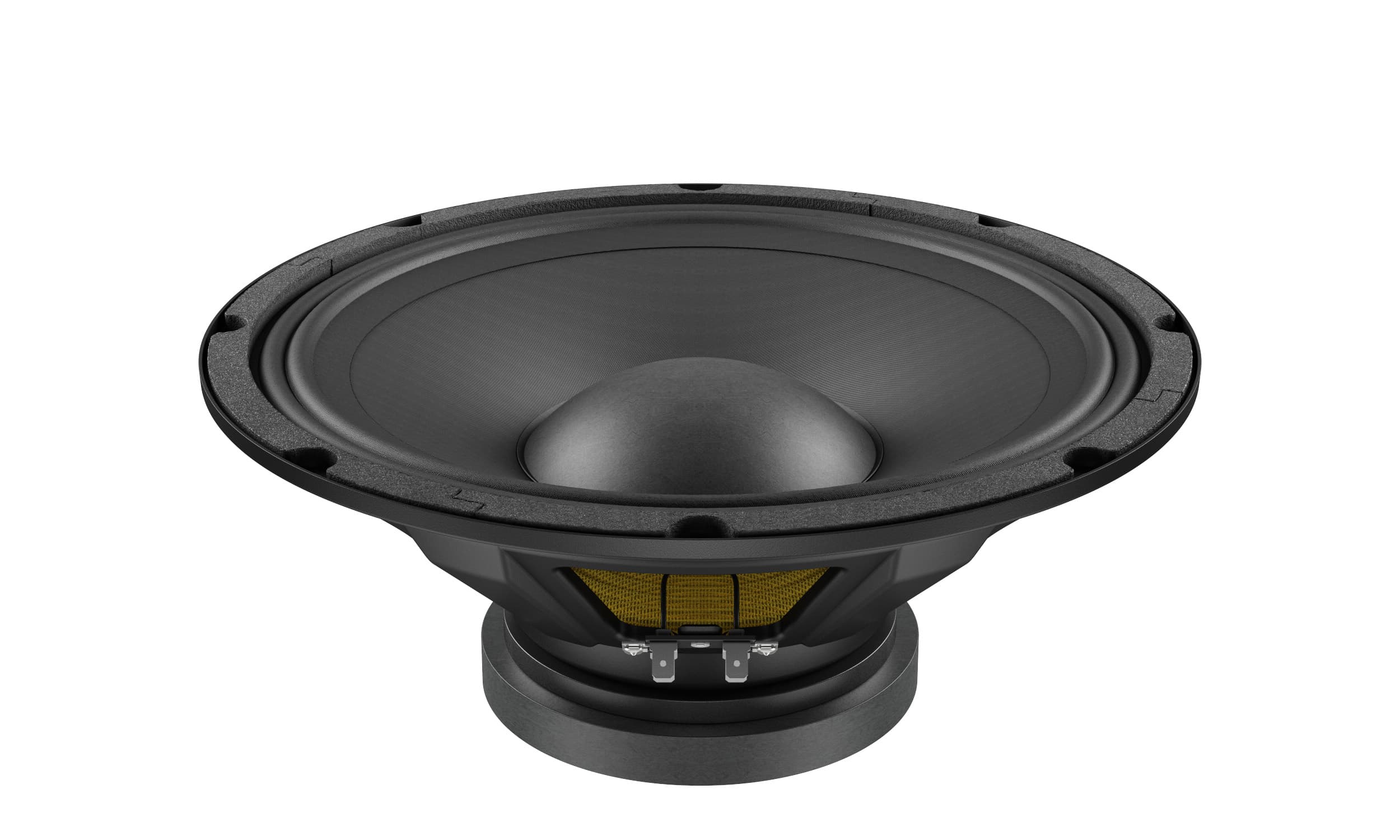

LavoceFBASS12-20
No current priceFs53 Hz −12%, better
Qts0.46 +10%, worse
Vas75.4 L +53%, worse
BL13.3 T·m −14%, worse
Xmax4.3 mm +7%
Sensitivity95.5 dB –
Sica12 C 2 CP
No current priceFs58 Hz −3%
Qts0.45 +8%
Vas74.3 L +51%, worse
BL13.7 T·m −11%, worse
Xmax4.5 mm +13%, better
Sensitivity96.8 dB +1.5
P.Audio12FT-76MB
No current priceFs50 Hz −17%, better
Qts0.40 −4%
Vas46.5 L −5%
BL18.9 T·m +22%, better
Xmax4.8 mm +20%, better
Sensitivity93.4 dB −1.9
FaneCOLOSSUS 12MBN
No current priceFs55 Hz −9%
Qts0.40 −5%
Vas56 L +14%, worse
BL16.6 T·m +7%
Xmax5.5 mm +38%, better
Sensitivity95.3 dB –

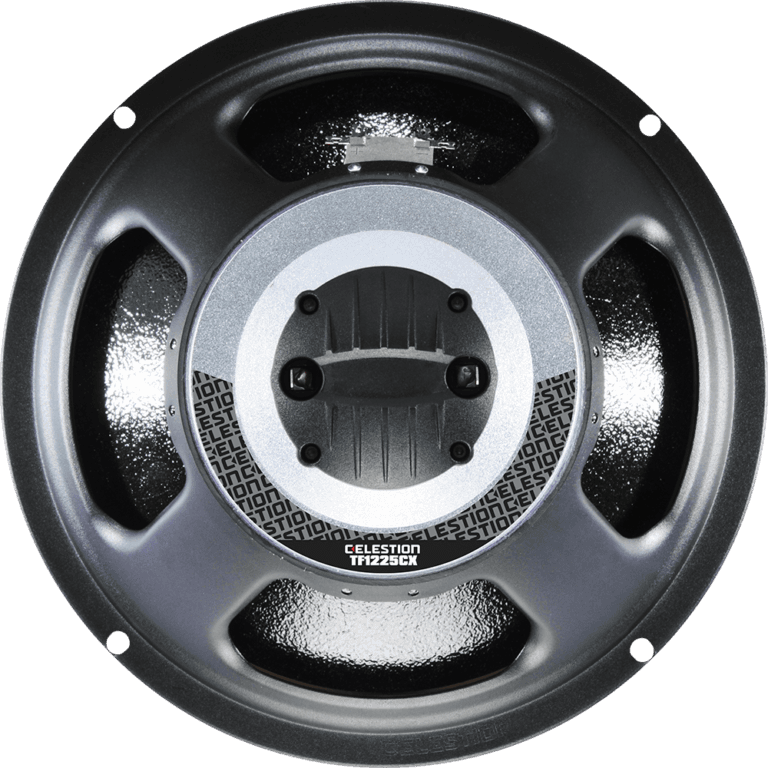

CelestionTF1225CX
No current priceFs64 Hz +5%
Qts0.36 −14%, better
Vas45.1 L −8%
BL17.5 T·m +13%, better
Xmax4.5 mm +13%, better
Sensitivity96.6 dB +1.3
EminenceFS12.30A8
No current priceFs55 Hz −9%
Qts0.36 −14%, better
Vas61 L +24%, worse
BL17 T·m +10%, better
Xmax4.3 mm +7%
Sensitivity96.3 dB +1

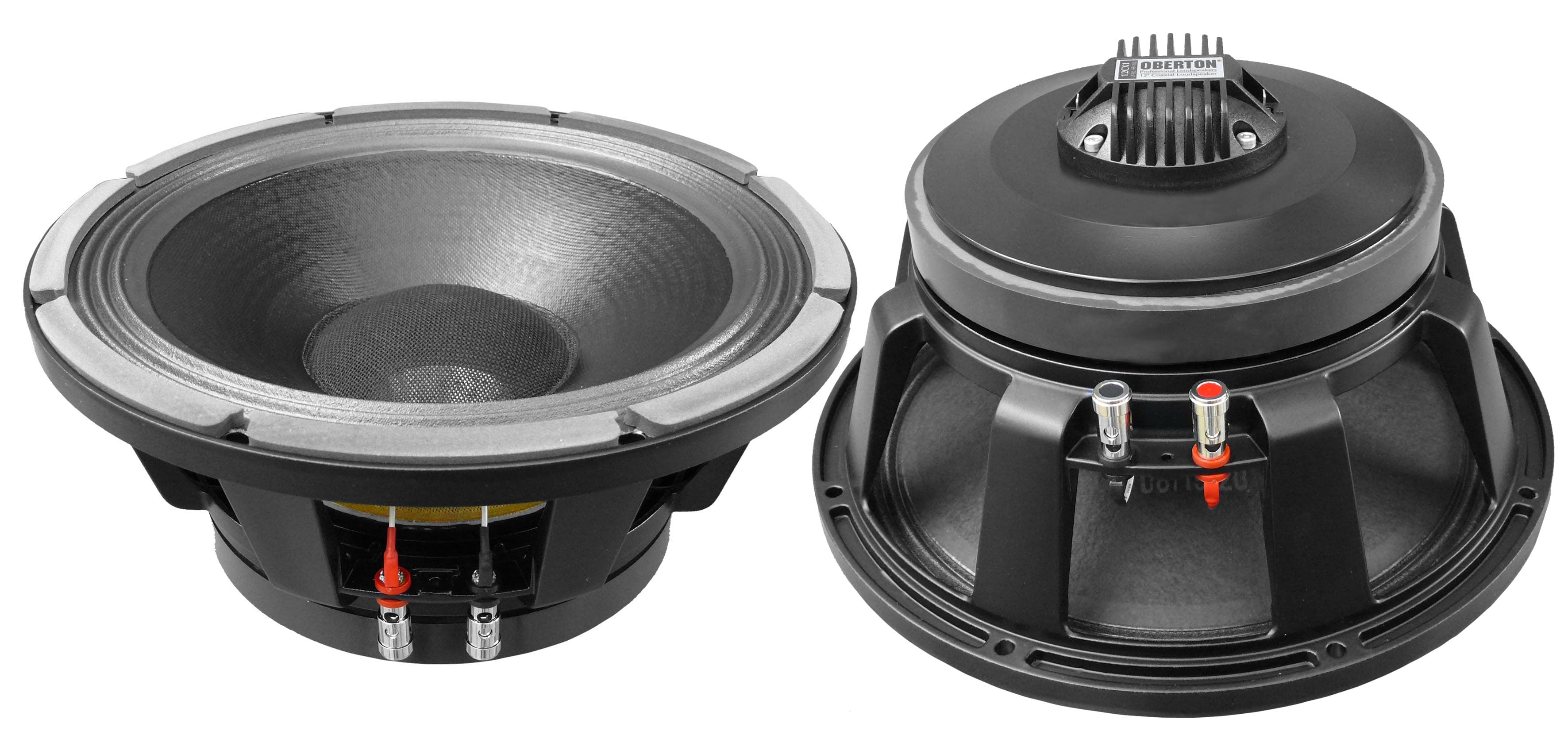

Oberton12CX1
