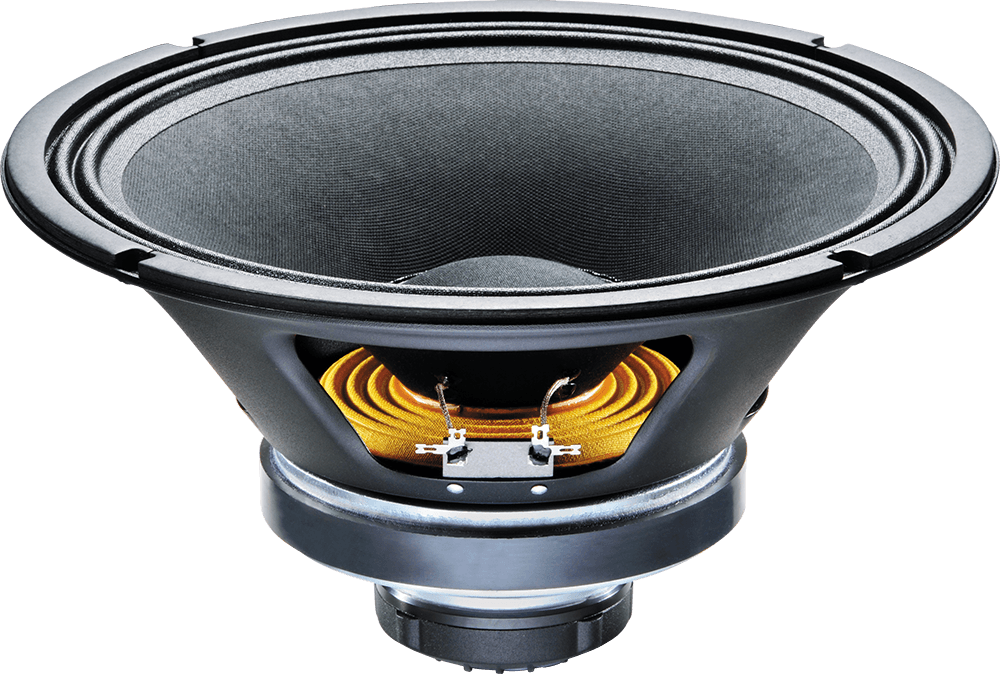

Celestion TF1225CX 8Ω
8 Ω · 1200–18000 Hz
No price for delivery to the UK
- Fs
- 64Hz
- Xmax
- 4.5mm
- SPL
- 97dB
- Pe
- 40W
- BL
- 17.5T·m
- Vd
- 239cm³
- Qts
- 0.36
- Vas
- 45L

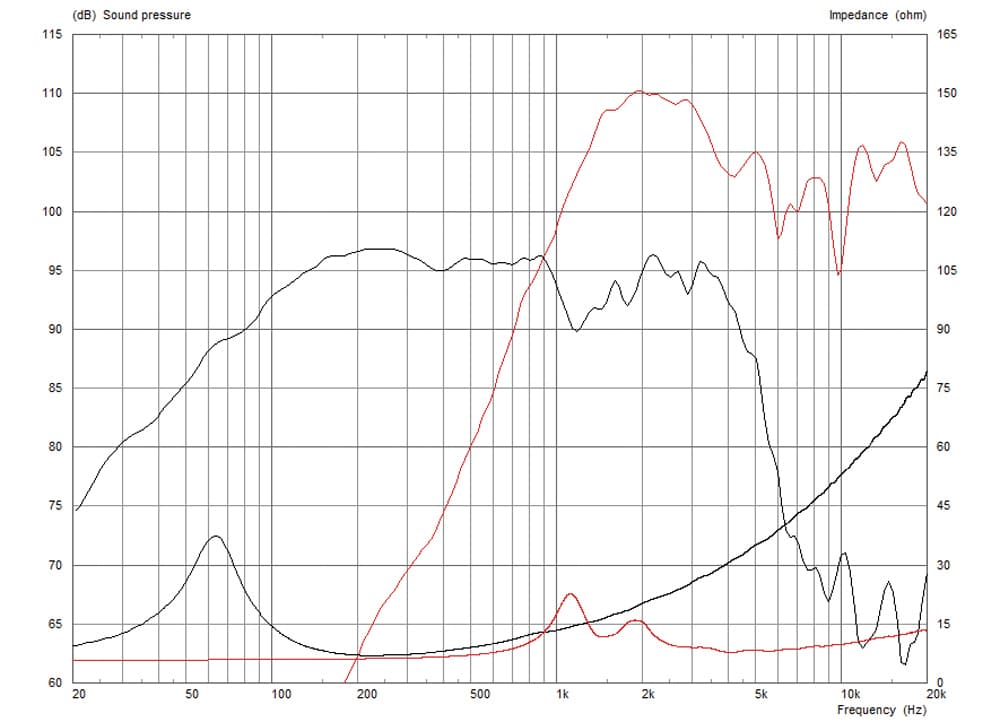

Published graphs
Celestion TF1225CX is a 12-inch 8 ohm LF driver rated at 40 W RMS. The validated T/S data includes Fs 64 Hz, Qts 0.36, Vas 45.1 L, Xmax 4.5 mm, sensitivity 96.6 dB, plus 239 cm³ Vd and 157 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 64Hz
- Qts
- 0.36
- Qes
- 0.41
- Qms
- 3.1
- Vas
- 45.1L
- Re
- 5.6Ω
- Le
- 1.20mH
Motor and cone
- BL
- 17.5T·m
- Sd
- 531cm²
- Mms
- 56g
- Xmax
- 4.5mm
- Vd †
- 239cm³
- Voice coil
- 45mm
Power and response
- Sensitivity †
- 96.6dB
- Manufacturer sensitivity
- 110dB
- Power
- 40W
- Impedance
- 8Ω
- Range
- 1200–18000Hz
- EBP †
- 157 · Leans vented
Size and mounting
- Diameter
- 309mm
- Cutout
- 286mm
- Bolt circle
- 297mm
- Depth
- 172mm
- Weight
- 4.6kg
Other published values
- Cms
- 0.11mm/N
- Rms
- 7.11kg/s
- Power Program
- 80
Sensitivity shows 96.6 dB, calculated from the T/S values. Celestion publishes 110.0 dB, 13.4 dB apart.
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Primary · 12″
- BL
- 17.5T·m
- Fs
- 64Hz
- Le
- 1.20mH
- Re
- 5.6Ω
- Sd
- 531cm²
- Cms
- 0.11mm/N
- Mms
- 56g
- Qes
- 0.41
- Qms
- 3.1
- Qts
- 0.36
- Rms
- 7.11kg/s
- SPL
- 96.6dB
- Vas
- 45.1L
- Xmax
- 4.5mm
- Power
- 40W
- Impedance
- 8Ω
- Sensitivity
- 110dB
- Low limit
- 1200Hz
- Power Program
- 80
- Calculated sensitivity †
- 96.6dB
- High limit
- 18000Hz
- Manufacturer sensitivity
- 110dB
- Voice coil
- 45mm
- Weight
- 4.6kg
- Diameter
- 309mm
- Depth
- 172mm
- Cutout
- 286mm
- Bolt circle
- 297mm
