12-inch LF driver · WF223BD series

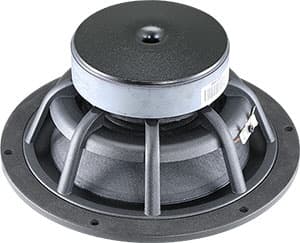

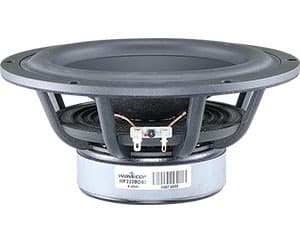

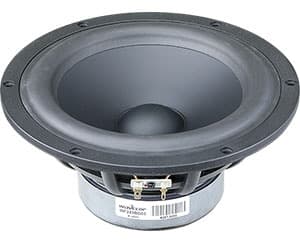

Wavecor WF223BD04 8Ω
8 Ω
No current price
- Fs
- 33Hz
- Xmax
- 6.5mm
- SPL
- 87dB
- Pe
- –
- BL
- 9.5T·m
- Vd
- 138cm³
- Qts
- 0.46
- Vas
- 45L
Wavecor WF223BD04 is a 12-inch 8 ohm LF driver. The validated T/S data includes Fs 33 Hz, Qts 0.46, Vas 45 L, Xmax 6.5 mm, sensitivity 87.4 dB, plus 138 cm³ Vd and 70 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 33Hz
- Qts
- 0.46
- Qes
- 0.47
- Qms
- 14.3
- Vas
- 45L
- Re
- 6.2Ω
Motor and cone
- BL
- 9.5T·m
- Sd
- 213cm²
- Mms
- 33g
- Xmax
- 6.5mm
- Vd †
- 138cm³
Power and response
- Sensitivity †
- 87.4dB
- Impedance
- 8Ω
- EBP †
- 70 · Sealed or vented
Size and mounting
- Diameter
- 223mm
† Calculated by bits from the published values
What this validation status means
Everything else Wavecor lists
LF · Primary · 12″
- BL
- 9.5T·m
- Fs
- 33Hz
- Re
- 6.2Ω
- Sd
- 213cm²
- Mms
- 33g
- Qes
- 0.47
- Qms
- 14.3
- Qts
- 0.46
- SPL
- 87.4dB
- Vas
- 45L
- Xmax
- 6.5mm
- Impedance
- 8Ω
- Calculated sensitivity †
- 87.4dB
- Diameter
- 223mm
