LF DriverFE series
FaitalPRO

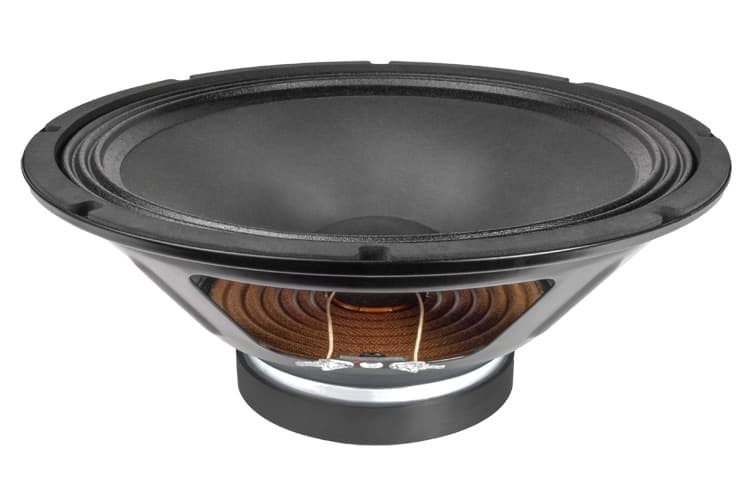

FaitalPRO 12FE400
FaitalPRO 12FE400 is a 12" 4 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 55Hz, Qts 0.52, Vas 69.1L, Xmax 5.4mm, sensitivity 95.2dB, plus 298cm³ Vd and 98 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
12"
Impedance
4Ω
RMS Power
200W
Sensitivity
95.2dB
EBP
98
Either alignment
Vd
298cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees129 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
129 plotted pointsMedium confidence515 selected pixels of 1,129 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,250 selected pixels of 1,597 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,401 selected pixels of 1,401
T/S Parameters
Valid
Fs55Hz
Qts0.52
Qes0.56
Qms6.6
Vas69.1L
Re3.3Ω
Le0.44mH
BL10.2Tm
Sd549cm²
Mms51g
Xmax5.4mm
SPL95dB
Power200W
Impedance4Ω
F Low55Hz
F High4000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.1kg
Diameter311.0mm
Overall Depth131.0mm
Cutout Diameter284.0mm
Bolt Circle Diameter294.5mm
