12-inch LF driver · 900 W
Eighteen Sound 12NTLW3500 16Ω
50–3000 Hz
No price for delivery to the UK
- Fs
- 57Hz
- Xmax
- 7.9mm
- SPL
- 93dB
- Pe
- 900W
- BL
- 23.5T·m
- Vd
- 419cm³
- Qts
- 0.54
- Vas
- 40L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 2 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2
frequency response
Frequency response
174 plotted pointsSource file SHA-256 0cead35dba26…Medium confidence2,332 selected pixels of 2,796 - Trace datasheet-response-trace-poc/v2
impedance
Impedance response
240 plotted pointsSource file SHA-256 0cead35dba26…Medium confidence889 selected pixels of 1,118
Published graphs

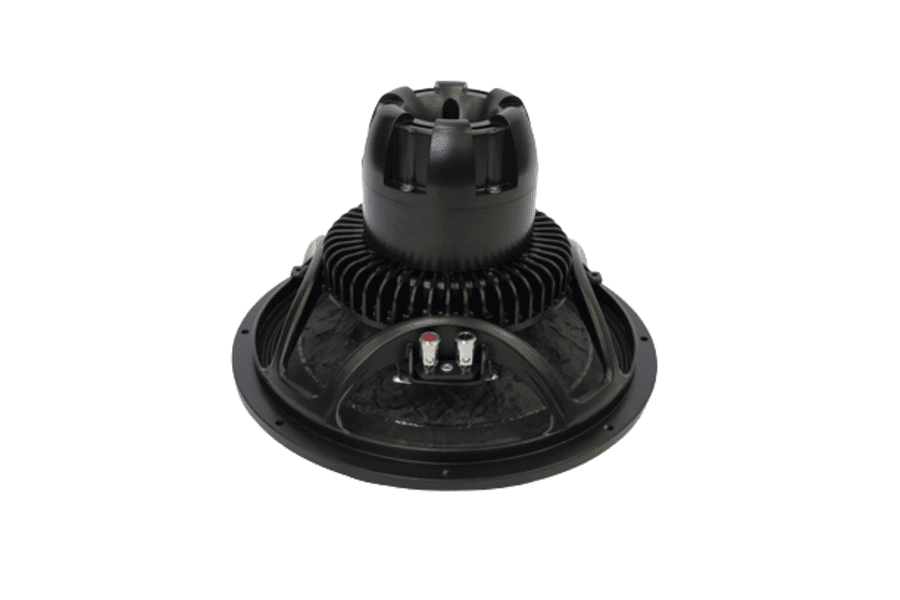

Eighteen Sound 12NTLW3500 is a 12-inch 16 ohm LF driver rated at 900 W RMS. The validated T/S data includes Fs 57 Hz, Qts 0.54, Vas 40 L, Xmax 7.9 mm, sensitivity 93.2 dB, plus 419 cm³ Vd and 102 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 57Hz
- Qts
- 0.54
- Qes
- 0.56
- Qms
- 11.7
- Vas
- 40L
- Re
- 11.3Ω
- Le
- 0.62mH
Motor and cone
- BL
- 23.5T·m
- Sd
- 531cm²
- Mms
- 77g
- Xmax
- 7.9mm
- Vd †
- 419cm³
Power and response
- Sensitivity †
- 93.2dB
- Manufacturer sensitivity
- 95dB
- Power
- 900W
- Nominal power
- 900W
- Impedance
- 16Ω
- Range
- 50–3000Hz
- EBP †
- 102 · Leans vented
Size and mounting
- Diameter
- 310mm
- Cutout
- 282mm
- Bolt circle
- 295mm
- Depth
- 193mm
- Weight
- 4.7kg
Other published values
- Power Program
- 1800
Sensitivity shows 93.2 dB, calculated from the T/S values. Eighteen Sound publishes 95.0 dB, 1.8 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 12″
- BL
- 23.5T·m
- Fs
- 57Hz
- Le
- 0.62mH
- Re
- 11.3Ω
- Sd
- 531cm²
- Mms
- 77g
- Qes
- 0.56
- Qms
- 11.7
- Qts
- 0.54
- SPL
- 93.2dB
- Vas
- 40L
- Xmax
- 7.9mm
- Power
- 900W
- Impedance
- 16Ω
- Sensitivity
- 95dB
- Low limit
- 50Hz
- Nominal power
- 900W
- Power Program
- 1800
- Calculated sensitivity †
- 93.2dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 95dB
- Weight
- 4.7kg
- Diameter
- 310mm
- Depth
- 193mm
- Cutout
- 282mm
- Bolt circle
- 295mm
02
Designs
Cabinets for the 12NTLW3500: a design and a suggested box from Eighteen Sound.
All 12NTLW3500 designsHow we find designsEighteen Sound’s design
From the maker, with plans to download
Eighteen Sound’s suggested box
From Eighteen Sound’s 12NTLW3500 page
- Net volume
- 50L
- Tuning
- 60Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 12NTLW3500. Clear differences are green when better and red when worse.
This driver12NTLW3500
Best price
–
Fs
57 Hz
Qts
0.54
Vas
40 L
BL
23.5 T·m
Xmax
7.9 mm
Sensitivity
93.2 dB
Power
900 W
Beyma12CMV3
£75.00Fs52 Hz −9%
Qts0.55 –
Vas85 L +113%, worse
BL12.3 T·m −48%, worse
Xmax7 mm −11%, worse
Sensitivity95.2 dB +2, better
BishopSoundBDP12
£89.99Fs68 Hz +18%, worse
Qts0.49 −9%
Vas26.3 L −34%, better
BL20.4 T·m −13%, worse
Xmax7 mm −11%, worse
Sensitivity94 dB +0.8
Beyma12BR70
£99.85Fs31 Hz −46%, better
Qts0.50 −7%
Vas142 L +255%, worse
BL12.1 T·m −49%, worse
Xmax8 mm –
Sensitivity90.8 dB −2.4, worse
FaitalPRO12PR320
£156.23Fs45 Hz −21%, better
Qts0.52 −4%
Vas96.7 L +142%, worse
BL17.3 T·m −26%, worse
Xmax7.3 mm −8%
Sensitivity94 dB +0.8
B&C12FW88
£163.69Fs53 Hz −7%
Qts0.33 −39%, better
Vas45.7 L +14%, worse
BL19.5 T·m −17%, worse
Xmax8 mm –
Sensitivity94.9 dB +1.7
SB AudienceROSSO-12CX350
£184.95Fs49 Hz −14%, better
Qts0.49 −9%
Vas90.4 L +126%, worse
BL12.1 T·m −49%, worse
Xmax8.2 mm +4%
Sensitivity95.1 dB +1.9
PRV Audio12MR2000X
£186.24Fs65 Hz +14%, worse
Qts0.28 −48%, better
Vas39.6 L –
BL23.2 T·m –
Xmax6.6 mm −16%, worse
Sensitivity97.9 dB +4.7, better
B&C12PS100
£191.00Fs44 Hz −23%, better
Qts0.27 −50%, better
Vas47 L +18%, worse
BL22.5 T·m −4%
Xmax8 mm –
Sensitivity93.4 dB –
B&C12NDL88
£208.11Fs50 Hz −12%, better
Qts0.37 −31%, better
Vas55 L +38%, worse
BL25.3 T·m +8%
Xmax8 mm –
Sensitivity94.6 dB +1.4
SB AudienceNERO-12MWN400D
£208.90Fs66 Hz +16%, worse
Qts0.52 −4%
Vas31.1 L −22%, better
BL17.8 T·m −24%, worse
Xmax7.1 mm −10%
Sensitivity94.1 dB +0.9
FaitalPRO12FH520
£208.94Fs55 Hz −4%
Qts0.47 −13%, better
Vas56.4 L +41%, worse
BL23.5 T·m –
Xmax7 mm −11%, worse
Sensitivity94.9 dB +1.7
B&C12TBX100
£209.86Fs44 Hz −23%, better
Qts0.23 −57%, better
Vas41.1 L –
BL22.9 T·m –
Xmax9 mm +14%, better
Sensitivity93.7 dB +0.5
CelestionFTR12-4080HDX
£219.00Fs61 Hz +7%
Qts0.40 −27%, better
Vas21.5 L −46%, better
BL24.6 T·m +5%
Xmax8 mm –
Sensitivity92.1 dB −1.1
Eighteen Sound12NW530
£228.40Fs55 Hz −4%
Qts0.37 −31%, better
Vas36 L −10%, better
BL19.7 T·m −16%, worse
Xmax8 mm –
Sensitivity94 dB +0.8
FaitalPRO12HP1020
£232.34Fs55 Hz −4%
Qts0.27 −50%, better
Vas38.6 L −3%
BL24.3 T·m +3%
Xmax9 mm +14%, better
Sensitivity95.6 dB +2.4, better
B&C12BG76
£250.08Fs44 Hz −23%, better
Qts0.41 −24%, better
Vas32 L −20%, better
BL22.7 T·m −3%
Xmax9.5 mm +20%, better
Sensitivity89.9 dB −3.3, worse
B&C12NW100
£258.25Fs44 Hz −23%, better
Qts0.20 −63%, better
Vas43.3 L +8%
BL24.4 T·m +4%
Xmax9 mm +14%, better
Sensitivity94.5 dB +1.3
Beyma12P1000ND
£317.70Fs47 Hz −18%, better
Qts0.26 −52%, better
Vas49 L +23%, worse
BL23.5 T·m –
Xmax8 mm –
Sensitivity94.8 dB +1.6
Eighteen Sound12NTLW2500
No current priceFs62 Hz +9%
Qts0.50 −7%
Vas42 L +5%
BL21.8 T·m −7%
Xmax7.6 mm −4%
Sensitivity94.9 dB +1.7
PeerlessFSL-1230R04-04
No current priceFs56 Hz –
Qts0.54 –
Vas47.4 L +18%, worse
BL11.9 T·m −49%, worse
Xmax7.2 mm −9%
Sensitivity93.7 dB +0.5
EminenceSWAMP THANG
No current priceFs97 Hz +70%, worse
Qts0.53 –
Vas41.3 L +3%
BL14.2 T·m −40%, worse
Xmax0.8 mm −90%, worse
Sensitivity100.4 dB +7.2, better
Eighteen Sound12LW801
No current priceFs54 Hz −5%
Qts0.33 −39%, better
Vas41 L –
BL20.3 T·m −14%, worse
Xmax8 mm –
Sensitivity94.8 dB +1.6
Oberton12NB601
No current priceFs50 Hz −11%, better
Qts0.30 −44%, better
Vas38.7 L −3%
BL22.9 T·m –
Xmax8.8 mm +11%, better
Sensitivity94 dB +0.8
PRV Audio12W5000-4
No current priceFs88 Hz +54%, worse
Qts0.51 −6%
Vas10.3 L −74%, better
BL21.6 T·m −8%
Xmax10 mm +27%, better
Sensitivity93.3 dB –
HiViSS12
No current priceFs33 Hz −42%, better
Qts0.55 –
Vas105.9 L +165%, worse
BL10.7 T·m −54%, worse
Xmax7.3 mm −8%
Sensitivity90 dB −3.2, worse
Sica12 SR 4 CP
No current priceFs38 Hz −33%, better
Qts0.30 −44%, better
Vas41.7 L +4%
BL24 T·m –
Xmax9 mm +14%, better
Sensitivity90.7 dB −2.5, worse
P.AudioEX12-300S
No current priceFs66 Hz +16%, worse
Qts0.54 –
Vas45.9 L +15%, worse
BL13.7 T·m −42%, worse
Xmax3.1 mm −61%, worse
Sensitivity95.2 dB +2, better
PeerlessNCP-1230R01-08
No current priceFs63 Hz +11%, worse
Qts0.37 −31%, better
Vas46.3 L +16%, worse
BL18.1 T·m −23%, worse
Xmax7.9 mm –
Sensitivity96.7 dB +3.5, better
LavoceWSF121.70G
No current priceFs82 Hz +44%, worse
Qts0.59 +9%
Vas41 L –
BL13.6 T·m −42%, worse
Xmax2.7 mm −66%, worse
Sensitivity97.6 dB +4.4, better
EminenceGA-SC64
No current priceFs88 Hz +54%, worse
Qts0.58 +7%
Vas45.0 L +12%, worse
BL13.8 T·m −41%, worse
Xmax1.2 mm −84%, worse
Sensitivity99.1 dB +5.9, better
