LF Driver12NDL series
B&C

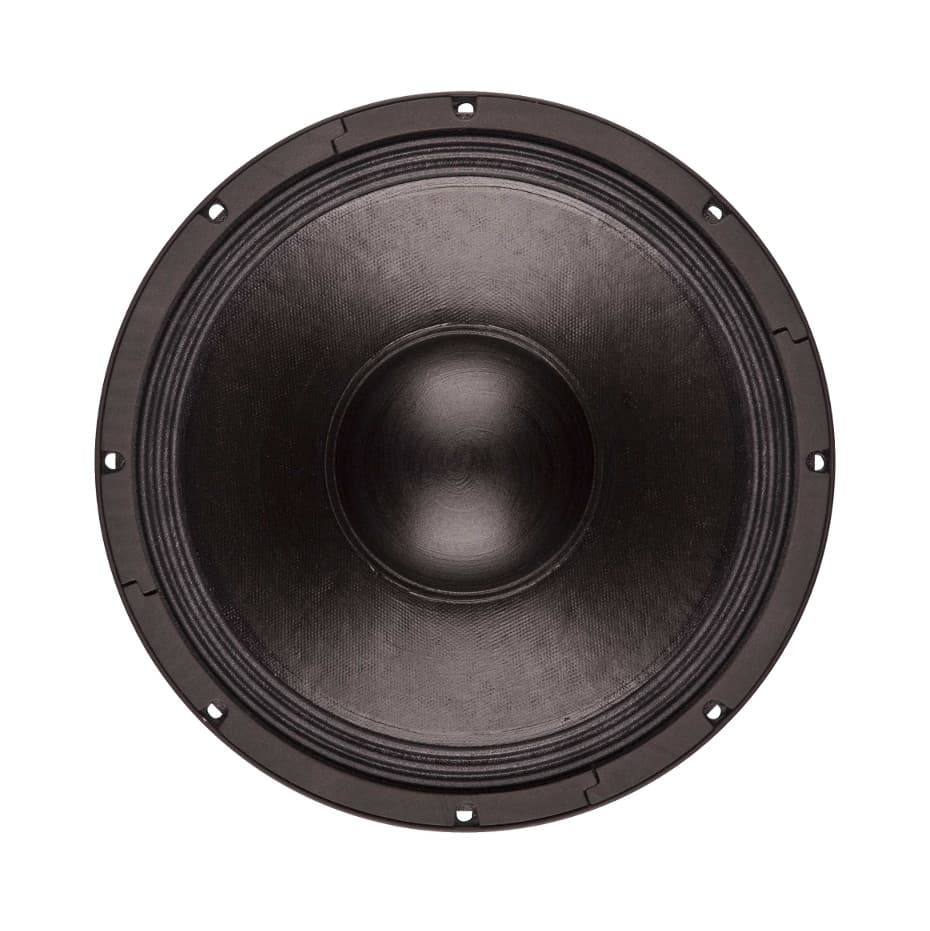

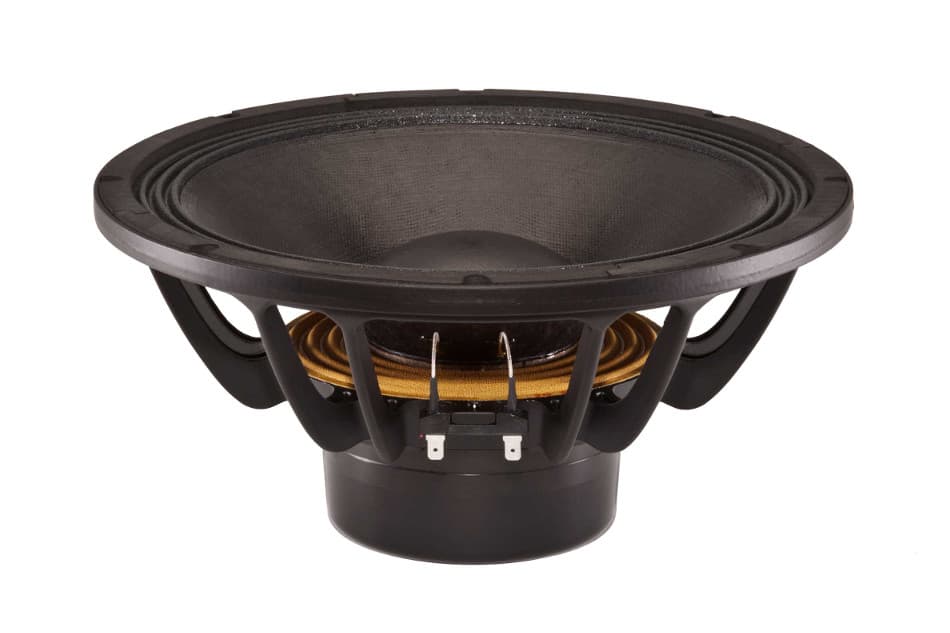

B&C 12NDL88
B&C 12NDL88 is a 12" 16 ohm LF driver rated at 700W RMS. The validated T/S data includes Fs 50Hz, Qts 0.37, Vas 55L, Xmax 8mm, sensitivity 94.6dB, plus 418cm³ Vd and 132 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £219.44.
Size
12"
Impedance
16Ω
RMS Power
700W
Sensitivity
94.6dB
97.0dBmanufacturer; using T/S-derived value (2.4dB delta).
EBP
132
Vented alignment
Vd
418cm³

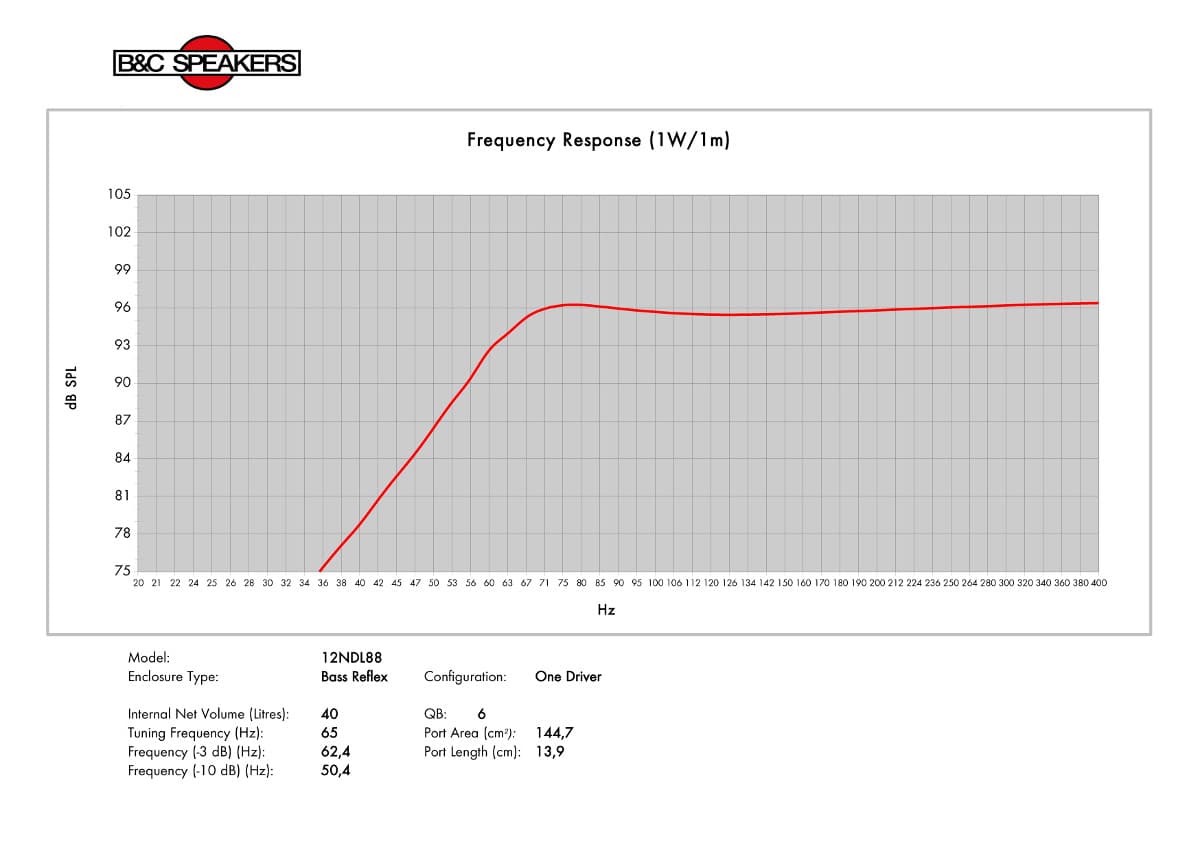

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs50Hz
Qts0.37
Qes0.38
Qms8.3
Vas55.0L
Re11.1Ω
Le2.10mH
BL25.3Tm
Sd522cm²
Mms70g
Xmax8.0mm
SPL95dB
Power700W
Power Nominal700W
Impedance16Ω
Min Impedance12.8Ω
F Low50Hz
F High3000Hz
Voice Coil88mm
Flux Density1.05T
Pricing & availability
Price definitionsPrice movement
Best current price
£219.44
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight5.0kg
Diameter315.0mm
Overall Depth140.0mm
Cutout Diameter282.0mm
Bolt Circle Diameter298.0mm
Additional Manufacturer Specs
Bl25.3 Tm
Fs50 Hz
Le2.1 mH
Re11.1 Ω
Sd522 cm² (80.91 in²)
Ebp132 Hz
Mms70 g
Qes0.38
Qms8.3
Qts0.37
Vas55 dm³ (1.94 ft³)
η01.8 %
ConeRCK12NDL8816
Xmax8 mm
Xvar10 mm
SpiderDouble Silicone
Cone ShapeExponential
Pole DesignT-Pole
Winding Depth21 mm (0.83 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter320 mm (12 in)
Winding MaterialAluminium
Magnetic Gap Depth10 mm (0.39 in)
Recommended Tuning65 Hz
Bolt Circle Diameter298 mm (11.73 in)
Recommended Enclosure40 dm³ (1.41 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter282 mm (11.1 in)
Flange And Gasket Thickness13 mm (0.51 in)
Air Volume Occupied By Driver2.5 dm³ (0.08 ft³)
