- Net volume
- 40L
- Tuning
- 43Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.
12-inch LF driver · 12TBX series · 100 mm voice coil · 1,000 W
B&C 12TBX100 4Ω
45–1500 Hz
£209.86
SteadyJP Leisure · In stock · All 6 offers
- Fs
- 44Hz
- Xmax
- 9mm
- SPL
- 94dB
- Pe
- 1000W
- BL
- 22.9T·m
- Vd
- 478cm³
- Qts
- 0.23
- Vas
- 41L

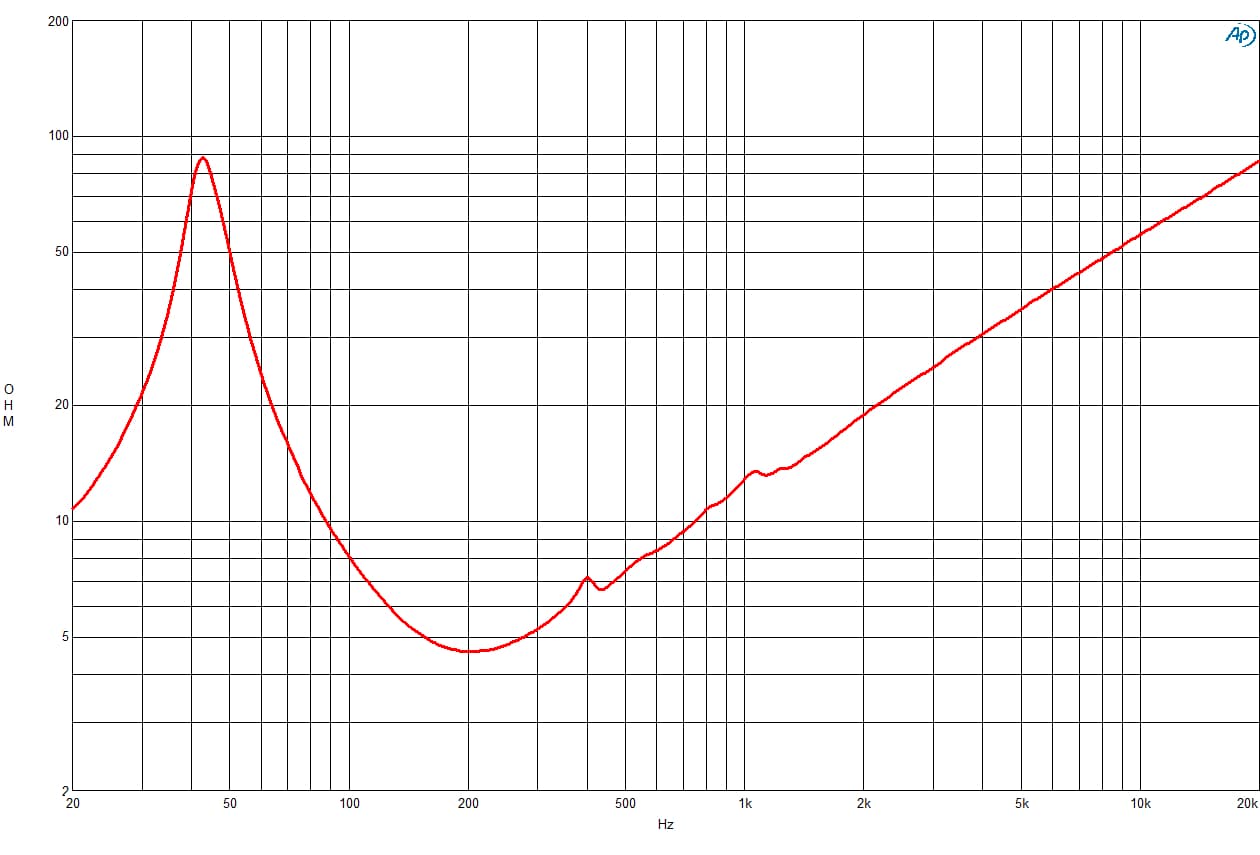

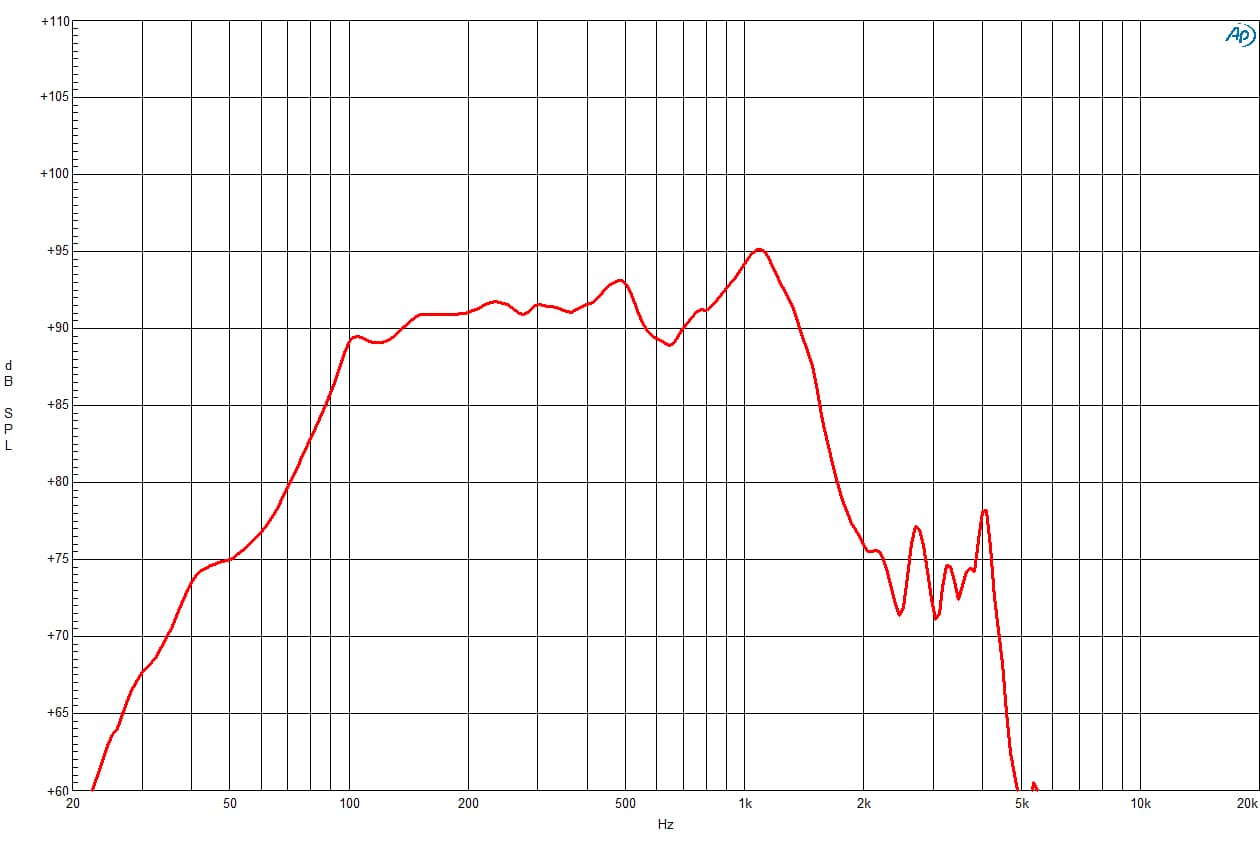

Published graphs
B&C 12TBX100 is a 12-inch 4 ohm LF driver rated at 1000 W RMS. The validated T/S data includes Fs 44 Hz, Qts 0.23, Vas 41.1 L, Xmax 9 mm, sensitivity 93.7 dB, plus 478 cm³ Vd and 183 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £207.11.
The published T/S values agree with each other
Thiele/Small
- Fs
- 44Hz
- Qts
- 0.23
- Qes
- 0.24
- Qms
- 6.2
- Vas
- 41.1L
- Re
- 3.6Ω
- Le
- 1.74mH
Motor and cone
- BL
- 22.9T·m
- Sd
- 531cm²
- Mms
- 125g
- Xmax
- 9mm
- Vd †
- 478cm³
- Voice coil
- 100mm
- Flux density
- 1.10T
Power and response
- Sensitivity †
- 93.7dB
- Manufacturer sensitivity
- 93dB
- Power
- 1000W
- Nominal power
- 1000W
- Impedance
- 4Ω
- Min. impedance
- 4.6Ω
- Range
- 45–1500Hz
- EBP †
- 183 · Leans vented
Size and mounting
- Diameter
- 319mm
- Cutout
- 281mm
- Bolt circle
- 299mm
- Depth
- 135mm
- Weight
- 11.8kg
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 22.9T·m
- Fs
- 44Hz
- Le
- 1.74mH
- Re
- 3.6Ω
- Sd
- 531cm²
- Mms
- 125g
- Qes
- 0.24
- Qms
- 6.2
- Qts
- 0.23
- SPL
- 93.7dB
- Vas
- 41.1L
- Xmax
- 9mm
- Power
- 1000W
- Impedance
- 4Ω
- Flux density
- 1.10T
- Sensitivity
- 93dB
- Low limit
- 45Hz
- Nominal power
- 1000W
- Calculated sensitivity †
- 93.7dB
- High limit
- 1500Hz
- Manufacturer sensitivity
- 93dB
- Min. impedance
- 4.6Ω
- Voice coil
- 100mm
- Weight
- 11.8kg
- Diameter
- 319mm
- Depth
- 135mm
- Cutout
- 281mm
- Bolt circle
- 299mm
- Bl
- 22.91 Tm
- Fs
- 44 Hz
- Le
- 1.74 mH
- Re
- 3.6 Ω
- Sd
- 531 cm² (82.3 in²)
- Ebp
- 183 Hz
- Mms
- 125 g
- Qes
- 0.24
- Qms
- 6.23
- Qts
- 0.23
- Vas
- 41.1 dm³ (1.45 ft³)
- Η0
- 1.42 %
- Cone
- RCK12TBX1004
- Xmax
- 9 mm
- Xvar
- 11 mm
- Depth
- 135 mm (5.3 in)
- Spider
- Double Silicone
- Cone shape
- Radial
- Net weight
- 11.8 kg (26 lb)
- Pole design
- T-Pole
- Sensitivity
- 93 dB
- Flux density
- 1.1 T
- Shipping box
- 360x360x200 mm (14.17x14.17x7.87 in)
- Winding depth
- 25 mm (1 in)
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 45 Hz - 1500 Hz
- Magnet material
- Ferrite
- Shipping weight
- 12.7 kg (28 lb)
- Nominal diameter
- 320 mm (12 in)
- Overall diameter
- 319 mm (12.5 in)
- Winding material
- Copper
- Minimum impedance
- 4.6 Ω
- Nominal impedance
- 4 Ω
- Magnetic gap depth
- 12 mm (0.5 in)
- Recommended tuning
- 43 Hz
- Voice coil diameter
- 100 mm (4 in)
- Bolt circle diameter
- 299 mm (11.8 in)
- Recommended enclosure
- 40 dm³ (1.41 ft³)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Baffle cutout diameter
- 281 mm (11.1 in)
- Nominal power handling
- 1000 W
- Continuous power handling
- 2000 W
- Flange and gasket thickness
- 13 mm (0.5 in)
- Air volume occupied by driver
- 4.2 dm³ (0.15 ft³)
B&C’s suggested box
