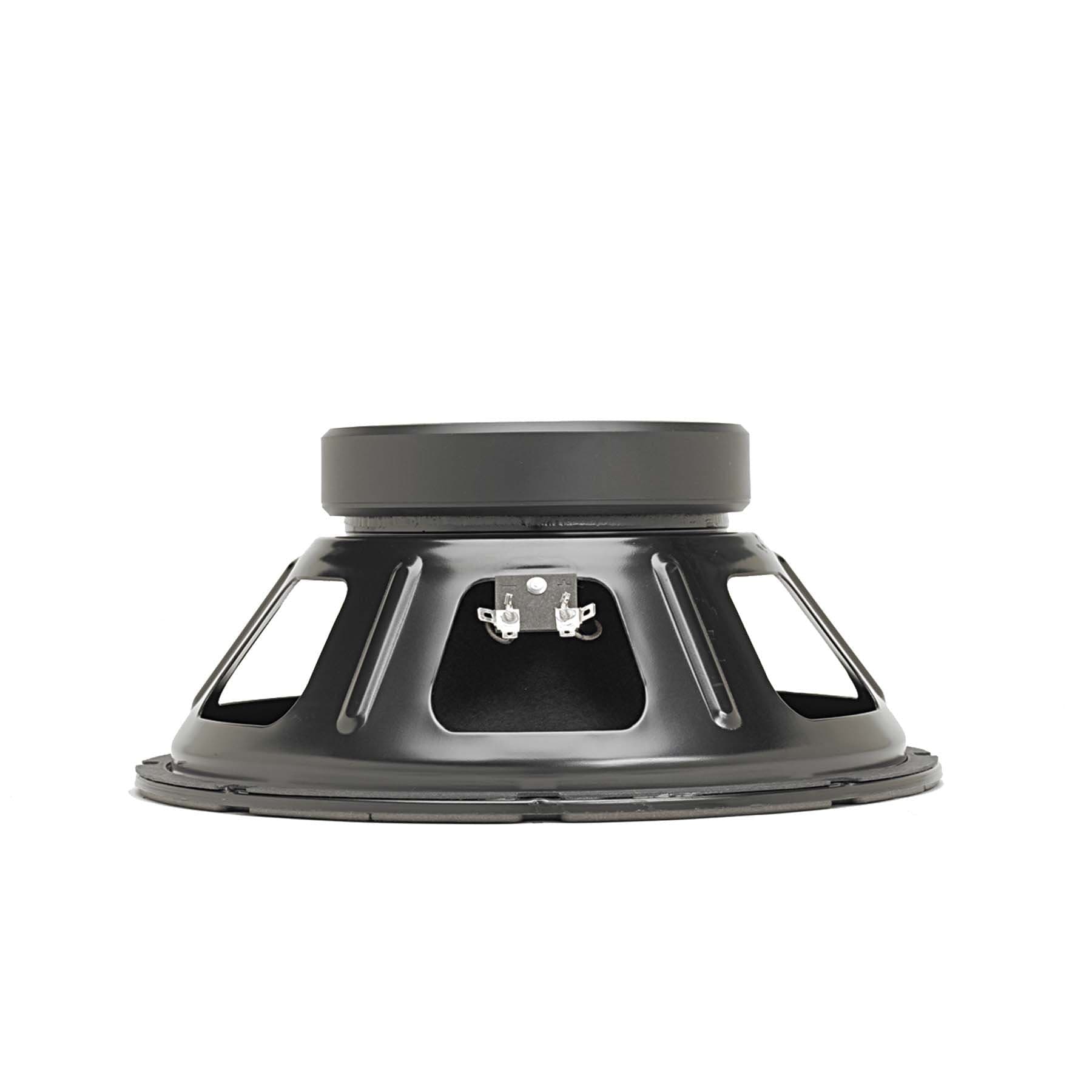

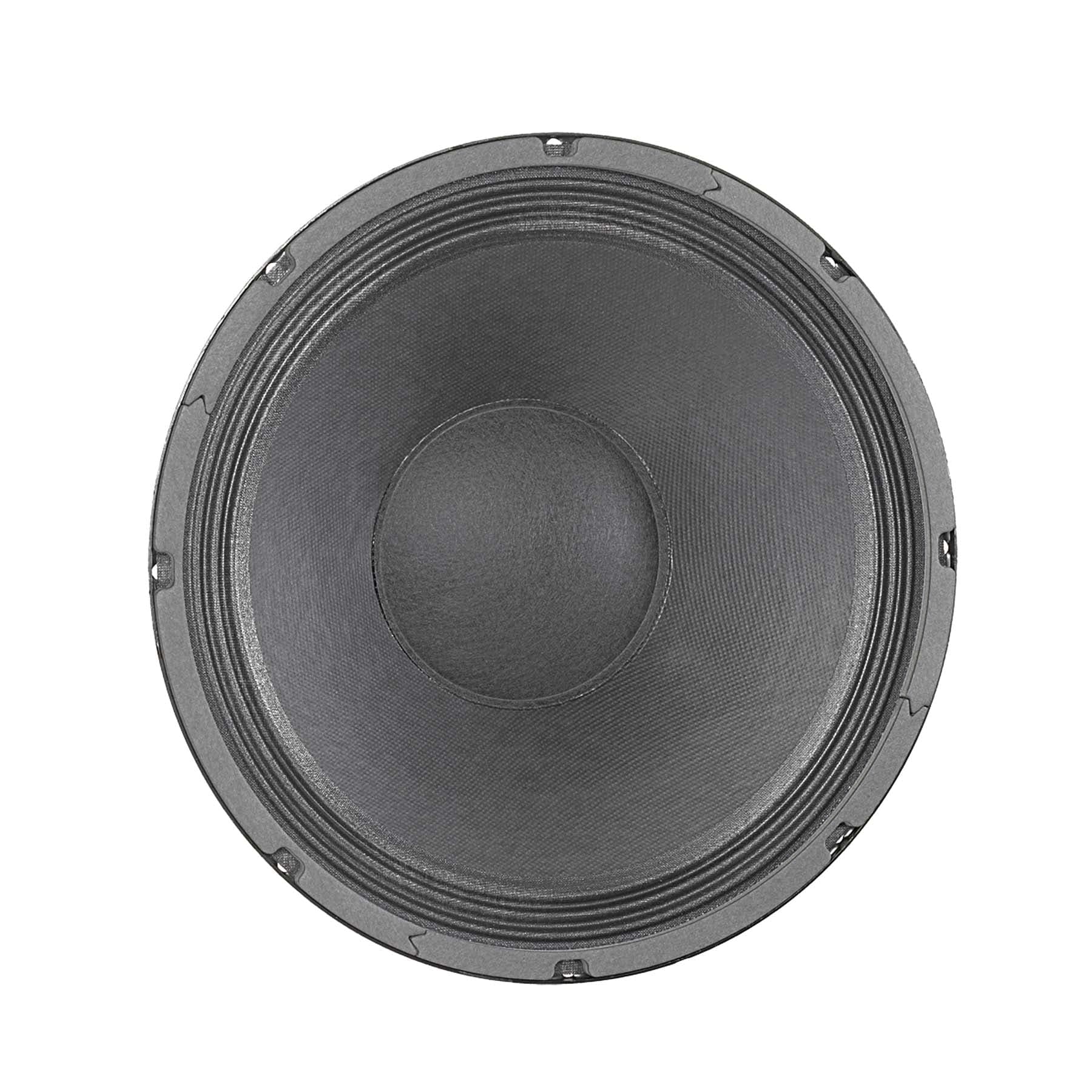

Eminence DELTA-12A 8Ω
8 Ω · 54–5000 Hz
£103.95
4.0%Lean Audio · 1 in stock · All 6 offers
- Fs
- 55Hz
- Xmax
- 2.4mm
- SPL
- 97dB
- Pe
- 400W
- BL
- 13.5T·m
- Vd
- 125cm³
- Qts
- 0.43
- Vas
- 81L
Eminence DELTA-12A is a 12-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 55 Hz, Qts 0.43, Vas 81.3 L, Xmax 2.4 mm, sensitivity 96.7 dB, plus 125 cm³ Vd and 120 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £98.74.
The published T/S values agree with each other
Thiele/Small
- Fs
- 55Hz
- Qts
- 0.43
- Qes
- 0.46
- Qms
- 5.3
- Vas
- 81.3L
- Re
- 6.3Ω
- Le
- 0.74mH
Motor and cone
- BL
- 13.5T·m
- Sd
- 520cm²
- Mms
- 39g
- Xmax
- 2.4mm
- Vd †
- 125cm³
Power and response
- Sensitivity †
- 96.7dB
- Manufacturer sensitivity
- 98.3dB
- Power
- 400W
- Impedance
- 8Ω
- Range
- 54–5000Hz
- EBP †
- 120 · Leans vented
Size and mounting
- Diameter
- 305.6mm
- Cutout
- 281.2mm
- Bolt circle
- 294.4mm
- Depth
- 135.9mm
- Weight
- 5.2kg
Other published values
- Cms
- 0.21mm/N
- Xmech
- 9.9
- Power Program
- 800
Sensitivity shows 96.7 dB, calculated from the T/S values. Eminence publishes 98.3 dB, 1.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Eminence lists
LF · Primary · 12″
- BL
- 13.5T·m
- Fs
- 55Hz
- Le
- 0.74mH
- Re
- 6.3Ω
- Sd
- 520cm²
- Cms
- 0.21mm/N
- Mms
- 39g
- Qes
- 0.46
- Qms
- 5.3
- Qts
- 0.43
- SPL
- 96.7dB
- Vas
- 81.3L
- Xmax
- 2.4mm
- Xmech
- 9.9
- Power
- 400W
- Impedance
- 8Ω
- Sensitivity
- 98.3dB
- Low limit
- 54Hz
- Power Program
- 800
- Calculated sensitivity †
- 96.7dB
- High limit
- 5000Hz
- Manufacturer sensitivity
- 98.3dB
- Weight
- 5.2kg
- Diameter
- 305.6mm
- Depth
- 135.9mm
- Cutout
- 281.2mm
- Bolt circle
- 294.4mm
