12-inch LF driver · Flexunits series · 250 W
Audio Technology 12 B 77 25 10 8Ω
8 Ω
No current price
- Fs
- 25Hz
- Xmax
- 8.6mm
- SPL
- 93dB
- Pe
- 250W
- BL
- 12.4T·m
- Vd
- 443cm³
- Qts
- 0.30
- Vas
- 250L
Audio Technology 12 B 77 25 10 is a 12-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 25 Hz, Qts 0.30, Vas 250 L, Xmax 8.6 mm, sensitivity 92.6 dB, plus 443 cm³ Vd and 74 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 25Hz
- Qts
- 0.30
- Qes
- 0.34
- Qms
- 2.5
- Vas
- 250L
- Re
- 5.5Ω
- Le
- 1.03mH
Motor and cone
- BL
- 12.4T·m
- Sd
- 515cm²
- Mms
- 61g
- Xmax
- 8.6mm
- Vd †
- 443cm³
Power and response
- Sensitivity †
- 92.6dB
- Manufacturer sensitivity
- 92.5dB
- Power
- 250W
- Impedance
- 8Ω
- EBP †
- 74 · Sealed or vented
Other published values
- Cms
- 0.66mm/N
- Rms
- 3.80kg/s
- Xmech
- 48
† Calculated by bits from the published values
What this validation status means
Everything else Audio Technology lists
LF · Primary · 12″
- BL
- 12.4T·m
- Fs
- 25Hz
- Le
- 1.03mH
- Re
- 5.5Ω
- Sd
- 515cm²
- Cms
- 0.66mm/N
- Mms
- 61g
- Qes
- 0.34
- Qms
- 2.5
- Qts
- 0.30
- Rms
- 3.80kg/s
- SPL
- 92.6dB
- Vas
- 250L
- Xmax
- 8.6mm
- Xmech
- 48
- Power
- 250W
- Impedance
- 8Ω
- Sensitivity
- 92.5dB
- Calculated sensitivity †
- 92.6dB
- Manufacturer sensitivity
- 92.5dB
02
Compare
Same-size drivers, compared with the 12 B 77 25 10. Clear differences are green when better and red when worse.
This driver12 B 77 25 10
Best price
–
Fs
25 Hz
Qts
0.30
Vas
250 L
BL
12.4 T·m
Xmax
8.6 mm
Sensitivity
92.6 dB
Power
250 W
MonacorSP-300P
£92.52Fs30 Hz +20%, worse
Qts0.31 +3%
Vas266 L +6%
BL11.7 T·m −6%
Xmax2.5 mm −71%, worse
Sensitivity94.9 dB +2.3, better
Dayton AudioSD315A-88
£97.57Fs24 Hz −3%
Qts0.33 +10%, worse
Vas151.7 L −39%, better
BL11.9 T·m −4%
Xmax7 mm −19%, worse
Sensitivity89.7 dB −2.9, worse

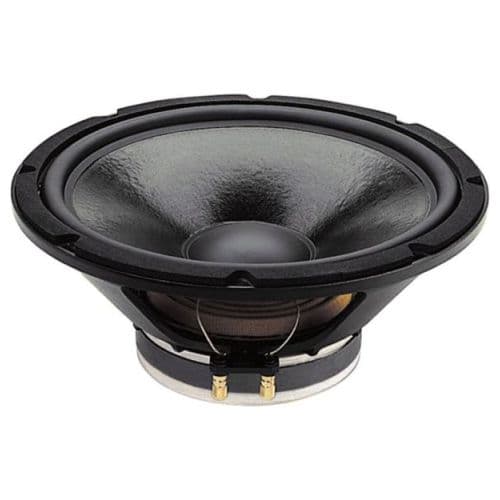

CIAREHW321
£113.81Fs27 Hz +8%
Qts0.33 +10%, worse
Vas205 L −18%, better
BL13.2 T·m +6%
Xmax7.3 mm −15%, worse
Sensitivity92.4 dB –
SB AcousticsSB34SWNRX-S75-6
£158.91Fs19 Hz −24%, better
Qts0.32 +7%
Vas164 L −34%, better
BL15.4 T·m +24%, better
Xmax22 mm +156%, better
Sensitivity87.2 dB −5.4, worse

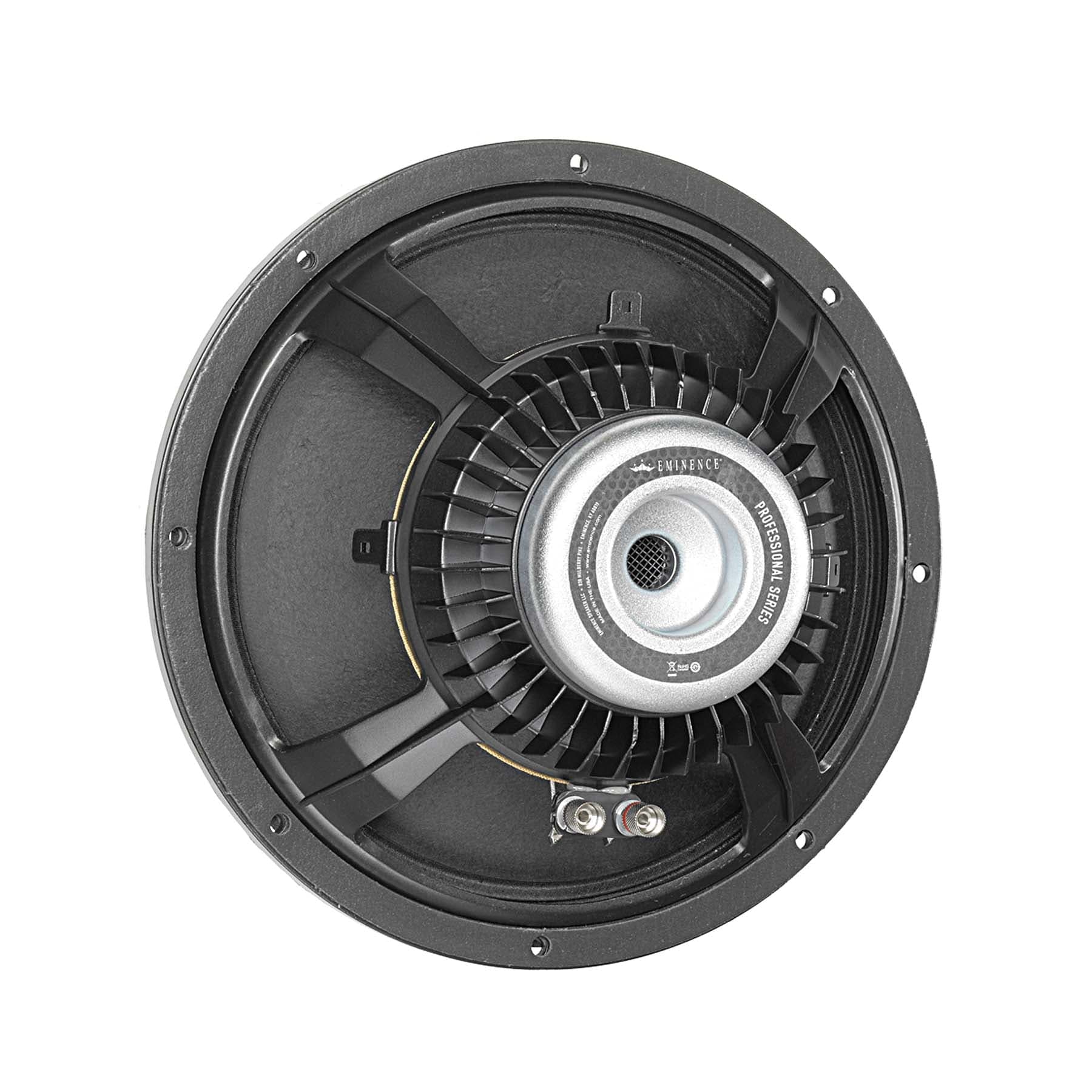

EminenceKAPPALITE 3012LF
£175.00Fs37 Hz +48%, worse
Qts0.32 +7%
Vas106.7 L −57%, better
BL16.7 T·m +35%, better
Xmax9.1 mm +6%
Sensitivity94 dB +1.4
EminenceLAB 12C
£195.83Fs23 Hz −8%
Qts0.33 +10%, worse
Vas128.3 L −49%, better
BL13.4 T·m +8%
Xmax13 mm +51%, better
Sensitivity88.6 dB −4, worse
ETON12-612/C8/62 RP
£212.16Fs30 Hz +20%, worse
Qts0.32 +7%
Vas134 L −46%, better
BL15.7 T·m +27%, better
Xmax8.5 mm –
Sensitivity92.3 dB –
Eighteen Sound12LW1400
£260.72Fs45 Hz +80%, worse
Qts0.30 –
Vas55 L −78%, better
BL20 T·m +61%, better
Xmax8.3 mm −4%
Sensitivity94 dB +1.4
Eighteen Sound12NTLW3500
£289.45Fs53 Hz +112%, worse
Qts0.33 +10%, worse
Vas45 L −82%, better
BL19.5 T·m +57%, better
Xmax8.3 mm −3%
Sensitivity94.8 dB +2.2, better
Scanspeak30W/4558T00
£297.05Fs17 Hz −32%, better
Qts0.32 +7%
Vas197 L −21%, better
BL10.5 T·m −15%, worse
Xmax12.5 mm +45%, better
Sensitivity86.6 dB −6, worse

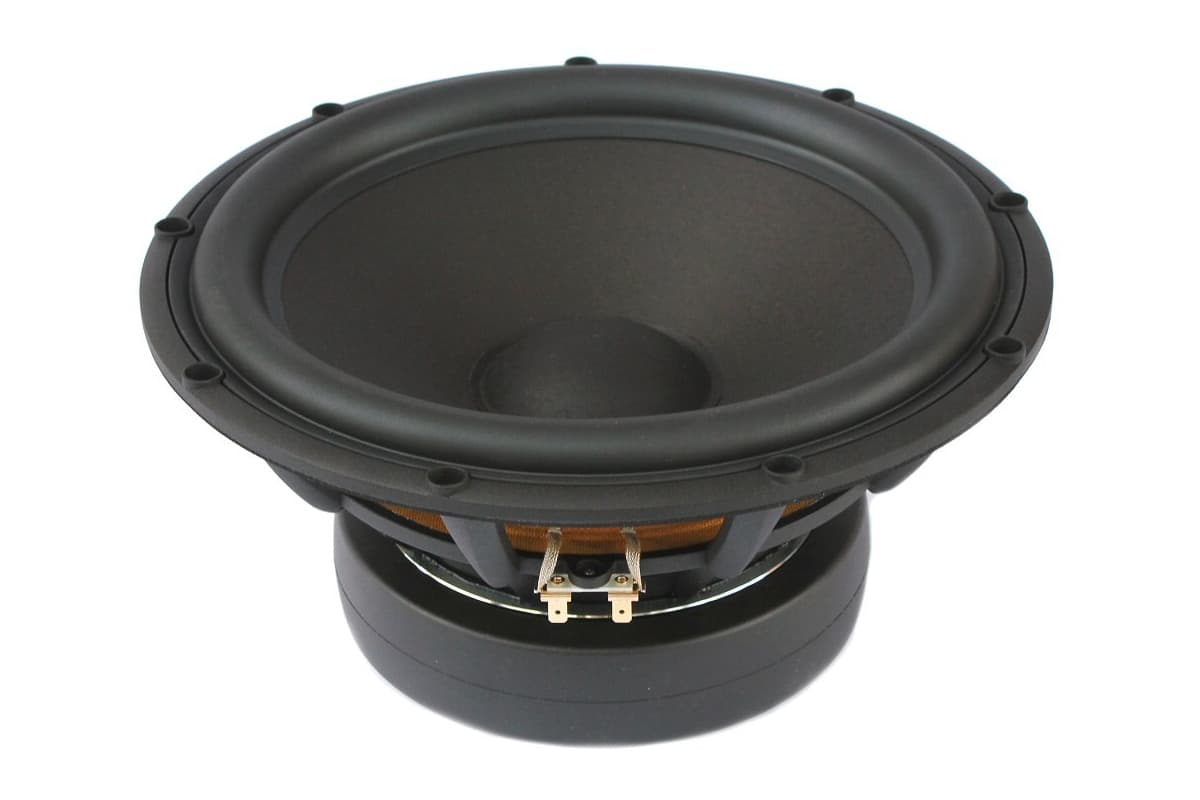

Scanspeak32W/8878T01
£594.13Fs19 Hz −24%, better
Qts0.33 +10%, worse
Vas234 L −6%
BL15.6 T·m +26%, better
Xmax7.5 mm −13%, worse
Sensitivity88.7 dB −3.9, worse
Scanspeak32W/4878T01
£594.13Fs23 Hz −8%
Qts0.28 −7%
Vas170 L −32%, better
BL13 T·m +5%
Xmax7 mm −19%, worse
Sensitivity90.4 dB −2.2, worse

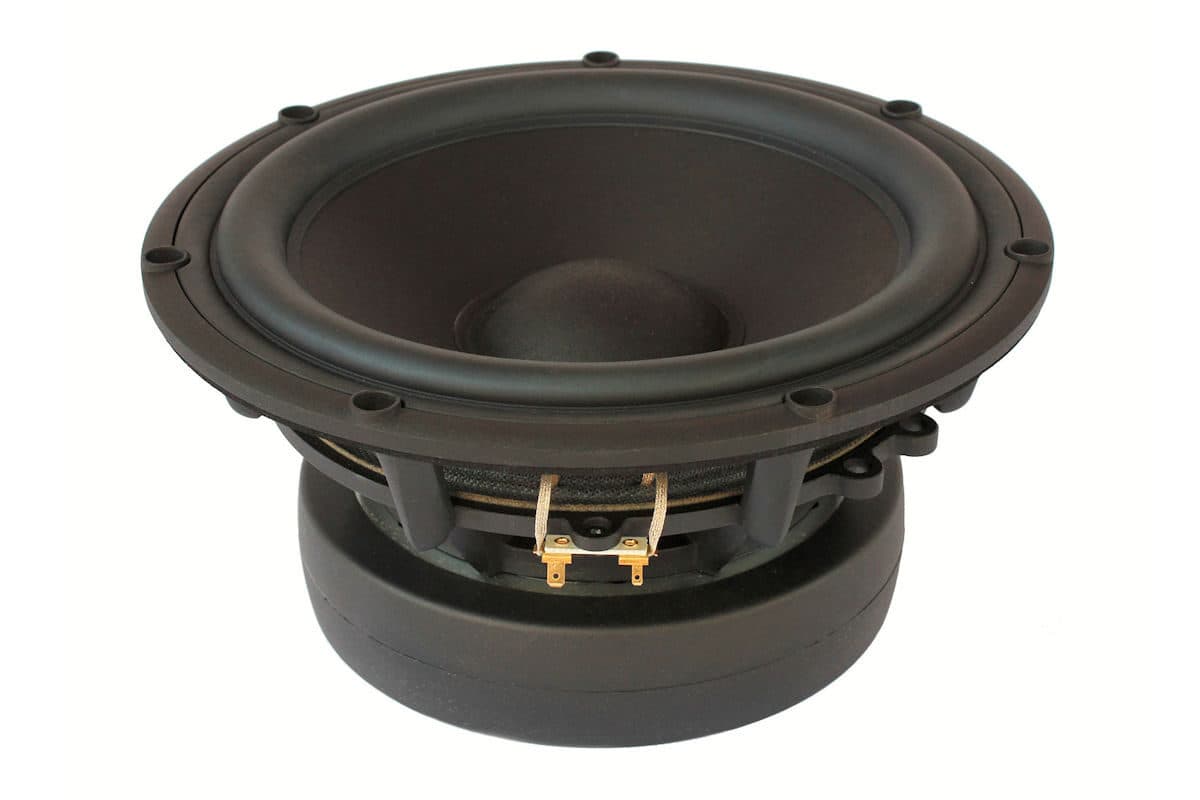

Scanspeak28W/8878T01
£594.13Fs22 Hz −12%, better
Qts0.31 +3%
Vas116 L −54%, better
BL14.9 T·m +20%, better
Xmax7.5 mm −13%, worse
Sensitivity87.8 dB −4.8, worse
Scanspeak28W/4878T00
£594.13Fs18 Hz −28%, better
Qts0.30 –
Vas127 L −49%, better
BL11.2 T·m −10%
Xmax14 mm +63%, better
Sensitivity85.7 dB −6.9, worse

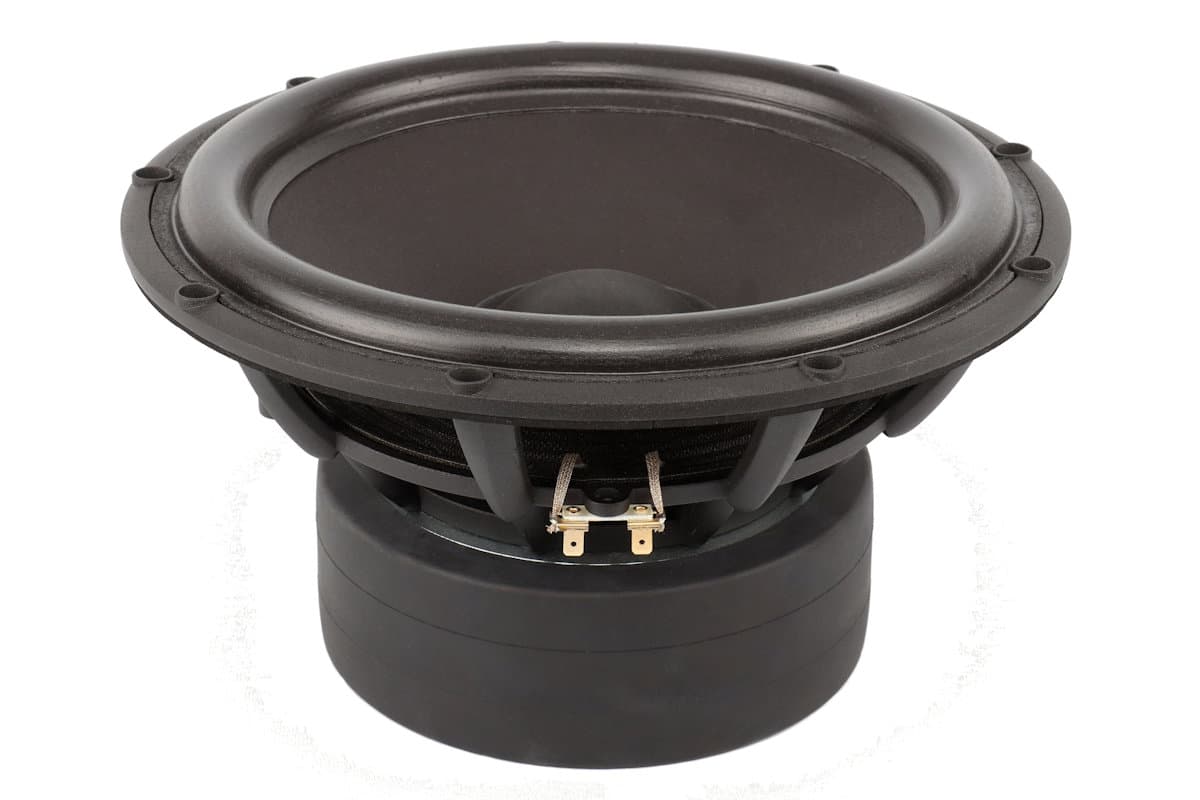

Scanspeak32W/8878T11
£653.55Fs21 Hz −16%, better
Qts0.26 −13%, better
Vas235 L −6%
BL16.5 T·m +33%, better
Xmax7.5 mm −13%, worse
Sensitivity90.9 dB −1.7
Scanspeak32W/4878T00
£654.19Fs18 Hz −28%, better
Qts0.32 +7%
Vas204 L −18%, better
BL12.5 T·m –
Xmax14 mm +63%, better
Sensitivity87.6 dB −5, worse
CelestionFTR12-4075F
No current priceFs37 Hz +48%, worse
Qts0.27 −9%
Vas89.2 L −64%, better
BL12.6 T·m –
Xmax9 mm +5%
Sensitivity94 dB +1.4
Audio Technology12 D 77 25 10 KAP
No current priceFs19 Hz −24%, better
Qts0.25 −17%, better
Vas340 L +36%, worse
BL14 T·m +13%, better
Xmax8.6 mm –
Sensitivity91.6 dB −1
Oberton12NB601
No current priceFs50 Hz +102%, worse
Qts0.30 –
Vas38.7 L −85%, better
BL22.9 T·m +85%, better
Xmax8.8 mm –
Sensitivity94 dB +1.4
ETON11-612/C8/50 RP
No current priceFs24 Hz −4%
Qts0.29 −3%
Vas152 L −39%, better
BL11.4 T·m −8%
Xmax5 mm −42%, worse
Sensitivity90.5 dB −2.1, worse
Sica12 SR 4 CP
No current priceFs38 Hz +52%, worse
Qts0.30 –
Vas41.7 L −83%, better
BL24 T·m +94%, better
Xmax9 mm +5%
Sensitivity90.7 dB −1.9
Supravox285 GMF
No current priceFs48 Hz +91%, worse
Qts0.33 +10%, worse
Vas157 L −37%, better
BL10.6 T·m −15%, worse
Xmax3.4 mm −60%, worse
Sensitivity99 dB +6.4, better
SB AcousticsWO34HC-8
No current priceFs20 Hz −19%, better
Qts0.29 −3%
Vas238 L −5%
BL19 T·m +53%, better
Xmax16.6 mm +93%, better
Sensitivity90.2 dB −2.4, worse
BMS12N804
No current priceFs39 Hz +56%, worse
Qts0.29 −3%
Vas71 L −72%, better
BL20.4 T·m +65%, better
Xmax8 mm −7%
Sensitivity93.4 dB +0.8
Acoustic EleganceTD12X-4
No current priceFs34 Hz +36%, worse
Qts0.28 −7%
Vas160 L −36%, better
BL10.1 T·m −19%, worse
Xmax14 mm +63%, better
Sensitivity95.1 dB +2.5, better
Sica12 PNS 4
No current priceFs42 Hz +67%, worse
Qts0.31 +3%
Vas50.2 L −80%, better
BL22.3 T·m +80%, better
Xmax9.5 mm +10%, better
Sensitivity92.6 dB –
Eighteen Sound12LW801
No current priceFs54 Hz +116%, worse
Qts0.33 +10%, worse
Vas41 L −84%, better
BL20.3 T·m +64%, better
Xmax8 mm −7%
Sensitivity94.8 dB +2.2, better
Acoustic EleganceTD12S-8
No current priceFs32 Hz +26%, worse
Qts0.34 +13%, worse
Vas160 L −36%, better
BL13.3 T·m +7%
Xmax14 mm +63%, better
Sensitivity93.2 dB +0.6
CelestionCF1230F
No current priceFs57 Hz +126%, worse
Qts0.32 +6%
Vas49.6 L −80%, better
BL18.3 T·m +48%, better
Xmax7.5 mm −13%, worse
Sensitivity96.2 dB +3.6, better
