Audio Technology 12 D 77 25 10 KAP 8Ω
8 Ω
No current price
- Fs
- 19Hz
- Xmax
- 8.6mm
- SPL
- 92dB
- Pe
- 250W
- BL
- 14T·m
- Vd
- 443cm³
- Qts
- 0.25
- Vas
- 340L
Audio Technology 12 D 77 25 10 KAP is a 12-inch 8 ohm LF driver rated at 250 W RMS. The validated T/S data includes Fs 19 Hz, Qts 0.25, Vas 340 L, Xmax 8.6 mm, sensitivity 91.6 dB, plus 443 cm³ Vd and 73 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 19Hz
- Qts
- 0.25
- Qes
- 0.26
- Qms
- 5.5
- Vas
- 340L
- Re
- 5.5Ω
- Le
- 1.05mH
Motor and cone
- BL
- 14T·m
- Sd
- 515cm²
- Mms
- 78g
- Xmax
- 8.6mm
- Vd †
- 443cm³
Power and response
- Sensitivity †
- 91.6dB
- Manufacturer sensitivity
- 91.5dB
- Power
- 250W
- Impedance
- 8Ω
- EBP †
- 73 · Sealed or vented
Other published values
- Cms
- 0.90mm/N
- Rms
- 1.69kg/s
- Xmech
- 48
† Calculated by bits from the published values
What this validation status means
Everything else Audio Technology lists
LF · Primary · 12″
- BL
- 14T·m
- Fs
- 19Hz
- Le
- 1.05mH
- Re
- 5.5Ω
- Sd
- 515cm²
- Cms
- 0.90mm/N
- Mms
- 78g
- Qes
- 0.26
- Qms
- 5.5
- Qts
- 0.25
- Rms
- 1.69kg/s
- SPL
- 91.6dB
- Vas
- 340L
- Xmax
- 8.6mm
- Xmech
- 48
- Power
- 250W
- Impedance
- 8Ω
- Sensitivity
- 91.5dB
- Calculated sensitivity †
- 91.6dB
- Manufacturer sensitivity
- 91.5dB
02
Compare
Same-size drivers, compared with the 12 D 77 25 10 KAP. Clear differences are green when better and red when worse.
This driver12 D 77 25 10 KAP
Best price
–
Fs
19 Hz
Qts
0.25
Vas
340 L
BL
14 T·m
Xmax
8.6 mm
Sensitivity
91.6 dB
Power
250 W
FaitalPRO12FH510
£163.54Fs45 Hz +137%, worse
Qts0.24 −4%
Vas81.3 L −76%, better
BL18.9 T·m +35%, better
Xmax7.5 mm −13%, worse
Sensitivity96.7 dB +5.1, better
FaitalPRO12FH530
£177.15Fs45 Hz +137%, worse
Qts0.26 +4%
Vas74.1 L −78%, better
BL18.9 T·m +35%, better
Xmax7.5 mm −13%, worse
Sensitivity96 dB +4.4, better
FaitalPRO12FH500
£180.28Fs45 Hz +137%, worse
Qts0.25 –
Vas87.3 L −74%, better
BL17.5 T·m +25%, better
Xmax7.5 mm −13%, worse
Sensitivity96.9 dB +5.3, better
B&C12TBX100
£201.73Fs42 Hz +121%, worse
Qts0.26 +4%
Vas37.5 L −89%, better
BL25.5 T·m +82%, better
Xmax9 mm +5%
Sensitivity92.2 dB +0.6
BMS12S330
£204.98Fs29 Hz +51%, worse
Qts0.24 −4%
Vas85.5 L −75%, better
BL23 T·m +64%, better
Xmax8 mm −7%
Sensitivity91.1 dB −0.5
B&C12NDL88
£211.05Fs51 Hz +168%, worse
Qts0.27 +8%
Vas52 L −85%, better
BL19.9 T·m +42%, better
Xmax8 mm −7%
Sensitivity95.8 dB +4.2, better
Beyma12MC700ND
£217.96Fs51 Hz +168%, worse
Qts0.24 −4%
Vas58 L −83%, better
BL21.6 T·m +54%, better
Xmax7 mm −19%, worse
Sensitivity96.7 dB +5.1, better
Eighteen Sound12NDA520
£230.40Fs50 Hz +163%, worse
Qts0.27 +8%
Vas111 L −67%, better
BL14.4 T·m –
Xmax4 mm −53%, worse
Sensitivity99 dB +7.4, better
FaitalPRO12HP1020
£235.63Fs55 Hz +189%, worse
Qts0.27 +8%
Vas38.6 L −89%, better
BL24.3 T·m +74%, better
Xmax9 mm +5%
Sensitivity95.6 dB +4, better
FaitalPRO12FX600
£247.20Fs48 Hz +153%, worse
Qts0.24 −4%
Vas44.4 L −87%, better
BL25.3 T·m +81%, better
Xmax9.9 mm +15%, better
Sensitivity95 dB +3.4, better
SB AcousticsWO34HC-4
£279.42Fs20 Hz +5%
Qts0.23 −8%
Vas233 L −31%, better
BL15.1 T·m +8%
Xmax16.6 mm +93%, better
Sensitivity90.8 dB −0.8
Beyma12P1000ND
£305.27Fs47 Hz +147%, worse
Qts0.26 +4%
Vas49 L −86%, better
BL23.5 T·m +68%, better
Xmax8 mm −7%
Sensitivity94.8 dB +3.2, better
Sica12 S 4 PL
£338.19Fs40 Hz +113%, worse
Qts0.25 –
Vas57 L −83%, better
BL23.5 T·m +68%, better
Xmax7.5 mm −13%, worse
Sensitivity93.6 dB +2, better
Scanspeak28W/4878T01
£593.28Fs23 Hz +21%, worse
Qts0.26 +4%
Vas104 L −69%, better
BL12 T·m −14%, worse
Xmax7 mm −19%, worse
Sensitivity88.7 dB −2.9, worse
Scanspeak32W/4878T01
£593.28Fs23 Hz +21%, worse
Qts0.28 +12%, worse
Vas170 L −50%, better
BL13 T·m −7%
Xmax7 mm −19%, worse
Sensitivity90.4 dB −1.2
Scanspeak32W/8878T11
£652.61Fs21 Hz +11%, worse
Qts0.26 +4%
Vas235 L −31%, better
BL16.5 T·m +18%, better
Xmax7.5 mm −13%, worse
Sensitivity90.9 dB −0.7

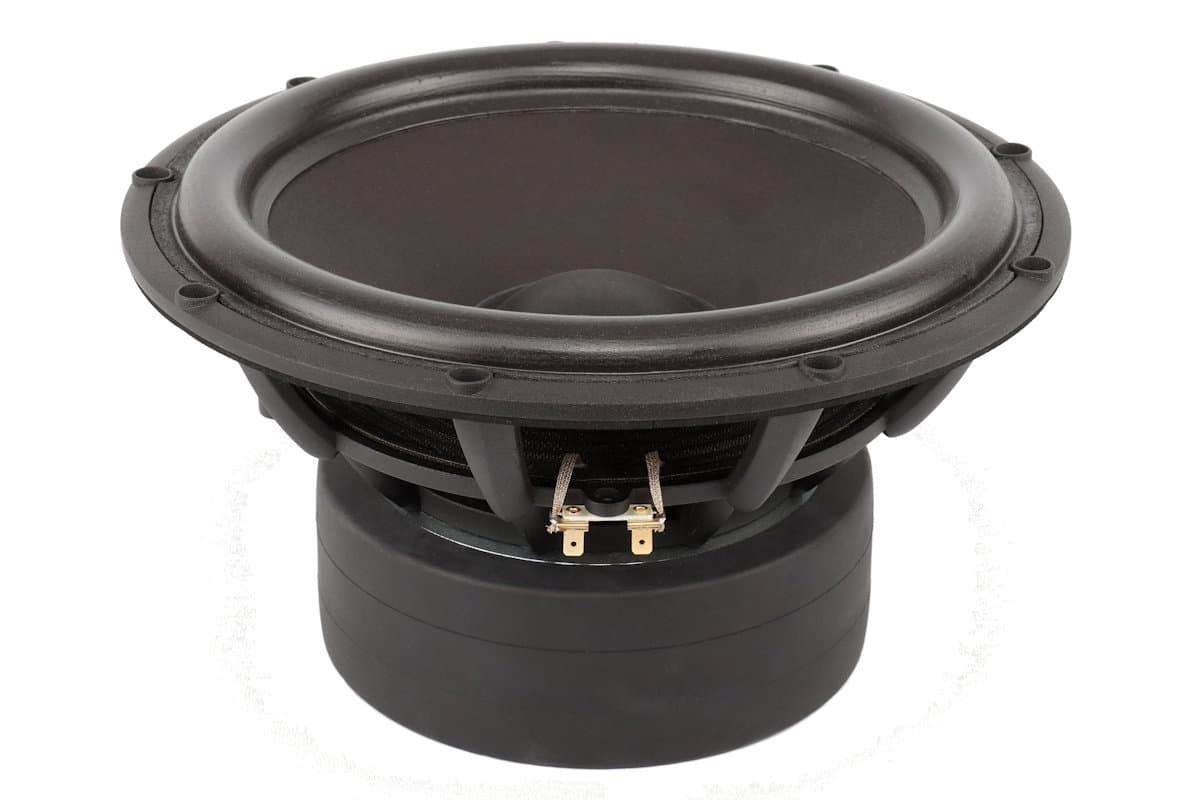

Scanspeak32W/4878T11
